Description
SCAM4K Series Camera Application
The SCAM4K series camera is intended for acquisition of digital images from stereo microscopes, biological microscopes, or online interactive teaching. The basic characteristic is listed as below:
Sony Exmor/STARVISback-illuminated CMOS sensor
4K HDMI/ WiFi/ USB3.0 multiple video outputs
4K/1080P auto switching according to monitor resolution
SD card/USB flash drive for captured image and video storage, support local preview and playback
Embedded XCamView for the control of the camera and image processing
Excellent ISP with local tone mapping and 3D denoising
ToupView/ToupLite software for PC
iOS/Android applications for smart phones or tablets
4K HDMI/ WiFi/ USB3.0 multiple video outputs
4K/1080P auto switching according to monitor resolution
SD card/USB flash drive for captured image and video storage, support local preview and playback
Embedded XCamView for the control of the camera and image processing
Excellent ISP with local tone mapping and 3D denoising
ToupView/ToupLite software for PC
iOS/Android applications for smart phones or tablets
SCAM4K Series Camera Datasheet and Functions
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity/Dark Signal | FPS/Resolution | Binning | Exposure(ms) |
| SCAM4K8MPA | Sony IMX678(C) 1/1.8″(7.68×4.32) |
2.0×2.0 | 1364mv with 1/30s 0.15mv with 1/30s |
30@3840*2160(HDMI) 30@1920*1080(WiFi) 30@3840*2160(USB3.0) |
1×1 | 0.045~1000 |
| SCAM4K8MPB | Sony IMX585(C) 1/1.2″(11.14×6.26) |
2.9×2.9 | 1028mv with 1/30s 0.13mv with 1/30s |
30@3840*2160(HDMI) 30@1920*1080(WiFi) 30@3840*2160(USB3.0) |
1×1 | 0.014~1000 |
| Interface or Button | Function Description | |
| USB Mouse | Connect USB mouse for easy operation with embedded XCamView software | |
| USB2.0 | Connect USB flash drive to save pictures and videos Connect 5G WiFi module to transfer video wirelessly in real time |
|
| USB Video | Connect PC or other host device to realize video image transmission | |
| HDMI | Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors | |
| SD | Comply with SDIO3.0 standard and SD card could be inserted for video and images saving | |
| ON/OFF | Power switch | |
| LED | LED status indicator | |
| DC12V | Power adapter connection (12V/1A) | |
| Video Output Interface | Function Description | |
| HDMI Interface | Comply with HDMI1.4 standard 30fps@4K or 30fps@1080P |
|
| WiFi Interface | Connecting 5G WiFi adapter (USB2.0 slot) in AP/STA mode 1080P H264 format video, 8M (3840*2160) image |
|
| USB Video Interface | Connecting USB3.0 Video port of PC for video transfer H264/NV12/MJPEG format video |
|
| Other Function | Function Description | |
| Video Saving | Video format:8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate:30fps |
|
| Image Capture | 8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive | |
| Measurement Saving | Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
|
| ISP | Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function | |
| Image Operation | Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, Compare(Comparison between real time video and images in SD card or USB flash drive ), Embedded Files Browser, Video Playback, Measurement Function | |
| Embedded RTC(Optional) | To support accurate time on board | |
| Restore Factory Settings | Restore camera parameters to its factory status | |
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian | |
| Software Environment under WiFi/USB Video Output | ||
| White Balance | Auto White Balance | |
| Color Technique | Ultra-Fine Color Engine | |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | |
| Recording System | Still Picture or Movie | |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux |
|
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | |
| Memory: 4GB or More | ||
| Display:19″ or Larger | ||
| CD-ROM | ||
| OperatingEnvironment | ||
| Operating Temperature (in Centidegree) | -10°~ 50° | |
| Storage Temperature (in Centidegree) | -20°~ 60° | |
| Operating Humidity | 30~80%RH | |
| Storage Humidity | 10~60%RH | |
| Power Supply | DC 12V/1A Adapter | |

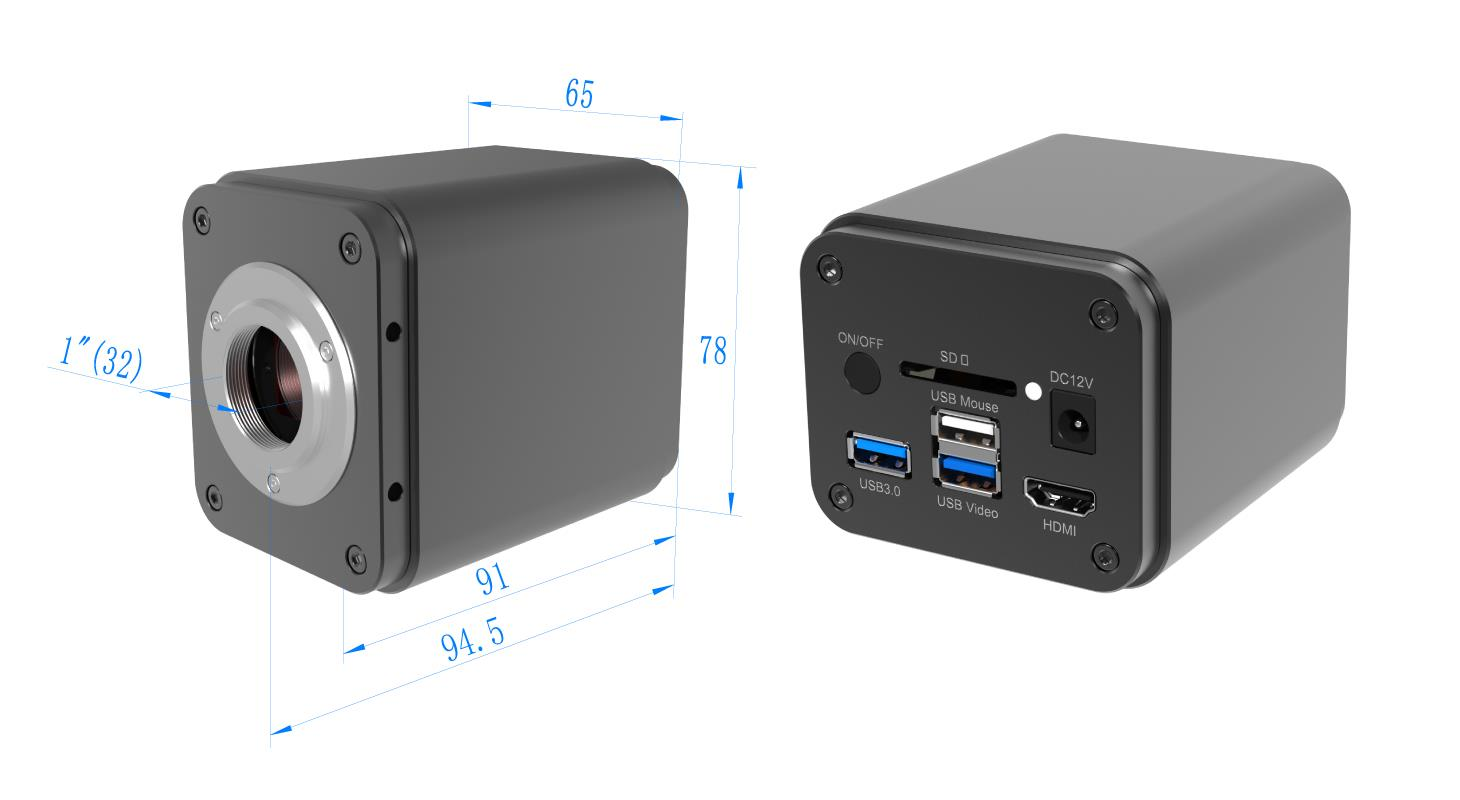

Dimension of SCAM4K Series Camera
Dimension of SCAM4K Series Camera
SCAMK Series Camera Packing Information
Packing
SCAM4K Series Camera Packing Information

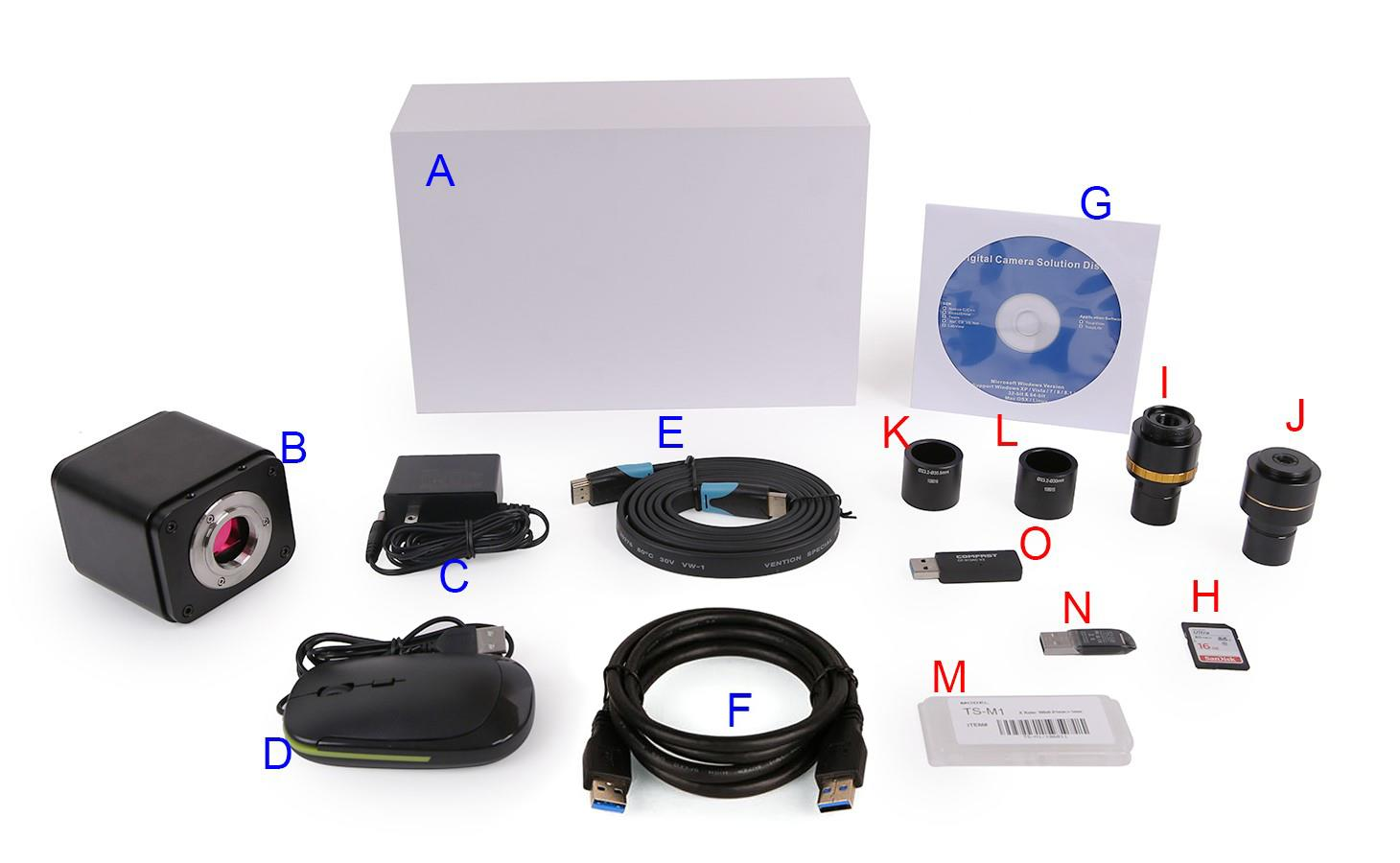

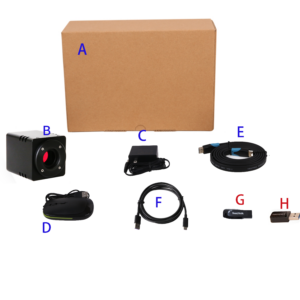

| Standard Packing List | |||
| A | Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.57Kg/ box) | ||
| B | SCAM4K Camera(One of the two different shapes) | ||
| C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC EMI standard: FCC Part 15 Subpart B EMS standard: EN61000-4-2,3,4,5,6 |
||
| D | USB Mouse | ||
| E | HDMI Cable | ||
| F | USB3.0 A male to A male gold-plated connectors cable /2.0m | ||
| G | CD (Driver & utilities software, Ø12cm) | ||
| Optional Accessory | |||
| H | SD Card(16G or above; Speed: class 10) | ||
| I | Adjustable lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) |
108001/AMA037 108002/AMA050 108003/AMA075 |
| J | Fixed lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) |
108005/FMA037 108006/FMA050 108007/FMA075 |
| Note: For K and L optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
| K | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | ||
| L | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | ||
| M | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
|
| N | USB flash drive | ||
| O | USB WiFi adapter | ||
NOTE: If you need optional accessories, pls feel free to contact me. I will quote seperately.
