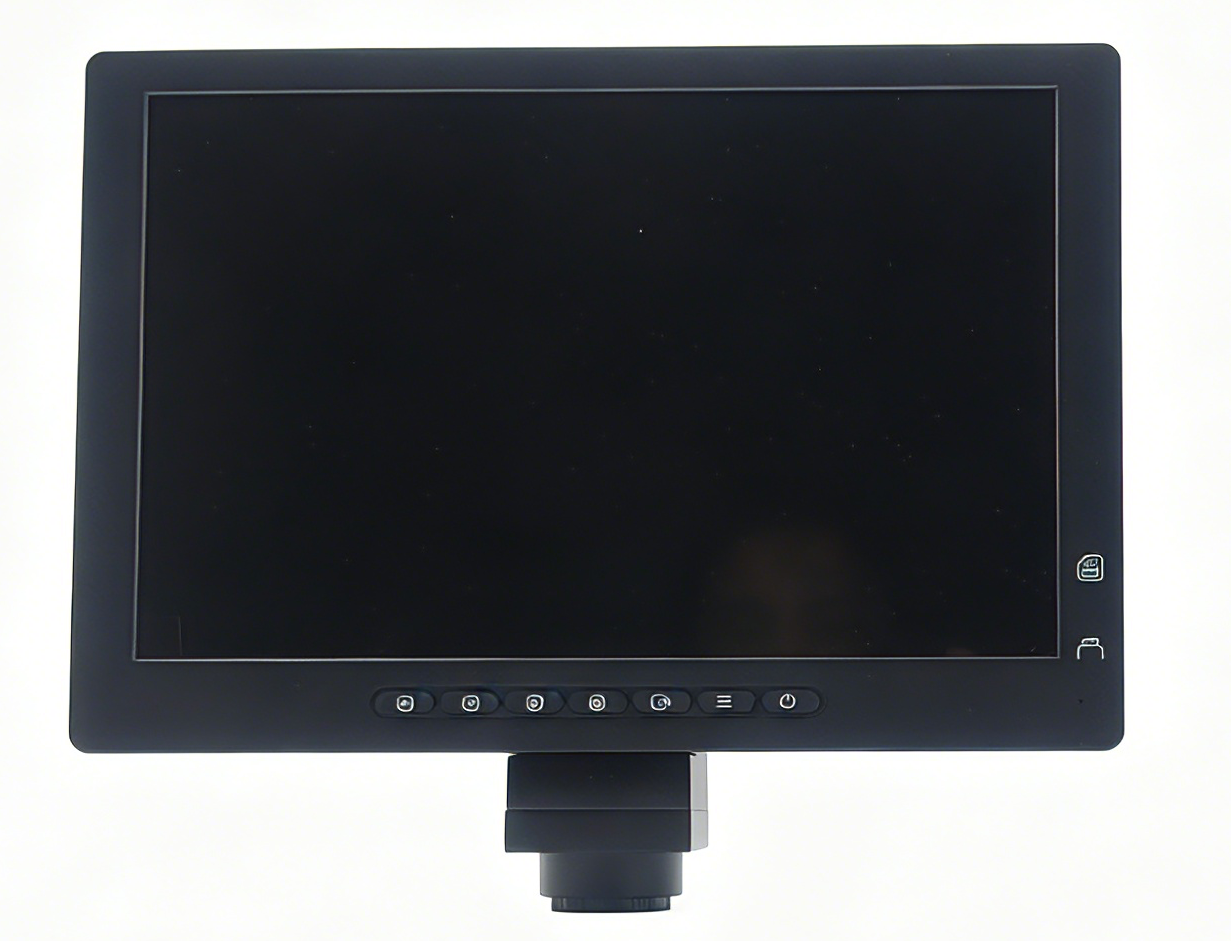

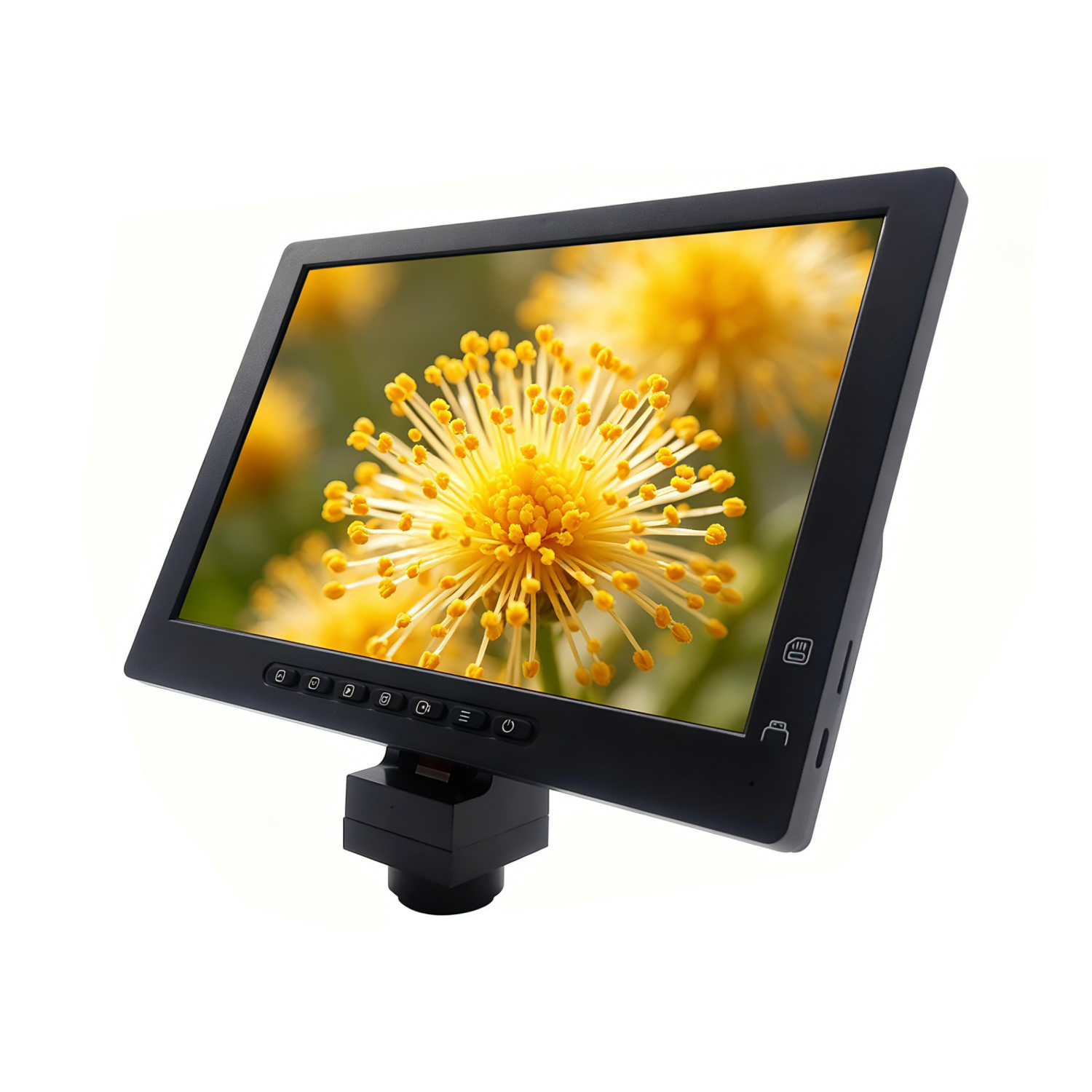

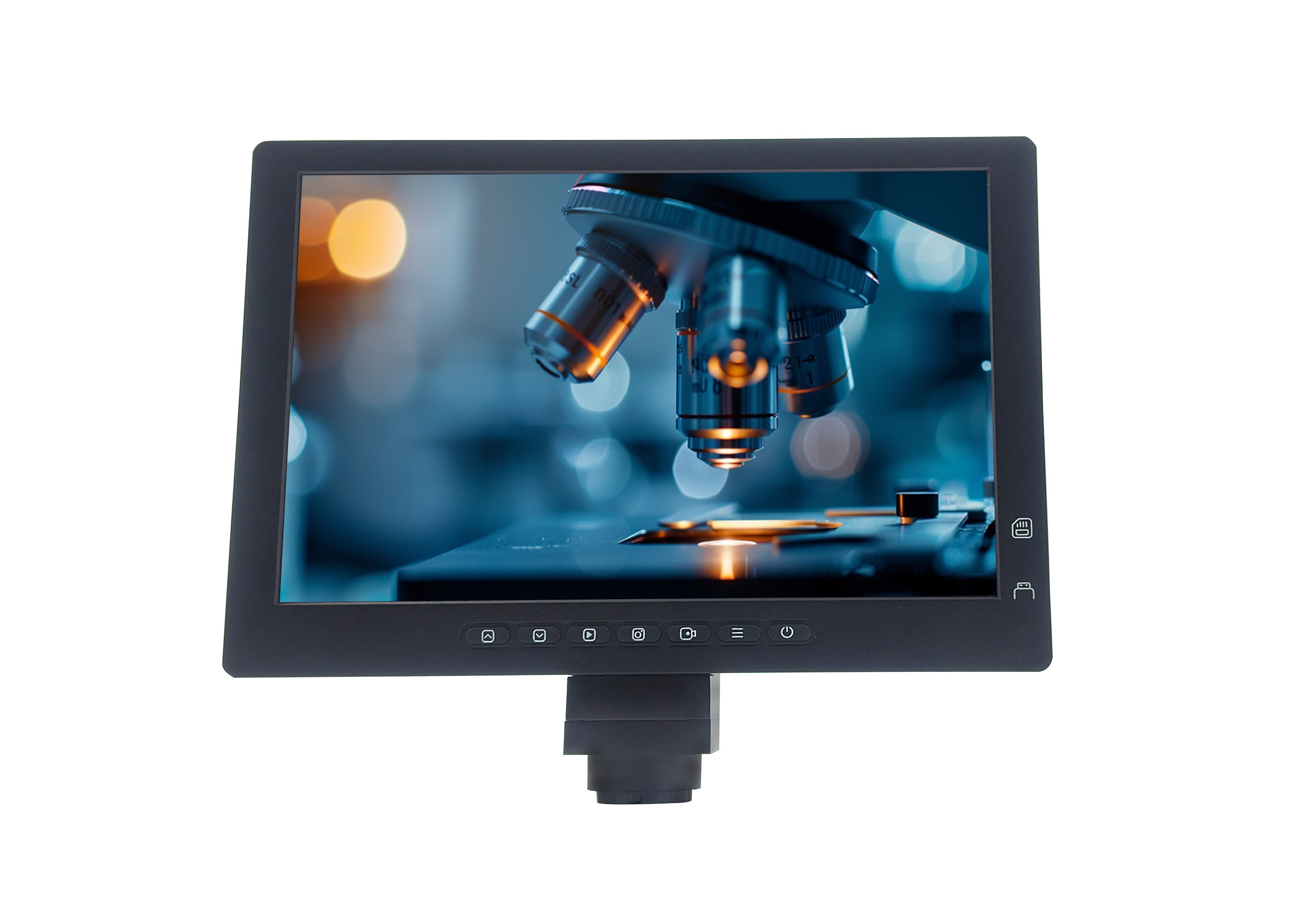

12MP AM101L 10.1” Microscope Screen All-in-one Digital Display

The AM101L is suitable for various single-lens and three-lens microscopes, compatible with both C and CS interfaces, and features an integrated high-definition camera that directly displays the observed object on a high-definition screen.

In the industrial sector, this product is widely used in applications such as PCBs, hardware components, connectors, FPCs, textiles, ticketing systems, industrial vision inspection, digital magnifying glasses, medical research, and criminal investigation. It is particularly suitable for the online monitoring of flatness and planar coplanarity of connectors, terminal blocks, and IC pins;

In the field of biology, it is widely used in research across various disciplines such as biology, bacteriology, histology, and medicinal chemistry; it can be utilized for clinical trials in medical settings, as well as for educational purposes in university laboratories.

Easily reduces physical labor intensity and enhances work efficiency.

Send Inquiry
Category:
Description

Description

Product Features:

  1. High integration: Combines photography, video recording, and an LCD display into a single unit; users can view test results at any time and easily save required images without needing to connect to a PC, thereby enhancing research and analysis efficiency;
  2. High-definition display: Equipped with a 10.1-inch full-view IPS LCD screen;
  3. High-definition camera: Equipped with a built-in high-definition digital camera featuring up to 12MP resolution and 1080p/30fps video recording capability;
  4. High-definition USB output: allows for connection to an external computer to enable data measurement, analysis, and sharing;
  5. Multiple measurement functions: crosshair, grid, scale markings, etc. (customizable);
  6. Image Flipping: Images can be flipped or mirrored;
  7. Image magnification: The image can be electronically magnified from 1X to 3.7X;

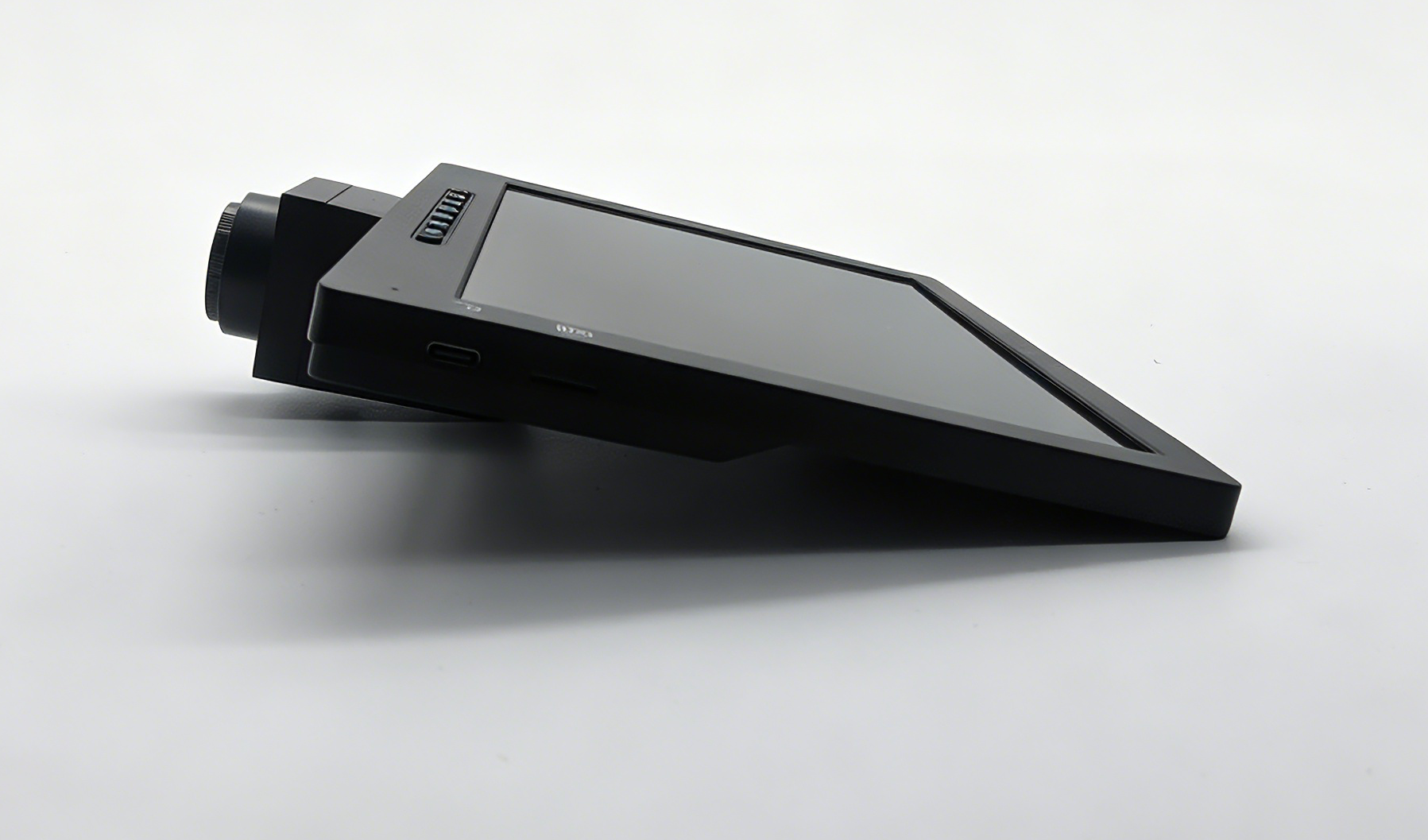

  8. 90°flip display: The screen’s front-to-back adjustment angle is 90°, enhancing viewing comfort;

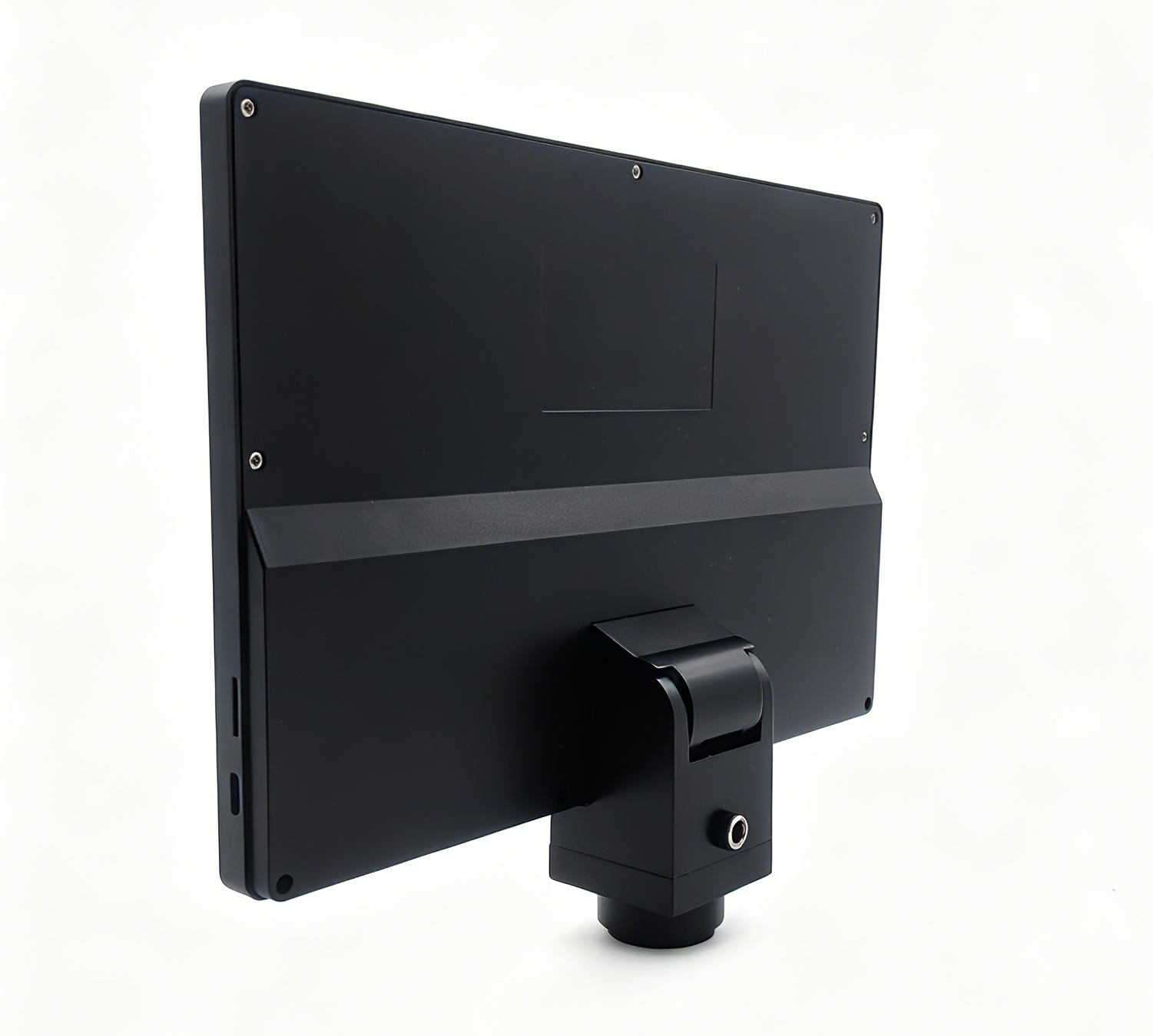

  9. Aluminum alloy flip base: Features an aluminum alloy base and a stainless steel rotating shaft, offering a low damping coefficient and exceptional durability;
  10. Strong compatibility: Supports both C and CS interfaces.

Parameter Configuration:

model Model AM101L
LCD size 10.1-inch IPS ·
resolution ratio 1280*800 ·
Digital Specifications Camera Resolution (MP) 1200w ·
Video Resolution 1080p ·
Data Storage Methods TF Card ·
Supports external devices Computer USB 2.0 Port ·
WIFI Supports WiFi live video transmission o
function basic function Photo capture, video recording, playback ·
Image Quality Adjustment Parameter Adjustment: Exposure Compensation, Brightness Adjustment, Contrast Adjustment, White Balance, Color Adjustment, Image Inversion, Mirror Inversion, Image Magnification ·
Camera Features Available in multiple resolutions, supports multiple languages, and includes TF card formatting functionality. ·
memory function Instant photo and video capture, with image preview ·
Labeling Function Crosshair, reticle, scale ·
fittings of a machine Boot screen Supports customization o
TF Card o
pack size 310*280*80 ·
weight W 1.2KG ·
power supply mode DC-12V/2A ·
Note: · Standard; o = Optional
