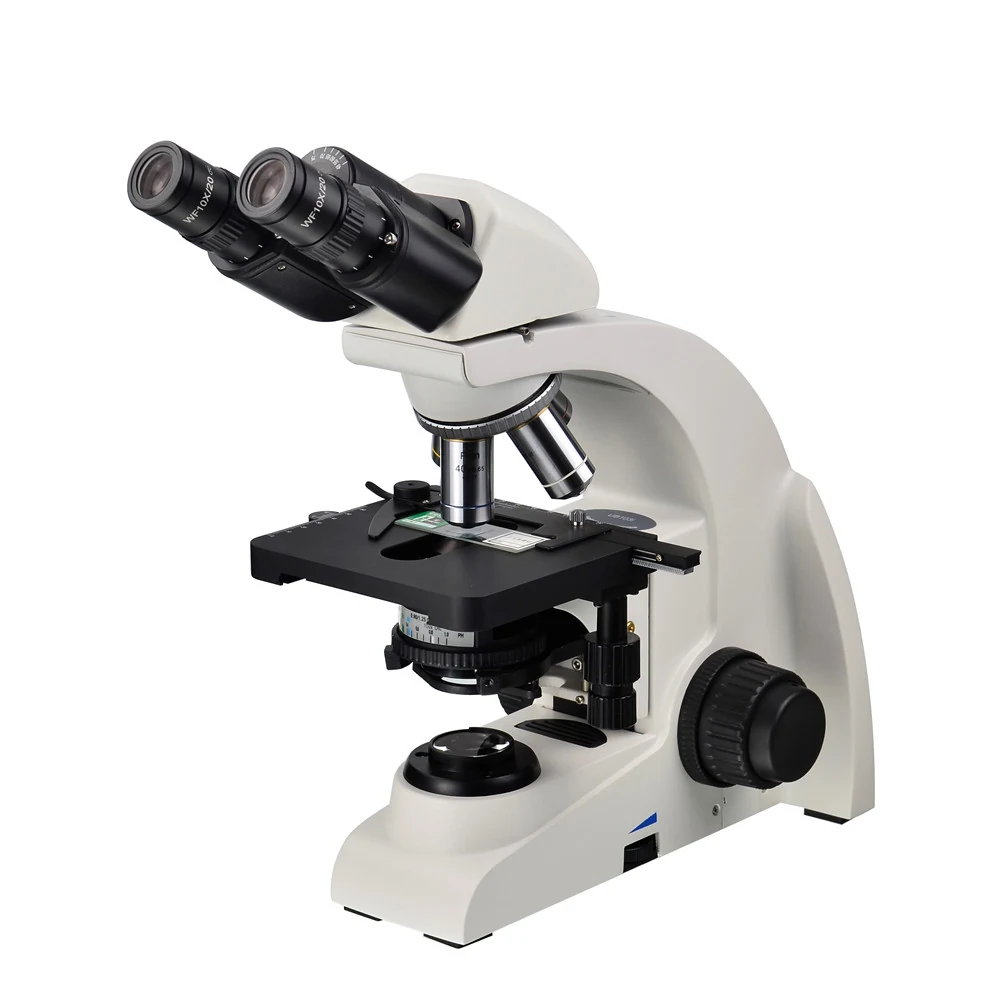

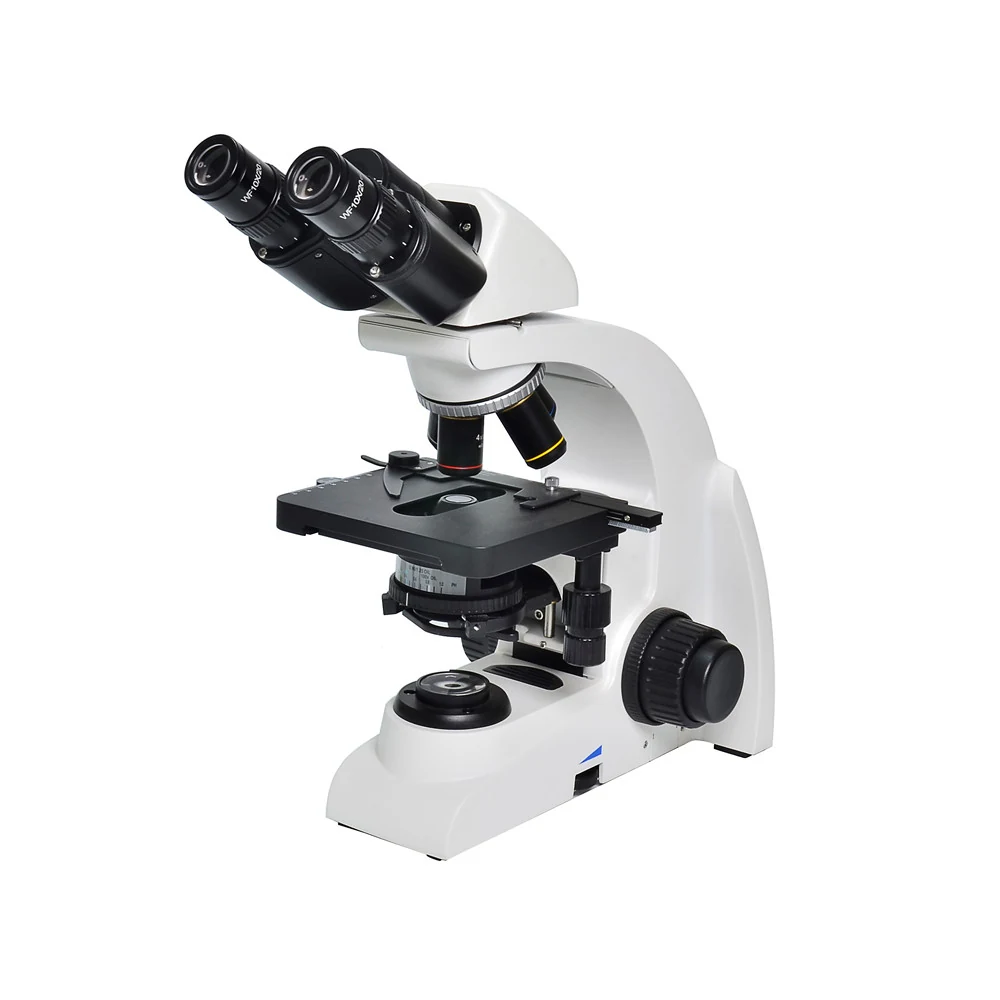

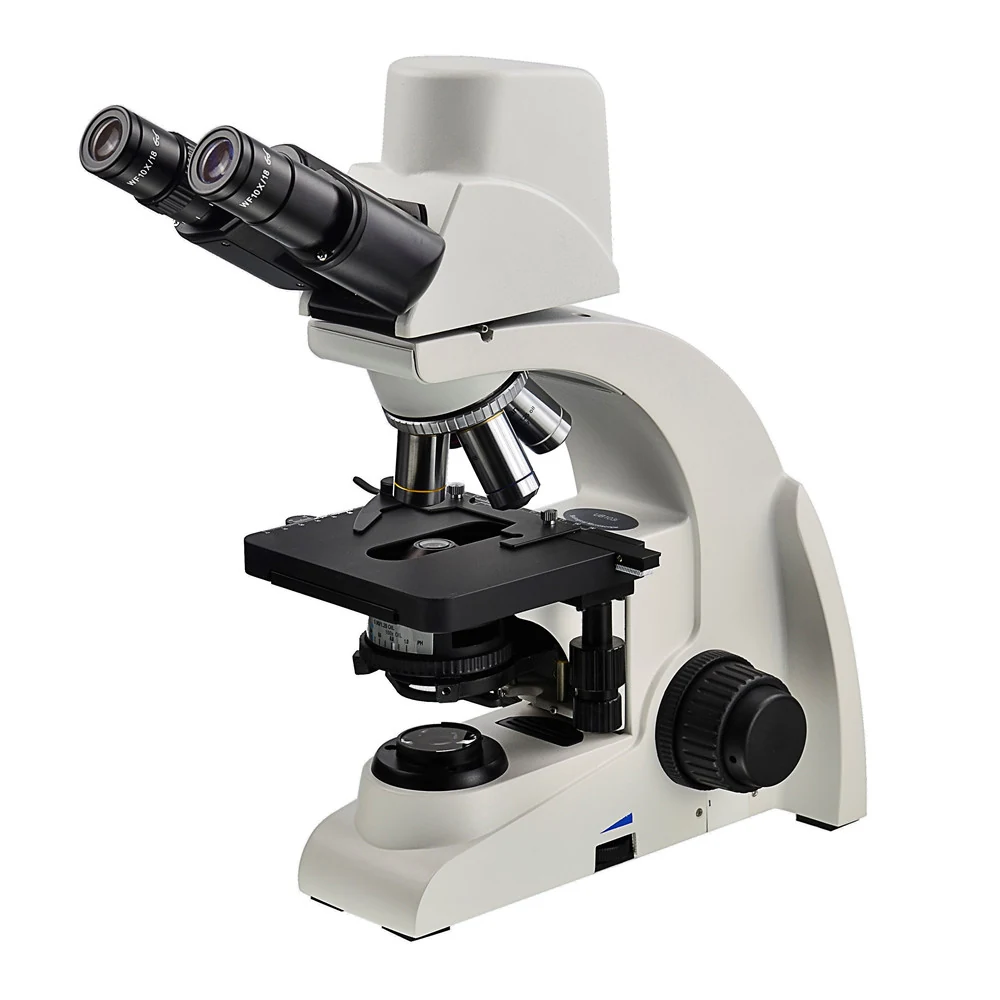

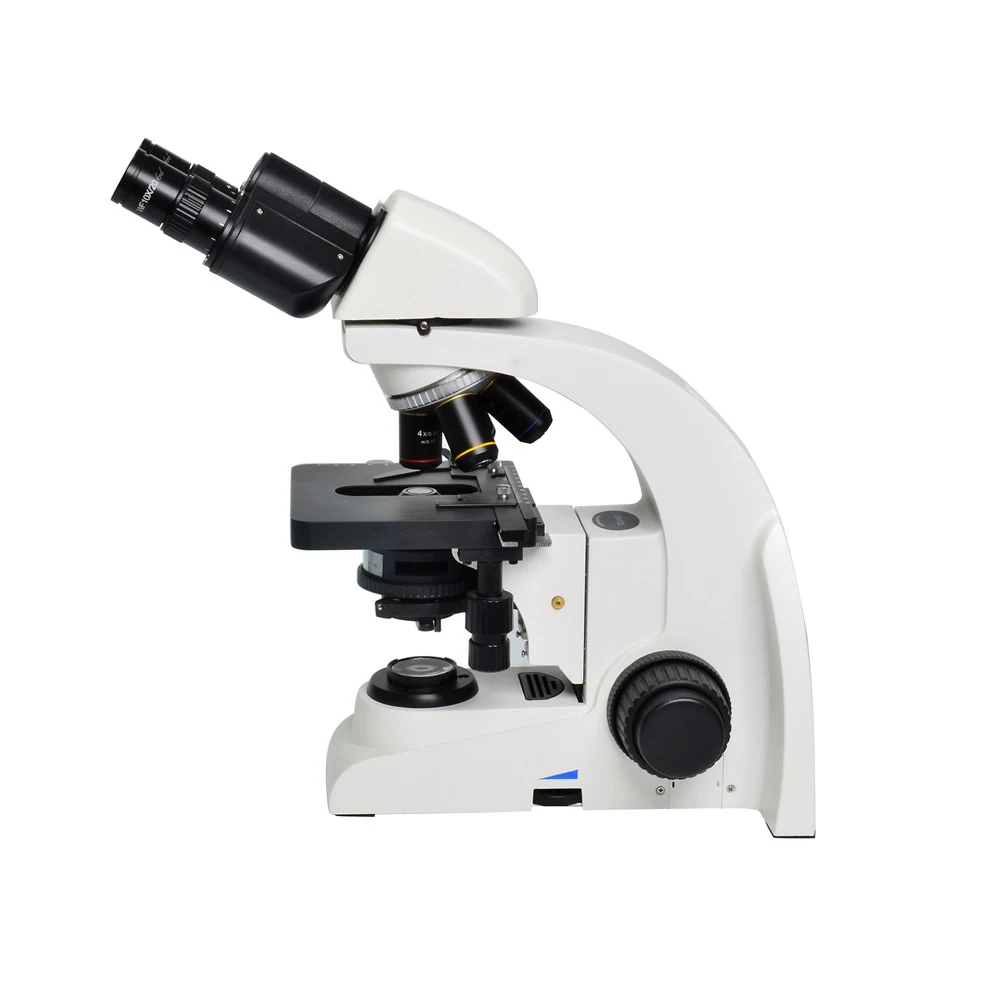

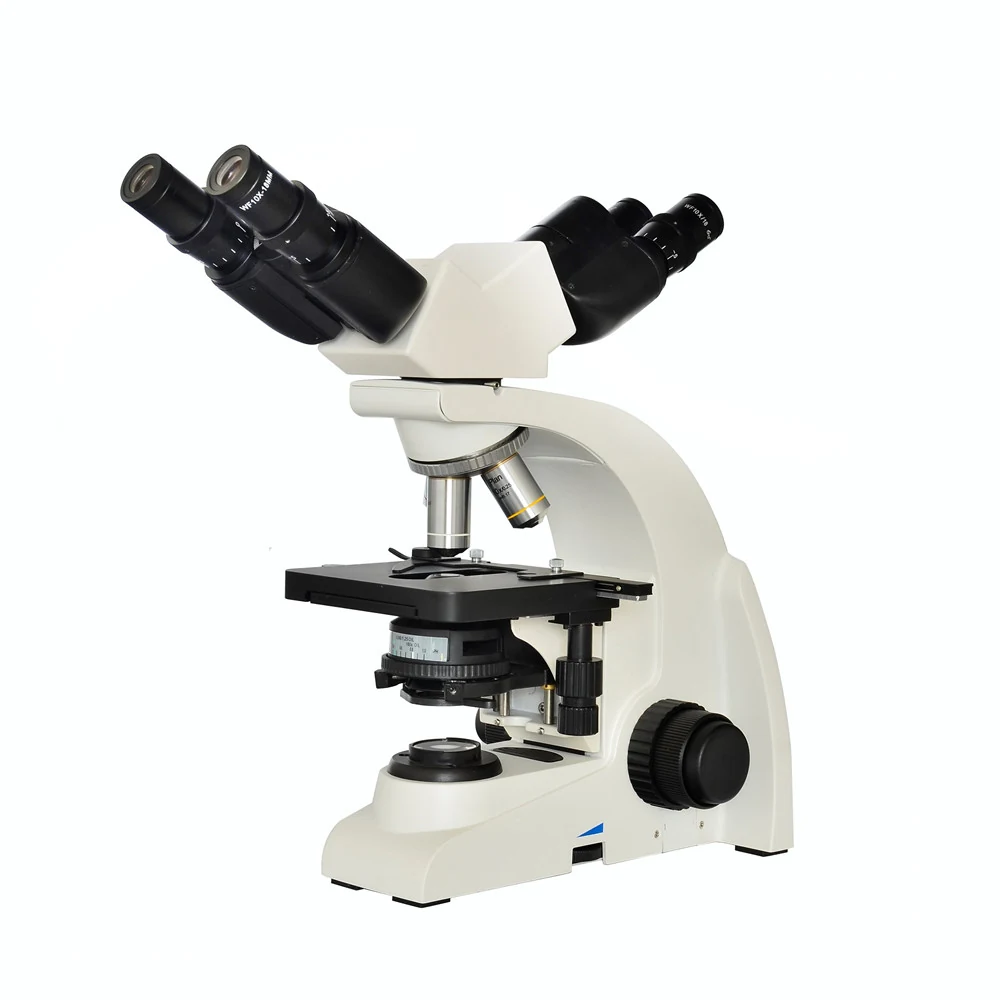

XUB100 Laboratory Biological Microscope for Hosptial Research
XUB100 is a laboratory biological microscope from Nanjing AMADA Instrument Co., Ltd. designed for hospital research and biomedical applications. The series offers both achromatic and plan achromatic configurations with binocular or trinocular observation tubes, mechanical stages, and multiple illumination options. It supports standard and optional objectives, eyepieces, phase-contrast accessories, and photo adapters for documentation.
- One-piece frame construction ensures stability and durability in clinical and research environments
- Binocular and trinocular options with adjustable interpupillary distance and 360° rotation for ergonomic viewing
- High eye-point eyepieces (up to 21 mm) allow comfortable use with glasses
- Mechanical stage with large movement range (76X52 mm) for precise slide positioning
- Supports phase-contrast objectives for enhanced contrast in transparent specimens
- Multiple illumination choices including halogen, LED, and rechargeable battery for flexible operation
Technical features
- One-piece frame construction from arm to base
- Binocular or trinocular observation tube with 30° inclined, 360° rotatable, diopter adjustable
- Interpupillary distance adjustable 52–75 mm (binocular) or 48–75 mm (binocular/trinocular)
- Plan eyepieces: WF10X/18 (21 mm eye-point), WF10X/20, WF16X/13, and point eyepieces available
- Infinity achromatic objectives: 4X N.A. 0.10, 10X N.A. 0.25, 40X(S) N.A. 0.65, 100X(S)/(Oil) N.A. 1.25
- Infinity plan achromatic objectives: 4X, 10X, 20X(S), 40X(S), 60X(S), 100X(S)/(Oil)
- Abbe condenser N.A. 1.25 with iris diaphragm
- Mechanical stage: 142X135 mm or 156X138 mm, movement range 76X52 mm or 76X54 mm
Who it is for
- Hospital clinical laboratories
- University and research institute labs
- Medical device and pharmaceutical testing facilities
- Importers sourcing laboratory microscopes for medical equipment distributors
- Distributors building a catalog of biological microscopes for clinical use
Specifications
| Model | XUB100 |
|---|---|
| Observation Tube Type | Binocular or Trinocular |
| Interpupillary Distance | 52–75 mm (binocular) / 48–75 mm (trinocular) |
| Inclination Angle | 30° |
| Rotation | 360° |
| Eyepiece Type | WF10X/18, WF10X/20, WF16X/13, point eyepieces |
| Eyepiece Eye-point | Up to 21 mm |
| Objective Types | Infinity Achromatic / Infinity Plan Achromatic |
| Objective Magnifications | 4X, 10X, 20X(S), 40X(S), 60X(S), 100X(S)/(Oil) |
| Condenser | Abbe Condenser N.A. 1.25 |
| Stage Type | Mechanical Stage |
| Stage Size | 142X135 mm or 156X138 mm |
| Stage Movement Range | 76X52 mm or 76X54 mm |
| Nosepiece | Quadruple or Quintuple, inward facing |
| Illumination | 6V20W Halogen, 3W LED (with battery), 3W LED only |
| Bulb Type | 6V20W Halogen (Osram optional), 3W LED |
| Fuse | 250V/3.15A Φ5X20 |
| Battery | 2200mAh rechargeable LED battery |
| Photo Adapter | 0.5X C-Mount, 1X C-Mount, 0.25X C-Mount |
| Filters | Blue (φ32), Green (φ32), Yellow (φ32), Frosted Glass (φ32) |
| Accessories | Power cord, dust cover, immersion oil, φ2mm Allen screw driver |
Use guide
- Select binocular or trinocular body based on need for camera documentation
- Choose eyepiece type and magnification based on required field of view and eye relief
- Select objectives based on required magnification and resolution (achromatic for routine, plan for high detail)
- Add phase-contrast objectives if observing unstained or transparent samples
- Choose illumination type based on power availability and portability needs
FAQ
What is the interpupillary distance range?
52–75 mm for binocular models, 48–75 mm for trinocular models.
Can I use phase-contrast objectives?
Yes. Phase-contrast objectives are available for both achromatic and plan achromatic configurations.
What illumination options are available?
6V20W halogen, 3W LED with rechargeable battery, or 3W LED only.
Is there a mechanical stage?
Yes. Two sizes are available: 142X135 mm or 156X138 mm with 76X52 mm or 76X54 mm movement range.
Can I connect a camera?
Yes. Use 1X C-Mount adapter for digital imaging; trinocular body required for camera integration.
What is the eye-point height of the eyepieces?
Up to 21 mm for WF10X/18 and similar high eye-point eyepieces.
Who manufactures this microscope?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
