MC100 Digital Video Measuring Microscope for Defect Inspection
Dual-core Cortex-A9 processor with FPGA+ARM architecture ensures fast image processing and stable measurement performance
View details →Product Category
Measuring Video Microscope
Measuring Video Microscope from Nanjing AMADA Instrument.
MC100-3D Digital Video Measuring Microscope for Workpiece Dimension
Real-time digital imaging with 100X maximum magnification for detailed surface and edge inspection
View details →

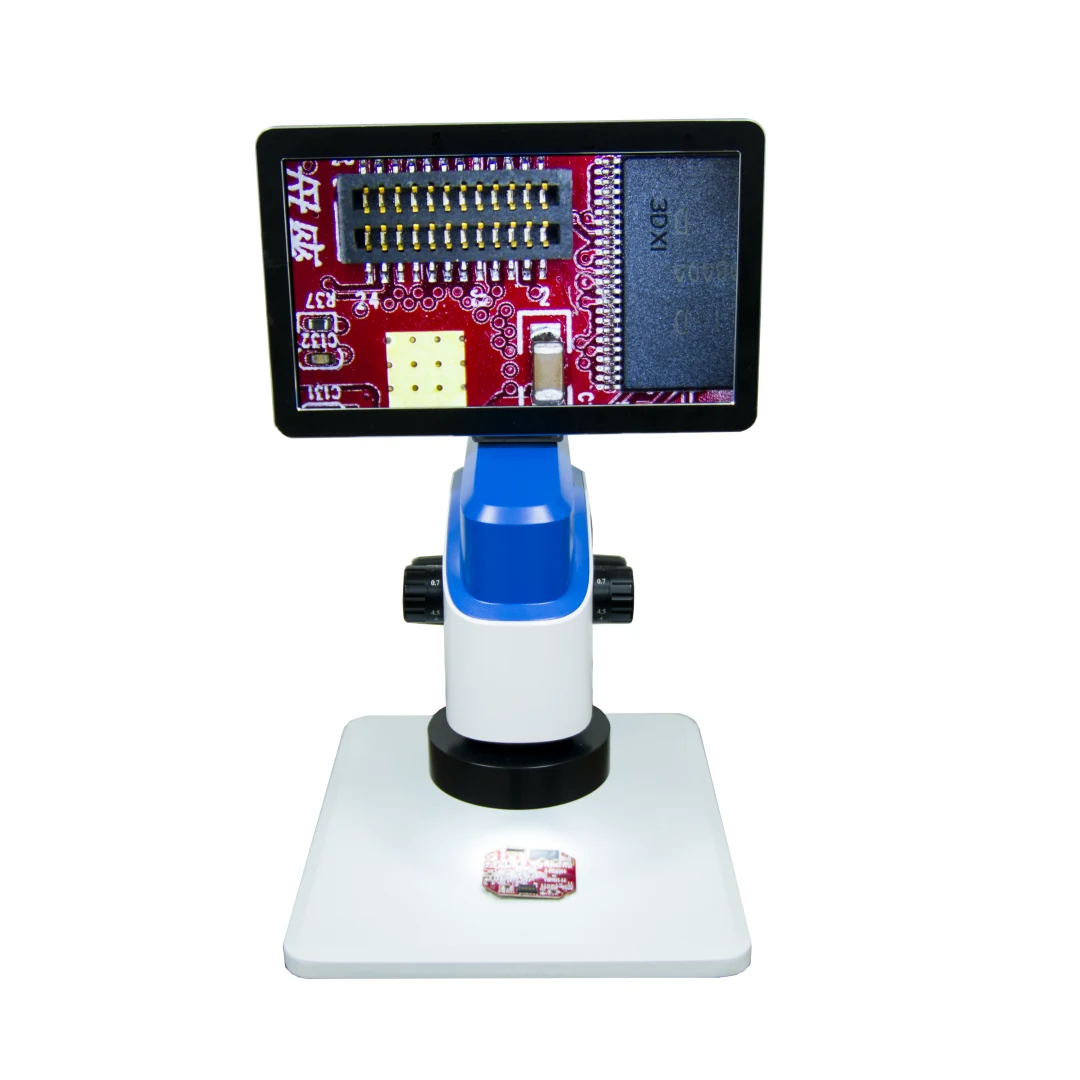

MC200 Digital Video Measuring Microscope for Defect Inspection
Integrated Linux OS with ARM processor for stable, real-time measurement processing
View details →

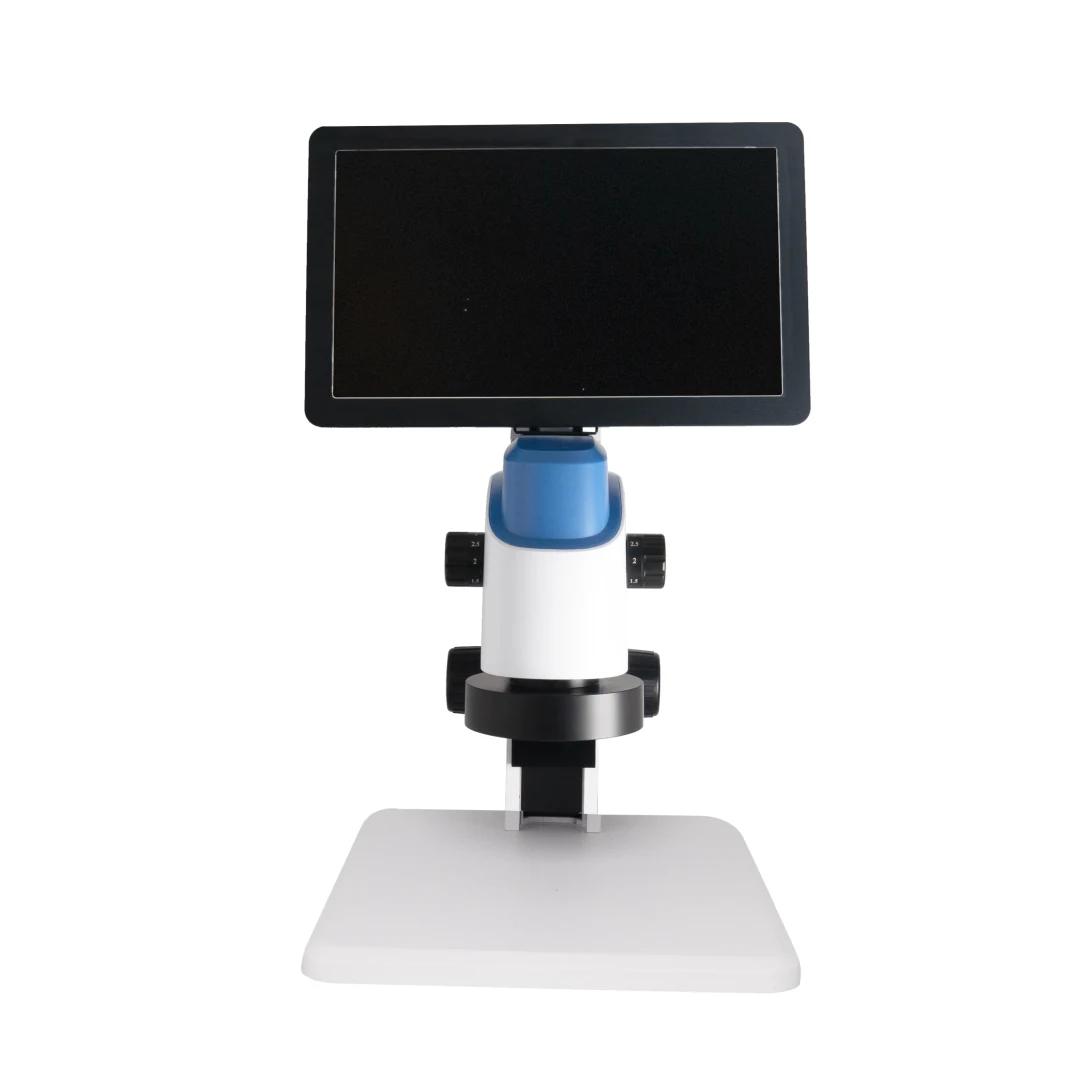

MC300 Digital Video Measuring Microscope for Workpiece Dimension
Digital video output enables real-time measurement without optical eyepiece interference
View details →

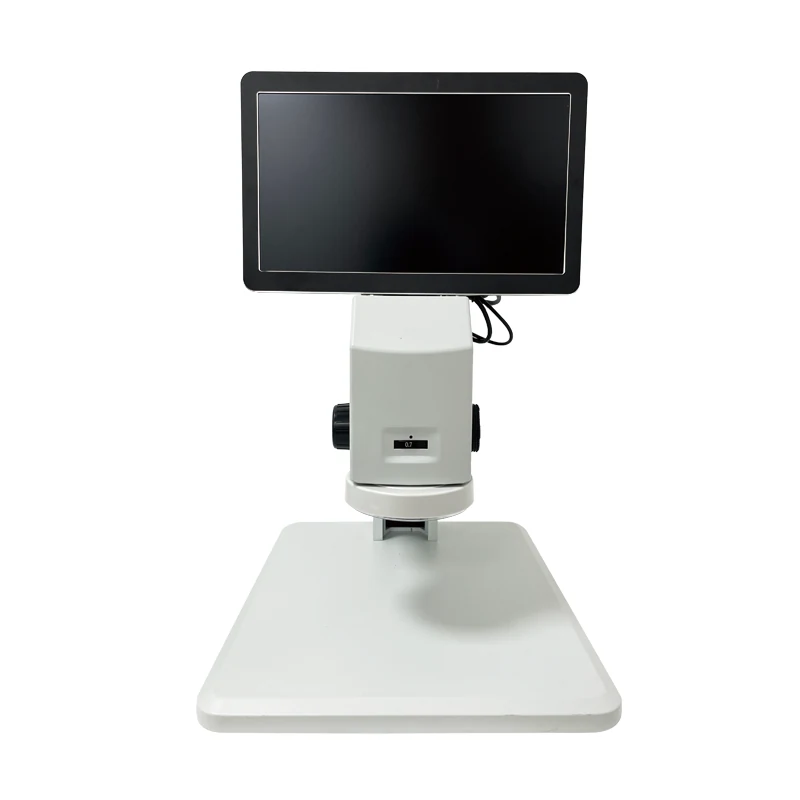

MC400 Digital Video Measuring Microscope for Defect Inspection
1920×1080P 60 frames per second video output for clear, real-time defect detection
View details →

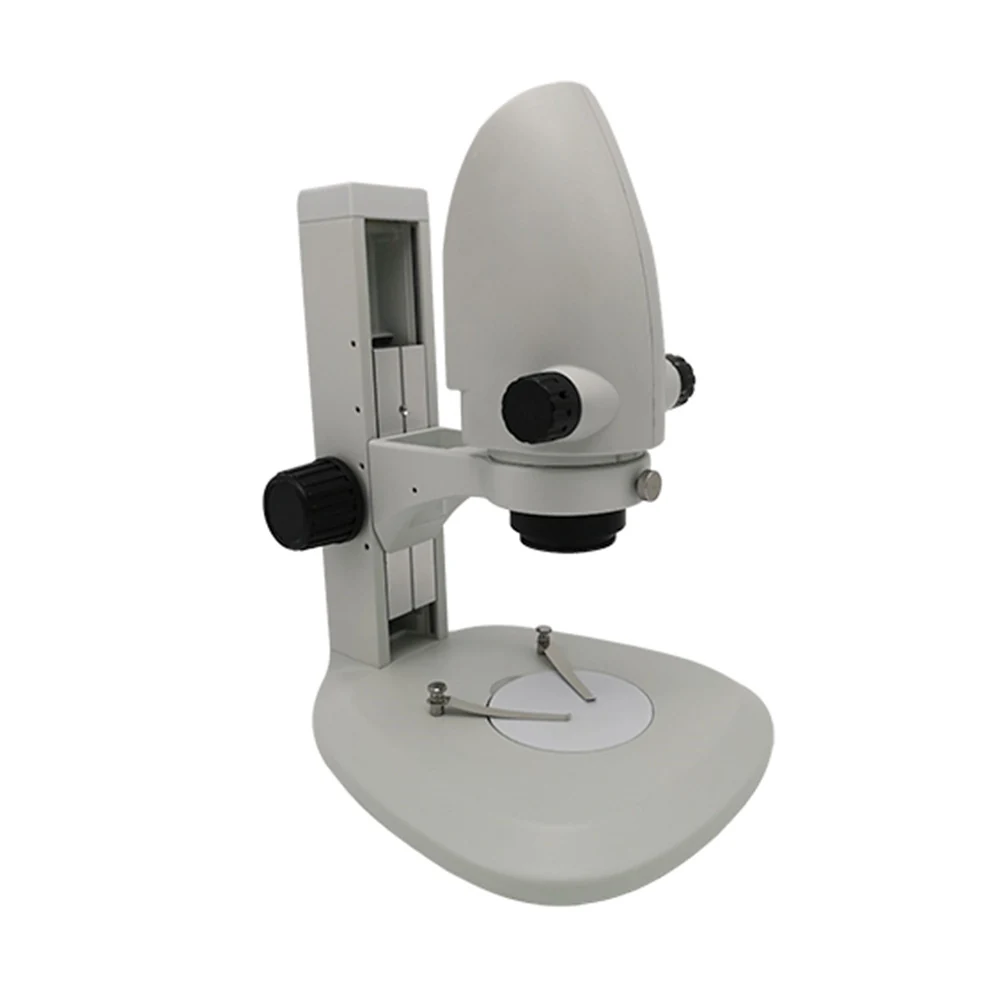

DMSZ10 Digital Video Microscope for Workpiece Dimension
Built-in 2.0Mp CMOS camera with HDR imaging for clear, detailed visuals under varying lighting
View details →

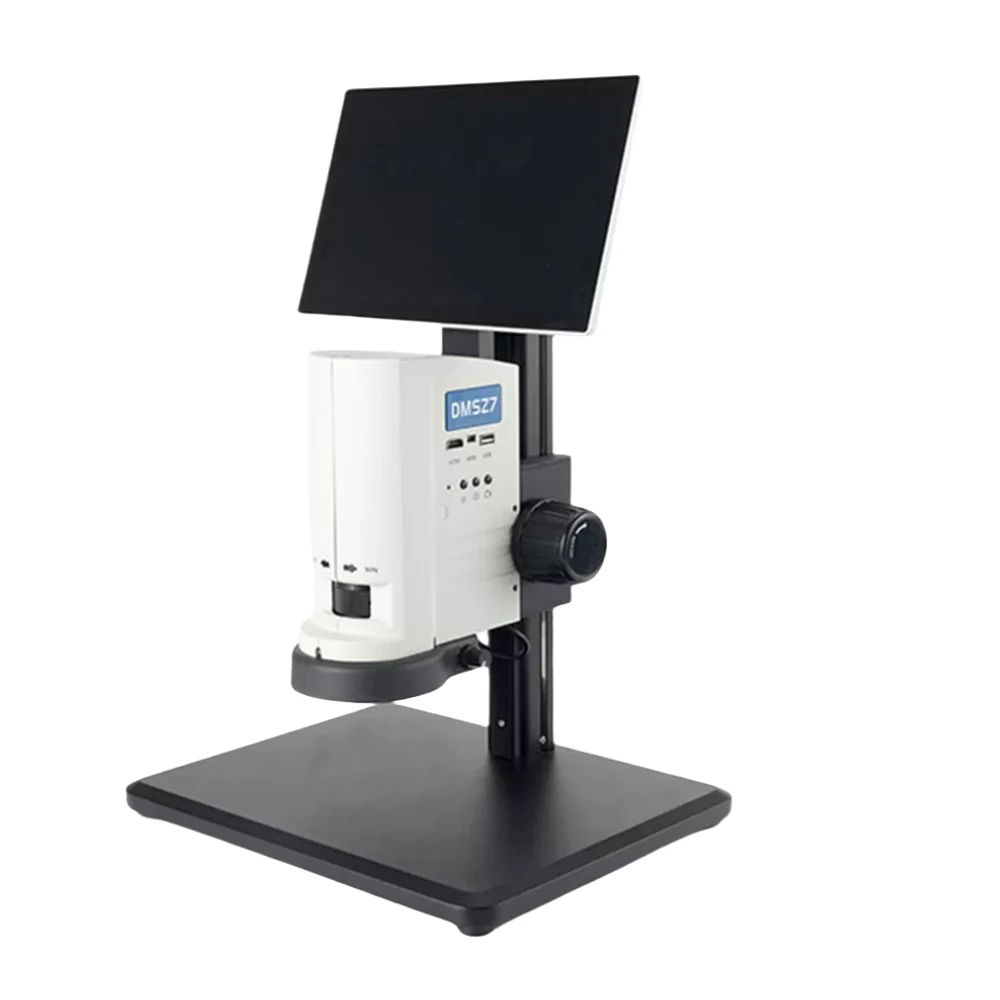

DMSZ Series Digital Inspection Microscope for Workpiece Dimension
Digital imaging system enables direct measurement and documentation of workpiece dimensions
View details →
CM-150 Screen Centering Microscope for Lab Centration Inspection
Fixed 15″ per division reticle graduation remains unchanged across different lenses, ensuring consistent measurement reference
View details →
IUA USB3.0 Microscope Camera for Industrial Inspection and Scientific
USB3.0 interface enables high-speed data transfer for real-time imaging and high frame rates
View details →
XCAMTOP4K_MINI 4K Microscope Camera Sony IMX678 IMX585 IMX715
Compact size enables easy integration into existing microscope setups without structural modification
View details →
XFCAMTOP_MINI 4K AutoFocus Microscope Camera IMX678 IMX385
Auto focus with 0.01mm precision and configurable focus area for consistent imaging
View details →
0.7X 1X Adapter 40mm for Nikon Ts2 SMZ800 SMZ1000 Microscope
Dual magnification options (0.7X and 1X) for flexible imaging across different sample types
View details →Who this category serves
- Electronics manufacturers performing PCB and component dimensional checks
- Quality control teams requiring repeatable, documented measurements for non-conformance reports
- Production lines that need video output for training, documentation, or remote review
Advantages
- Integrated video output enables real-time measurement and recording without additional cameras
- Measurement functions supported by software with documented calibration data available upon request
- Exported to over 50 countries with ISO9001-2008 and CE certification claims on the company About page
FAQ
What measurement functions are included in the video microscope?
The system supports linear, angular, and area measurements with digital overlay; calibration records are available on request.
Is the measuring software included with the microscope?
Yes, the software is bundled with the video microscope and supports measurement functions.
What is the minimum measurable unit?
The system's resolution is determined by the camera and objective combination; specific values are listed in the product specifications.
Can the microscope be used without software?
Yes, the video output can be viewed directly on a monitor or recorded without software, but measurement functions require the included software.
What illumination types are available?
LED illumination is standard; halogen and cold light options are available depending on the model.
Are calibration certificates provided?
Yes, calibration records are available upon request for customers requiring traceable measurement data.
What is the maximum magnification?
Maximum magnification depends on the objective and camera combination; values are specified in the product data sheet.
