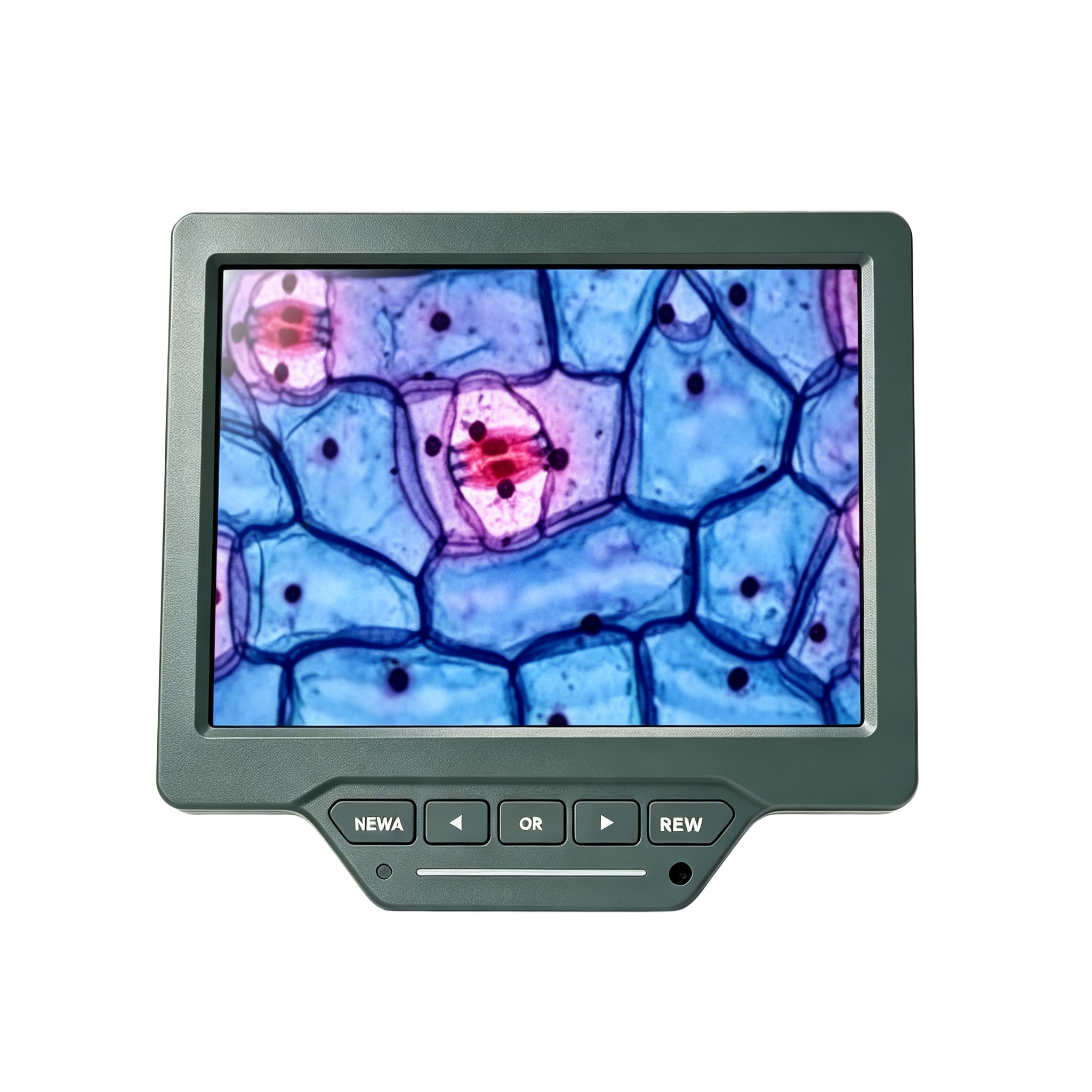

DT400 7” 10” 1080P Digital Microscope Screen for Lab Biological

The screen is suitable for all kinds of three mesh and single cylinder microscopes, compatible with C/CS interface. Built in HD camera, the object will be displayed directly on the HD screen.

In the field of industrial, it’s widely used in PCB boards, hardware, serial devices, FPC, textiles, tickets, kinds of visual industrial testing, digital magnifying glass, hospital research, education, criminal investigation and other fields.

In the field of Biology, it’s widely used in the fields of biology, bacteriology, histology, medicinal chemistry and so on. It can be used for clinical trials in medical treatment, and can be used for teaching in school laboratories.

It will reduce labor intensity and improve work efficiency.

Send Inquiry
Description

Description

Model Name: DT400-7S/DT400-10.1S

Screen Size: 7.0’’/10.1’’

Screen Resolution: 800*480/1024*600

Image Sensor: 1/3-inch Backside Illuminated (BSI)

Pixel Size: 2μm x 2μm

Photo Resolution: 2688 x 1512, 5440 x3056 (Interpolated)

Video Resolution: 1080P, 720P, VGA

Languages: English, Simplified Chinese, Traditional Chinese

USB Interface: Type-C USB 2.0

Expandable Storage: Supports TF card up to 64GB

Lens Mount: C/CS Mount

Power Supply: 5V 1A

Lithium Battery: Compatible with 18650 batteries
