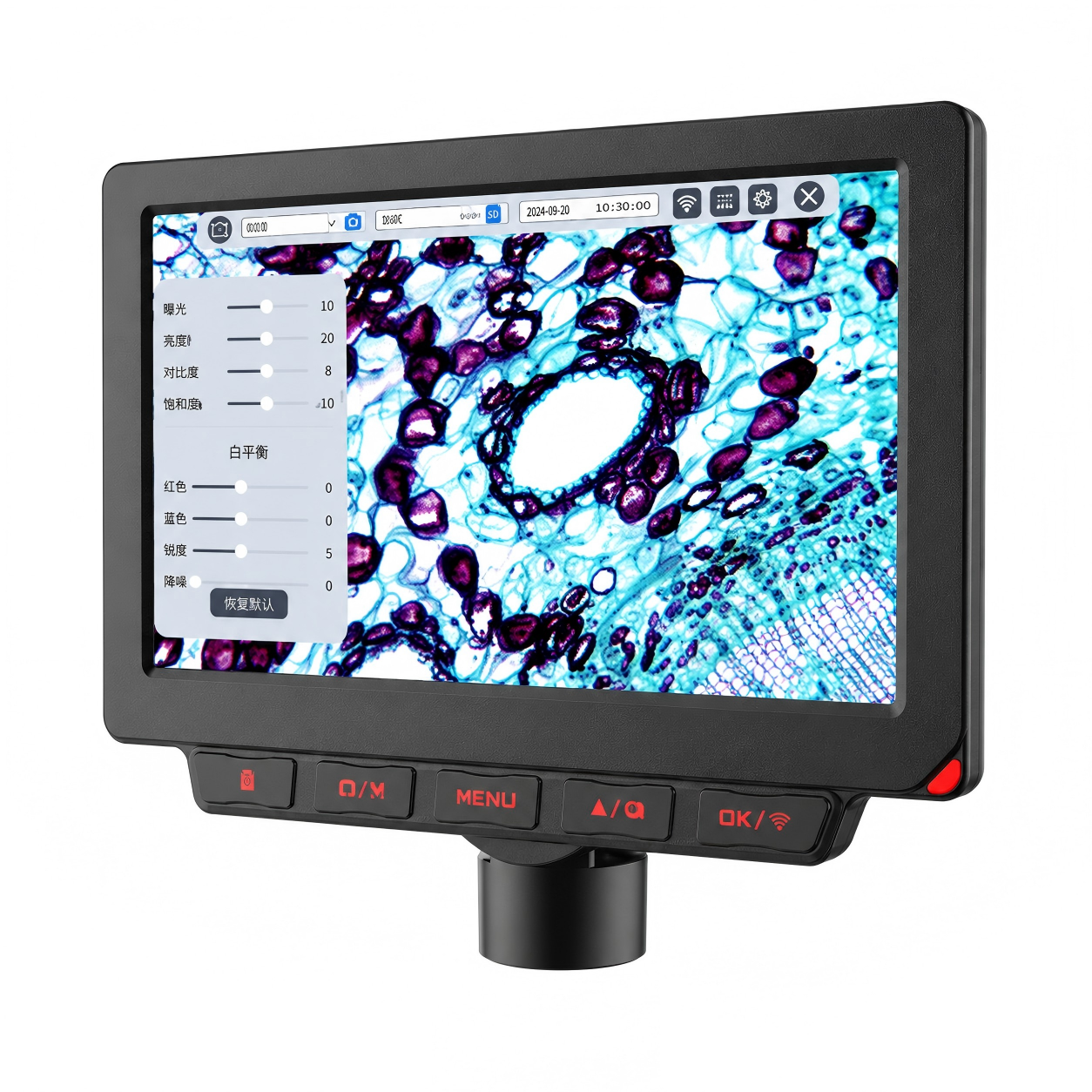

DT200 7” 9” 10.1” HD Smart Display Take Picture Record Video

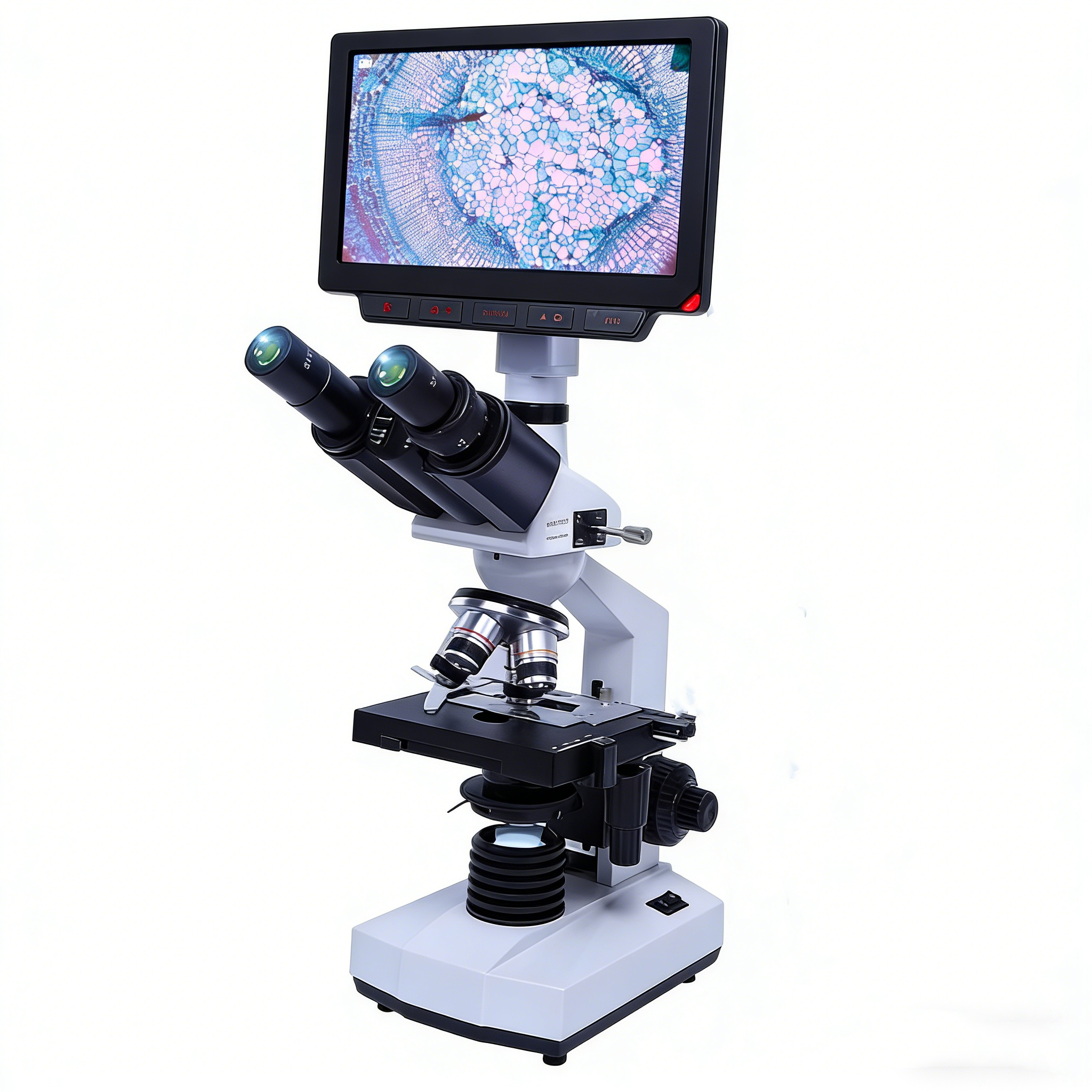

The screen is suitable for all kinds of three mesh and single cylinder microscopes, compatible with C/CS interface. Built in HD camera, the object will be displayed directly on the HD screen.

In the field of industrial, it’s widely used in PCB boards, hardware, serial devices, FPC, textiles, tickets, kinds of visual industrial testing, digital magnifying glass, hospital research, education, criminal investigation and other fields.

In the field of Biology, it’s widely used in the fields of biology, bacteriology, histology, medicinal chemistry and so on. It can be used for clinical trials in medical treatment, and can be used for teaching in school laboratories.

It will reduce labor intensity and improve work efficiency.

Send Inquiry
Category:
Description

Description

Size 7 Inch   9 Inch   10.1 Inch
Model DT200-7S DT200-7D DT200-9S DT200-9D DT200-10.1S DT200-10.1D
LCD Screen 7″ IPS, 1024×600 9″ IPS, 1024×600 10.1″ IPS, 1024×600
Resolution 2MP (Interpolated to 8MP) 4MP (Interpolated to 8MP) 2MP (Interpolated to 8MP) 4MP (Interpolated to 8MP) 2MP (Interpolated to 8MP) 4MP (Interpolated to 8MP)
Sensor Size 1/2.8″ 1/3″ 1/2.8″ 1/3″ 1/2.8″ 1/3″
Pixel Size 2.9µm × 2.9µm 2µm × 2µm 2.9µm × 2.9µm 2µm × 2µm 2.9µm × 2.9µm 2µm × 2µm
Basic Functions Photo Capture, Video Recording, USB Connection to PC, Color Adjustment, Digital Zoom In/Out
WIFI No 2.4G WIFI No 2.4G WIFI No 2.4G WIFI
HDMI No 1080P HDMI (Dual-Screen Display) No 1080P HDMI (Dual-Screen Display) No 1080P HDMI (Dual-Screen Display)
Mouse Measurement No Mouse Line Measurement No Mouse Line Measurement No Mouse Line Measurement
TYPE-C TYPE-C Power Supply / USB-UVC
USB No 1 × USB Port No 1 × USB Port No 1 × USB Port
Battery 18650 Li-ion Battery, 3.7V / 2000mAh
TF Card Included 8GB High-Speed TF Card, Supports up to 64GB
Mount Interface Optional Mount: E Mount (23.2mm) / C Mount (1″-32UN Thread)
Power Supply DC 5V / 2A Adapter, Optional Plug Types: US / EU / UK / AU Standard
