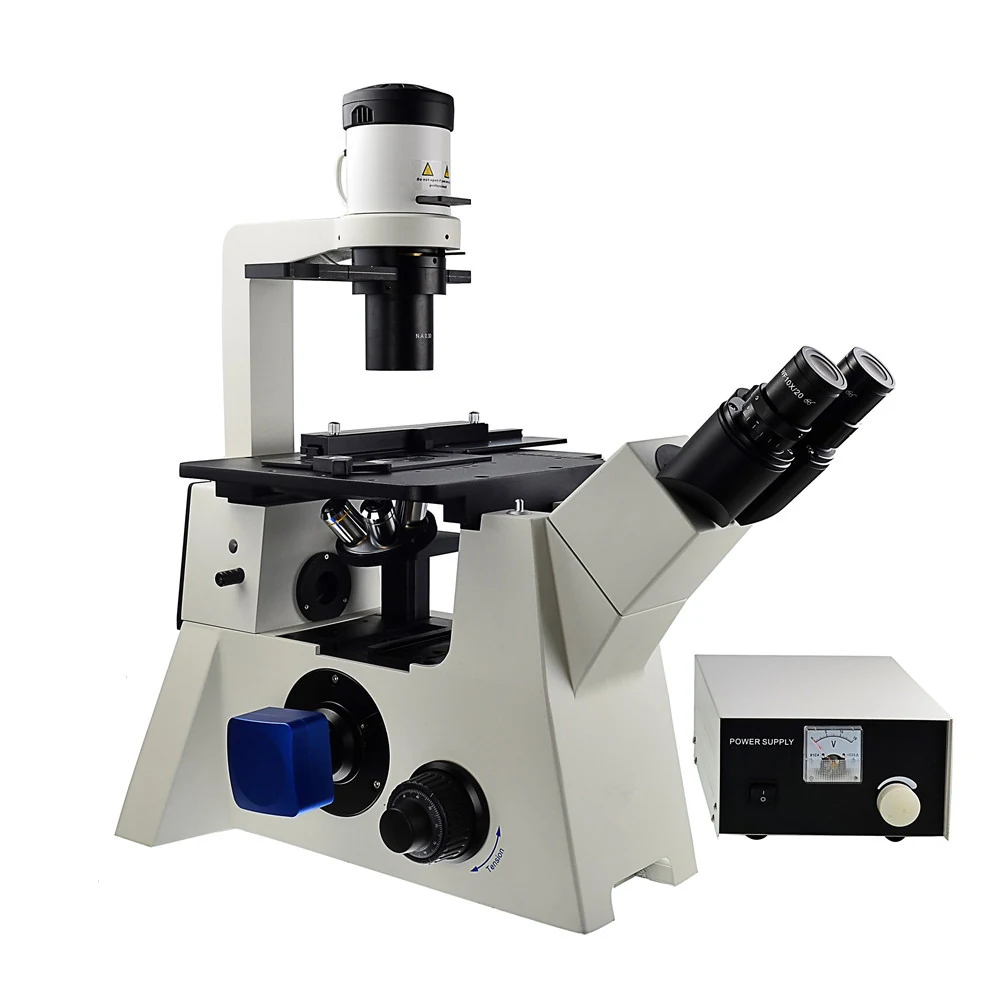

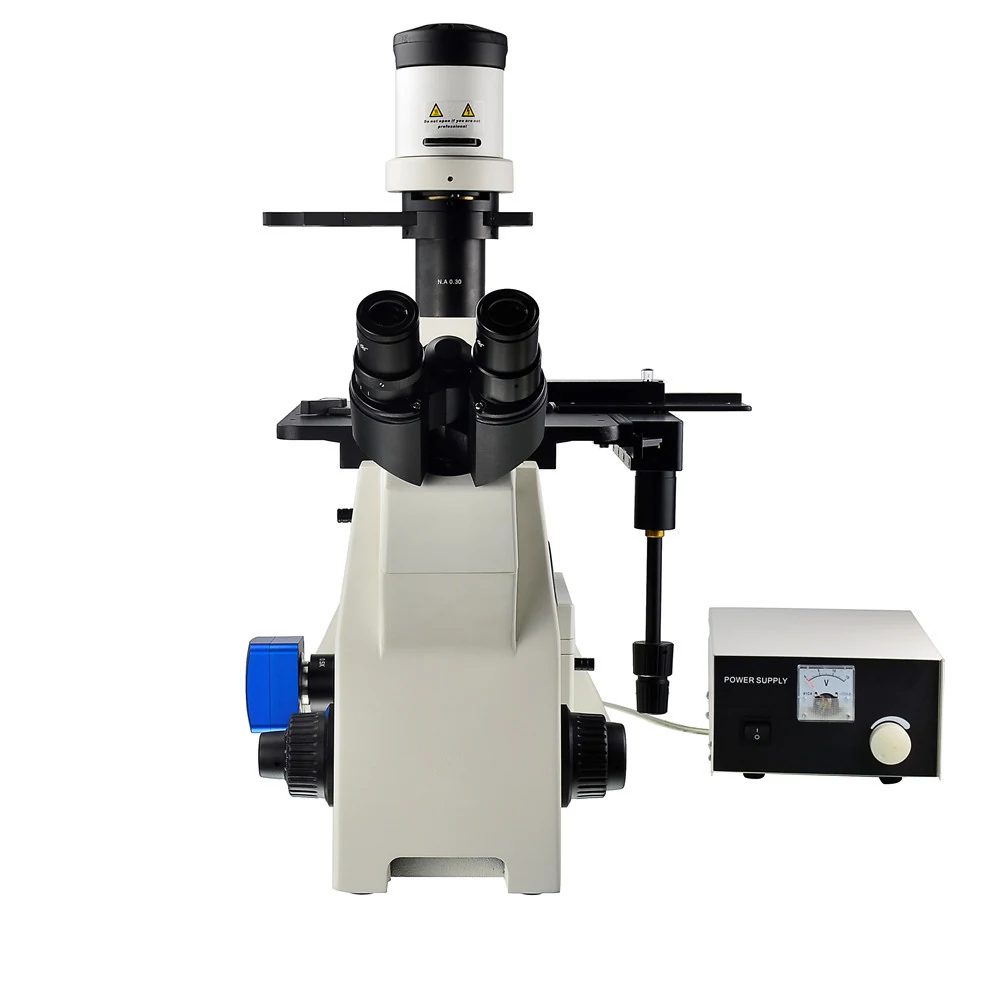

XIB200 Inverted Lab Biological Microscope for Clinical Diagnostics
XIB200 Inverted Lab Biological Microscope for Clinical Diagnostics
XIB200 Inverted Lab Biological Microscope for Clinical Diagnostics
XIB200 Inverted Lab Biological Microscope for Clinical Diagnostics

XIB200 Inverted Lab Biological Microscope for Clinical Diagnostics

XIB200 is an inverted lab biological microscope from Nanjing AMADA Instrument Co., Ltd. designed for clinical diagnostics, cell culture observation, and routine laboratory work. The model features a one-piece frame, binocular tube with adjustable interpupillary distance, and supports both brightfield and phase-contrast microscopy with a range of objectives and illumination options. It includes a fixed stage with coaxial controls and optional mechanical stage, and is available with fluorescence accessories for advanced applications.

  • One-piece frame construction ensures stability and alignment for consistent imaging
  • Binocular tube with 45° inclination and diopter adjustment for ergonomic viewing
  • Supports brightfield and phase-contrast observation with interchangeable objectives
  • Available with fluorescence accessories for advanced cell and tissue analysis
  • Wide voltage input (110/220V, 50/60Hz) for global use without voltage converters
Request A Quote +86-15195807515

Technical features

  • One-piece frame construction from arm to base for rigidity and alignment
  • Binocular tube with 45° inclination, interpupillary distance 52–75 mm (standard), 48–75 mm (optional), diopter adjustable
  • WF10X/20mm Plan Eyepiece (high eye-point up to 21 mm) and WF10X/22mm Plan Eyepiece available
  • Plan objectives: 4X, 10X, 20X, 40X, 60X Infinity Long WD Plan Objectives
  • Phase-contrast objectives: 10X, 20X, 40X Positive and Negative, Infinity Plan design
  • Fixed stage: 240 mm × 260 mm, movement range 135 mm × 85 mm, low-positioned X/Y coaxial control knob
  • Optional mechanical stage: 350 mm × 208 mm, movement range 50 mm × 50 mm, low-positioned X/Y coaxial control knob
  • Quintuple revolving nosepiece with 10X, 20X, 40X phase-contrast and brightfield compatibility

Who it is for

  • Clinical diagnostic labs in hospitals and clinics
  • Biomedical research institutions conducting cell and tissue studies
  • Educational institutions teaching biology and medical sciences
  • Manufacturers of medical reagents and diagnostic kits requiring quality control
  • Distributors sourcing inverted microscopes for clinical and research markets

Specifications

ModelXIB200
TypeInverted Biological Microscope
Frame ConstructionOne-piece from arm to base
Observation TubeBinocular, 45° inclined, diopter adjustable
Interpupillary Distance52–75 mm (standard), 48–75 mm (optional)
EyepieceWF10X/20mm Plan (high eye-point 21 mm), WF10X/22mm Plan
Objectives4X, 10X, 20X, 40X, 60X Infinity Long WD Plan
Phase-Contrast Objectives10X, 20X, 40X Positive and Negative, Infinity Plan
Stage TypeFixed (240×260 mm, 135×85 mm movement), optional mechanical (350×208 mm, 50×50 mm movement)
NosepieceQuintuple revolving
Illumination6V30W halogen lamphouse, 6V30W Osram bulb, filters (blue, green, yellow)
Fluorescence100W mercury lamphouse, filter turret (UV, V, B, G), 100W power supply
Power Input110/220V, 50/60Hz
C-Mount0.5X, 0.25X available
Fuse250V/3.15A Φ5X20 (halogen), 250V/5A Φ5X20 (fluorescence)

Use guide

  • Select fixed stage for routine diagnostics; mechanical stage for detailed positioning
  • Choose phase-contrast objectives when observing transparent specimens like live cells
  • Use fluorescence system only with proper ventilation and safety gear due to mercury lamp
  • Install C-mount adapter when connecting to digital cameras or recording systems
  • Verify fuse rating matches local voltage and power supply before operation

FAQ

What is the stage size and movement range?
Fixed stage: 240 mm × 260 mm, movement range 135 mm × 85 mm. Optional mechanical stage: 350 mm × 208 mm, movement range 50 mm × 50 mm.
Can I use phase-contrast objectives with this microscope?
Yes. The microscope supports 10X, 20X, and 40X phase-contrast objectives with positive and negative contrast options.
Is fluorescence available as an option?
Yes. Fluorescence accessories include a 100W mercury lamphouse, filter turret with UV, V, B, G filters, and compatible power supply.
What power supply voltage does it support?
110/220V, 50/60Hz wide voltage input, suitable for use in most countries.
Can I add a camera?
Yes. C-mount adapters (0.5X or 0.25X) are available for connecting digital cameras or video systems.
