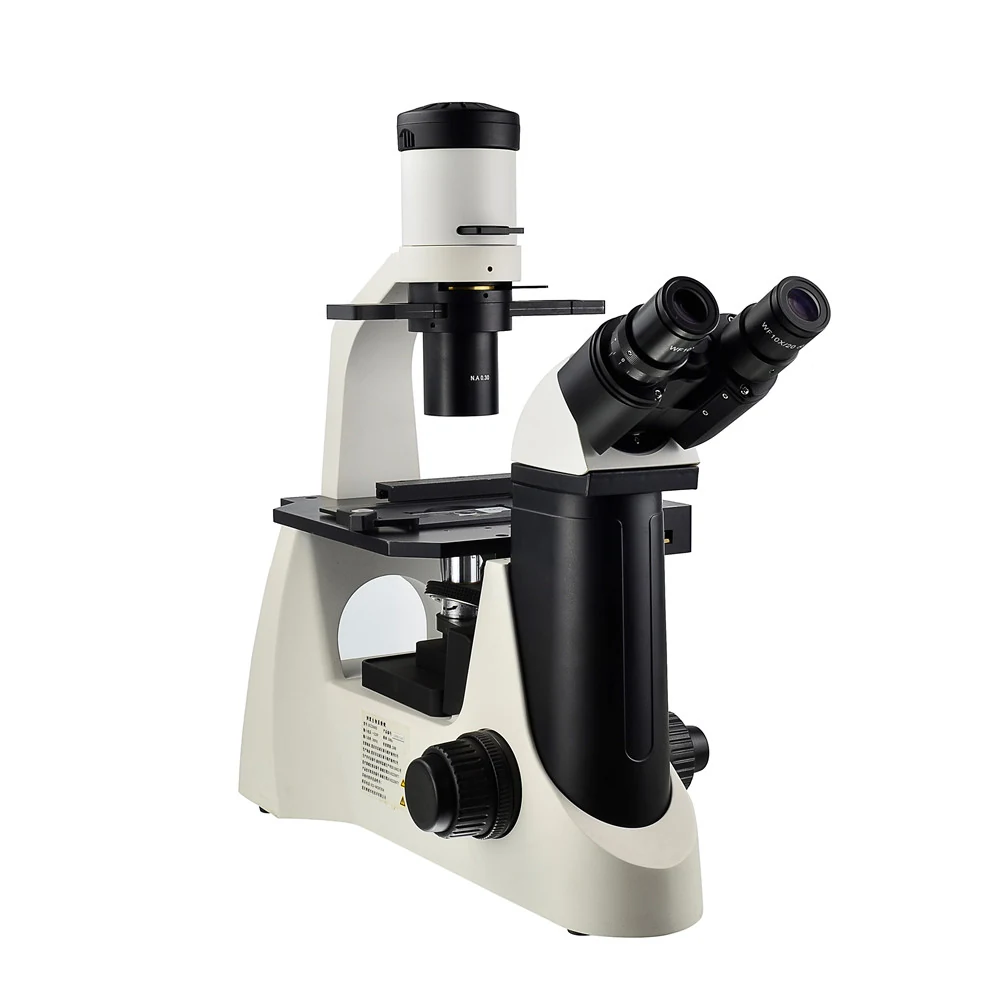

XIB100 Inverted Lab Biological Microscope for Laboratory and Clinical

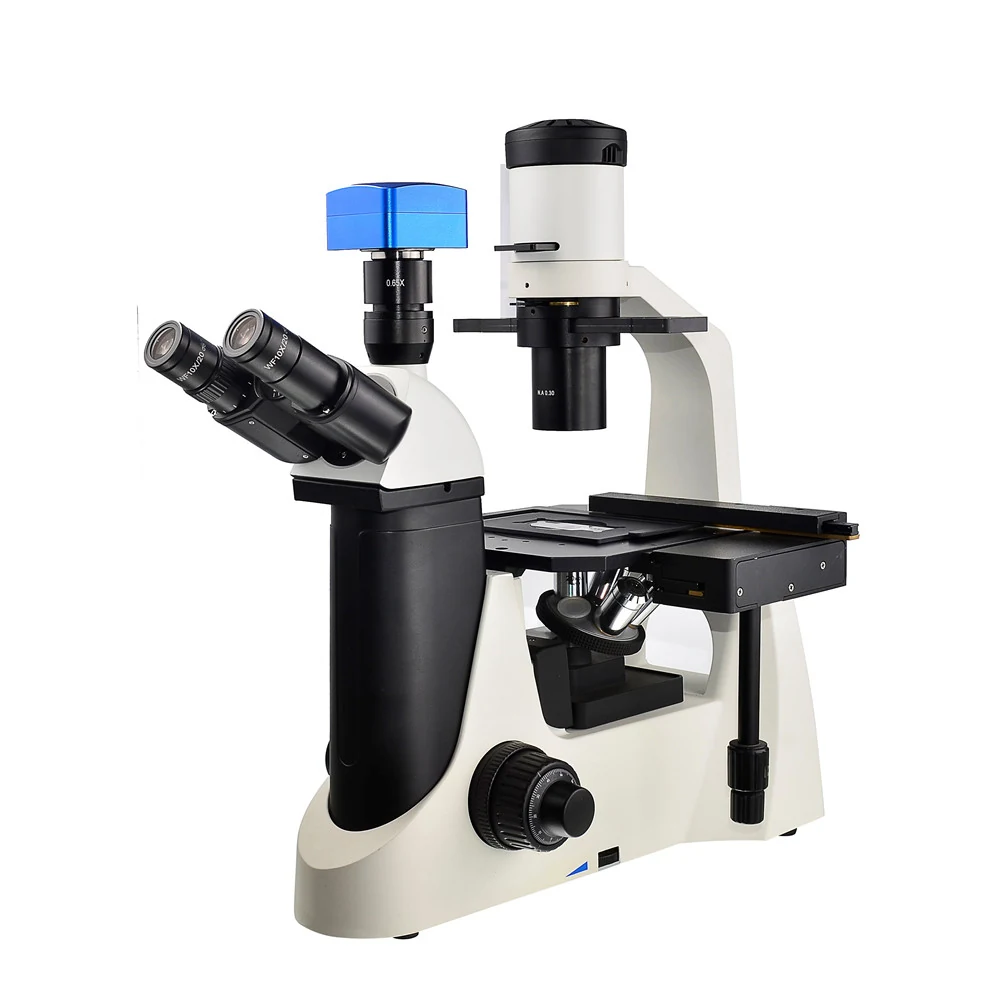

XIB100 Inverted Lab Biological Microscope for Laboratory and Clinical

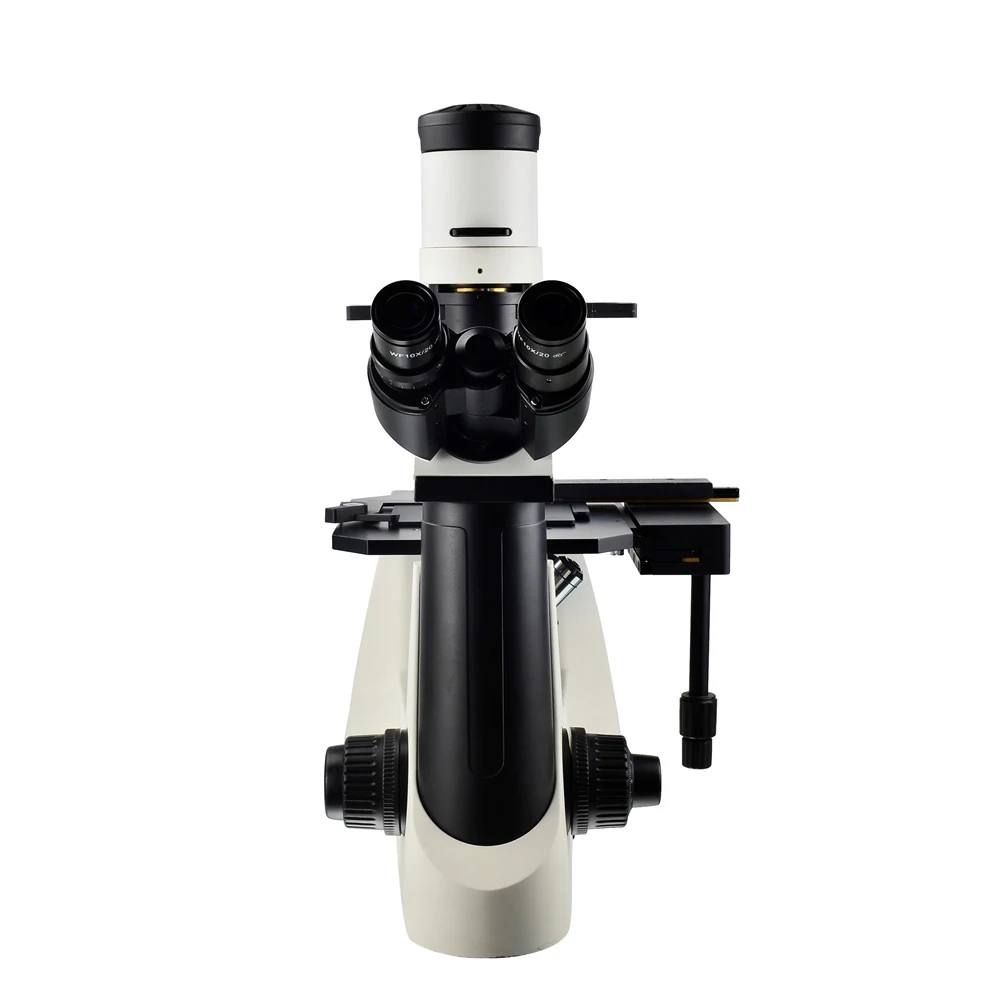

XIB100 Inverted Lab Biological Microscope for Laboratory and Clinical

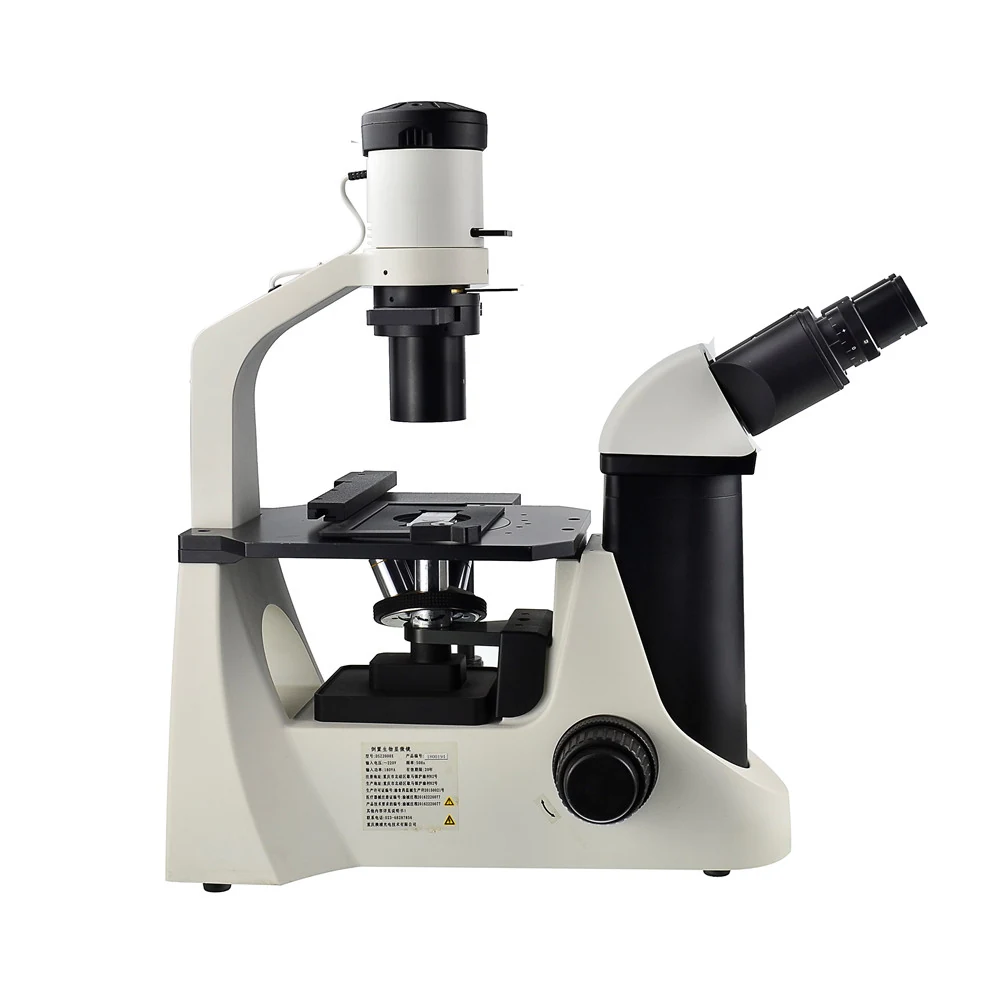

XIB100 Inverted Lab Biological Microscope for Laboratory and Clinical

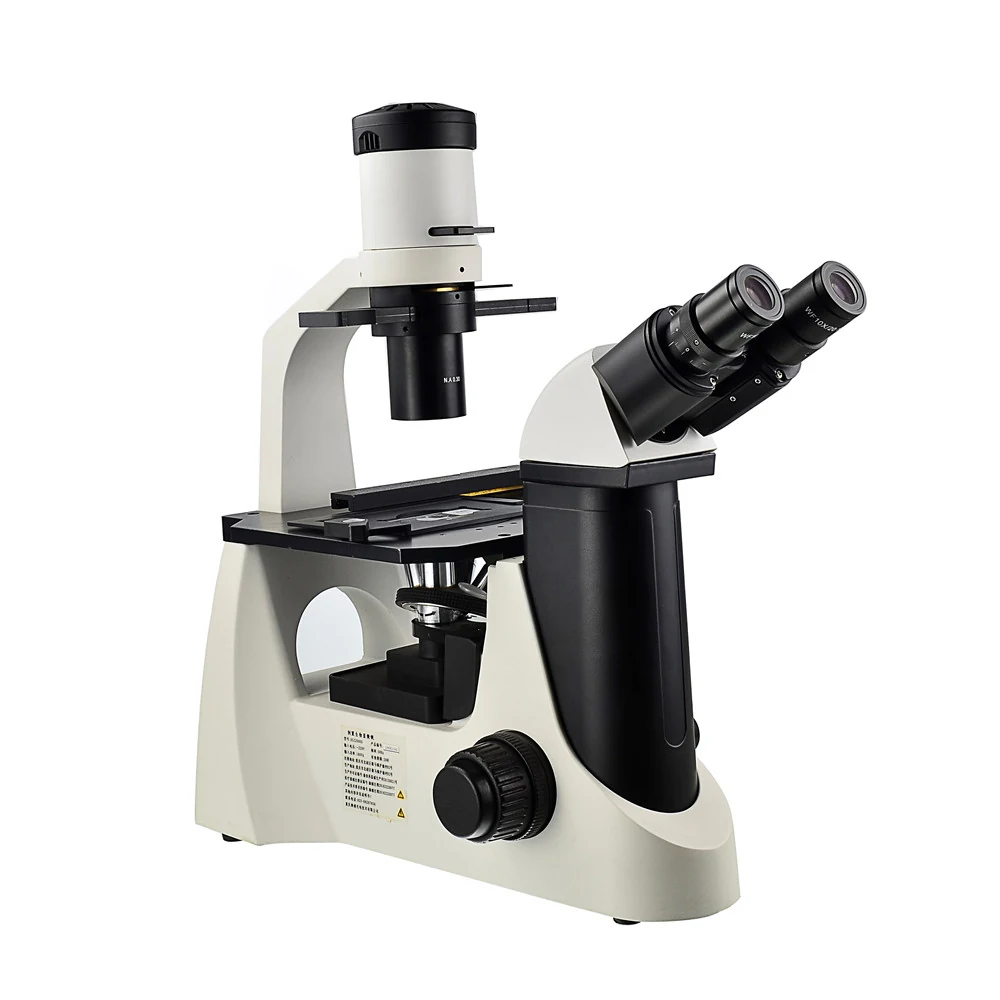

XIB100 Inverted Lab Biological Microscope for Laboratory and Clinical
XIB100 Inverted Lab Biological Microscope for Laboratory and Clinical

XIB100 Inverted Lab Biological Microscope for Laboratory and Clinical

XIB100 is an inverted biological microscope from Nanjing AMADA Instrument Co., Ltd. designed for laboratory and clinical applications. It features a one-piece frame, binocular or trinocular observation tubes with adjustable interpupillary distance, infinity-corrected objectives, and a transmitted light illumination system with phase-contrast capability. The model supports multiple eyepiece and objective combinations, mechanical stage, and optional C-mount adapters for camera integration.

  • One-piece frame ensures stability and alignment for consistent imaging in clinical and lab settings
  • Binocular and trinocular tube options with 20/80 light splitting for camera integration and simultaneous viewing
  • Infinity-corrected optical system with long working distance objectives for deep sample observation
  • Phase-contrast capability with positive and negative objectives for transparent specimen visualization
  • Mechanical stage with precise X/Y control for accurate sample positioning during extended observation
Request A Quote +86-15195807515

Technical features

  • One-piece frame from arm to base for structural integrity
  • Binocular tube with interpupillary distance 48–75 mm or 52–75 mm, 30° inclined, diopter adjustable
  • Trinocular tube with 20/80 or 100/0 light split via high-quality prism, diopter adjustable
  • Infinity-corrected optical system with long working distance objectives
  • 4X, 10X, 20X, 40X, and 60X infinity long WD plan objectives available
  • Phase-contrast objectives available in positive and negative types for 4X–40X
  • Mechanical stage with 180 mm x 155 mm movement range, 80 mm x 50 mm travel, low-positioned X/Y coaxial knobs
  • Fixed stage with 240 mm x 180 mm area and drop specimen holder (φ110)

Who it is for

  • Clinical pathology and diagnostic labs
  • Biomedical research teams working with live cell cultures
  • Pharmaceutical and biotech manufacturers requiring phase-contrast imaging
  • Importers sourcing inverted microscopes for lab equipment catalogs

Specifications

ModelXIB100
Frame ConstructionOne-piece from arm to base
Observation TubeBinocular or Trinocular, 30° inclined, diopter adjustable
Interpupillary Distance48–75 mm or 52–75 mm
Light Split Ratio20/80 or 100/0 via high-quality prism
Objective TypeInfinity long WD plan and phase-contrast
Objective Magnifications4X, 10X, 20X, 40X, 60X
Phase-Contrast ObjectivesPositive and negative types for 4X–40X
Stage TypeFixed or mechanical with 180 mm x 155 mm travel
Stage Movement Range80 mm x 50 mm
CondenserUltra long WD condenser
Illumination6V30W halogen lamphouse with filters
Bulb Type6V30W Osram halogen bulb
C-Mount Options0.5X, 0.25X, 1X
Power Supply6V30W, 250V/3.15A fuse

Use guide

  • Select trinocular tube with 20/80 split if both viewing and camera capture are needed
  • Choose phase-contrast objectives based on specimen type (positive for bright objects, negative for dark objects)
  • Use mechanical stage for repetitive or precise positioning tasks
  • Install C-mount adapter when connecting to a digital camera or video system
  • Match bulb type (Osram) and fuse rating to ensure safe operation

FAQ

What is the working distance of the objectives?
The objectives are infinity long WD plan, designed for high working distance; exact values depend on objective magnification and specimen thickness.
Can I use this microscope for phase-contrast imaging?
Yes. The XIB100 supports phase-contrast objectives (positive and negative) for 4X–40X magnifications.
Is the mechanical stage included in the standard configuration?
No. The mechanical stage is an optional component; the fixed stage is standard.
What C-mount adapters are available?
Available adapters are 0.5X, 0.25X, and 1X for different camera sensor sizes and magnification needs.
What bulb is used in the halogen lamphouse?
The standard bulb is 6V30W Osram halogen; other bulbs are available as options.
