Home / Products / Inverted Biological Microscope / XD Series Inverted Biological Microscope

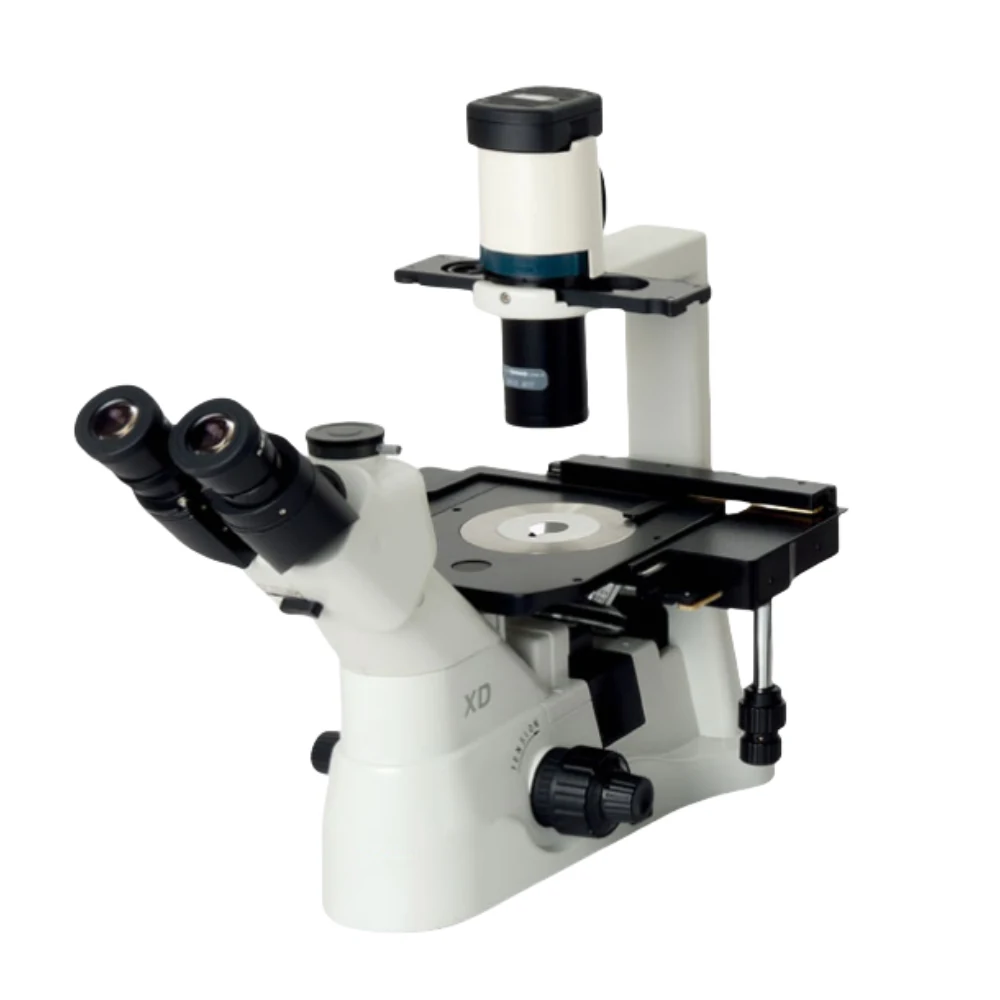

XD Series Inverted Biological Microscope for Research and Clinical

Color corrected infinity optical system(CSIS).excellent optical performance and areat image
Application of high-contrast and low chromatic phase contrast observation access to detailed
examination of intemal structure ofthe cells
Supply long working distance and high N.A.objectives to get the flat and clear image
Koehler illuminator(XD30A)
1.With iris diaphragm, adjusted by rack and pinion,convenient to adjust and teardown the condenser
2.The condenser bracket can be rotated,facilitate the replacement of the dish, and suit for a variety of sample container
3.The whole condenser body can be 360°rotation around lighting bracketconvenient to use ultra-hiah Culture bottles
4.With precise orientation and locking device
Long working distance condenser has capacity to use revolution bottle and suit for many sample containers(XD30)
Well-designed body structure, steady and reliable and better aseismatic performance
Low position coaxial coarse and fine adjustmentergonomic design
Professional vertical fluorescence technology,to get clear and bright fluorescent image

Send Inquiry

Color corrected infinity optical system(CSIS).excellent optical performance and areat image Application of high-contrast and low chromatic phase contrast observation access to detailed examination of intemal structure ofthe cells Supply long working distance and high N.A.objectives to get the flat and clear image Koehler illuminator(XD30A) 1.With iris diaphragm, adjusted by rack and pinion,convenient to adjust and teardown the condenser 2.The condenser bracket can be rotated,facilitate the repla

Key Features

  • Inverted optical design enables observation of large or tall culture vessels without obstruction
  • Stable mechanical stage supports long-term live cell imaging and time-lapse studies
  • Adjustable illumination for consistent contrast across different sample types
  • Compatibility with standard 18 mm x 18 mm slides and common Petri dish sizes
  • Robust construction suitable for continuous use in research and clinical settings

Technical Features

  • Inverted optical path with objective lens below the stage
  • Mechanical stage with X-Y movement for precise sample positioning
  • Adjustable illumination intensity for different sample contrast needs
  • Standard 18 mm x 18 mm slide compatibility
  • Supports Petri dishes and culture flasks up to 100 mm in diameter
  • Objective lens working distance suitable for thick culture media
  • Stable base with anti-slip feet for lab bench stability
  • Designed for continuous operation in controlled environments

Specifications

ModelXD Series
Optical DesignInverted
Stage TypeMechanical
IlluminationAdjustable intensity, bottom-mounted
Working DistanceSuitable for thick culture media and vessels
Stage MovementX-Y mechanical control

Applications

  • Cell culture monitoring in biomedical research labs
  • Live cell imaging and time-lapse observation of growing cultures
  • Clinical diagnostics requiring long-term sample observation
  • Tissue culture work with large or deep-well plates and flasks
