TrueChrome Metrics Digital Microscope Camera HDMI Cameras

Added 8 different localization options

TrueChrome Metrics allows free switching of eight local languages, including English, Chinese Simplified, Traditional Chinese, German, Italian, French, Korean and Japanese.

A variety of efficient measurement tools to achieve micron-level precision measurement

TrueChrome Metrics is equipped with a variety of measuring tools such as free line, rectangle, circle, polygon, dotted line, concentric circle, double circle, angle and so on. It can realize the precision of microns such as line distance, angle, length, circumference, area Measurement, the data can be accurate to 1/100 microns, very small cells can be measured very accurately.

Variety of measurement applications

In addition to microns, TrueChrome Metrics also supports millimeters, centimeters of up to two orders of magnitude and can fully meet the needs of users under different scenarios of diverse measurement applications. It provides the user high productivity quantitative analysis via an intuitive interface.

Convenient measurement data management

TrueChrome Metrics supports both Excel and text file save formats. This results in convenience for measurement data management.

The essence of TrueChrome II continues

30 frames per second high speed image

TrueChrome Metrics achieves 30 frames/sec uncompressed data transfer at 1920×1080 resolution and is the world’s fastest USB 2.0 camera.

Excellent fluorescence imaging

TrueChrome Metrics uses a high signal-to-noise ratio image sensor which can achieve up to a 10 second exposure capable of capturing excellent fluorescence images.

3D noise reduction function

The powerful 3D noise reduction feature effectively reduces the noise, so that even with long exposures in low light the image remains crisp and free of noise.

1080P Video Recording

Click the button to shoot 1080P 30fps video. The video file is stored on a high-speed SD card and can also be viewed live.

Send Inquiry

Description

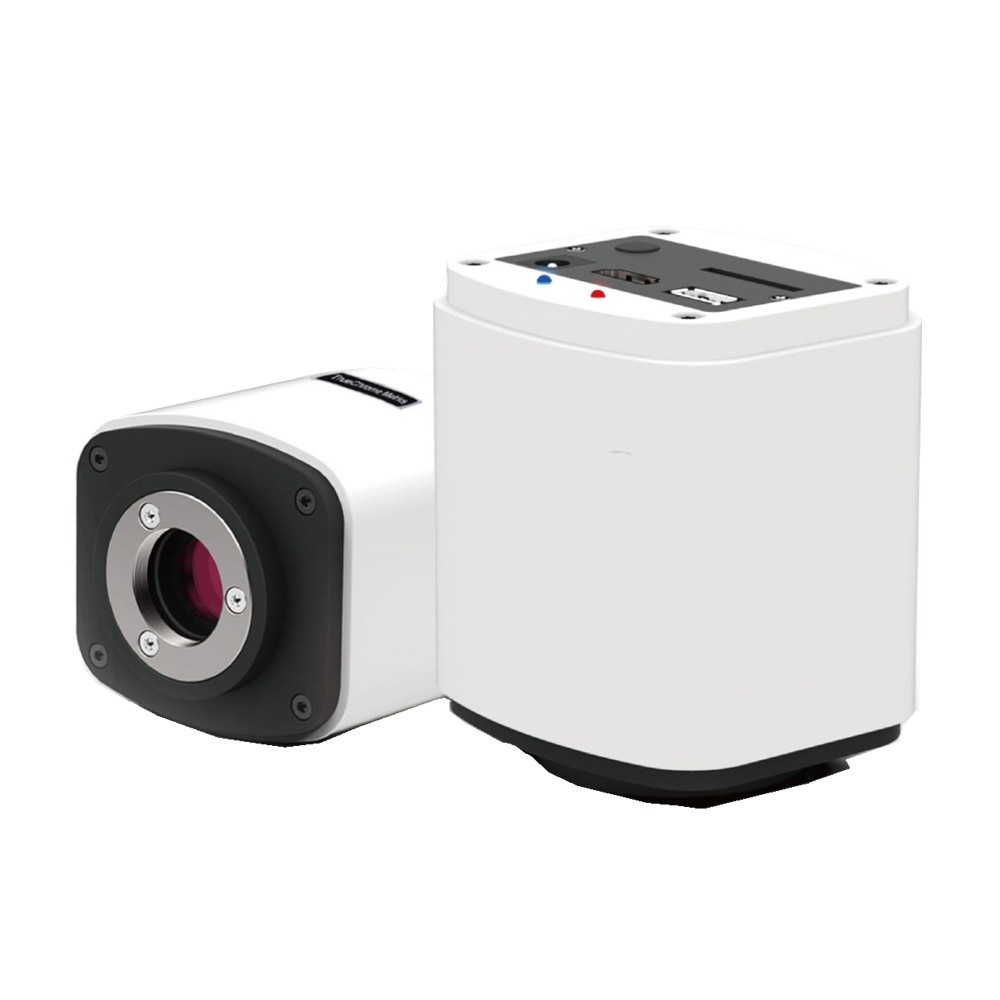

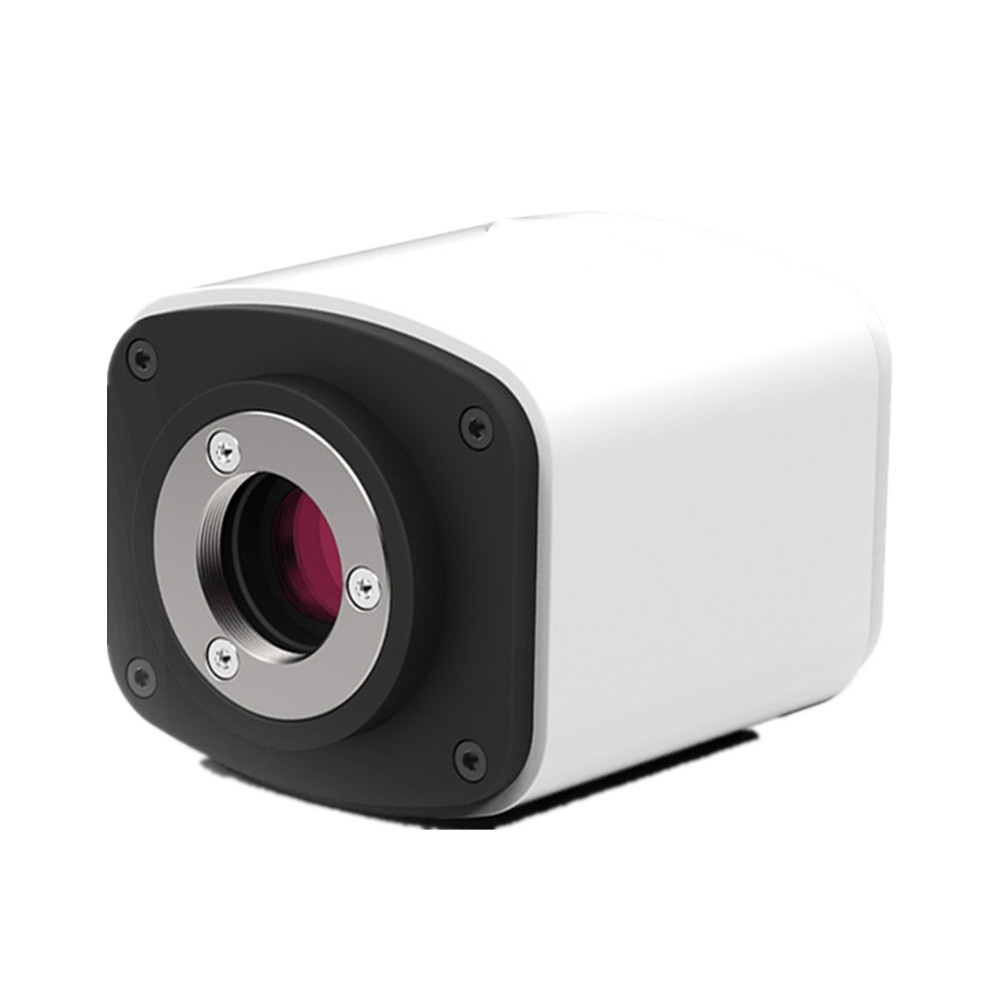

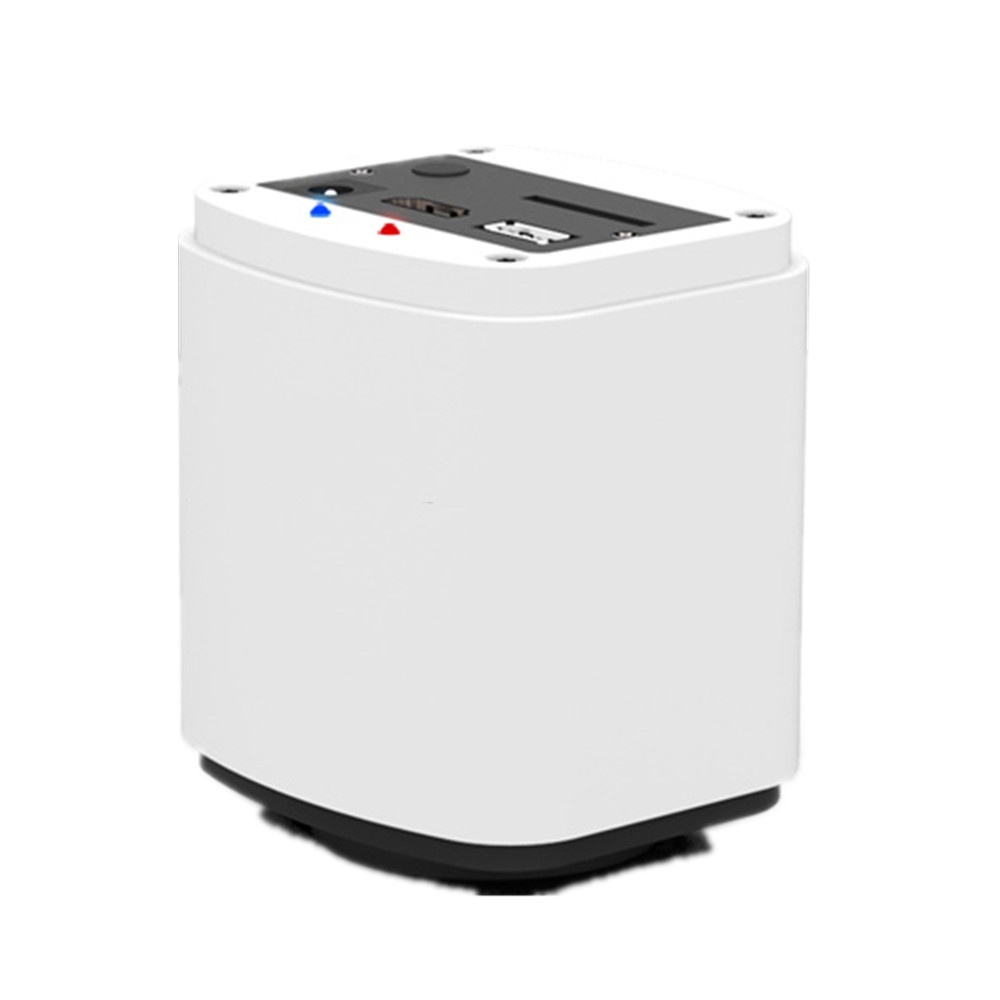

HDMI Digital Microscope Camera with TrueChrome Metrics

The HDMI digital microscope camera with TrueChrome Metrics is designed for precision measurement, industrial inspection, and laboratory imaging. With real-time HDMI output and integrated measurement capabilities, it provides accurate imaging and reliable analysis for professional users.

This camera allows direct connection to a monitor via HDMI, enabling real-time display without latency. The TrueChrome Metrics system supports accurate measurement, annotation, and analysis, making it suitable for quality control, inspection, and research applications.

Series: TrueChrome Metrics HDMI Cameras

Key Features

Real-time HDMI output for instant display
TrueChrome Metrics for precise measurement and analysis
High image clarity and color accuracy
Designed for industrial and laboratory environments
Reliable performance for inspection and documentation

Applications

Industrial inspection and quality control
Precision measurement and dimensional analysis
PCB inspection and electronics manufacturing
Laboratory research and technical documentation

Typical Measurement and Inspection Scenarios

TrueChrome Metrics HDMI digital microscope cameras are widely used in professional environments where accurate measurement and real-time imaging are required.

Industrial inspection: Surface defect detection, dimensional measurement, and quality verification.
PCB inspection: Component size measurement, solder joint analysis, and defect identification.
Manufacturing quality control: In-process inspection and final product verification.
Laboratory measurement: Accurate imaging and documentation for research and analysis.

Advantage	Perfect color reproduction Calibration,Measurement High speed data transmission Fluorescence imaging
Sensor	CMOS
Sensor Size	1/2.8″
Image Processor	Built-in ISP
Dynamic Resolution	1920×1080
Static Resolution	3264×1836
Frame Rate	30fps@USB2.0 30fps@HDMI
Capture	SD card(16G)
Video Recording	30fps@SD 30fps@PC
Exposure Mode	Auto/Manual
Exposure Time	0.001s-10s
White Balance	Auto/Manual
Setting	White Balance,Gain,Noise Reduction,Gamma,Exposure Time,WDR,etc
Built-in software	Cloud 1.0 Ver
PC Software	TCapture
Output Port	USB2.0,SD,HDMI
Compatible OS	Windows/Mac/Linux
Optical Port	Standard C-Mount

HDMI Output and Measurement Advantages

The combination of HDMI output and TrueChrome Metrics software provides a powerful inspection and measurement solution.

HDMI output enables real-time image display directly on a monitor with no delay, which is ideal for inspection benches and production environments.

TrueChrome Metrics supports accurate measurement, annotation, and analysis directly from the captured images, improving efficiency and reducing manual errors.

Together, these features make the camera suitable for both live inspection and precise measurement workflows.

Frequently Asked Questions

Q: Can this camera be used without a computer?
A: Yes. The HDMI output allows direct connection to a monitor for real-time viewing.

Q: Does this camera support precise measurement?
A: Yes. TrueChrome Metrics provides accurate measurement and analysis functions.

Q: Is this camera suitable for industrial inspection?
A: Yes. It is widely used in industrial inspection, quality control, and PCB inspection.

Q: What are typical applications of TrueChrome Metrics cameras?
A: Typical applications include dimensional measurement, defect inspection, and laboratory analysis.
