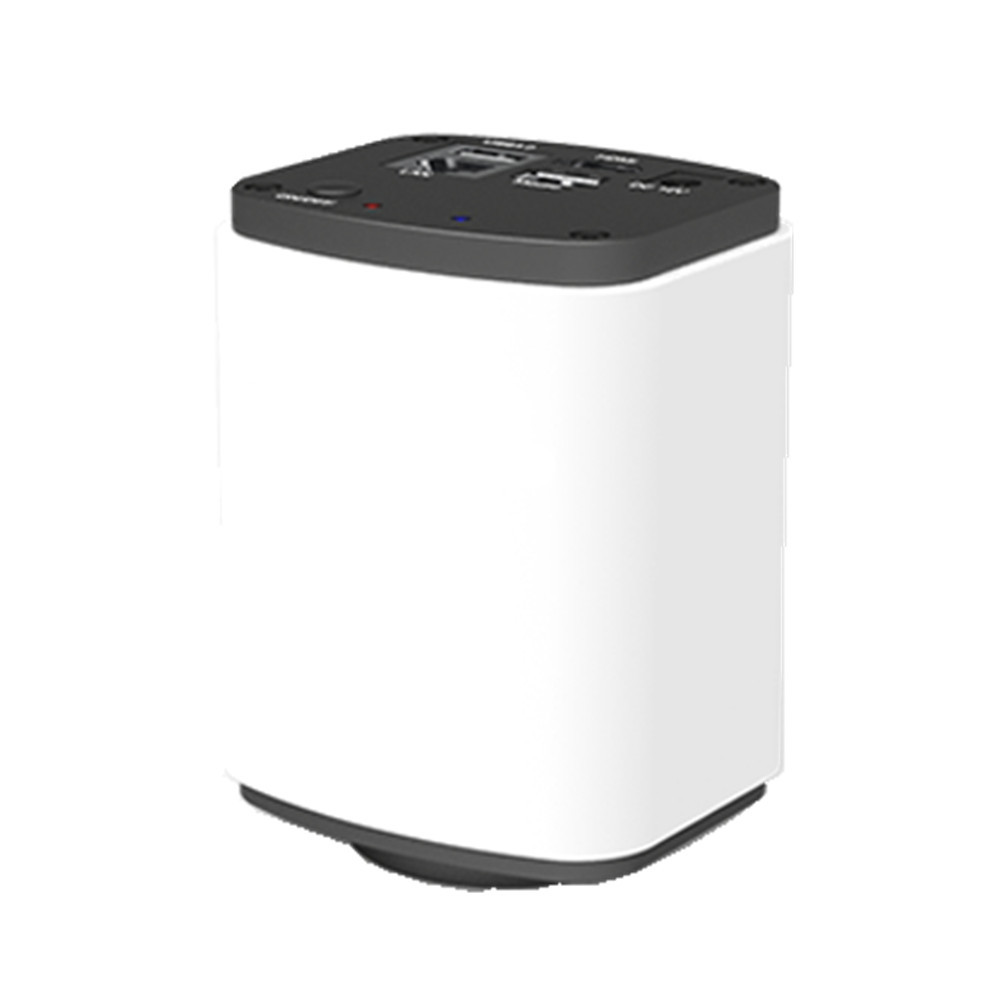

Truechrome 4K Sony 8MP HDMI+USB2.0 Microscope Camera

Much Stronger 4K Image Signal Processor

The upgrade of 4K resolution requires camera to process a larger amount of data. Generally it is not easy to perfectly reveal 4K image, but Tucsen 4K ISP performs a very good professional level. It not only can accurately determine the exposure intensity of complex light scenes, but also accurately restore difficult colors such as blue, purple and pink, and maintain a high speed of 30 frames per second.

Embedded-type functionality upgrade

Based on previous generation of TrueChrome Metrics embedded software, three utility functions are added on TrueChrome 4K Pro to continuously optimize your shortcut operation experience.

USB 3.0+Mosaic V2 professional analysis software

The USB 3.0 channel on TrueChrome 4K Pro can realize high speed transmission at 25 fps@4k full resolution.It contains the same perfect color reproduction and complete parameter control functions as USB 3.0 cameras from Tucsen. Meantime, loaded with Tucsen Mosaic V2 professional image analysis software, containing shooting, processing,measurement, report etc. self-defined function modules, it also allows users to have efficient and stable operation experience when perform advanced functions like “Live Stitching” and “Live EDF”.

Live Stitching

When moving the loading platform, the software automatically completes the image stitching, which can be accurately and quickly done under different magnifications and any angle!

Live EDF

When turning the focus ring to shoot different DOF points, the software automatically generates large DOF images, and the feature points of different focal planes are clearly displayed on the same plane!

Send Inquiry
Description

Description

What can 4K bring to you?

The ideal camera pixel refers to the pixel size that is just big enough to resolve the optical resolution of a microscope. But in order to fully performs the optical efficiency of microscope, the real adopted camera pixel size should be smaller than ideal. The smaller pixel size, the higher resolution. Shown as below diagram: take the incident wavelength of 450nm for example, the adopted camera pixel size should be smaller than 2.8um pixel size which corresponds to 4 multiples of minimum objective lens. Under same 2/3 FOV, the actual resolution of a 1080P (1920 ×1080) camera is only equal to 4.6um(=8.8mm/1920), and it barely meet the demands of 40X and 60X objective lens,while 4K (3640×2160) is about 2.3um(=8.8mm/3640), totally meeting the demands of all objective lens and making the optical lens work at its best efficiency. No matter it is equipped with 4K or 1080P monitor, it can get higher resolution results.

Remote control, separate human and experimental devices

The TrueChrome 4K Pro can meet the needs of many medical laboratories or clean workshops that often need to separate operators from operating areas to avoid unnecessary contact or contamination: only by connecting an observer with the TrueChrome 4K Pro and a computer with the Mosaic V2 software to Internet, you can use Mosaic V2 software to remotely control all features of the camera, and the TrueChrome 4K Pro can still deliver high speeds of up to 30 FPS @4K full resolution, even remotely, without affecting the experience.

Live interaction, share videos with multiple people in real time

The rapid development of internet technology makes communication more convenient and efficient, and the need of huge resources into multimedia interactive platform now can be easily done with one camera. TrueChrome 4k Pro camera support network standard transmission protocol, and can be connected with the third party live platforms like Ding Talk, Kwai and Tik Tok etc. to set up the internet conference, teaching platform, and interact images with multiple people in real time.

Product Model TrueChrome 4K Pro
Sensor Type Sony IMX183C CMOS
Resolution



8MP(3840×2160)

HDMI: 30fps@3840×2160

Frame USB 3.0: 25fps@3840×2160

Ethernet: 30fps 3840×2160

HDMI: JPG/TIFF

Image format USB 3.0: JPG/PNG/TIFF/DICOM

Ethernet: JPG/PNG/TIFF/DICOM

Exposure Mode Auto/Manual
Exposure Time 2ms~10s
White Balance Auto/Manual
Optical Interface



Standard C-Mount

HDMI: Connect monitor

USB3.0: Connect computer or U disk

Data Interface



LAN: Connect Internet

USB2.0: Connect mouse

Software HDMI:Embedded software,PC:Mosaic V2
Operating system Windows 7/8/10 ( 32bit/64bit )
Camera size 105.7x78x70.8(mm)
Camera weight 505g

Remark:

① USB 3.0 : can perform voice interaction under the help of computer audio function.

② LAN : No simultaneous voice interaction supported since no audio interface on camera.
