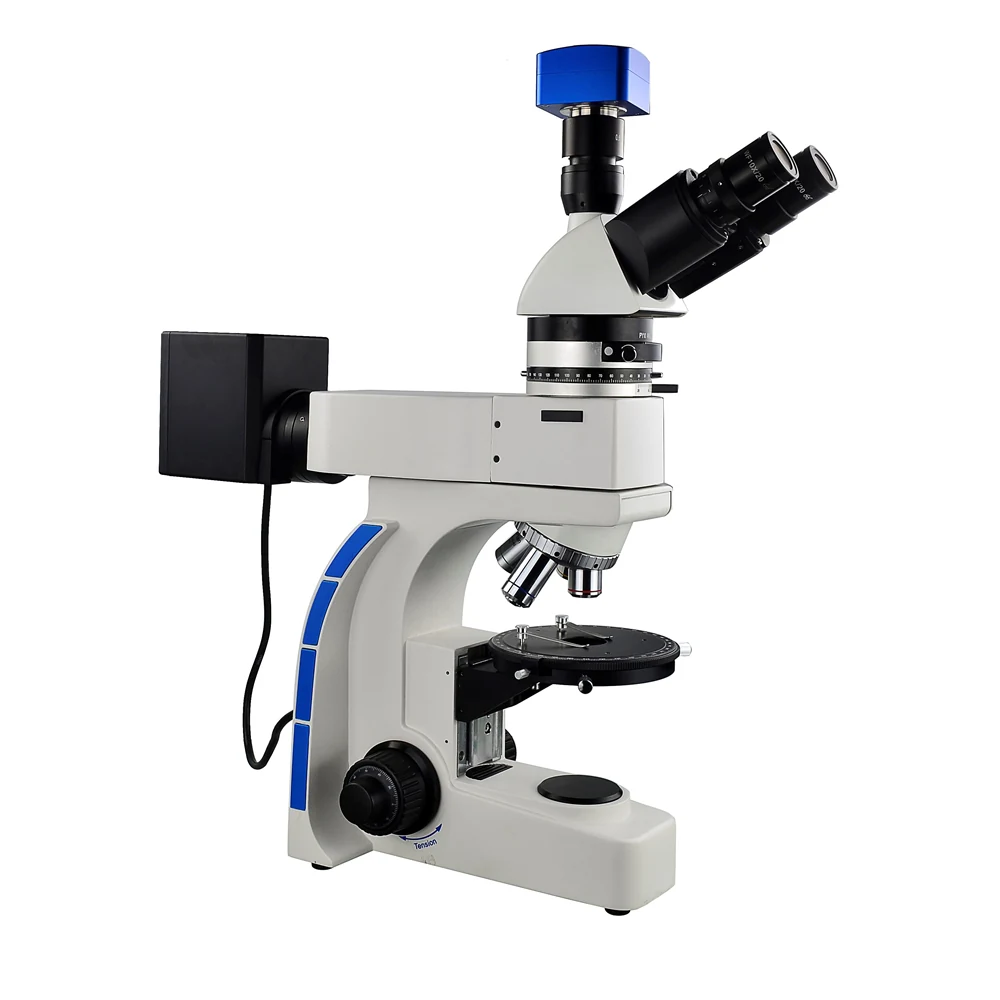

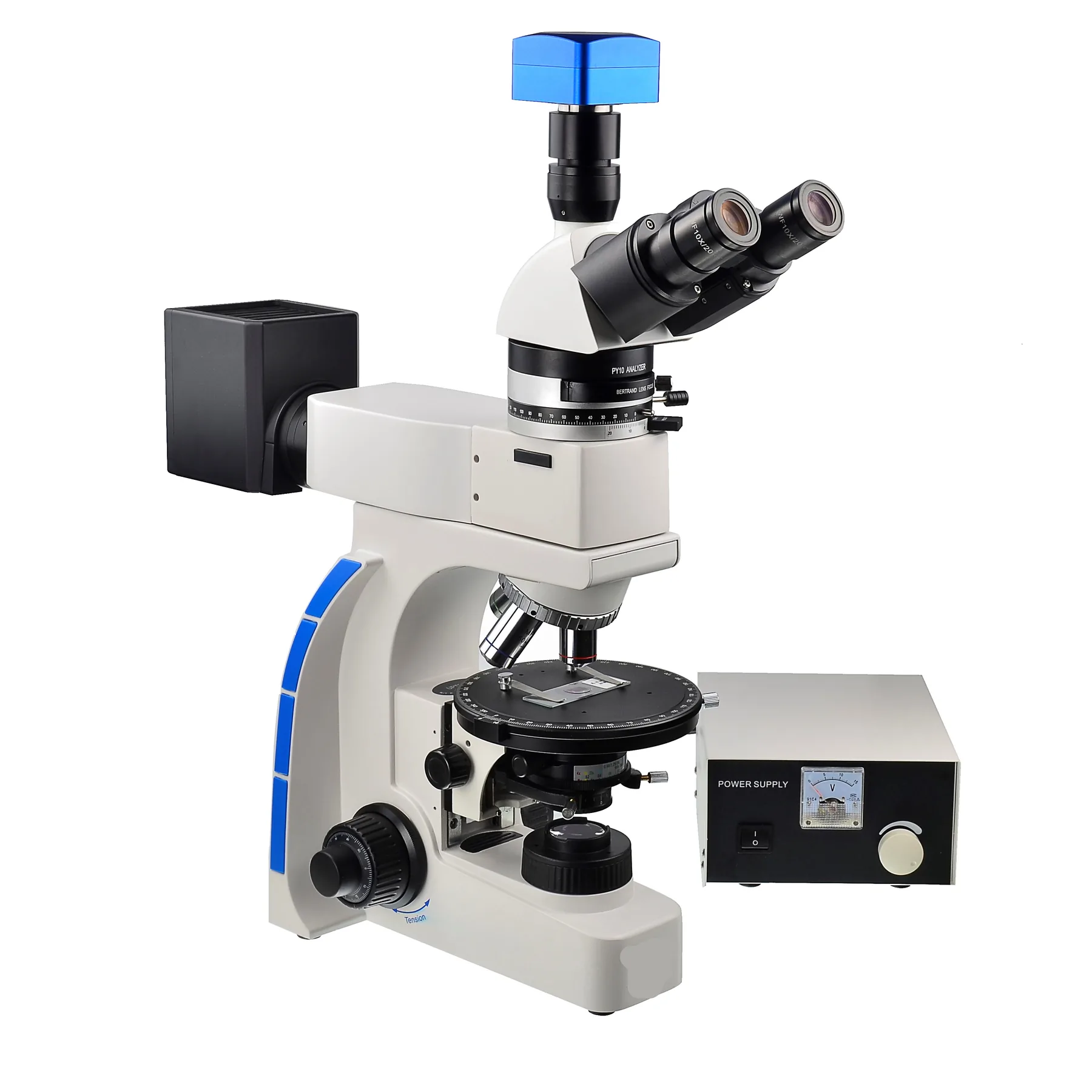

XUP100 Optical Binocular/Trinocular Polarizing Microscope
XUP100 Optical Binocular/Trinocular Polarizing Microscope
XUP100 Optical Binocular/Trinocular Polarizing Microscope

XUP100 Optical Binocular/Trinocular Polarizing Microscope

XUP100 is an optical binocular or trinocular polarizing microscope from Nanjing AMADA Instrument Co., Ltd. designed for material analysis, mineralogy, and industrial quality control. The model features a 30° inclined binocular or trinocular tube with diopter adjustment, strain-free infinity-corrected objectives, and Kohler illumination with field diaphragm. It supports multiple eyepiece and objective configurations, optional mechanical stage, and interchangeable illumination sources including halogen and LED with rechargeable battery.

  • 30° inclined binocular or trinocular tube with adjustable interpupillary distance 52–75 mm for ergonomic viewing
  • Strain-free infinity-corrected objectives (4X, 10X, 40X(S), 60X(S), 100X(S)/(Oil)) for high contrast and clarity
  • Kohler illumination with field diaphragm ensures even lighting and improved resolution
  • Optional mechanical stage and rotating stage for precise specimen positioning
  • Multiple illumination options including 6V20W/30W halogen, 3W LED, and rechargeable battery for flexible power use
Request A Quote +86-15195807515

Technical features

  • Observation tube: Binocular or trinocular, 30° inclined, interpupillary distance 52–75 mm, diopter adjustment
  • Eyepieces: WF10X/20mm (high eye-point up to 21mm), WF10X/22mm, Plan 16X/13mm, Plan Polarizing Reticule 10X/20mm
  • Objectives: Strain-free infinity achromatic (4X, 10X, 40X(S), 60X(S), 100X(S)/(Oil)), infinity plan achromatic (2X, 4X, 10X, 20X(S), 40X(S), 60X(S), 100X(S)/(Oil))
  • Condenser: Swing-out, N.A. 1.25
  • Stage: 360° rotating stage, specimen holder, optional attachable mechanical stage
  • Nosepiece: Quadruple revolving
  • Intermediate tube: Included
  • Compensators: 1/4λ retardation plate, λ tint plate, quartz wedge

Who it is for

  • Materials testing labs in automotive, aerospace, and construction industries
  • Manufacturers requiring polarizing microscopes for defect detection in semiconductors and composites
  • Distributors supplying lab equipment to research institutions and technical schools
  • Procurement engineers specifying polarizing microscopes with modular accessories

Specifications

ModelXUP100
Tube TypeBinocular or Trinocular
Tube Inclination30°
Interpupillary Distance52–75 mm
Eyepiece TypeWF10X/20mm, WF10X/22mm, Plan 16X/13mm, Plan Polarizing Reticule 10X/20mm
Objective TypesStrain-free Infinity Ach. and Infinity Plan Ach.
Objective Magnifications4X, 10X, 20X(S), 40X(S), 60X(S), 100X(S)/(Oil)
Condenser NA1.25
Stage Type360° Rotating, with specimen holder, optional mechanical stage
NosepieceQuadruple Revolving
IlluminationKohler with field diaphragm
Light Source Options6V20W Halogen, 6V30W Halogen, 3W LED with rechargeable battery
C-Mount Adapter0.5X, 1X, 0.25X
Filter SizesΦ38 (Blue, Green, Yellow, Frosted Glass)
Power Fuse250V/3.15A Φ5X20
Battery Capacity2200mAh

Use guide

  • Select binocular or trinocular tube based on whether camera output is required
  • Choose eyepiece based on field of view and eye relief needs (high eye-point up to 21mm)
  • Match objectives to sample type: 4X–10X for coarse inspection, 40X–100X for fine detail
  • Use 100X(S)/(Oil) with immersion oil for maximum resolution in thin sections
  • Enable Kohler illumination and adjust field diaphragm for even lighting

FAQ

Can I use this microscope with a camera?
Yes. The C-mount adapter (0.5X, 1X, 0.25X) allows connection to digital cameras or microscope cameras.
What is the working distance for the 100X objective?
The working distance for the 100X(S)/(Oil) objective is approximately 0.12 mm; immersion oil is required for optimal performance.
Is immersion oil included?
Yes, immersion oil is listed as a standard accessory (●) in the outfit table.
Can I use a rechargeable battery?
Yes. The 3W LED option includes a 2200mAh rechargeable battery for portable operation.
What is the difference between binocular and trinocular?
Binocular is for direct viewing only; trinocular includes a third port for camera attachment, enabling documentation and recording.
