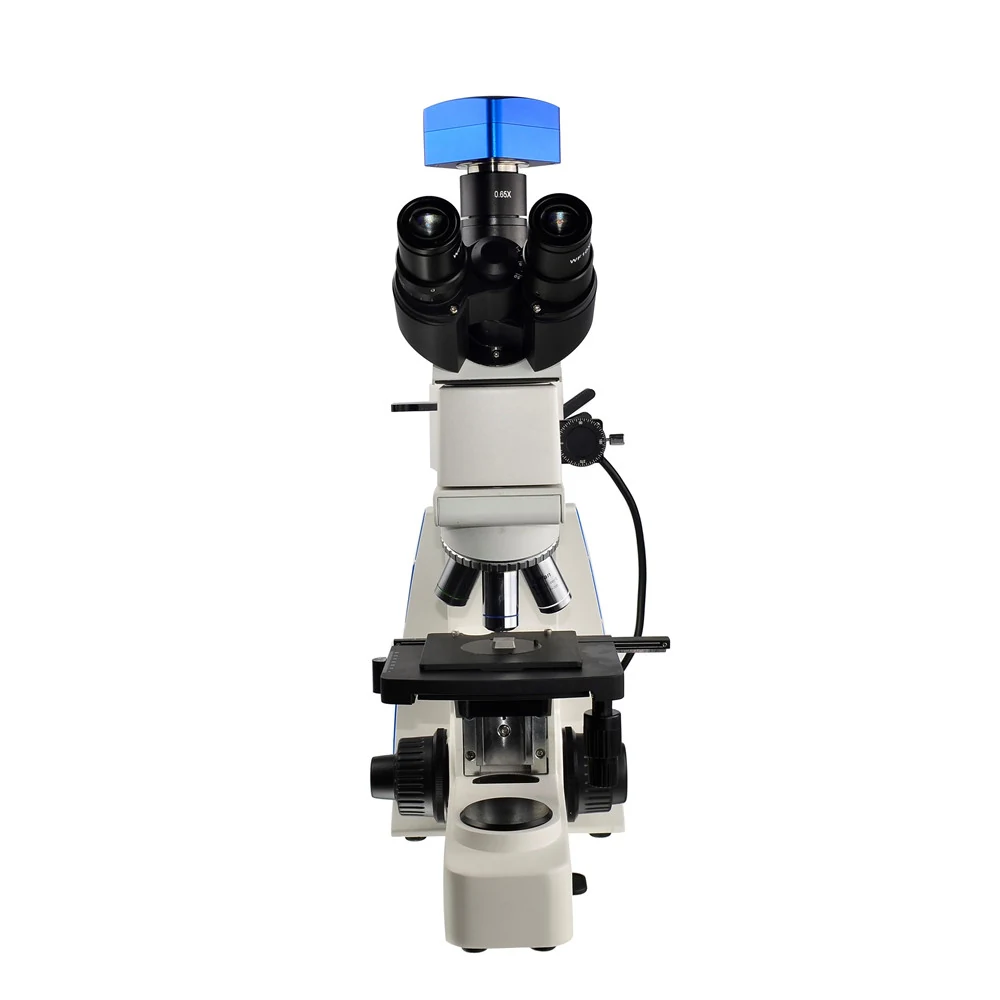

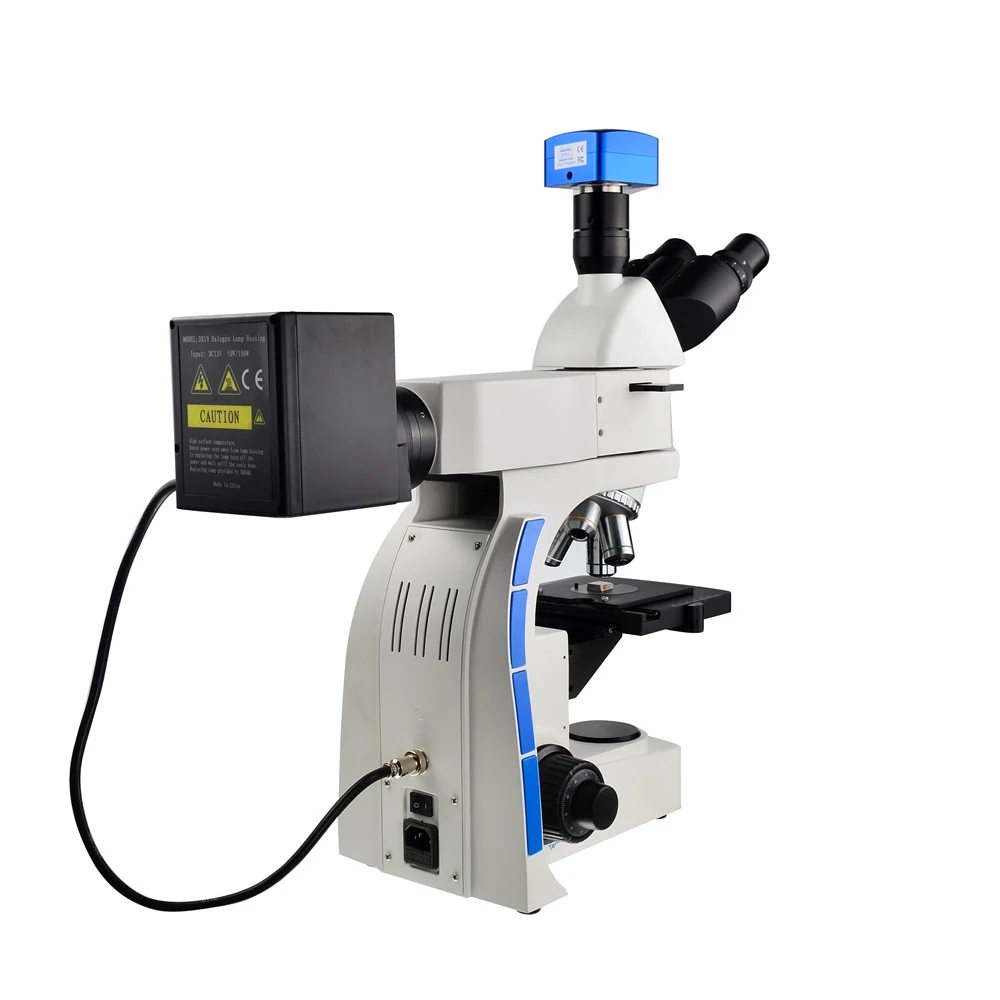

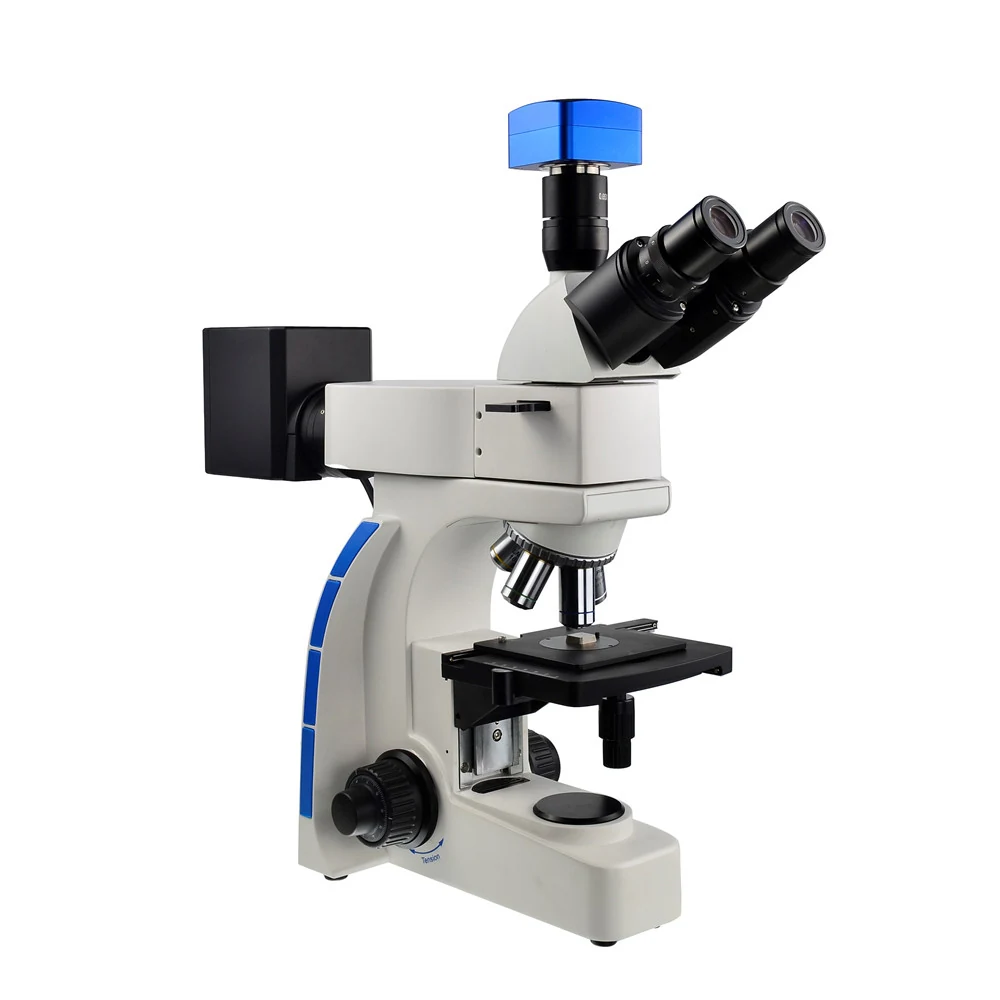

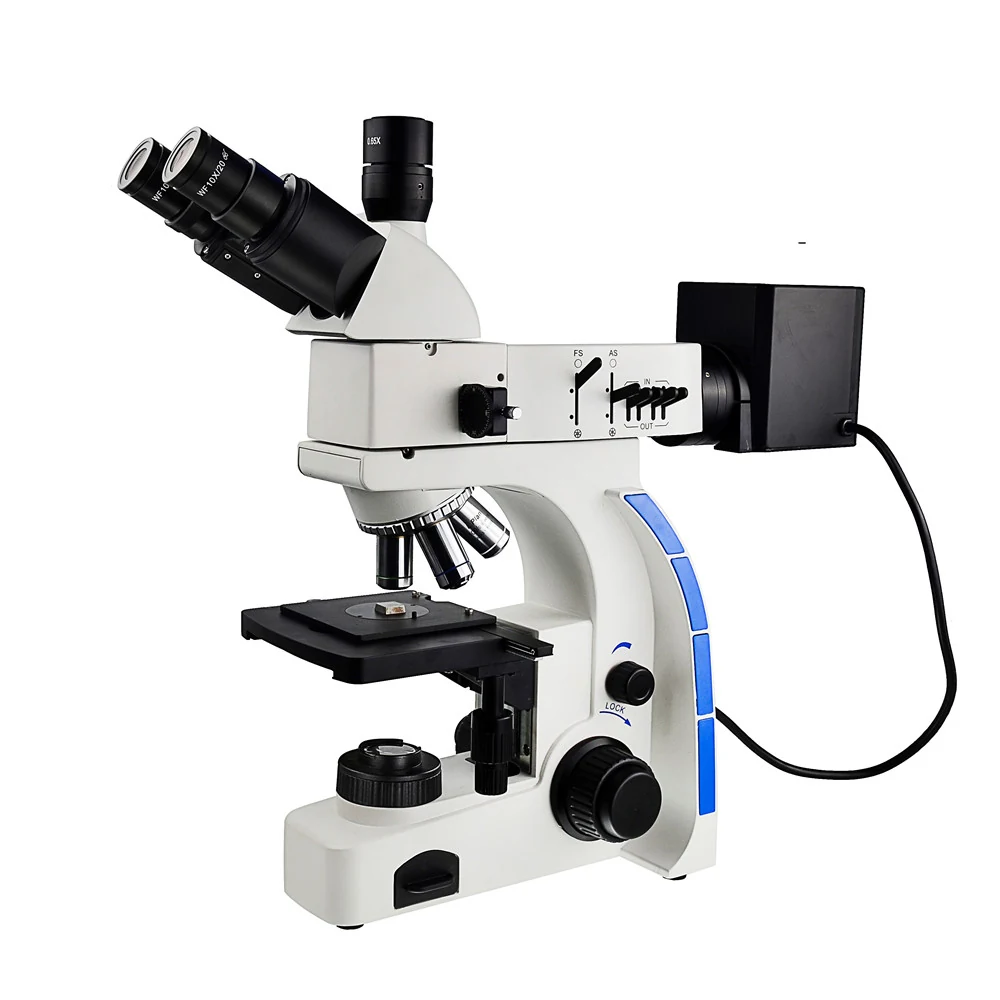

XUM100 Upright Metallurgical Microscope for Surface Inspection
XUM100 Upright Metallurgical Microscope for Surface Inspection
XUM100 Upright Metallurgical Microscope for Surface Inspection
XUM100 Upright Metallurgical Microscope for Surface Inspection
XUM100 Upright Metallurgical Microscope for Surface Inspection

XUM100 Upright Metallurgical Microscope for Surface Inspection

XUM100 is an upright metallurgical microscope from Nanjing AMADA Instrument designed for surface inspection in materials science, metallurgy, and electronics manufacturing. The model features a one-piece frame, binocular or trinocular observation tubes with adjustable interpupillary distance, and supports both reflected and transmitted light illumination. It includes a mechanical stage, multiple objective lenses, and configurable condensers for high-resolution surface analysis.

  • One-piece frame ensures stability and alignment for consistent surface inspection results
  • Binocular and trinocular tube options with 30° inclination and 360° rotation for ergonomic viewing
  • Adjustable interpupillary distance (48–75 mm or 52–75 mm) to fit individual user needs
  • Supports both reflected and transmitted light illumination for versatile sample types
  • Multiple objective lenses (5X to 100X) with infinity long working distance for detailed surface examination
  • Mechanical stage with precise X/Y movement for accurate sample positioning
Request A Quote +86-15195807515

Technical features

  • One-piece frame from arm to base for structural rigidity
  • Binocular tube with interpupillary distance 52–75 mm or 48–75 mm, 30° inclined, 360° rotatable, diopter adjustable
  • Trinocular tube with 20/80 light split via high-quality prism, diopter adjustable
  • Eyepieces: WF10X/20 (high eye-point up to 21 mm), reticule eyepieces WF16X/13
  • Objectives: 5X, 10X, 20X, 50X, 80X, 100X (oil immersion) — infinity long WD plan achromatic
  • Condensers: Abbe NA1.25, swing-out, darkfield (dry and oil), all with Kohler illumination and field diaphragm
  • Mechanical stage: 156×138 mm (right-handed), X/Y travel 76×54 mm; or 185×177 mm, X/Y travel 75×50 mm
  • Revolving nosepiece: quadruple inward facing or quintuple inward facing

Who it is for

  • Metallurgical and materials testing labs
  • Electronics manufacturers requiring surface inspection tools
  • Industrial quality control engineers
  • Distributors supplying inspection equipment to technical industries
  • Research institutions conducting surface morphology studies

Specifications

ModelXUM100
Frame ConstructionOne-piece from arm to base
Observation TubeBinocular or trinocular, 30° inclined, 360° rotatable
Interpupillary Distance48–75 mm or 52–75 mm
Eyepiece TypeWF10X/20 (high eye-point 21 mm), WF16X/13 reticule
Objective Lenses5X, 10X, 20X, 50X, 80X, 100X (oil immersion)
CondenserAbbe NA1.25, swing-out, darkfield (dry/oil)
Stage TypeMechanical stage, 156×138 mm or 185×177 mm
Stage MovementX/Y travel 76×54 mm or 75×50 mm
NosepieceQuadruple or quintuple inward facing
Illumination TypeReflected (12V100W halogen), Transmitted (6V20W/30W halogen)
Power Supply12V halogen, 6V halogen, 250V/5A Φ5X20 fuse

Use guide

  • Select trinocular tube if camera documentation is required
  • Choose 185×177 mm stage if inspecting large or irregularly shaped samples
  • Use darkfield condenser for low-contrast surface features like scratches or texture
  • Select 100X objective only when oil immersion is available and sample preparation allows
  • Match halogen lamp voltage (12V or 6V) to power box and bulb specifications

FAQ

What is the working distance of the objectives?
The objectives are infinity long WD plan achromatic; working distance varies by magnification — 100X requires oil immersion and has minimal working distance.
Can I add a camera?
Yes. The trinocular tube supports camera integration with a 20/80 light split for image capture.
What condensers are available?
Available condensers include Abbe NA1.25, swing-out, and darkfield (dry and oil) options.
What stage size is standard?
The standard stage is 156×138 mm; 185×177 mm is an optional size.
Is the 100X objective oil immersion?
Yes. The 100X objective requires oil immersion for proper use.
