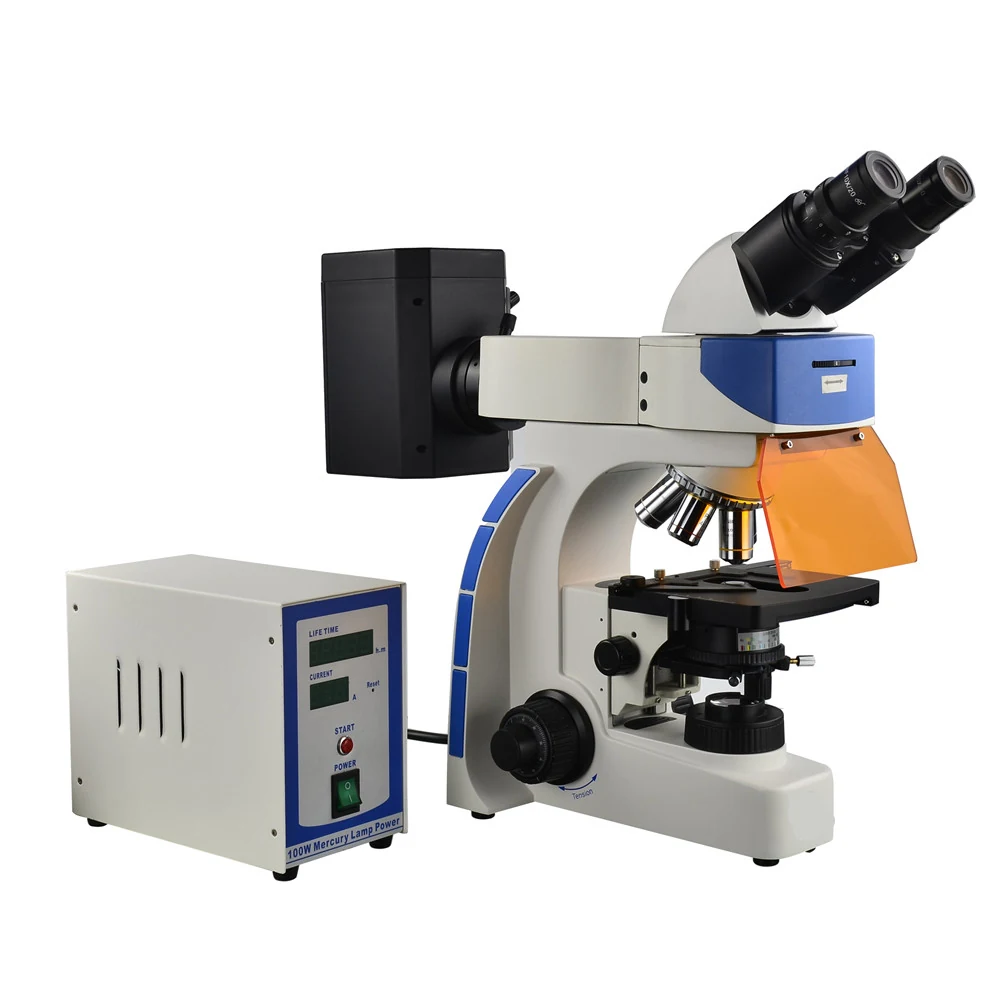

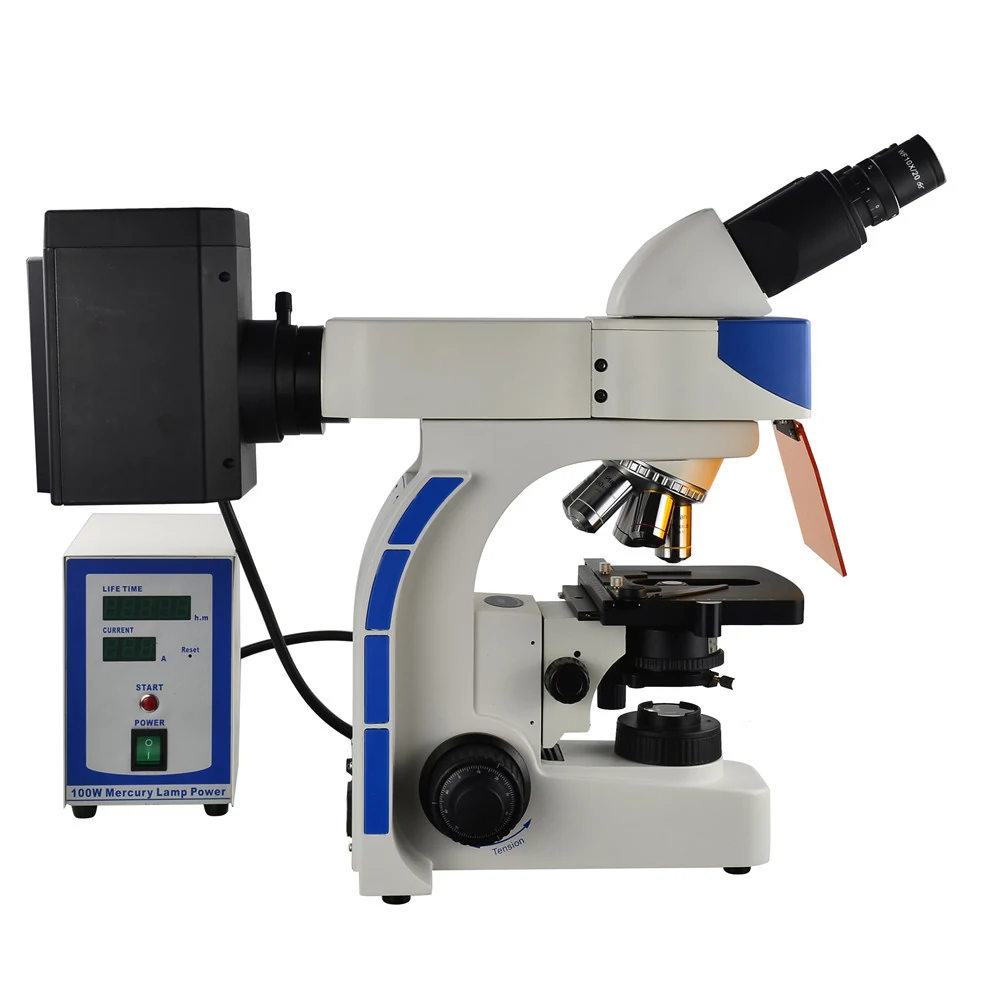

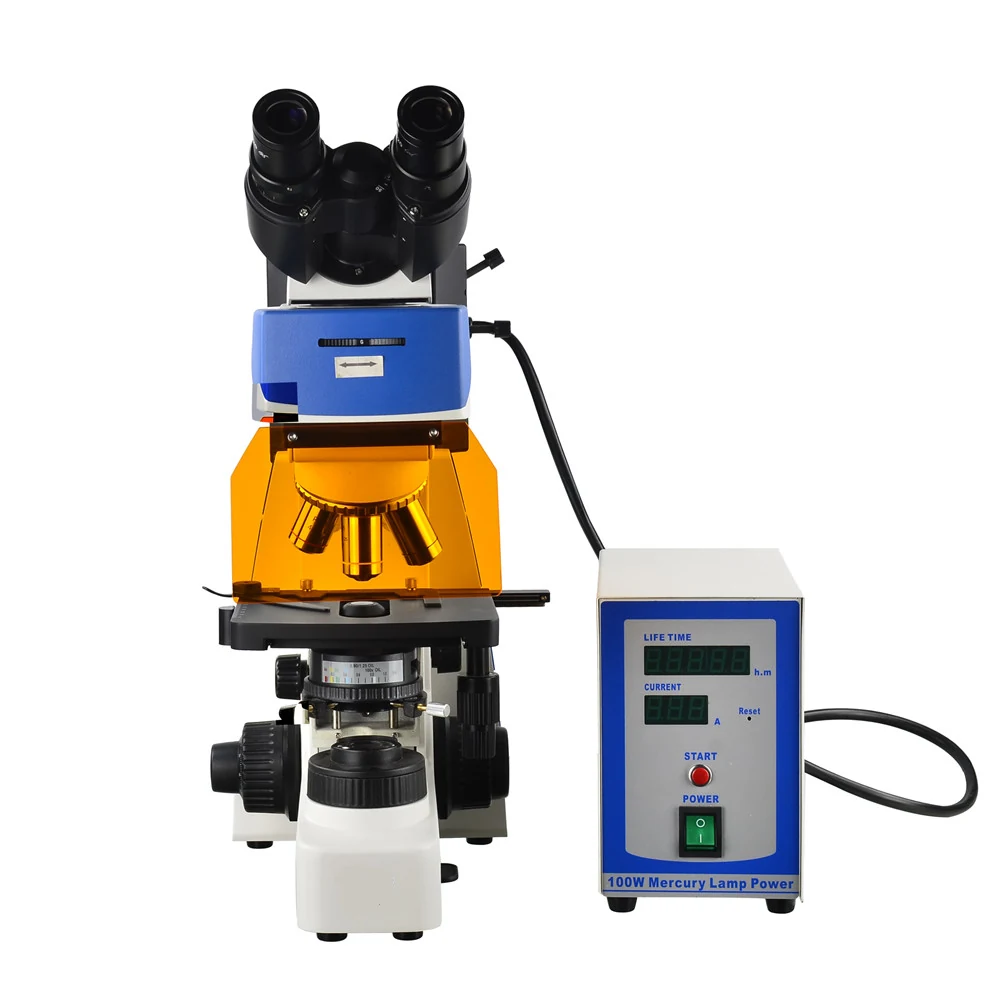

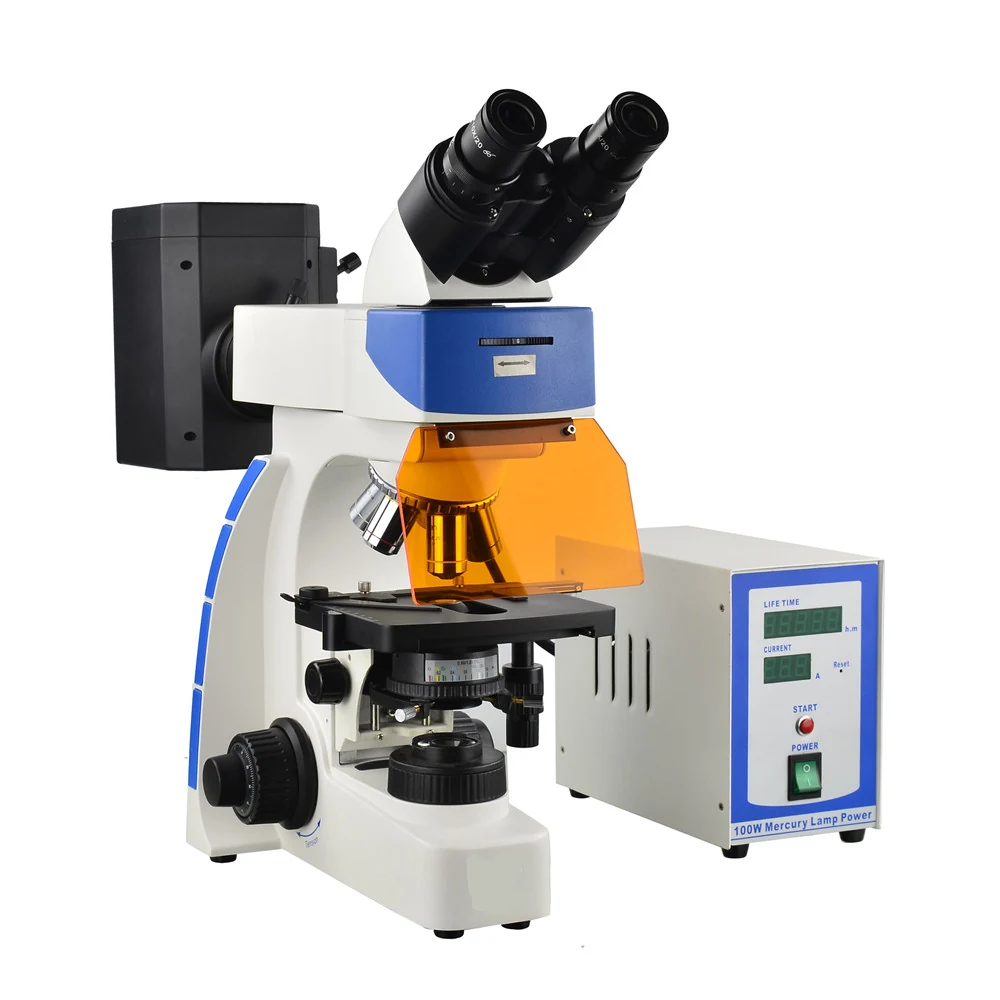

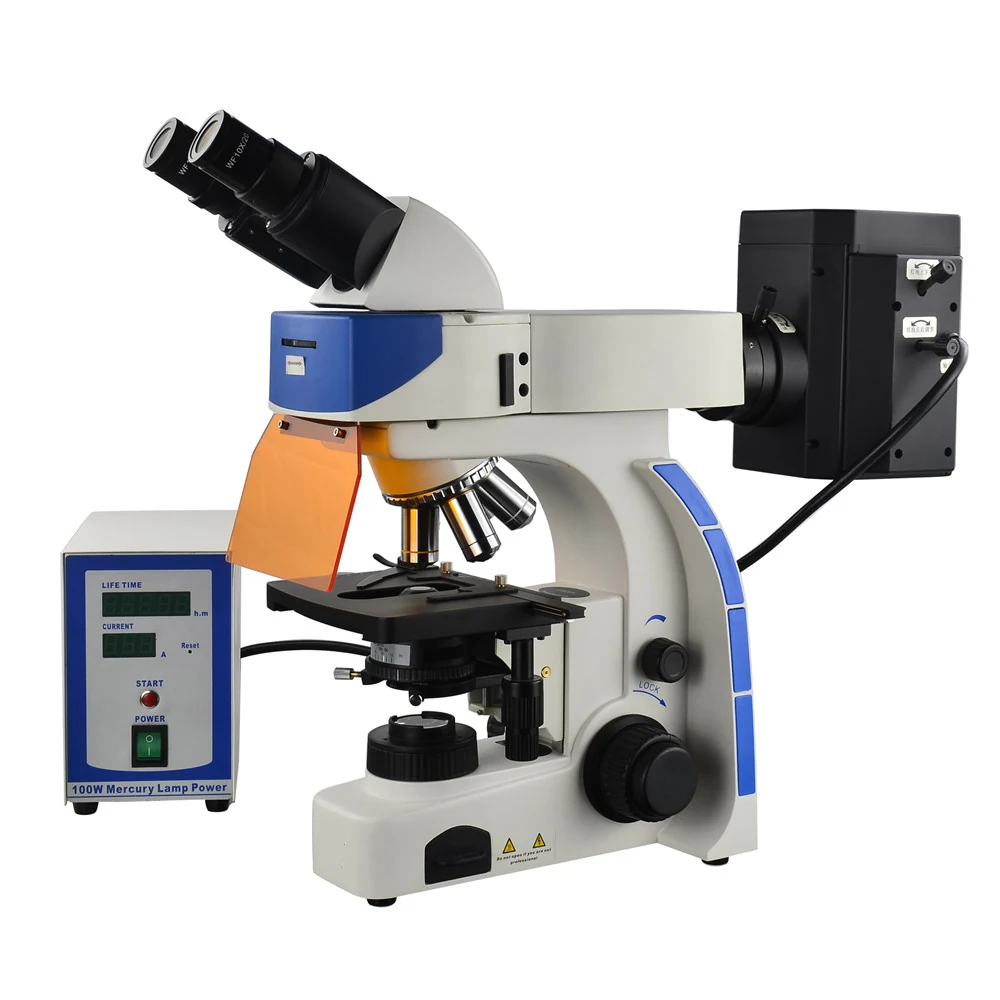

XUF100 Upright Research Fluorescence Microscope for Living Cells Tissues

XUF100 series upright fluorescence microscope is a kind of cost-effective advanced laboratory microscope which is designed for the area of medicine clinical and biology research.

Equipped with infinity plan achromatic optical system, chromatic aberrations and curvature of field are both ideally corrected over the field of view.  Four wave brand at one time.

Send Inquiry
Parts Specification XUF101 XUF102
Frame One-piece construction from arm to base ● ●
Seidentopf                                  Observation Tube Binocular Tube, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, diopter adjustable ○
Binocular Tube, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, diopter adjustable ○
Binocular Tube, Interpupillary distance 48-75mm, 30°inclined diopter adjustable. ●
Trinocular Tube, Interpupillary distance 48-75mm, 30°inclined, Trinocular light is split 20/80 by a high quality prism, diopter adjustable ●
Trinocular Tube, Interpupillary distance 52-75mm, 30°inclined, Trinocular light is split 20/80 by a high quality prism, diopter adjustable ●
Trinocular Tube, Interpupillary distance 48-75mm, 30°inclined, Trinocular light is split 20/80 by a high quality prism, diopter adjustable ○
Trinocular Tube, Interpupillary distance 52-75mm, 30°inclined, Trinocular light is split 100/0 by a high quality prism, diopter adjustable ○
Trinocular Tube, Interpupillary distance 52-75mm, 30°inclined, Trinocular light is split 50/50 by a high quality prism, diopter adjustable ○
Plan

Eyepieces

 WF10X/20, High eye-point up to 21mm ○○ ○○
WF10X/20, High eye-point up to 21mm ●● ●●
WF10X/22, High eye-point up to 21mm ○○ ○○
WF16X/13 ○○ ○○
WF16X/13 ○○ ○○
WF10X/20(point) High eye-point up to 21mm ○ ○
WF10X/22(point) High eye-point up to 21mm ○ ○
Reticule Eyepiece, Cross WF10X/20 ○ ○
Infinity

Plan

Achromatic

Objective

 2X/N.A.0.06 (Need Swing-out Condenser) ○ ○
4X/N.A.0.10 ● ●
10X/N.A.0.25 ● ●
20X(S)/N.A.0.40 ○ ○
40X(S)/N.A.0.65 ● ●
60X(S)/N.A.0.80 ○ ○
100X(S)/(Oil)/N.A.1.25 ● ●
Condenser Abbe Condenser N.A.1.25 ● ●
Swing out Condenser ○ ○
Stage Mechanical Stage, 156X138mm, movement range 76X54mm ● ●
Mechanical Stage, 185X177mm, movement range 75X50mm ○ ○
Revolving Nosepiece Quadruple, inward facing ● ●
Quintuple, inward facing ○ ○
Kohler Illuminator With field diaphragm ● ●
 Fluorescence Attachment UV Excitation Filter(import) ○ ○
V Excitation Filter(import) ○ ○
B Excitation Filter(import) ● ●
G Excitation Filter(import) ● ●
Electrical

Parts

 For 6V20W Halogen ● ●
For 6V30W Halogen ○ ○
For 3W LED (With rechargeable battery) ○ ○
For 3W LED ○ ○
6V20W Halogen Bulb ○○○ ○○○
6V20W Osram Halogen Bulb ● ●
6V30W Halogen Bulb ○ ○
6V30W Osram Halogen Bulb ○ ○
250V/3.15A Φ5X20 Fuse ●●● ●●●
3W LED Bulb ○ ○
2200mAh LED rechargeable battery ○ ○
Photo Adapters 0.5X C-Mount ○
1X C-Mount ●
0.25X C-Mount ○
Filter Blue(φ38) ● ●
Green(φ38) ○ ○
Yellow(φ38) ○ ○
frosted glass(φ38) ○ ●
Others Power cord ● ●
Immersion Oil ● ●
φ2mm Allen screw driver ● ●
Dust Cover ● ●
“●” means standard configuration, “○” means optional accessory.
