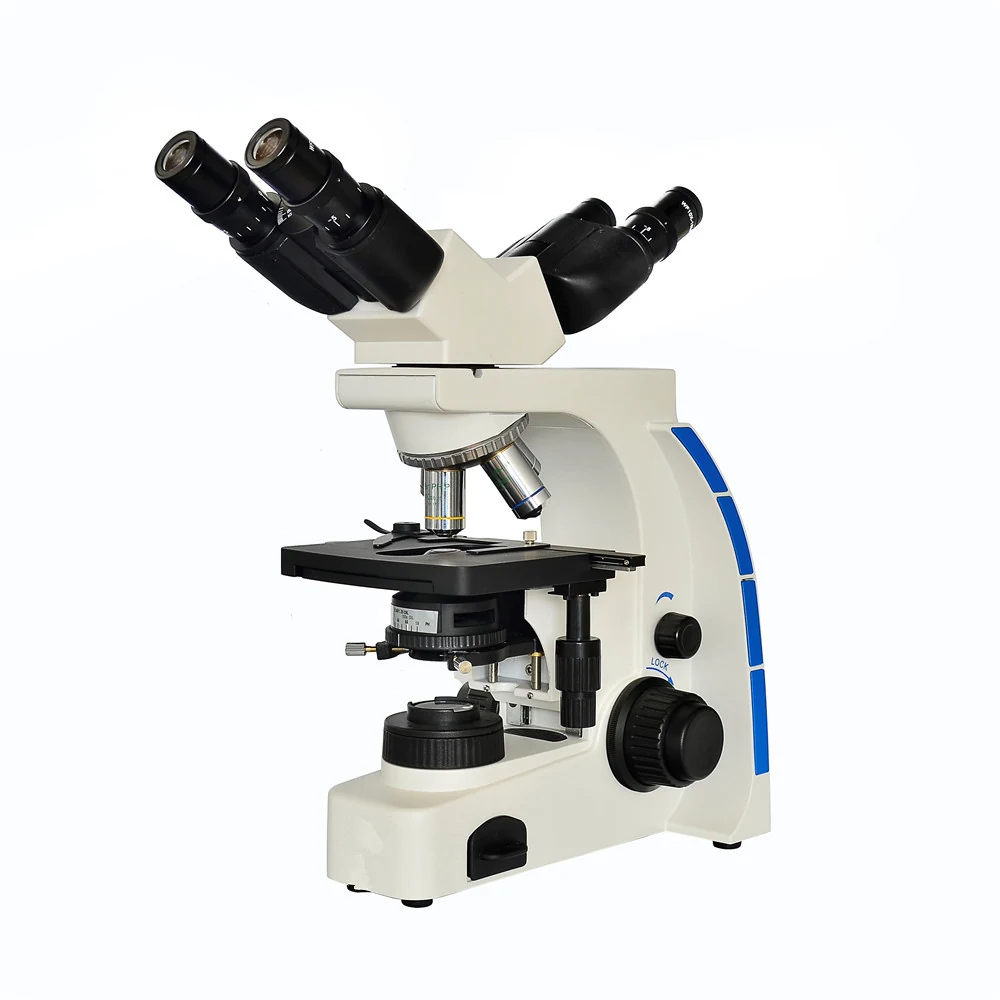

XUB200 Laboratory Biological Microscope for Hosptial Research

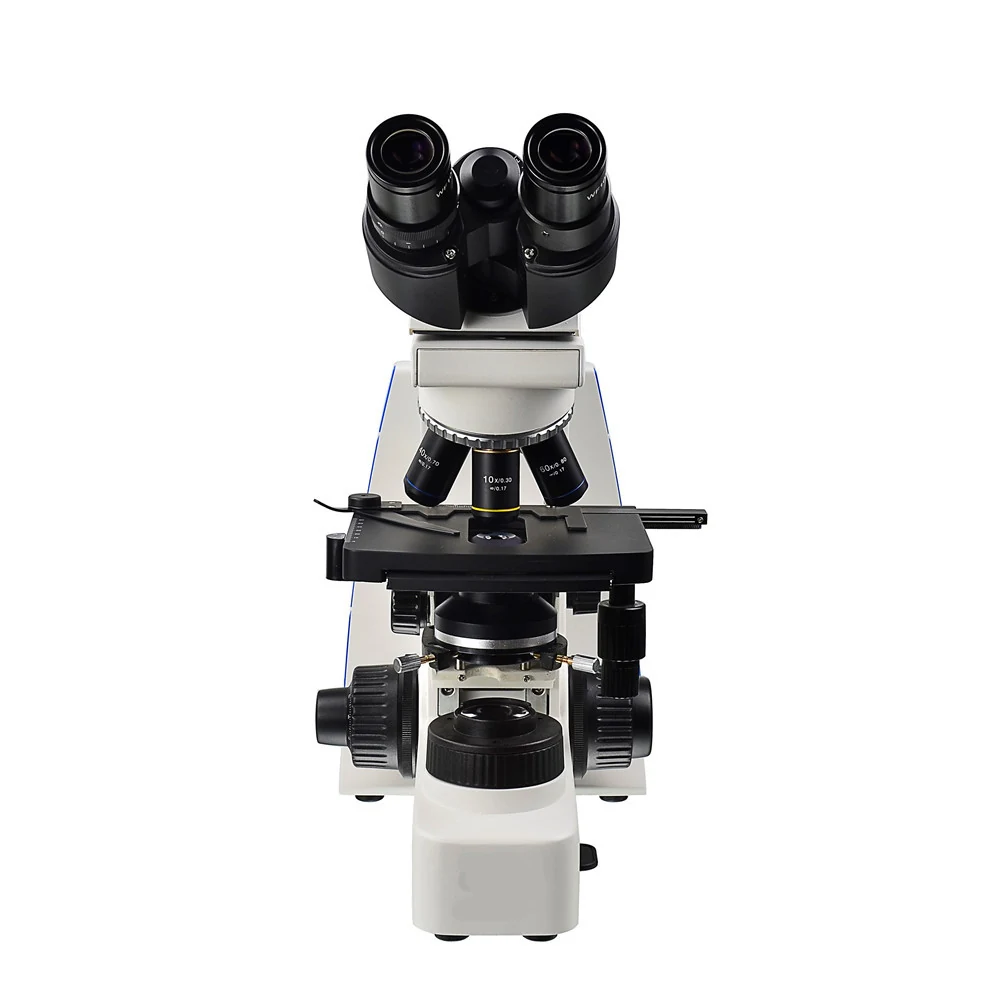

XUB200 Laboratory Biological Microscope for Hosptial Research

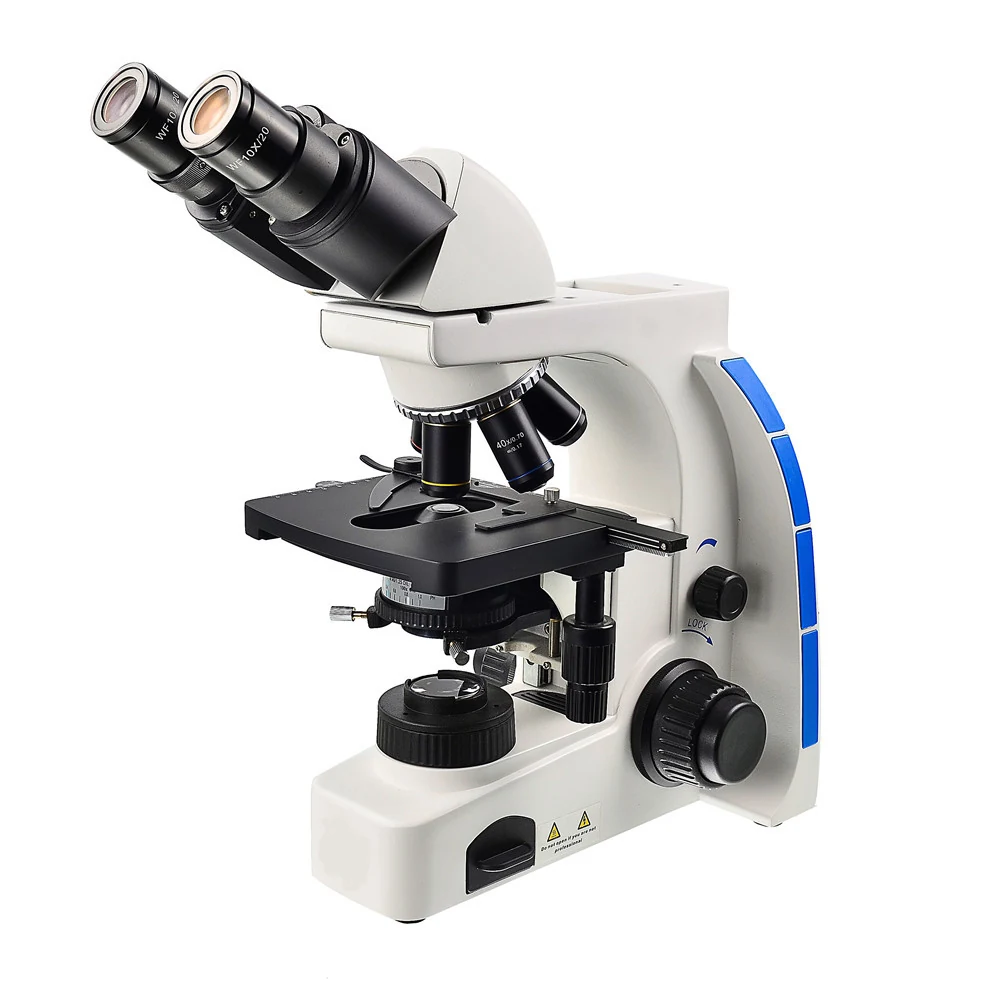

XUB200 Laboratory Biological Microscope for Hosptial Research

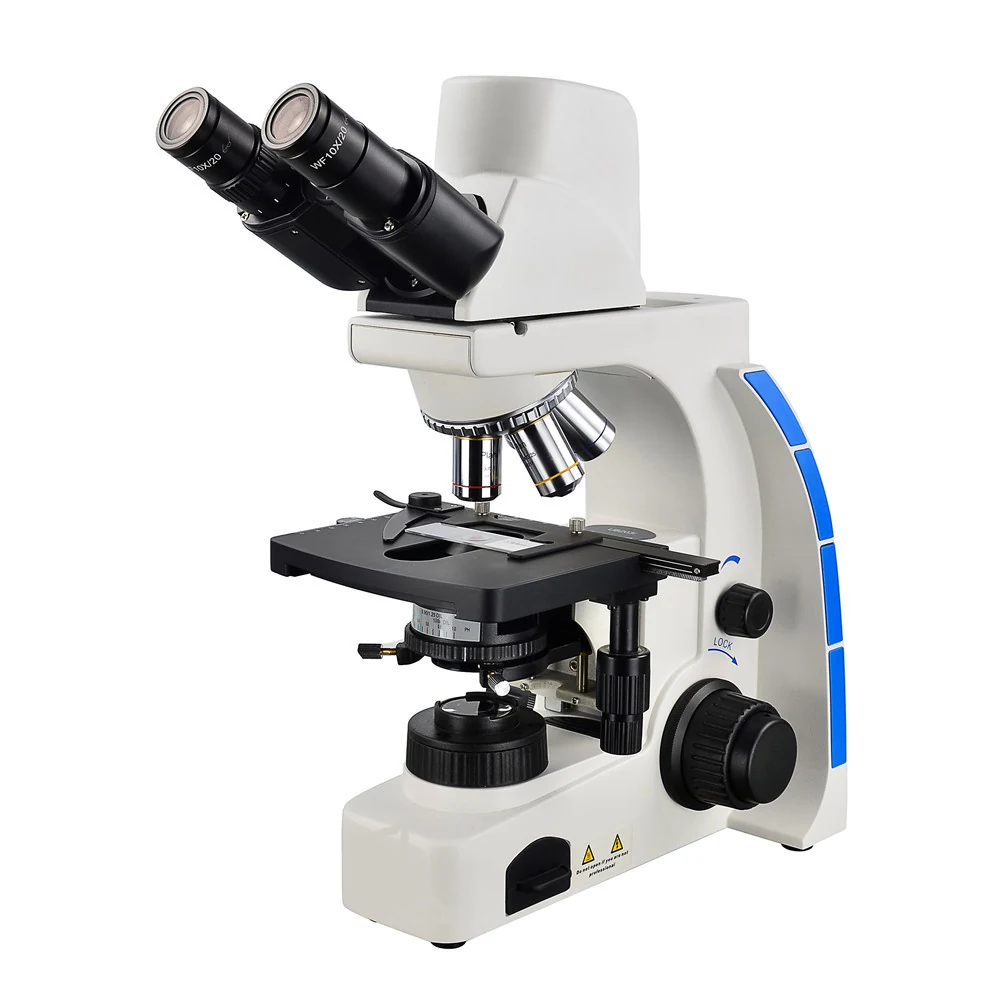

XUB200 Laboratory Biological Microscope for Hosptial Research

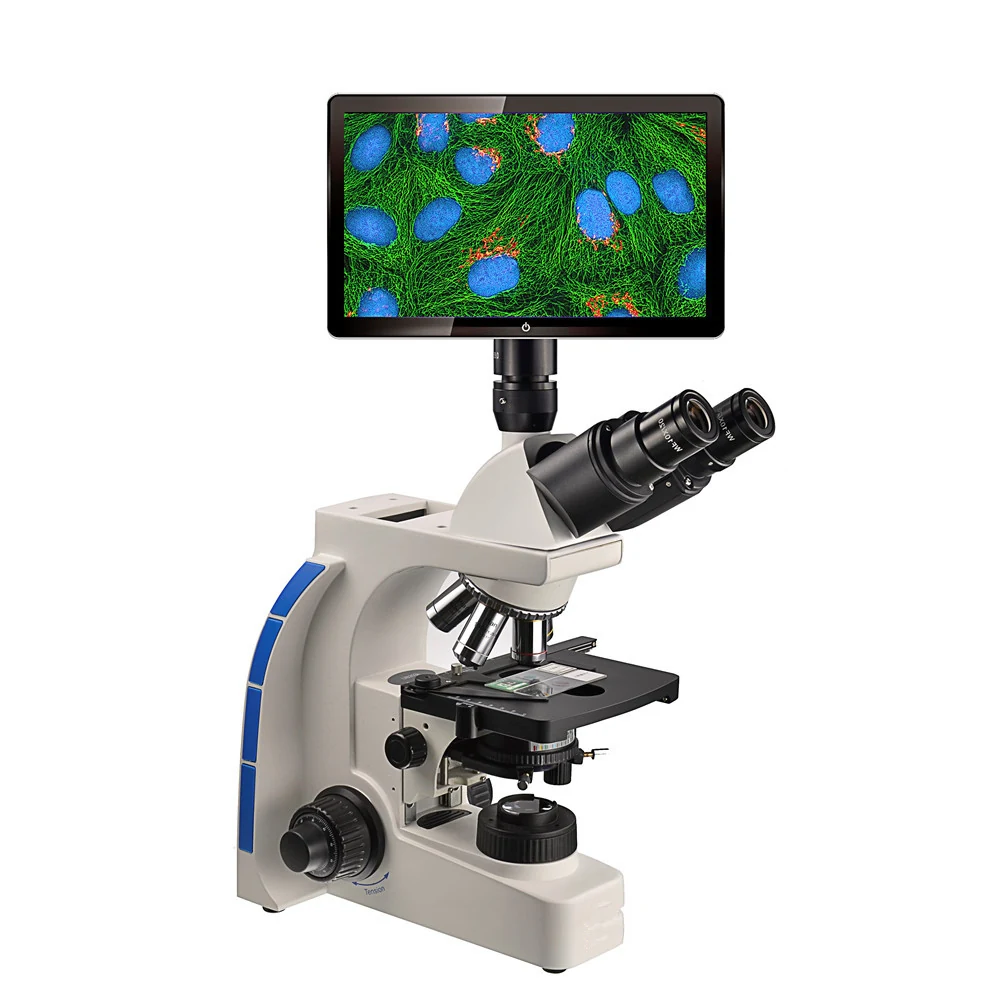

XUB200 Laboratory Biological Microscope for Hosptial Research
XUB200 Laboratory Biological Microscope for Hosptial Research

XUB200 Laboratory Biological Microscope for Hosptial Research

XUB200 is a laboratory biological microscope from Nanjing AMADA Instrument for hospital research, clinical labs, and biomedical applications. The model features a one-piece frame, binocular or trinocular observation tubes with adjustable interpupillary distance, and a range of objectives from 2X to 100X. It supports Kohler illumination with field diaphragm, mechanical stage, and multiple electrical power options including halogen and LED. The series includes plan achromatic objectives and optional digital imaging adapters.

  • One-piece frame ensures stability and alignment in clinical and research environments
  • Binocular or trinocular tube options with 30° inclination and 360° rotation for ergonomic viewing
  • Adjustable interpupillary distance (48–75 mm or 52–75 mm) to suit individual users
  • Multiple objective configurations with 2X to 100X magnification and N.A. up to 1.25
  • Kohler illumination with field diaphragm for consistent, even lighting across magnifications
  • Mechanical stage with large movement range (76X54 mm) for precise slide positioning
Request A Quote +86-15195807515

Technical features

  • One-piece frame from arm to base for structural stability
  • Binocular or trinocular observation tubes with 30° inclination and 360° rotation
  • Interpupillary distance adjustable 48–75 mm or 52–75 mm
  • Diopter adjustment on all tubes for individual eye focus
  • Plan achromatic objectives: 2X/N.A.0.06 (requires swing-out condenser), 4X/N.A.0.10, 10X/N.A.0.25, 20X(S)/N.A.0.40, 40X(S)/N.A.0.65, 60X(S)/N.A.0.80, 100X(S)/Oil/N.A.1.25
  • Abbe condenser N.A.1.25 or swing-out condenser option
  • Mechanical stage 156X138 mm with movement range 76X54 mm or 185X177 mm with 75X50 mm range
  • Revolving nosepiece: quadruple inward facing or quintuple inward facing

Who it is for

  • Hospital pathology departments
  • Clinical research labs in universities and medical centers
  • Importers sourcing biological microscopes for clinical diagnostics
  • Distributors building a laboratory equipment catalog for medical and research use

Specifications

ModelXUB200
FrameOne-piece construction from arm to base
Observation TubeBinocular or trinocular, 30° inclined, 360° rotatable, diopter adjustable
Interpupillary Distance48–75 mm or 52–75 mm
Objective Magnification2X, 4X, 10X, 20X(S), 40X(S), 60X(S), 100X(S)/Oil
Objective N.A.0.06, 0.10, 0.25, 0.40, 0.65, 0.80, 1.25
CondenserAbbe N.A.1.25 or swing-out condenser
Stage TypeMechanical stage, 156X138 mm or 185X177 mm
Stage Movement Range76X54 mm or 75X50 mm
NosepieceQuadruple inward facing or quintuple inward facing
IlluminationKohler with field diaphragm
Power Options6V20W halogen, 6V30W halogen, 3W LED with rechargeable battery
C-Mount Adapters0.5X, 1X, 0.25X
FiltersBlue (φ38), green (φ38), yellow (φ38), frosted glass (φ38)

Use guide

  • Select tube type (binocular or trinocular) based on need for camera integration
  • Choose objective set based on required magnification range and N.A. values
  • Use swing-out condenser when using 2X objective for proper focus
  • Match electrical power source to local voltage and bulb availability
  • Add C-Mount adapter if digital imaging is required

FAQ

What is the interpupillary distance range?
48–75 mm or 52–75 mm depending on the tube model.
Can I use a 100X objective with oil?
Yes. The 100X(S)/Oil/N.A.1.25 objective requires immersion oil for proper use.
Is the condenser adjustable?
Yes. The Abbe condenser N.A.1.25 is standard; a swing-out condenser is optional for 2X objective use.
What power sources are available?
6V20W halogen, 6V30W halogen, or 3W LED with rechargeable battery.
Can I connect a camera?
Yes. Use 1X C-Mount adapter for direct digital imaging.
