XT60-B8S 10/20/30/40X Stereo Zoom Microscope for Surface Detection
XT60-B8S 10/20/30/40X Stereo Zoom Microscope for Surface Detection
XT60-B8S 10/20/30/40X Stereo Zoom Microscope for Surface Detection
XT60-B8S 10/20/30/40X Stereo Zoom Microscope for Surface Detection
XT60-B8S 10/20/30/40X Stereo Zoom Microscope for Surface Detection

XT60-B8S 10/20/30/40X Stereo Zoom Microscope for Surface Detection

XT60-B8S is a stereo zoom microscope from Nanjing AMADA Instrument for surface inspection in electronics, precision assembly, and quality control. It offers standard magnifications of 20X and 40X with optional auxiliary lenses, a 100 mm working distance, and a 45° inclined binocular head with diopter adjustment for ergonomic use. The system supports multiple objective combinations and wide-field eyepieces for clear, bright imaging across a 5X to 160X magnification range.

  • 100 mm working distance provides ample space for handling components and tools during inspection
  • 45° inclined binocular head with 360° rotation and bilateral diopter adjustment reduces eye and neck strain during long sessions
  • High repetition accuracy in zoom mechanism ensures consistent focus and image alignment
  • Multiple objective combinations (1X/4X, 2X/4X, 1X/3X, 1X/2X) allow flexible magnification setup
  • Wide-field eyepieces (WF10X/20mm, WF15X/15mm, WF20X/10mm) increase field of view for faster surface scanning
Request A Quote +86-15195807515

Technical features

  • Zoom lens combinations: 1X/4X, 2X/4X, 1X/3X, 1X/2X for flexible magnification setup
  • Standard magnification: 20X / 40X; total magnification range: 5X to 160X
  • Working distance: 100 mm (effective distance) with standard objective

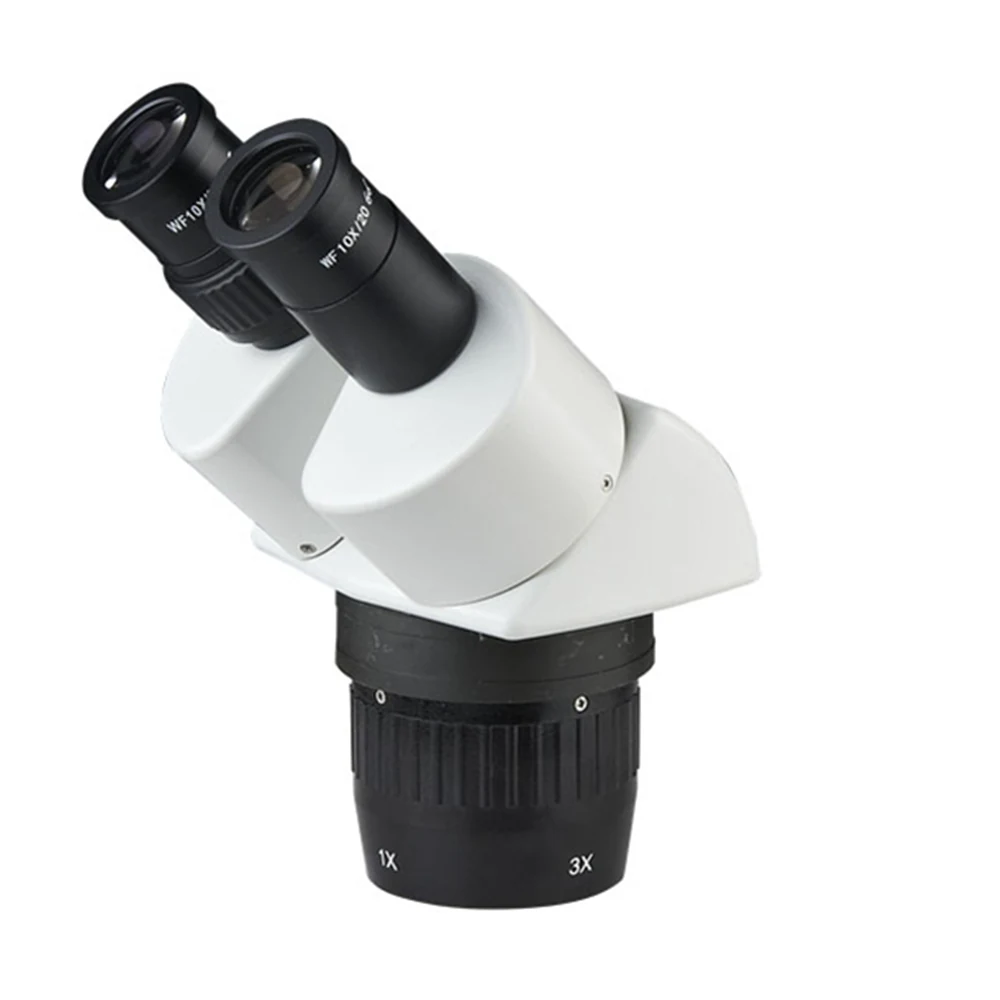

  • Binocular head: 45° tilt, 360° rotation, interpupillary distance 54–76 mm, bilateral diopter adjustment
  • Vertical hand wheel zoom with high repetition accuracy

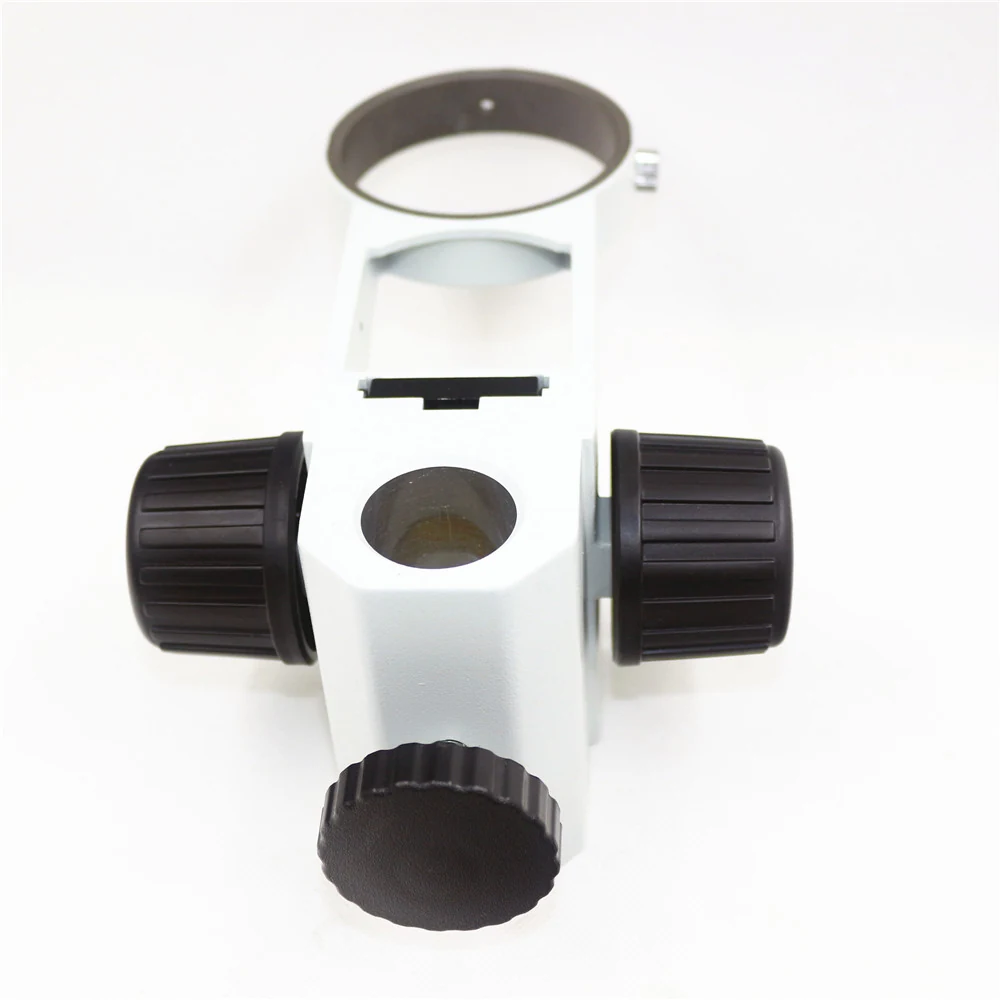

  • Focusing hand wheel with elastic adjustment and lifting range of 50 mm
  • Optical members with special coating for clear, bright, and flat field of view
  • High eye point design for comfortable viewing with glasses or in tight spaces

Who it is for

  • Electronics manufacturers and contract assemblers
  • Procurement teams sourcing stereo microscopes for inspection lines
  • Distributors building a catalog of benchtop microscopes for industrial use

Specifications

ModelXT60-B8S
Standard Magnification20X / 40X
Total Magnification Range5X – 160X
Working Distance100 mm (effective)
Binocular Head Angle45° tilt
Head Rotation360°
Interpupillary Distance54–76 mm
Zoom MechanismVertical hand wheel, high repetition accuracy
Focusing Range50 mm lifting range
Eyepiece OptionsWF10X/20mm, WF15X/15mm, WF20X/10mm
Objective Options1X/4X, 2X/4X, 1X/3X, 1X/2X

Use guide

  • Select objective combination (e.g., 1X/4X) based on required magnification and working distance
  • Choose eyepiece (WF10X/20mm, WF15X/15mm, or WF20X/10mm) to match field of view and magnification needs
  • Adjust interpupillary distance and diopter settings for individual user comfort
  • Use vertical zoom wheel for smooth, repeatable zooming during inspection tasks

FAQ

What is the working distance on the standard configuration?
100 mm (effective distance) with the standard objective setup.
Can I change the eyepiece or objective?
Yes. Multiple eyepieces (WF10X/20mm, WF15X/15mm, WF20X/10mm) and objectives (1X/4X, 2X/4X, 1X/3X, 1X/2X) are available as options.
Is the head adjustable for different users?
Yes. The binocular head tilts 45°, rotates 360°, and has adjustable interpupillary distance (54–76 mm) and bilateral diopter control.
What magnification range does this microscope support?
Standard magnification is 20X and 40X; total range is 5X to 160X with optional lenses.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
