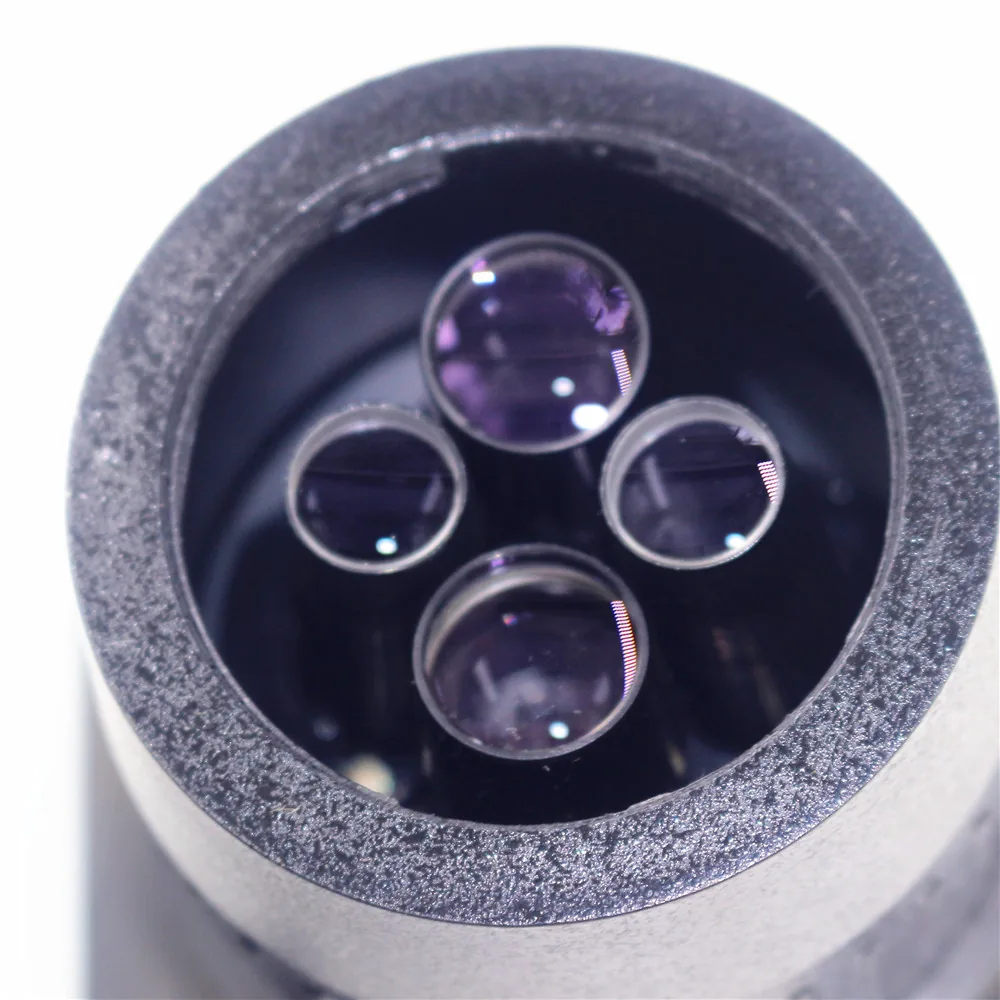

XT60 10/20/30/40X Stereo Microscope Head WD 100mm
XT60 10/20/30/40X Stereo Microscope Head WD 100mm
XT60 10/20/30/40X Stereo Microscope Head WD 100mm

XT60 10/20/30/40X Stereo Microscope Head WD 100mm

XT60 is a stereo microscope head from Nanjing AMADA Instrument for electronics, precision assembly, and quality inspection. It offers standard magnifications of 20X and 40X with optional eyepieces and objectives for a total range of 5X to 160X. The head features a 100 mm working distance, 45° binocular design with diopter adjustment, and vertical hand wheel zoom with high repeatability. Optical elements are coated for clear, bright, and flat field images.

  • 100 mm working distance allows space for tools and components under the lens during inspection
  • 45° inclined binocular head with 360° rotation and diopter adjustment reduces eye and neck strain during long sessions
  • Vertical hand wheel zoom ensures high repeatability and precise focus control
  • Multiple objective and eyepiece combinations allow flexible magnification from 5X to 160X
  • High eye point design and wide field eyepieces improve visibility and comfort for users with glasses
Request A Quote +86-15195807515

Technical features

  • Standard magnification 20X / 40X with optional auxiliary lens combinations
  • Magnification range: 5X to 160X via selected eyepieces and objectives
  • Working distance 100 mm (effective distance) with standard 2X/4X objective
  • Binocular head, 45° tilt, 360° rotation, interpupillary distance 54–76 mm, bilateral diopter adjustment
  • Vertical hand wheel zoom with high repeatability
  • Optical members with special coating for bright, flat, and clear field of view
  • Optional objective combinations: 1X/4X, 2X/4X, 1X/2X, 1X/3X

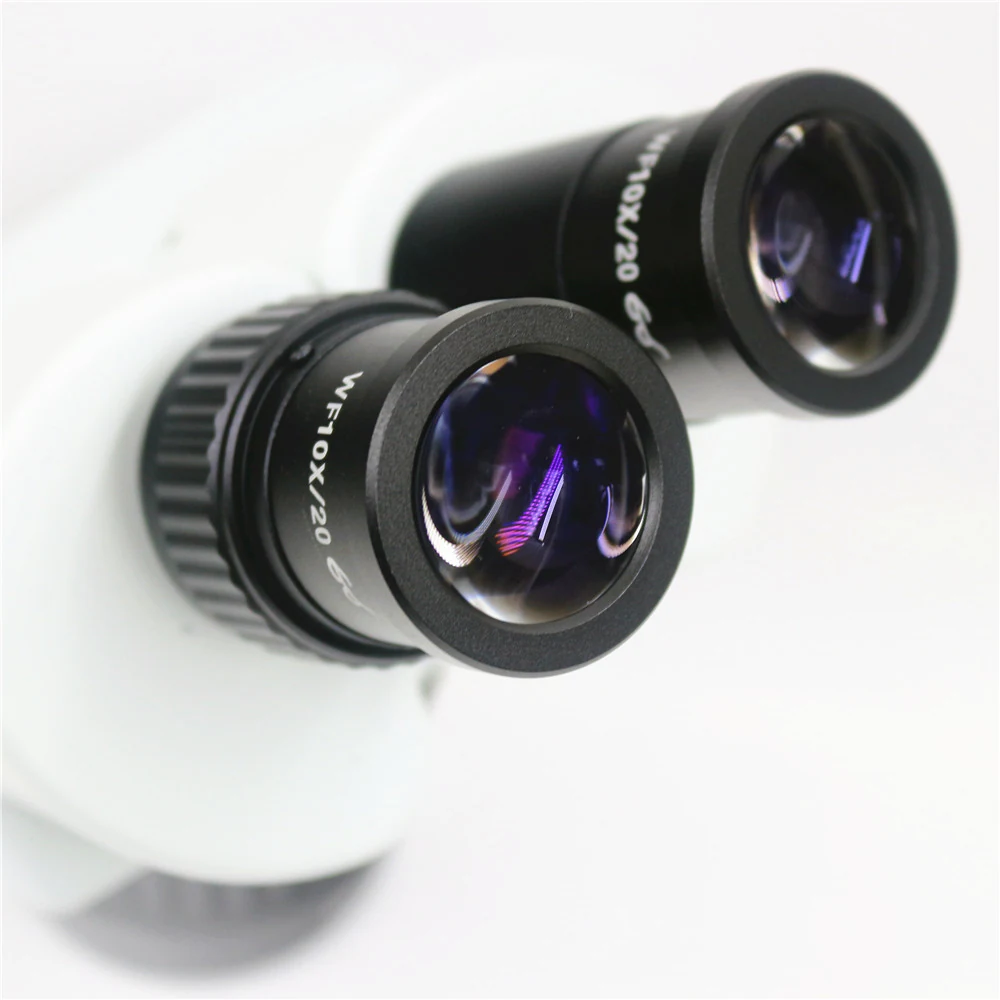

  • Optional eyepieces: WF10X/20mm, WF15X/15mm, WF20X/10mm

Who it is for

  • Electronics manufacturers and repair labs requiring a stable, ergonomic stereo head
  • Importers sourcing microscope heads for custom inspection stations
  • Distributors building a catalog of modular microscope accessories

Specifications

ModelXT60
Standard Magnification20X / 40X
Magnification Range5X – 160X
Working Distance100 mm (effective)
Head TypeBinocular, 45° tilt, 360° rotation
Interpupillary Distance54–76 mm
Diopter AdjustmentBilateral
Zoom MechanismVertical hand wheel, high repeatability
Focusing Range50 mm lifting range
Eyepiece OptionsWF10X/20mm, WF15X/15mm, WF20X/10mm
Objective Options1X/4X, 2X/4X, 1X/2X, 1X/3X

Use guide

  • Select the objective combination (e.g., 2X/4X) based on required magnification and working distance
  • Choose eyepiece (e.g., WF10X/20mm) to match field of view and magnification needs
  • Use 1X/4X or 2X/4X objectives for higher magnification; 1X/2X or 1X/3X for wider field at lower magnification
  • Adjust interpupillary distance and diopter for individual user comfort

FAQ

What is the working distance on the standard configuration?
100 mm (effective distance) with the standard 2X/4X objective.
Can I change the eyepiece or objective?
Yes. The XT60 supports multiple eyepieces (WF10X/20mm, WF15X/15mm, WF20X/10mm) and objective combinations (1X/4X, 2X/4X, 1X/2X, 1X/3X).
Is the zoom mechanism manual?
Yes. The zoom is controlled by a vertical hand wheel with high repeatability for consistent focus.
What magnification range is possible?
Total magnification ranges from 5X to 160X, depending on selected eyepiece and objective combination.
Who manufactures this product?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
