XSZ7045 0.7X~4.5X Trinocular Zoom Stereo Microscope Head
XSZ7045 0.7X~4.5X Trinocular Zoom Stereo Microscope Head
XSZ7045 0.7X~4.5X Trinocular Zoom Stereo Microscope Head
XSZ7045 0.7X~4.5X Trinocular Zoom Stereo Microscope Head
XSZ7045 0.7X~4.5X Trinocular Zoom Stereo Microscope Head

XSZ7045 0.7X~4.5X Trinocular Zoom Stereo Microscope Head

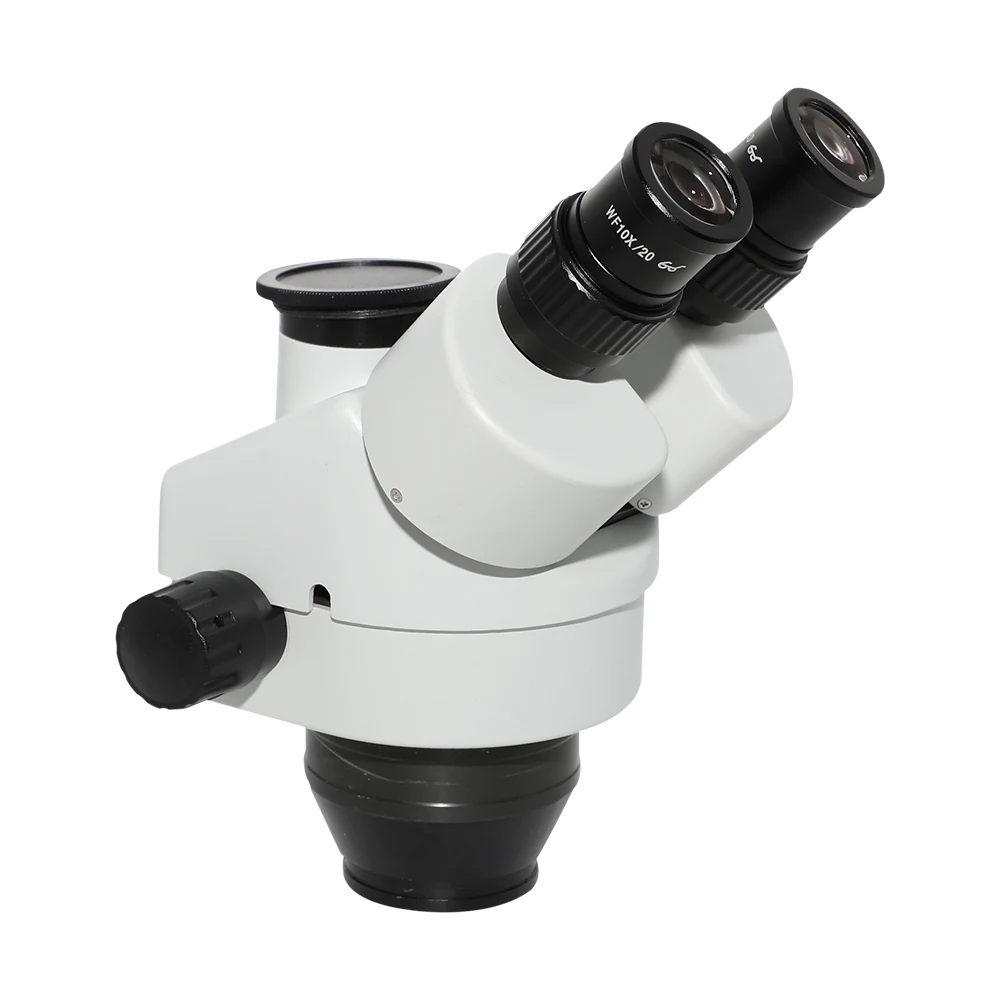

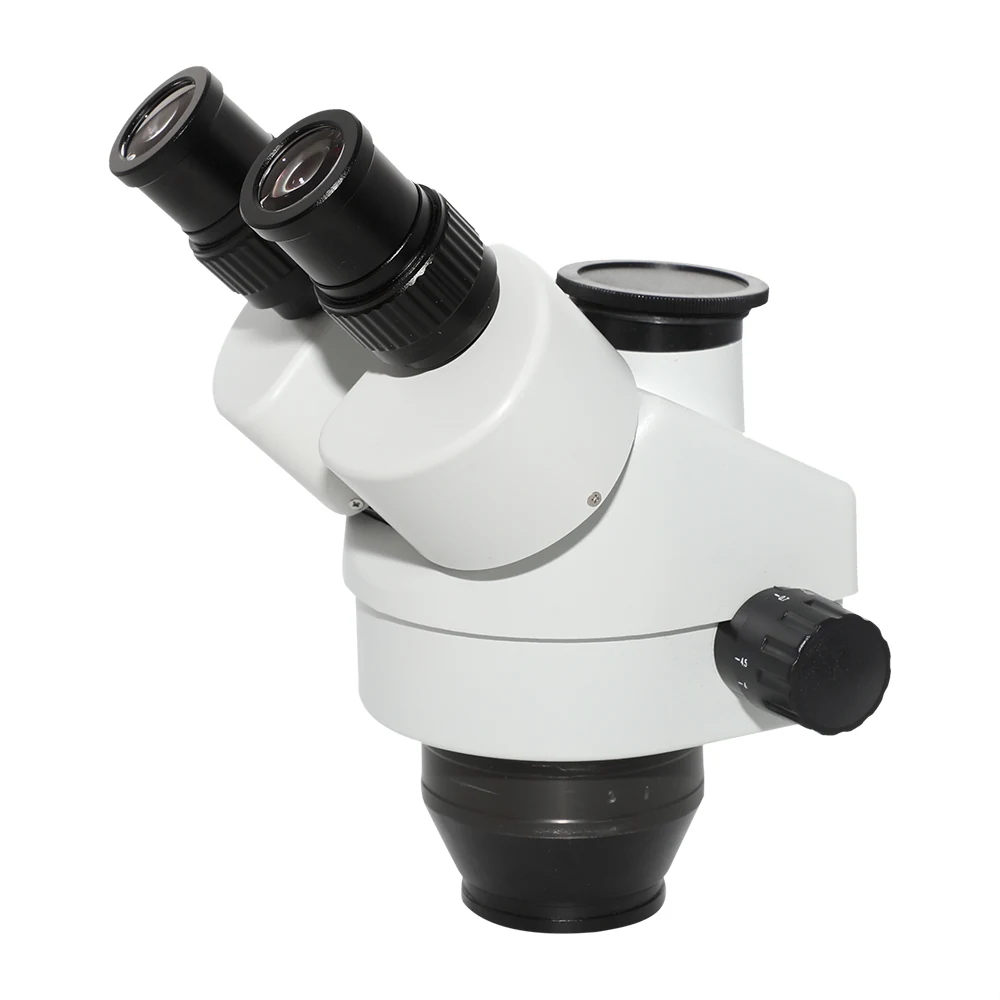

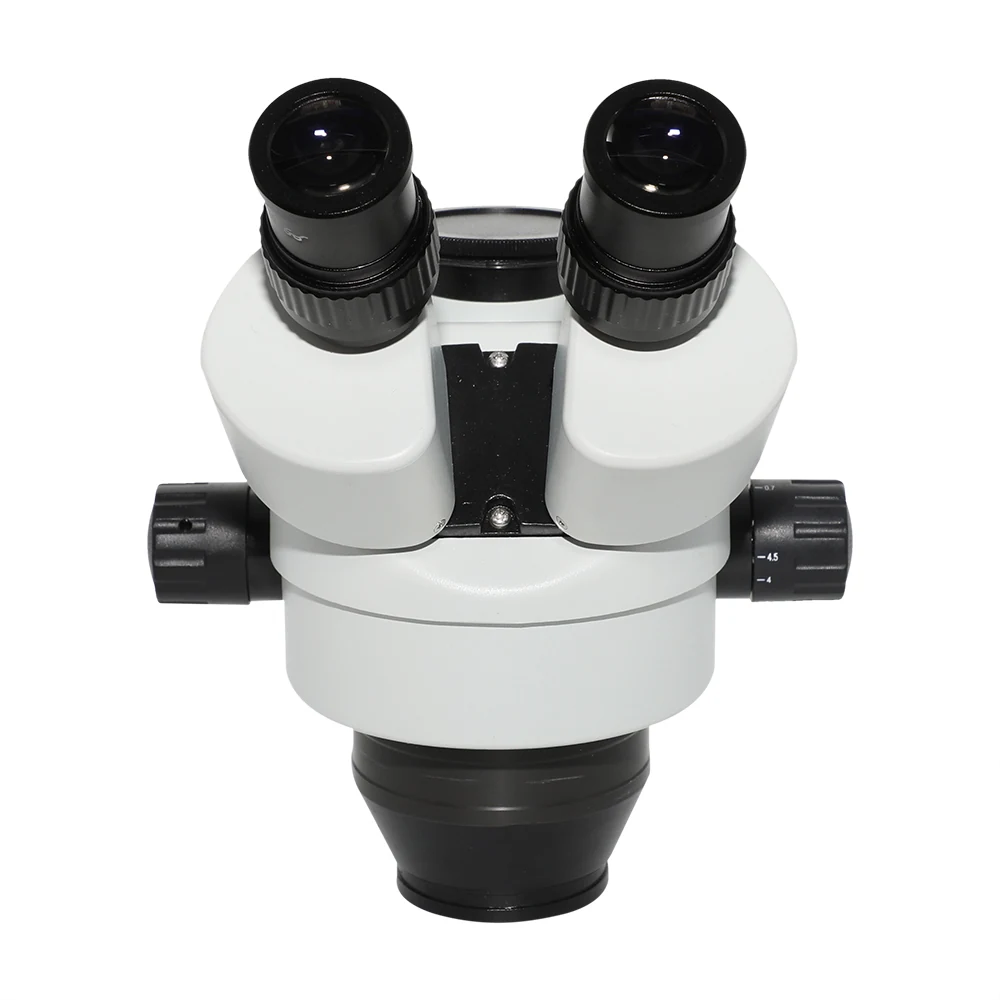

XSZ7045 is a trinocular zoom stereo microscope head from Nanjing AMADA Instrument for electronics inspection, laboratory bench work, and precision assembly. The unit features a Greenough optical system with a 1:6.4 zoom ratio, magnification range of 0.7X–4.5X, 100 mm working distance on the standard 1X objective path, and optional auxiliary objectives and eyepieces for extended magnification and field of view. It supports binocular or trinocular observation with interpupillary adjustment from 55–75 mm.

  • Trinocular head design enables camera integration without obstructing the optical path
  • 100 mm working distance on 1X objective path for handling large or tall components
  • Zoom ratio 1:6.4 with magnification range 0.7X–4.5X for consistent detail across variable magnifications
  • Interpupillary adjustment 55–75 mm to match user eye spacing for comfortable viewing
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) extend usable magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Greenough optical system for true stereo depth perception
  • Zoom ratio 1:6.4, magnification range 0.7X–4.5X
  • Standard 1X objective with 100 mm working distance
  • Interpupillary adjustment 55–75 mm
  • Trinocular head with 100% light path to camera or 50:50 beam splitter option
  • Optional auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Working distance range with auxiliary objectives: 30–165 mm
  • Optional eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm

Who it is for

  • Electronics manufacturers specifying trinocular microscope heads for inspection lines
  • Importers sourcing microscope heads for integration into custom inspection stations
  • Distributors building a catalog of modular microscope components

Specifications

ModelXSZ7045
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Adjustment55–75 mm
Observation TypeBinocular / Trinocular
Optical SystemGreenough
Standard EyepieceWF10X/F.N.20
Standard Field of View28.6–4.4 mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (With Auxiliary Objectives)30–165 mm
Optional EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (With Optional Eyepieces)1.1–57.1 mm

Use guide

  • Select trinocular head if camera documentation is required
  • Use 0.5X or 0.3X auxiliary objectives when longer working distance (up to 165 mm) is needed
  • Use 2X or 1.5X objectives when higher magnification is required beyond 4.5X
  • Choose eyepiece based on desired field of view and magnification (e.g., WF10X for wide view, 30X for high detail)

FAQ

What is the working distance on the standard 1X objective?
100 mm.
Can I add a camera?
Yes. The trinocular head supports camera integration with a 100% path or 50:50 beam splitter option.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
What is the field of view with standard eyepiece?
28.6–4.4 mm with WF10X/F.N.20.
Can I use higher magnification eyepieces?
Yes. Optional eyepieces include WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm.
Is the head compatible with standard microscope stands?
Yes. The head is designed to mount on standard pillar or guide rail stands with compatible adapters.
Who manufactures this head?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
