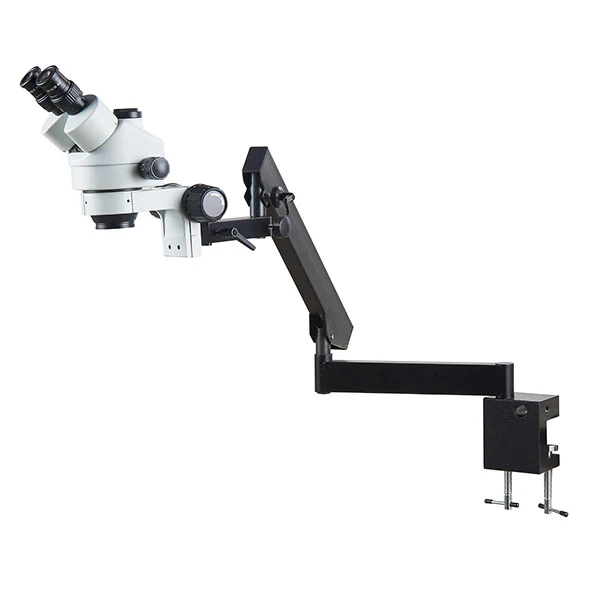

XSZ7045-STL6-A 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL6-A 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL6-A 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL6-A 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL6-A 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL6-A 7-45X Zoom Stereo Microscope for Electronic Inspection

XSZ7045-STL6-A 7-45X Zoom Stereo Microscope for Electronic Inspection

XSZ7045-STL6-A is a zoom stereo microscope from Nanjing AMADA Instrument Co., Ltd. designed for electronic inspection, PCB assembly, and precision bench work. The standard optical system provides a 0.7X–4.5X zoom range with a 1X objective and 100 mm working distance. Optional auxiliary objectives and eyepieces extend the magnification to 7X–45X and field of view to 57.1 mm, supporting binocular or trinocular configurations.

  • Standard 0.7X–4.5X zoom range with 1X objective and 100 mm working distance for close-up electronics work
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend magnification to 7X–45X
  • Wide field of view range from 4.4 mm to 57.1 mm depending on configuration
  • Binocular or trinocular head options for visual observation or camera integration
  • Interpupillary adjustment 55–75 mm for user comfort and ergonomic setup
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X with 1X objective
  • Working distance 100 mm (1X); 30–165 mm with auxiliary objectives
  • Interpupillary adjustment 55–75 mm
  • Standard eyepiece WF10X/F.N.20; field of view 28.6–4.4 mm
  • Optional eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm; field of view 1.1–57.1 mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Binocular or trinocular head options available
  • Greenough optical system for true stereo imaging

Who it is for

  • Electronics manufacturers and repair labs sourcing inspection tools
  • Importers specifying zoom stereo microscopes for production or quality control lines
  • Distributors building a catalog of optical inspection equipment for industrial use

Specifications

ModelXSZ7045-STL6-A
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Adjustment55–75 mm
Eyepiece (Standard)WF10X/F.N.20
Field of View (Standard)28.6–4.4 mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (Auxiliary)30–165 mm
Optional EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Optional)1.1–57.1 mm
Head TypeBinocular / Trinocular

Use guide

  • Select binocular or trinocular head based on whether camera integration is needed
  • Use 1X objective for standard 100 mm working distance and 0.7X–4.5X magnification
  • Add auxiliary objectives (e.g., 0.5X or 2X) to extend working distance or magnification as required
  • Pair with optional eyepieces (e.g., 30X) to achieve 45X magnification and 1.1 mm field of view

FAQ

What is the standard working distance?
100 mm with the 1X objective. Working distance varies from 30 mm to 165 mm with auxiliary objectives.
Can I achieve 45X magnification?
Yes. With a 2X auxiliary objective and 30X eyepiece, magnification reaches 45X.
Is a trinocular head available?
Yes. The trinocular head is available as an optional addition for camera integration.
What eyepieces are available?
WF10X/F.N.20 (standard), WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm (optional).
Who manufactures this microscope?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
