XSZ7045-STL5 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-STL5 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-STL5 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-STL5 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-STL5 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-STL5 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-STL5 7-45X Zoom Stereo Microscope for Electronic Industry

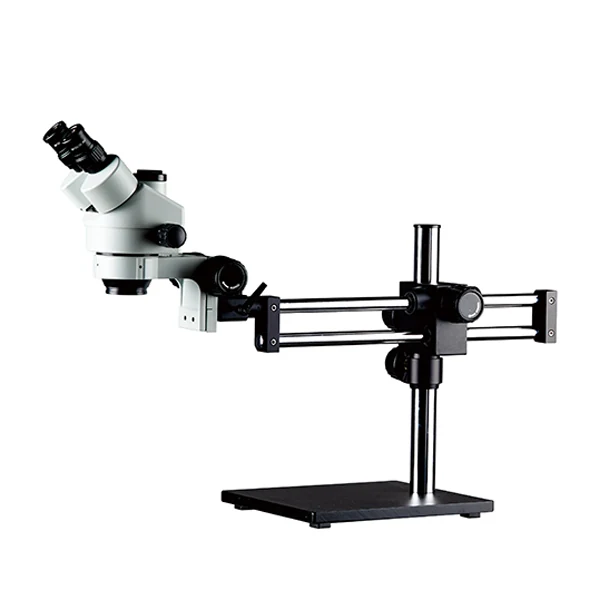

XSZ7045-STL5 is a 7-45X zoom stereo microscope from Nanjing AMADA Instrument for electronics inspection, PCB assembly, and precision bench work. The series features a Greenough optical system with binocular or trinocular head, 1:6.4 zoom ratio, and 100 mm working distance on the standard 1X objective path. Optional auxiliary objectives and eyepieces extend magnification to 7X–45X and 3.5X–270X, with working distances from 30 mm to 165 mm. Illumination is not specified in the source text.

  • 7X–45X magnification range with optional eyepieces and objectives for fine detail inspection
  • 100 mm working distance on standard 1X path for component handling and soldering
  • Adjustable interpupillary distance 55–75 mm for user comfort and ergonomic viewing
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend field of view and magnification
  • Trinocular option available for camera integration without compromising optical path
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X on standard 1X objective path
  • Working distance 100 mm with built-in 1X objective
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X; working distance 30–165 mm
  • Eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm; field of view 1.1–57.1 mm
  • Interpupillary adjustment 55–75 mm
  • Binocular or trinocular head with Greenough optical system
  • Magnification range extended to 7X–45X with optional eyepieces and objectives
  • Optional magnification range up to 3.5X–270X with combination of objectives and eyepieces

Who it is for

  • Electronics manufacturers and repair labs sourcing inspection tools
  • Importers specifying zoom stereo microscopes for production line integration
  • Distributors building an optical inspection catalog with expandable magnification options

Specifications

ModelXSZ7045-STL5
Zoom Ratio1:6.4
Standard Magnification Range0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Distance55–75 mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (Auxiliary)30–165 mm
EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Eyepieces)1.1–57.1 mm
Optional Magnification Range7X–45X, 3.5X–270X

Use guide

  • Select binocular or trinocular head based on camera integration needs
  • Use auxiliary objectives (0.3X–2X) to adjust working distance and magnification range
  • Combine eyepieces (WF15X–30X) with objectives to achieve target magnification (7X–45X or 3.5X–270X)
  • Verify field of view and working distance compatibility before finalizing configuration

FAQ

What is the working distance on the standard 1X objective?
100 mm.
Can I achieve 45X magnification?
Yes, with optional eyepieces and objectives; total magnification range up to 45X is supported.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
What is the field of view with a 30X eyepiece?
1.1 mm with the 30X/8mm eyepiece.
Is a trinocular head available?
Yes, the trinocular option is available as an addition.
Can I use this microscope for camera documentation?
Yes, the trinocular head supports camera integration via video output connectors.
