XSZ7045-STL2 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL2 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL2 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL2 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL2 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL2 7-45X Zoom Stereo Microscope for Electronic Inspection

XSZ7045-STL2 7-45X Zoom Stereo Microscope for Electronic Inspection

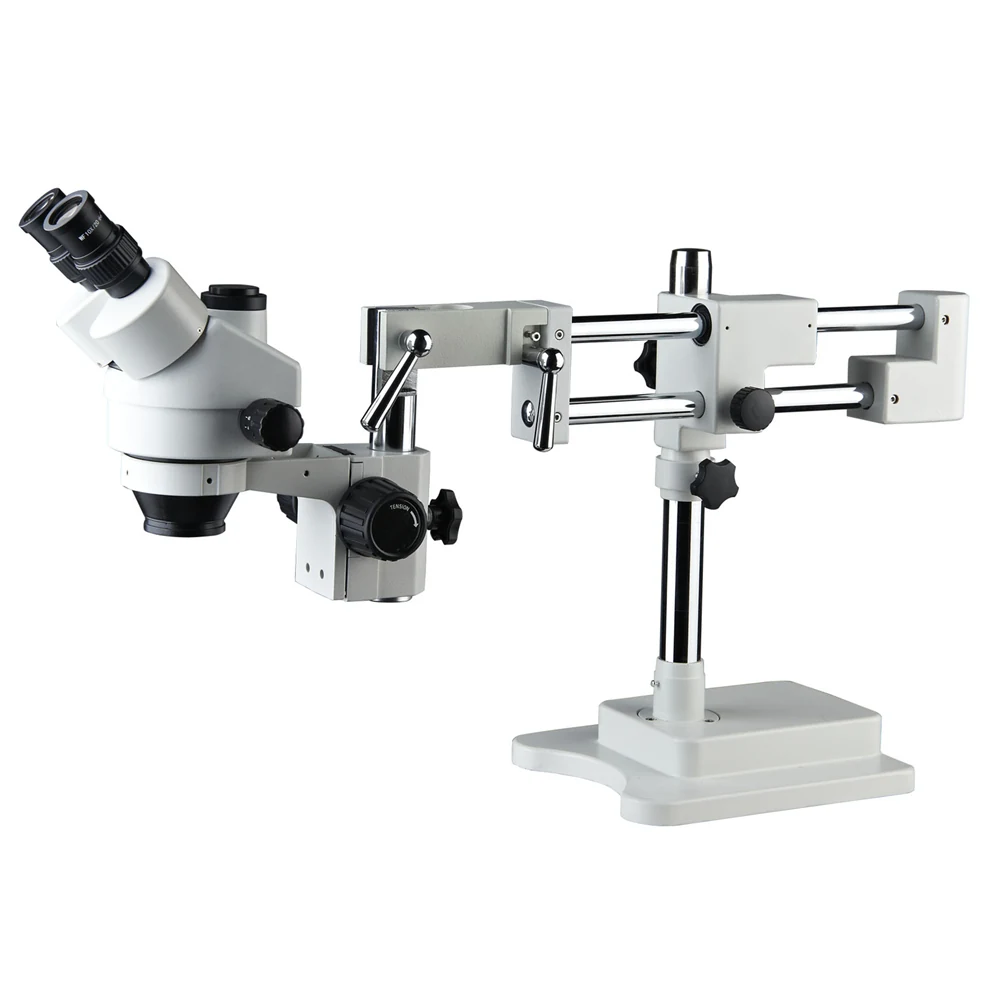

XSZ7045-STL2 is a 7-45X zoom stereo microscope from Nanjing AMADA Instrument for electronic inspection, PCB assembly, and precision bench work. The series offers a 1:6.4 zoom ratio with a 100 mm working distance on the standard 1X objective path, optional auxiliary objectives (0.3X–2X), and interchangeable eyepieces for magnification ranges from 7X to 45X. It supports binocular or trinocular head configurations with LED illumination and wide voltage input (100V–240V).

  • 7X–45X magnification range via optional eyepieces and objectives for detailed inspection of small components
  • 100 mm working distance on the standard 1X path for handling tools and fixtures under the lens
  • Adjustable interpupillary distance (55–75 mm) for user comfort and consistent stereo vision
  • Optional auxiliary objectives (0.3X–2X) extend working distance from 30 mm to 165 mm for tall or deep parts
  • Multiple eyepiece options (WF15X–30X) provide field of view from 1.1 mm to 57.1 mm for different inspection needs
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X on standard 1X objective path
  • Working distance 100 mm with 1X objective; 30–165 mm with auxiliary objectives (0.3X–2X)
  • Interpupillary adjustment 55–75 mm
  • Binocular or trinocular head configuration available
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
  • Field of view: 28.6–4.4 mm (standard), 1.1–57.1 mm (with auxiliary objectives)
  • Magnification range with optional eyepieces and objectives: 7X–45X, 3.5X–270X

Who it is for

  • Electronics manufacturers specifying inspection tools for production lines
  • Importers sourcing zoom stereo microscopes for industrial inspection applications
  • Distributors building a catalog of modular optical systems for electronics and precision industries

Specifications

ModelXSZ7045-STL2
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Distance55–75 mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (Auxiliary)30–165 mm
EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Standard)28.6–4.4 mm
Field of View (Auxiliary)1.1–57.1 mm
Magnification Range (Optional)7X–45X, 3.5X–270X
Head ConfigurationBinocular / Trinocular

Use guide

  • Select binocular or trinocular head based on whether camera integration is needed
  • Use 0.3X–0.75X objectives for longer working distance (up to 165 mm) on tall or deep parts
  • Use 1.5X–2X objectives for higher magnification (up to 45X) on small components
  • Match eyepiece to required field of view: WF15X for wider view, 30X for high detail

FAQ

What is the working distance on the standard configuration?
100 mm with the built-in 1X objective path.
Can I extend the working distance?
Yes. Using auxiliary objectives (0.3X–2X) extends working distance from 30 mm to 165 mm.
What magnification range can I achieve?
Standard: 0.7X–4.5X. With optional eyepieces and objectives: 7X–45X or 3.5X–270X.
Is a trinocular option available?
Yes. The XSZ7045-STL2 supports trinocular head configuration for camera integration.
What eyepieces are available?
WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm.
