XSZ7045-STL1 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL1 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL1 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL1 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL1 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-STL1 7-45X Zoom Stereo Microscope for Electronic Inspection

XSZ7045-STL1 7-45X Zoom Stereo Microscope for Electronic Inspection

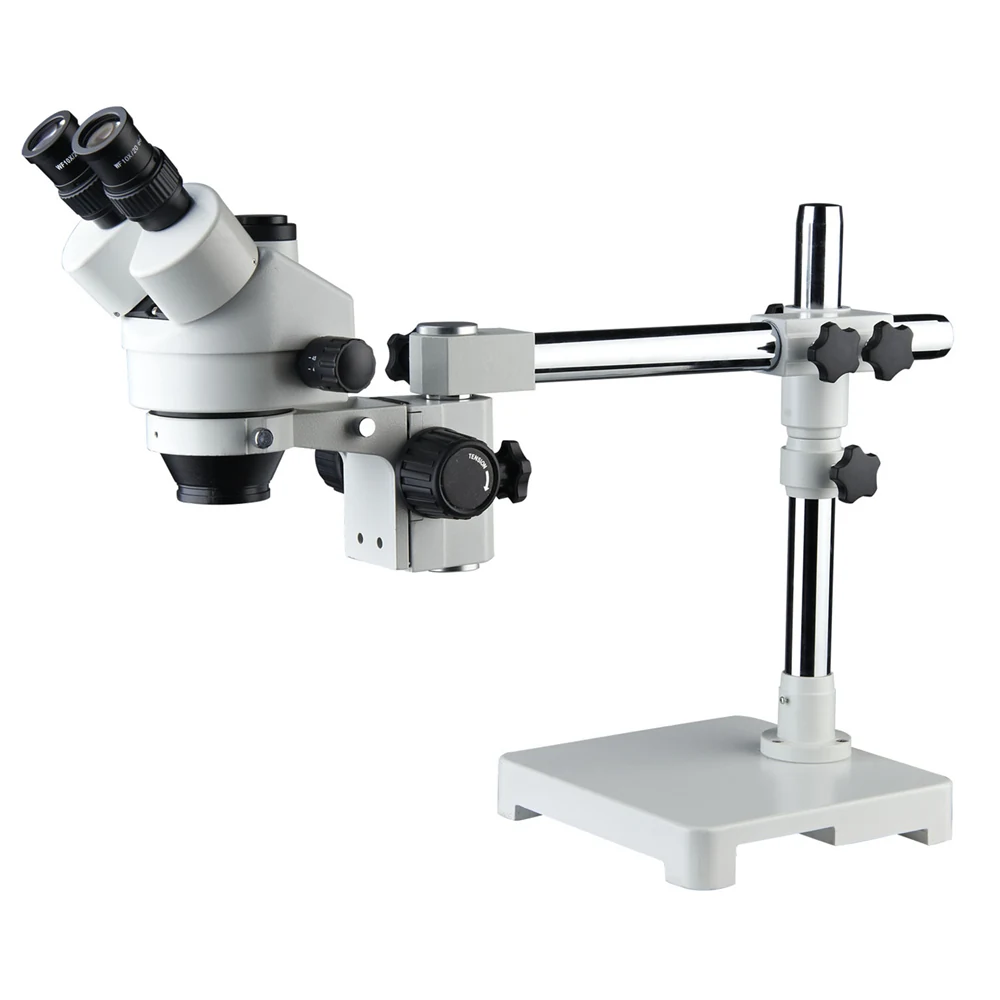

XSZ7045-STL1 is a zoom stereo microscope from Nanjing AMADA Instrument designed for electronic inspection, PCB assembly, and precision bench work. The model offers a magnification range of 7X–45X with optional eyepieces and objectives, a 100 mm working distance on the standard 1X path, and a zoom ratio of 1:6.4. It supports binocular or trinocular observation with interpupillary adjustment from 55–75 mm and is compatible with auxiliary objectives and multiple eyepiece options for extended field of view and magnification.

  • Magnification range 7X–45X with optional eyepieces and objectives for detailed inspection of small electronic components
  • 100 mm working distance on the standard 1X path allows space for tools and fixtures during soldering and rework
  • Adjustable interpupillary distance 55–75 mm ensures comfortable viewing for different users
  • Optional auxiliary objectives (0.3X–2X) extend working distance from 30 mm to 165 mm and adjust magnification range
  • Multiple eyepiece options (WF15X–30X) provide field of view from 1.1 mm to 57.1 mm for different inspection needs
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4 with magnification range 0.7X–4.5X on the standard 1X objective path
  • Working distance 100 mm with the built-in 1X objective; extends to 30–165 mm with auxiliary objectives
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X for magnification and working distance adjustment
  • Eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm with field of view 1.1–57.1 mm
  • Interpupillary adjustment 55–75 mm for user comfort
  • Binocular or trinocular observation with Greenough optical system
  • Field of view 28.6–4.4 mm on standard 10X eyepiece; expands to 57.1 mm with 30X eyepiece
  • Compatible with optional video output and camera integration via trinocular path

Who it is for

  • Electronics manufacturers and contract assemblers
  • Procurement engineers sourcing inspection tools for production lines
  • Distributors building a catalog of stereo microscopes for industrial use

Specifications

ModelXSZ7045-STL1
Zoom Ratio1:6.4
Standard Magnification Range0.7X–4.5X
Extended Magnification Range7X–45X
Working Distance (1X)100 mm
Working Distance (with Auxiliary Objectives)30–165 mm
Interpupillary Adjustment55–75 mm
EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Standard)28.6–4.4 mm
Field of View (Extended)1.1–57.1 mm
Observation TypeBinocular / Trinocular
Optical SystemGreenough

Use guide

  • Select the standard 1X objective for 100 mm working distance and 0.7X–4.5X magnification
  • Use auxiliary objectives (e.g., 0.5X) to increase working distance to 165 mm when inspecting tall assemblies
  • Choose eyepieces (e.g., 30X) to achieve the highest field of view (57.1 mm) for broad inspection at lower magnification
  • Add trinocular head and video output when camera documentation is required

FAQ

What is the working distance on the standard configuration?
100 mm with the built-in 1X objective. With auxiliary objectives, it ranges from 30 mm to 165 mm.
Can I achieve 45X magnification?
Yes. The extended magnification range is 7X–45X when using optional eyepieces and objectives.
What eyepieces are available?
WF15X/15mm, WF20X/10mm, 25X/9mm, and 30X/8mm are available for different field of view and magnification needs.
Is a trinocular option available?
Yes. The trinocular configuration is available and supports video output for camera integration.
What auxiliary objectives are offered?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, and 2X are available to extend working distance and adjust magnification.
