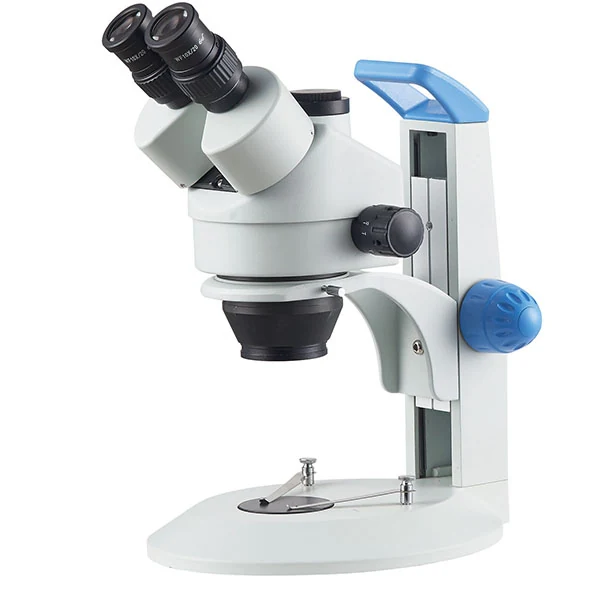

XSZ7045-L 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-L 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-L 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-L 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-L 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-L 7-45X Zoom Stereo Microscope for Electronic Inspection

XSZ7045-L 7-45X Zoom Stereo Microscope for Electronic Inspection

XSZ7045-L is a zoom stereo microscope from Nanjing AMADA Instrument designed for electronic inspection, PCB assembly, and precision bench work. The series offers a 1:6.4 zoom ratio with magnification range 0.7X–4.5X on the standard 1X objective path, 100 mm working distance, and optional auxiliary objectives and eyepieces to extend magnification to 7X–45X or 3.5X–270X. It supports binocular or trinocular head configurations with adjustable interpupillary distance and is available with LED or halogen illumination.

  • 1:6.4 zoom ratio with 0.7X–4.5X magnification range for consistent optical performance across inspection tasks
  • 100 mm working distance on the standard 1X path for handling small components and soldering tools
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend magnification to 7X–45X or 3.5X–270X
  • Binocular or trinocular head options for visual observation or camera integration
  • Adjustable interpupillary distance 55–75 mm to fit diverse user anatomy
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X on standard 1X objective path
  • Working distance 100 mm with 1X objective; 30–165 mm with auxiliary objectives (0.3X–2X)
  • Interpupillary distance adjustable 55–75 mm
  • Eyepiece options: WF10X/F.N.20, WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
  • Field of view: 28.6–4.4 mm (standard), 1.1–57.1 mm (with optional eyepieces and objectives)
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Head configuration: binocular or trinocular
  • Optical system: Greenough type for stereo depth perception

Who it is for

  • Electronics manufacturers sourcing inspection microscopes for production lines
  • Importers specifying zoom stereo microscopes with extended magnification range
  • Distributors building a catalog for industrial and electronics inspection applications

Specifications

ModelXSZ7045-L
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Distance55–75 mm
EyepiecesWF10X/F.N.20, WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Extended Magnification Range7X–45X, 3.5X–270X
Working Distance (with Auxiliary Objectives)30–165 mm
Field of View (Standard)28.6–4.4 mm
Field of View (Extended)1.1–57.1 mm
Head ConfigurationBinocular / Trinocular

Use guide

  • Select the base model (XSZ7045-L) for standard 0.7X–4.5X magnification and 100 mm working distance
  • Add auxiliary objectives (e.g., 0.5X or 2X) when working with tall components or requiring higher magnification
  • Choose trinocular head if camera output is required for documentation or process monitoring
  • Select eyepieces (e.g., WF15X or 30X) based on required field of view and magnification level

FAQ

What is the working distance on the standard 1X objective?
100 mm with the built-in 1X objective path.
Can I extend the magnification beyond 4.5X?
Yes. With optional auxiliary objectives (0.3X–2X) and eyepieces, magnification can reach 7X–45X or 3.5X–270X.
Is a camera compatible with this model?
Yes. The trinocular head option supports camera integration via video output connectors.
What eyepieces are available?
WF10X/F.N.20, WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm.
What illumination options are available?
LED and halogen illumination are available as optional add-ons.
