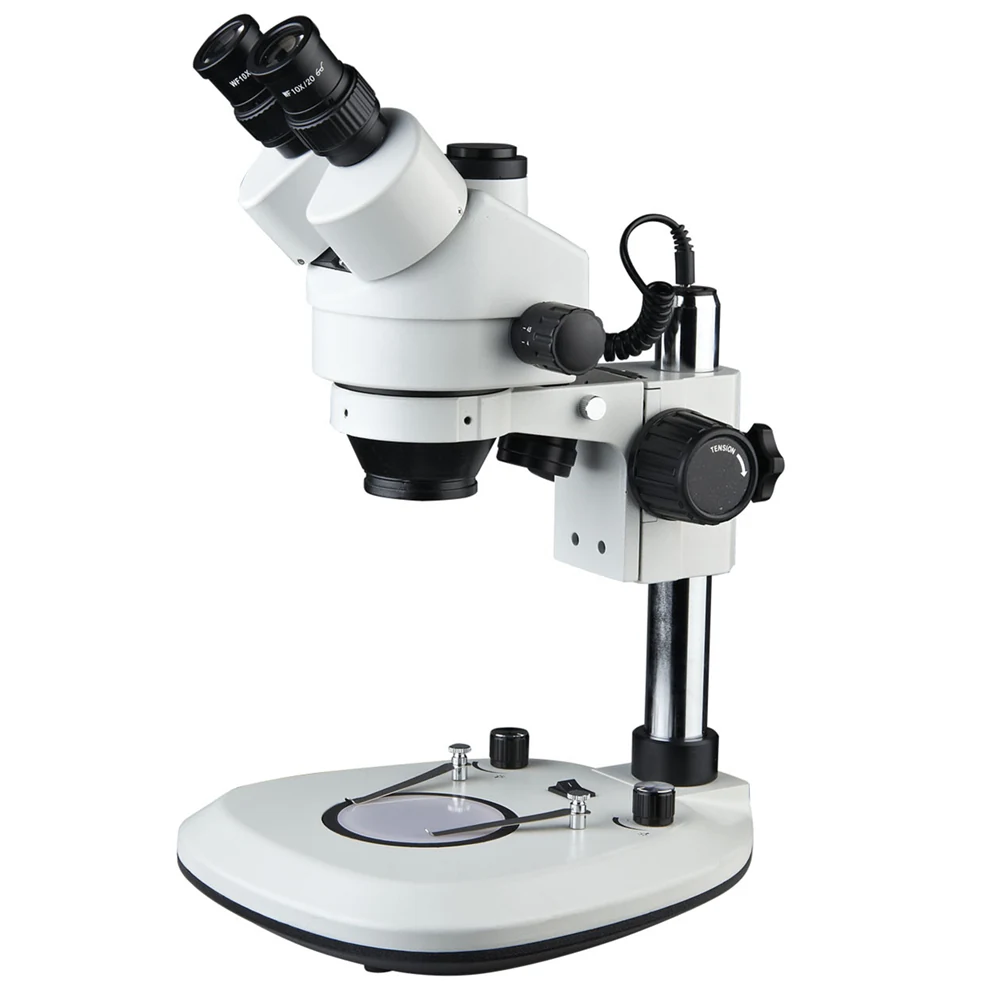

XSZ7045-J4L is a zoom stereo microscope from Nanjing AMADA Instrument designed for electronics assembly, PCB inspection, and precision bench work. The standard optical system offers a 1:6.4 zoom ratio with magnification range 0.7X–4.5X, 1X objective, and 100 mm working distance. Optional auxiliary objectives and eyepieces extend the effective magnification to 7X–45X or 3.5X–270X, with working distances from 30 mm to 165 mm. Available in binocular or trinocular configurations with greenough optics and adjustable interpupillary distance.

  • 1:6.4 zoom ratio with 0.7X–4.5X standard magnification range for consistent field of view across zoom
  • 100 mm working distance on the 1X objective path for handling small components and tools
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend magnification to 7X–45X or 3.5X–270X
  • Trinocular option for camera integration without compromising optical path
  • Adjustable interpupillary distance (55–75 mm) for user-specific comfort and ergonomic use
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X (standard)
  • Working distance 100 mm with 1X objective; 30–165 mm with auxiliary objectives
  • Interpupillary adjustment 55–75 mm
  • Greenough optical system for true stereo depth perception
  • Binocular or trinocular head options available
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
  • Field of view range: 28.6–4.4 mm (standard), 1.1–57.1 mm (with optional eyepieces and objectives)

Who it is for

  • Electronics manufacturers and repair labs requiring variable magnification and working distance
  • Importers sourcing zoom stereo microscopes for production line inspection systems
  • Distributors building a catalog of modular optical inspection tools for industrial buyers

Specifications

ModelXSZ7045-J4L
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Objective1X
Working Distance (1X)100 mm
Interpupillary Adjustment55–75 mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Standard)28.6–4.4 mm
Field of View (With Optional Components)1.1–57.1 mm

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Use 1X objective for standard 100 mm working distance and 0.7X–4.5X magnification
  • Add auxiliary objectives (e.g., 0.5X) to increase working distance to 165 mm or 2X to reduce working distance to 30 mm
  • Choose eyepieces (e.g., WF30X) to achieve higher magnification and smaller field of view for fine detail inspection

FAQ

What is the working distance with the 1X objective?
100 mm with the standard 1X objective.
Can I extend the magnification beyond 4.5X?
Yes. With optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X), magnification extends to 7X–45X or 3.5X–270X.
Is a trinocular head available?
Yes. The XSZ7045-J4L is available in binocular or trinocular configuration for camera integration.
What eyepieces are compatible?
WF15X/15mm, WF20X/10mm, 25X/9mm, and 30X/8mm are compatible with the system.
What is the field of view range?
Standard: 28.6–4.4 mm. With optional components: 1.1–57.1 mm.
