Home / Products / XSZ7045 Stereo Zoom Microscope / XSZ7045-J3L 7-45X Zoom Stereo Microscope

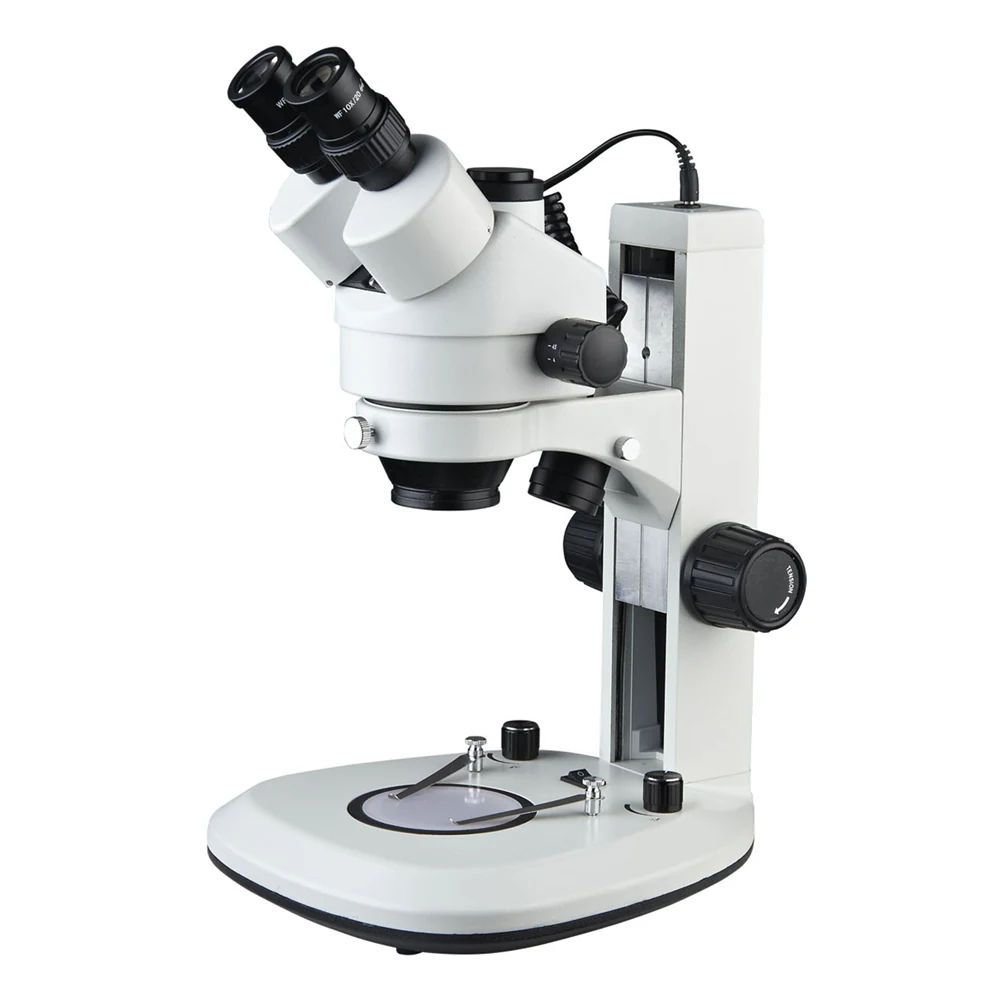

XSZ7045-J3L 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-J3L 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-J3L 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-J3L 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-J3L 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-J3L 7-45X Zoom Stereo Microscope for Electronic Inspection

XSZ7045-J3L 7-45X Zoom Stereo Microscope for Electronic Inspection

XSZ7045-J3L is a zoom stereo microscope from Nanjing AMADA Instrument for electronic inspection, PCB assembly, and precision bench work. The series offers a 1:6.4 zoom ratio with a 100 mm working distance on the standard 1X objective path, binocular or trinocular head options, and optional auxiliary objectives and eyepieces to extend magnification to 7X–45X. Illumination is not specified in the source text.

  • 1:6.4 zoom ratio with 0.7X–4.5X range for consistent magnification across inspection tasks
  • 100 mm working distance on the standard 1X path for handling components and tools
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend magnification range to 7X–45X
  • Binocular or trinocular head options for visual observation or camera integration
  • Interpupillary adjustment 55–75 mm for user comfort across different operators
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X
  • Standard objective 1X; working distance 100 mm
  • Interpupillary adjustment 55–75 mm
  • Binocular or trinocular head options
  • Auxiliary objectives available: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Working distance range with auxiliary objectives: 30–165 mm
  • Optional eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
  • Field of view range with optional eyepieces: 1.1–57.1 mm

Who it is for

  • Electronics manufacturers sourcing microscopes for production lines
  • Importers specifying inspection tools for PCB and micro-assembly
  • Distributors building a product catalog for industrial and electronics inspection

Specifications

ModelXSZ7045-J3L
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Objective (Standard)1X
Working Distance (1X)100 mm
Interpupillary Adjustment55–75 mm
Head TypeBinocular / Trinocular
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (With Auxiliary Objectives)30–165 mm
Optional EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Optional Eyepieces)1.1–57.1 mm
Field of View (Standard Eyepiece)28.6–4.4 mm
Optical SystemGreenough

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Use 1X objective for standard 100 mm working distance and 0.7X–4.5X magnification
  • Add auxiliary objectives (e.g., 0.5X) to increase working distance to 165 mm for tall fixtures
  • Use higher magnification eyepieces (e.g., 30X) to achieve 45X total magnification with 1.5X or 2X auxiliary objective
  • Combine 2X auxiliary objective with 30X eyepiece for maximum magnification (up to 45X)

FAQ

What is the working distance on the standard 1X objective?
100 mm.
Can I achieve higher magnification than 4.5X?
Yes. With optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X), magnification can reach 7X–45X.
Is a trinocular head available?
Yes. The XSZ7045-J3L is available with a trinocular head for camera integration.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
What is the field of view with standard eyepiece?
28.6–4.4 mm with WF10X/F.N.20 eyepiece.
