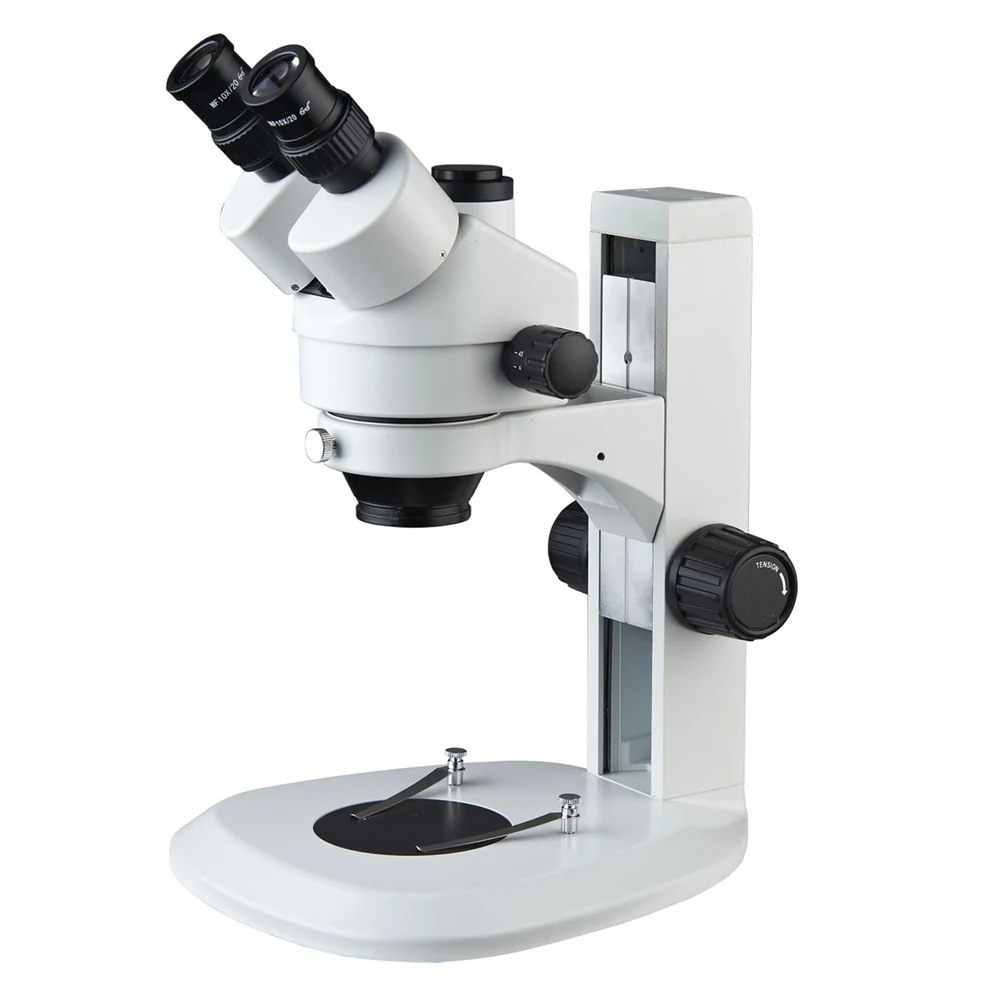

XSZ7045-J2 7-45X Zoom Stereo Microscope for Micro-object Observation

Technical features

• Zoom ratio 1:6.4; magnification range 0.7X–4.5X on standard 1X objective path
• Working distance 100 mm with 1X objective; varies from 30 mm to 165 mm with auxiliary objectives
• Interpupillary adjustment 55–75 mm
• Binocular or trinocular head options
• Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
• Eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
• Field of view range: 1.1 mm to 57.1 mm depending on eyepiece and objective combination
• Effective magnification range: 7X–45X or 3.5X–270X with optional eyepieces and objectives

Who it is for

• Electronics manufacturers and repair labs requiring micro-object observation
• Research labs using stereo microscopy for non-destructive sample analysis
• Importers sourcing adjustable zoom stereo microscopes for industrial or educational use
• Distributors building a product line with scalable magnification options

Specifications

Use guide

• Select binocular or trinocular head based on whether camera integration is required
• Use 1X objective for standard 100 mm working distance and 0.7X–4.5X magnification
• Add auxiliary objectives (e.g., 0.5X or 2X) to extend working distance or magnification as needed
• Choose eyepiece (e.g., WF15X or 30X) to match required field of view and magnification
