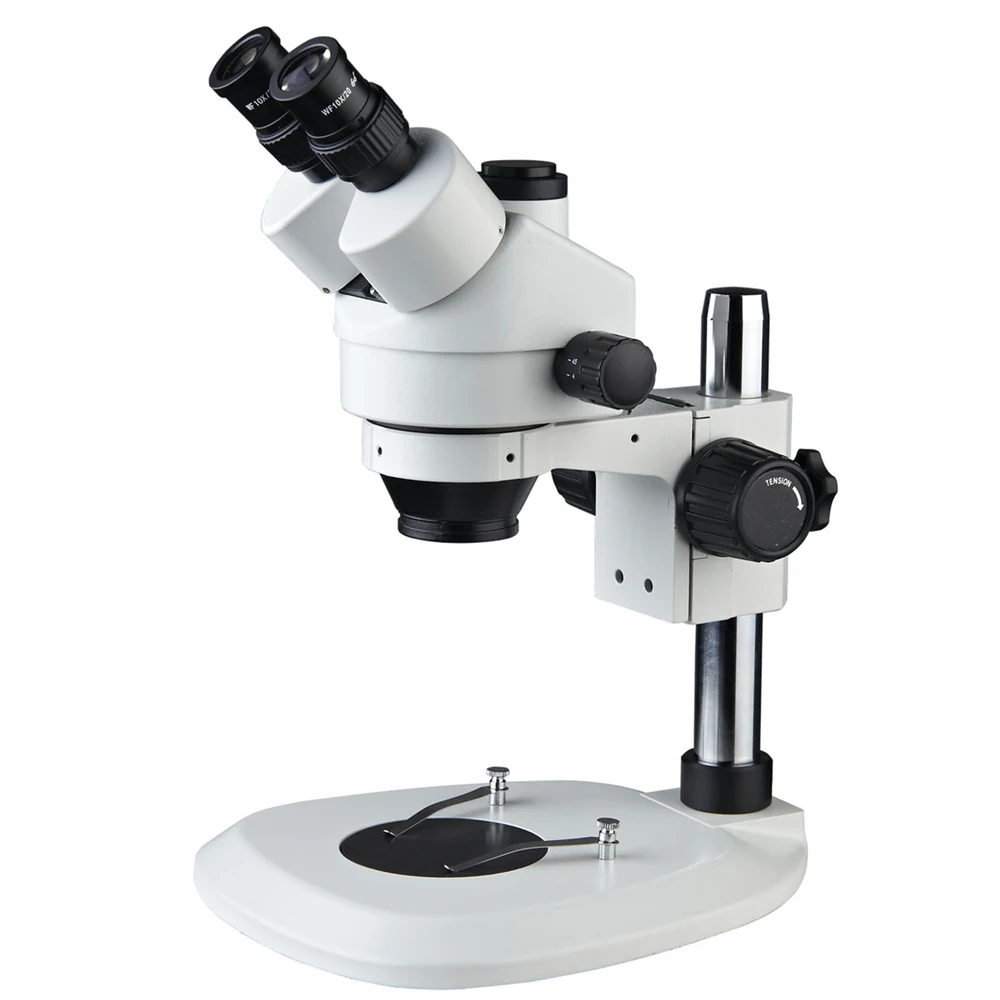

XSZ7045-J1 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-J1 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-J1 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-J1 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-J1 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-J1 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-J1 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-J1 is a zoom stereo microscope from Nanjing AMADA Instrument designed for electronic industry inspection, assembly, and repair. The standard optical system offers a 1:6.4 zoom ratio with magnification range 0.7X–4.5X and 100 mm working distance on the 1X objective path. Optional eyepieces and objectives extend the total magnification to 7X–45X or 3.5X–270X. Available in binocular or trinocular configurations with adjustable interpupillary distance and multiple illumination options.

  • Zoom ratio 1:6.4 with 0.7X–4.5X range for consistent magnification across inspection tasks
  • 100 mm working distance on standard 1X path for handling PCBs and small components
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend magnification range
  • Binocular or trinocular head options for visual observation or camera integration
  • Adjustable interpupillary distance 55–75 mm for user comfort and ergonomic setup
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X on standard 1X objective path
  • Working distance 100 mm with 1X objective; 30–165 mm with auxiliary objectives (0.3X–2X)
  • Interpupillary distance adjustable 55–75 mm
  • Binocular or trinocular head with Greenough optical system
  • Optional eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm; field of view 1.1–57.1 mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Total magnification range: 7X–45X (with optional eyepieces and objectives), 3.5X–270X (with full kit)
  • Field of view: 28.6–4.4 mm (standard), 1.1–57.1 mm (with optional optics)

Who it is for

  • Electronics manufacturers and contract assemblers in Asia, Europe, and North America
  • Procurement teams sourcing inspection microscopes with flexible magnification options
  • Distributors building product catalogs for industrial and electronics inspection

Specifications

ModelXSZ7045-J1
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Distance55–75 mm
Eyepiece OptionsWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Total Magnification Range7X–45X / 3.5X–270X
Field of View (Standard)28.6–4.4 mm
Field of View (Optional)1.1–57.1 mm

Use guide

  • Select binocular or trinocular head based on need for camera integration
  • Use 1X objective for standard 100 mm working distance and 0.7X–4.5X magnification
  • Add auxiliary objectives (e.g., 2X) for higher magnification and reduced working distance
  • Choose eyepieces (e.g., 30X) to achieve total magnification up to 45X or 270X with full kit

FAQ

What is the working distance on the standard 1X objective?
100 mm. With auxiliary objectives, working distance varies from 30 mm to 165 mm.
Can I achieve higher magnification than 4.5X?
Yes. With optional eyepieces and auxiliary objectives, total magnification can reach 7X–45X or 3.5X–270X.
Is a trinocular head available?
Yes. The XSZ7045-J1 is available in binocular or trinocular configuration for camera integration.
What eyepieces are available?
WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm — selectable as optional components.
What auxiliary objectives are offered?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X — used to extend magnification and adjust working distance.
