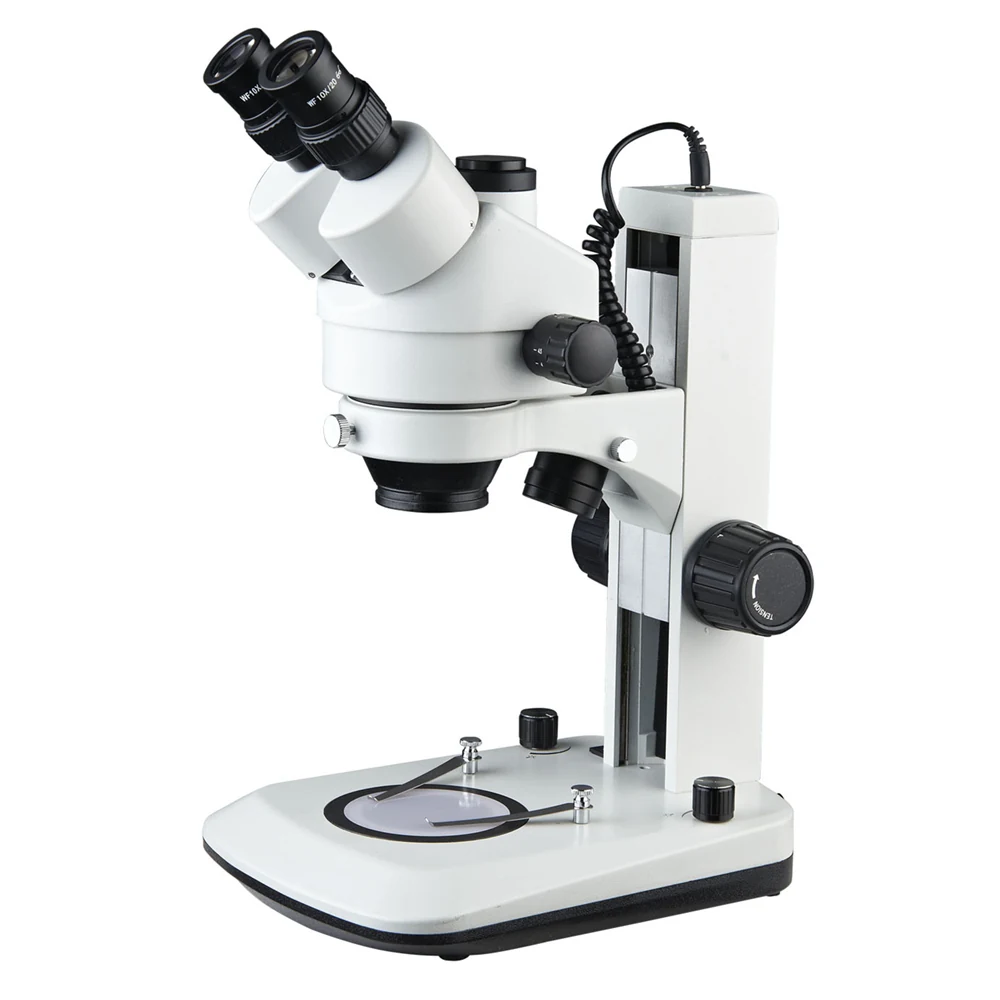

XSZ7045-B9L 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B9L 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B9L 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B9L 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B9L 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B9L 7-45X Zoom Stereo Microscope for Micro-object Observation

XSZ7045-B9L 7-45X Zoom Stereo Microscope for Micro-object Observation

XSZ7045-B9L is a zoom stereo microscope from Nanjing AMADA Instrument for micro-object observation in electronics, precision assembly, and quality control. The model offers a 1:6.4 zoom ratio with a 0.7X–4.5X magnification range, 100 mm working distance on the standard 1X objective path, and binocular or trinocular head options. Optional auxiliary objectives and eyepieces extend the magnification range to 7X–45X or 3.5X–270X with variable working distances from 30 mm to 165 mm.

  • 1:6.4 zoom ratio with 0.7X–4.5X magnification range for consistent field of view across zoom levels
  • 100 mm working distance on standard 1X path for handling small components and tools
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend magnification range to 7X–45X or 3.5X–270X
  • Binocular or trinocular head configurations for visual observation or camera integration
  • Adjustable interpupillary distance (55–75 mm) to fit diverse user anatomy
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X with standard 1X objective
  • Working distance 100 mm on 1X path; 30–165 mm with auxiliary objectives
  • Binocular or trinocular head; interpupillary adjustment 55–75 mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
  • Field of view: 28.6–4.4 mm (standard), 1.1–57.1 mm (with optional eyepieces and objectives)
  • Greenough optical system for true stereo depth perception
  • Standard 1X objective with optional 0.3X–2X auxiliary objectives

Who it is for

  • Electronics manufacturers and repair labs
  • Importers sourcing microscopes for inspection benches
  • Distributors building a product line for precision industrial inspection

Specifications

ModelXSZ7045-B9L
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Working Distance (1X)100 mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (Auxiliary)30–165 mm
EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Standard)28.6–4.4 mm
Field of View (Optional)1.1–57.1 mm
Head TypeBinocular / Trinocular
Interpupillary Adjustment55–75 mm
Optical SystemGreenough

Use guide

  • Select binocular or trinocular head based on whether camera integration is needed
  • Use standard 1X objective for 100 mm working distance and 0.7X–4.5X magnification
  • Add auxiliary objectives (e.g., 0.5X or 2X) to adjust working distance and magnification range
  • Pair with optional eyepieces (e.g., 30X) to achieve higher magnification (up to 45X) and smaller field of view

FAQ

What is the working distance on the standard 1X configuration?
100 mm.
Can I achieve higher magnification than 4.5X?
Yes. With optional eyepieces and auxiliary objectives, magnification can reach up to 45X or 270X.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
Is a trinocular head available?
Yes. The model supports trinocular head configuration for camera integration.
What is the field of view with standard eyepieces?
28.6 mm at 0.7X to 4.4 mm at 4.5X.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
