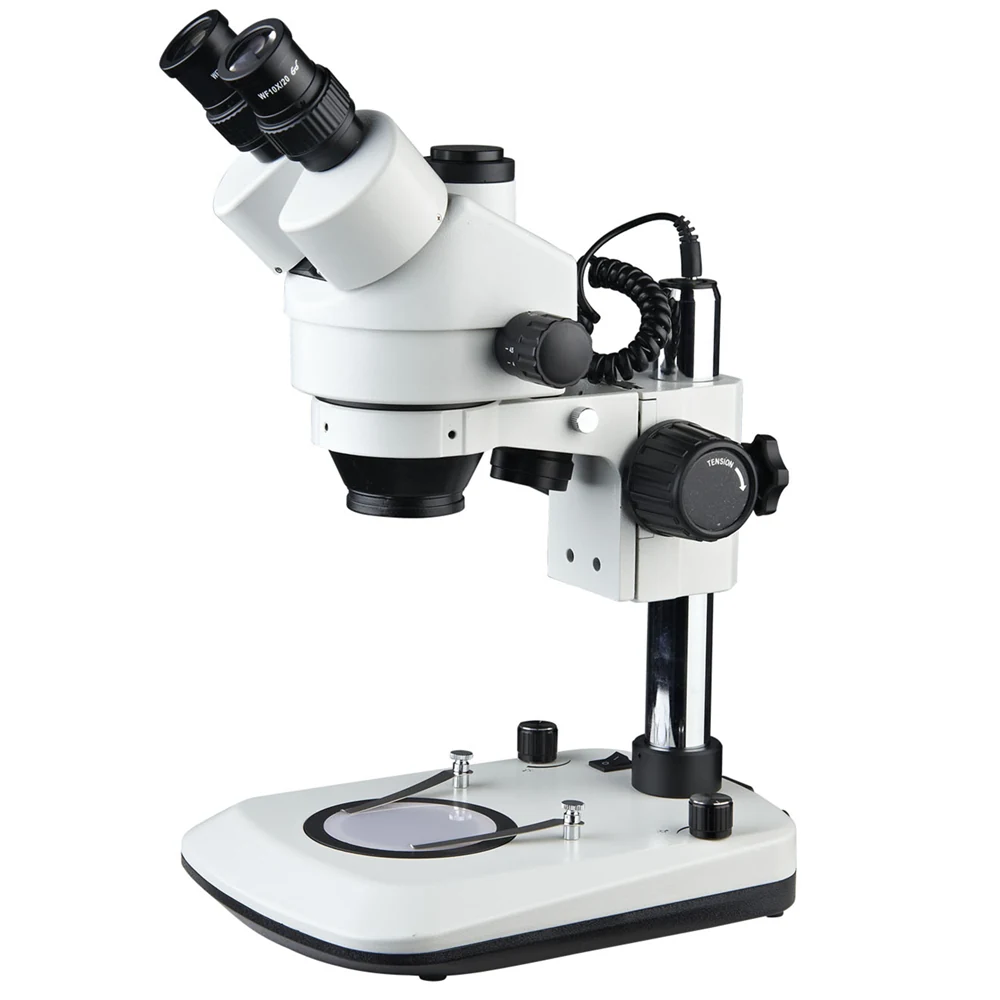

XSZ7045-B8L 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B8L 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B8L 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B8L 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B8L 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B8L 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-B8L 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-B8L is a zoom stereo microscope from Nanjing AMADA Instrument designed for electronics assembly, PCB inspection, and precision bench work. The model offers a 1:6.4 zoom ratio with magnification range 0.7X–4.5X, 100 mm working distance on the standard 1X objective path, binocular or trinocular head, and optional auxiliary objectives and eyepieces for extended magnification up to 45X. It supports LED or halogen illumination and is suitable for inspection stations requiring adjustable field of view and working distance.

  • 1:6.4 zoom ratio with 0.7X–4.5X magnification range for consistent detail across inspection tasks
  • 100 mm working distance on standard 1X path for handling small components and soldering tools
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend magnification to 45X
  • Trinocular option available for camera integration without sacrificing optical path
  • Adjustable interpupillary distance 55–75 mm for user comfort and ergonomic viewing
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X
  • Standard 1X objective with 100 mm working distance
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X; working distance 30–165 mm
  • Eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm; field of view 1.1–57.1 mm
  • Binocular or trinocular head; interpupillary adjustment 55–75 mm
  • Greenough optical system for true stereo depth perception
  • Field of view 28.6–4.4 mm with standard WF10X eyepiece
  • Optional LED or halogen illumination (not included in base model)

Who it is for

  • Electronics manufacturers specifying inspection microscopes for production lines
  • Importers sourcing zoom stereo microscopes for industrial inspection applications
  • Distributors building a catalog of bench-top microscopes for electronics and precision industries

Specifications

ModelXSZ7045-B8L
Zoom Ratio1:6.4
Magnification Range0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Distance55–75 mm
Eyepiece StandardWF10X/F.N.20
Field of View (Standard)28.6–4.4 mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (Auxiliary)30–165 mm
Optional EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Optional)1.1–57.1 mm

Use guide

  • Select binocular or trinocular head based on whether camera integration is needed
  • Use 0.5X or 0.7X auxiliary objectives when greater working distance (130–165 mm) is required
  • Use 2X or 1.5X objectives when higher magnification (up to 45X) is needed for fine detail
  • Match eyepiece to required field of view and magnification (e.g., 30X for high magnification, 15X for wider field)

FAQ

What is the working distance on the standard 1X objective?
100 mm with the built-in 1X objective path.
Can I extend the magnification beyond 4.5X?
Yes. By adding auxiliary objectives (0.3X–2X) and optional eyepieces (WF15X–30X), magnification can reach up to 45X.
What is the field of view with standard eyepiece?
28.6 mm at 0.7X and 4.4 mm at 4.5X with WF10X eyepiece.
Is a trinocular head available?
Yes. The trinocular option is available as an add-on for camera integration.
What illumination options are available?
LED or halogen illumination are available as optional add-ons.
