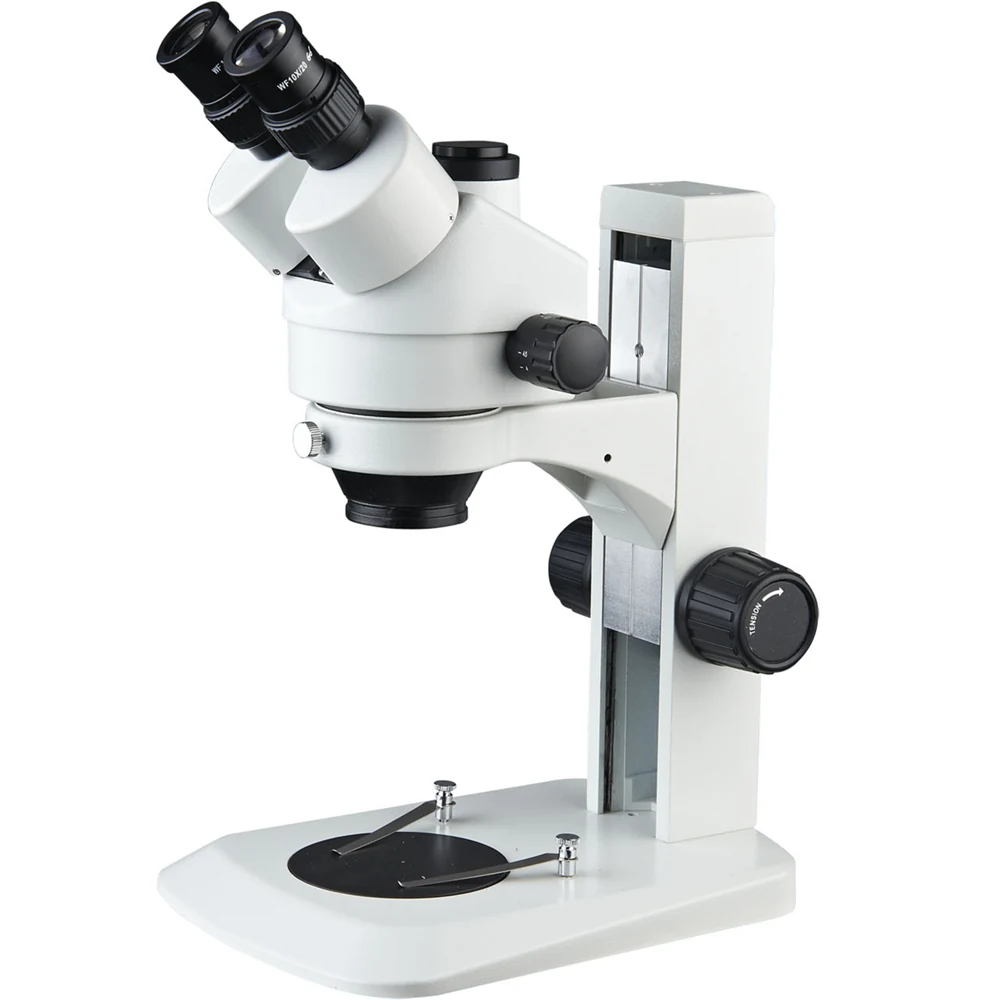

XSZ7045-B7 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-B7 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-B7 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-B7 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-B7 7-45X Zoom Stereo Microscope for Electronic Inspection
XSZ7045-B7 7-45X Zoom Stereo Microscope for Electronic Inspection

XSZ7045-B7 7-45X Zoom Stereo Microscope for Electronic Inspection

XSZ7045-B7 is a zoom stereo microscope from Nanjing AMADA Instrument for electronics inspection, assembly, and repair. The model offers a 1:6.4 zoom ratio with a 0.7X–4.5X magnification range, 100 mm working distance on the standard 1X objective path, and optional auxiliary objectives and eyepieces to extend magnification to 7X–45X. It supports binocular or trinocular head configurations with adjustable interpupillary distance and is suitable for benchtop use in production and quality control environments.

  • 1:6.4 zoom ratio with 0.7X–4.5X magnification range for flexible inspection across small and medium components
  • 100 mm working distance on standard 1X path for handling soldering tools and fixtures
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend magnification to 7X–45X
  • Binocular or trinocular head options for visual observation or camera integration
  • Adjustable interpupillary distance (55–75 mm) for user comfort and consistent alignment
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X
  • Standard working distance 100 mm with 1X objective
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Working distance range 30–165 mm with auxiliary objectives
  • Eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
  • Field of view: 1.1–57.1 mm with optional eyepieces and objectives
  • Interpupillary adjustment 55–75 mm
  • Binocular or trinocular head options

Who it is for

  • Electronics manufacturers and contract assemblers
  • Procurement teams sourcing inspection microscopes for production lines
  • Distributors building a catalog of stereo microscopes for industrial use

Specifications

ModelXSZ7045-B7
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Working Distance (1X)100 mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (With Auxiliary Objectives)30–165 mm
EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (With Optional Eyepieces)1.1–57.1 mm
Interpupillary Adjustment55–75 mm
Head TypeBinocular / Trinocular
Optical SystemGreenough

Use guide

  • Select binocular or trinocular head based on whether camera integration is required
  • Use 1X objective for standard 100 mm working distance and 0.7X–4.5X magnification
  • Add auxiliary objectives (e.g., 2X) when higher magnification is needed, noting reduced working distance
  • Pair with appropriate eyepieces (e.g., 30X) to achieve 45X total magnification
  • Verify compatibility of objective and eyepiece combinations before ordering

FAQ

What is the working distance with the standard 1X objective?
100 mm.
Can I achieve 45X magnification?
Yes, by combining a 2X auxiliary objective with a 30X eyepiece (2X × 30X = 60X), but the maximum effective magnification is limited by optical quality and field of view; 7X–45X is the stated range with optional components.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
Is the trinocular head included?
No. The trinocular head is an optional addition; the standard model is binocular.
What eyepieces are available for higher magnification?
WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm.
What is the field of view with a 30X eyepiece?
1.1 mm with a 2X auxiliary objective; varies with objective and eyepiece combination.
Who manufactures this microscope?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
