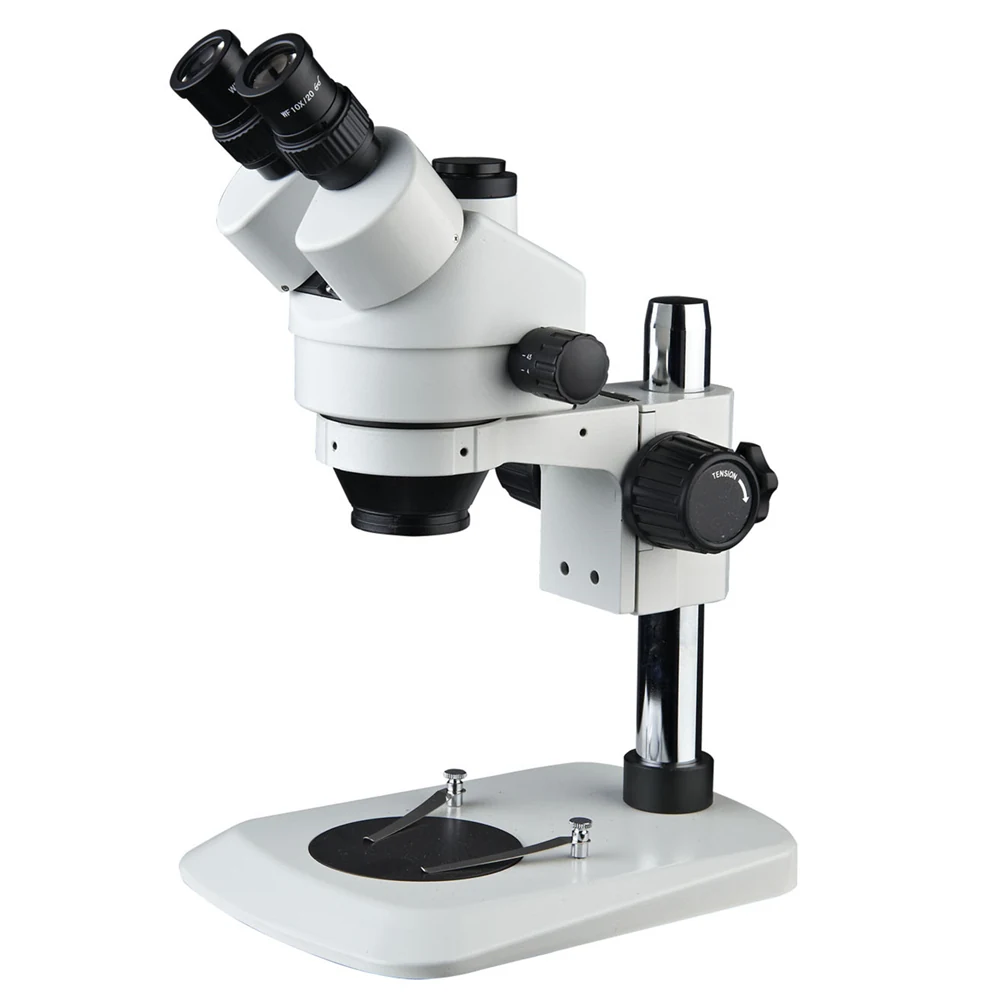

XSZ7045-B6 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B6 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B6 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B6 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B6 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B6 7-45X Zoom Stereo Microscope for Micro-object Observation

XSZ7045-B6 7-45X Zoom Stereo Microscope for Micro-object Observation

XSZ7045-B6 is a 7-45X zoom stereo microscope from Nanjing AMADA Instrument for micro-object observation in electronics, precision assembly, and quality control. The standard optical system provides 0.7X–4.5X zoom with a 1X objective and 100 mm working distance. Optional auxiliary objectives and eyepieces extend magnification to 7X–45X or 3.5X–270X, with working distances from 30 mm to 165 mm and field of view from 1.1 mm to 57.1 mm.

  • Standard 0.7X–4.5X zoom range with 1X objective and 100 mm working distance for bench-level inspection
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend magnification to 7X–45X or 3.5X–270X
  • Working distance adjustable from 30 mm to 165 mm depending on objective and eyepiece selection
  • Binocular or trinocular head with interpupillary adjustment 55–75 mm for ergonomic viewing
  • Greenough optical system ensures true stereo depth perception across all magnification levels
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X with 1X objective
  • Working distance 100 mm with standard 1X objective
  • Optional auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Working distance range 30–165 mm depending on objective and eyepiece combination
  • Eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
  • Field of view range 1.1–57.1 mm depending on eyepiece and objective
  • Binocular or trinocular head with interpupillary adjustment 55–75 mm
  • Greenough optical system for true stereo imaging

Who it is for

  • Electronics manufacturers and repair labs requiring variable magnification and working distance
  • Importers sourcing microscopes for inspection stations with mixed component sizes
  • Distributors building a modular microscope product line for industrial and lab use

Specifications

ModelXSZ7045-B6
Zoom Ratio1:6.4
Standard Magnification Range0.7X–4.5X
Standard Working Distance100 mm
Standard Objective1X
Interpupillary Adjustment55–75 mm
Optional Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Extended Magnification Range7X–45X or 3.5X–270X
Working Distance Range (with aux objectives)30–165 mm
EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View Range1.1–57.1 mm

Use guide

  • Select binocular or trinocular head based on documentation needs
  • Use 1X objective for standard 100 mm working distance and 0.7X–4.5X magnification
  • Add auxiliary objectives (e.g., 2X) to increase magnification and reduce working distance for small parts
  • Pair high-power eyepieces (e.g., 30X) with 2X objective for maximum magnification (up to 270X)
  • Adjust interpupillary distance to match user’s eye spacing for comfortable viewing

FAQ

What is the standard working distance?
100 mm with the built-in 1X objective.
Can I extend the magnification beyond 4.5X?
Yes. By adding auxiliary objectives (0.3X–2X) and high-power eyepieces, magnification can reach 7X–45X or 3.5X–270X.
What is the working distance with a 2X objective?
With a 2X objective, working distance is 30 mm. With 0.5X it increases to 165 mm.
Is the trinocular version available?
Yes. The trinocular head is available as an optional addition to the standard binocular body.
What eyepieces are compatible?
WF15X/15mm, WF20X/10mm, 25X/9mm, and 30X/8mm are compatible with the system.
