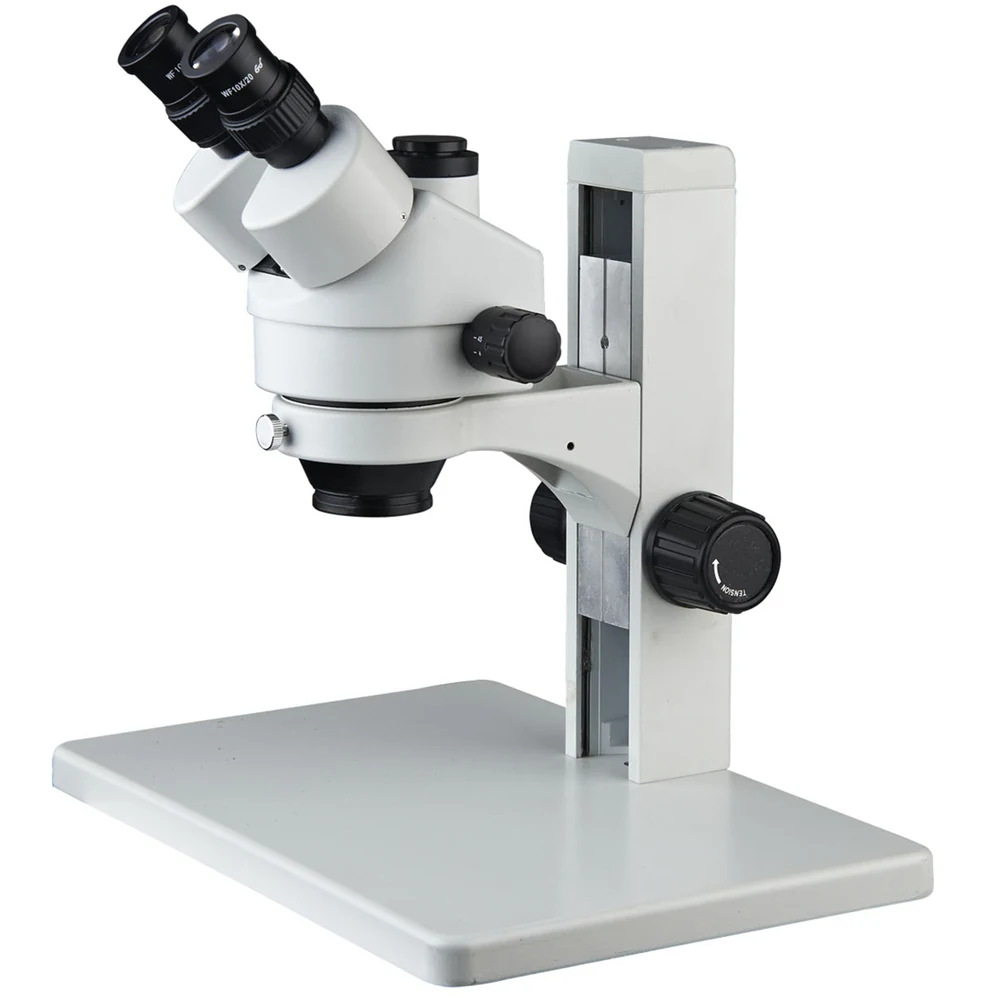

XSZ7045-B5 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B5 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B5 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B5 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B5 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B5 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-B5 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-B5 is a zoom stereo microscope from Nanjing AMADA Instrument designed for electronics assembly, PCB inspection, and precision bench work. The model offers a magnification range of 7X–45X with optional eyepieces and objectives, a 100 mm working distance on the standard 1X path, and a greenough optical system with binocular or trinocular head options. It supports auxiliary objectives and multiple eyepieces for extended field of view and magnification control.

  • Magnification range 7X–45X with optional eyepieces and objectives for detailed inspection
  • 100 mm working distance on standard 1X path for handling components and tools
  • Binocular or trinocular head options for visual observation or camera integration
  • Adjustable interpupillary distance 55–75 mm for user comfort and ergonomic use
  • Auxiliary objectives (0.3X–2X) extend working distance to 165 mm and magnification to 270X
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4 with magnification range 0.7X–4.5X on standard 1X objective path
  • Working distance 100 mm with 1X objective; extends to 165 mm with 0.3X auxiliary objective
  • Interpupillary adjustment 55–75 mm for user-specific fit
  • Greenough optical system for true stereo depth perception
  • Binocular or trinocular head options for observation or camera integration
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X for extended working distance and magnification
  • Optional eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm with field of view 1.1–57.1 mm
  • Field of view 28.6–4.4 mm on standard 10X eyepiece; expands to 57.1 mm with 8 mm focal length eyepiece

Who it is for

  • Electronics manufacturers and repair labs sourcing inspection tools
  • Importers specifying zoom stereo microscopes for production or quality control lines
  • Distributors building a catalog of industrial inspection microscopes

Specifications

ModelXSZ7045-B5
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Adjustment55–75 mm
Optical SystemGreenough
Head TypeBinocular / Trinocular
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (Max)165 mm
Eyepieces (Optional)WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Standard)28.6–4.4 mm
Field of View (Max)57.1 mm
Magnification Range (With Optional Eyepieces)7X–45X, 3.5X–270X

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Use 0.3X auxiliary objective when working distance needs to extend to 165 mm
  • Choose eyepiece focal length (e.g., 8 mm for 30X) to achieve desired field of view and magnification
  • Combine 1X objective with 15X or 20X eyepiece for 7X–45X magnification range

FAQ

What is the working distance on the standard configuration?
100 mm with the built-in 1X objective path. With 0.3X auxiliary objective, it extends to 165 mm.
Can I achieve 45X magnification?
Yes. With the standard 1X objective and 15X eyepiece, magnification reaches 45X. Higher magnification requires additional objectives and eyepieces.
What eyepieces are available?
WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm. Field of view varies from 1.1 mm to 57.1 mm depending on focal length.
Is a trinocular head available?
Yes. The XSZ7045-B5 model supports trinocular head option for camera integration.
Who manufactures this microscope?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
