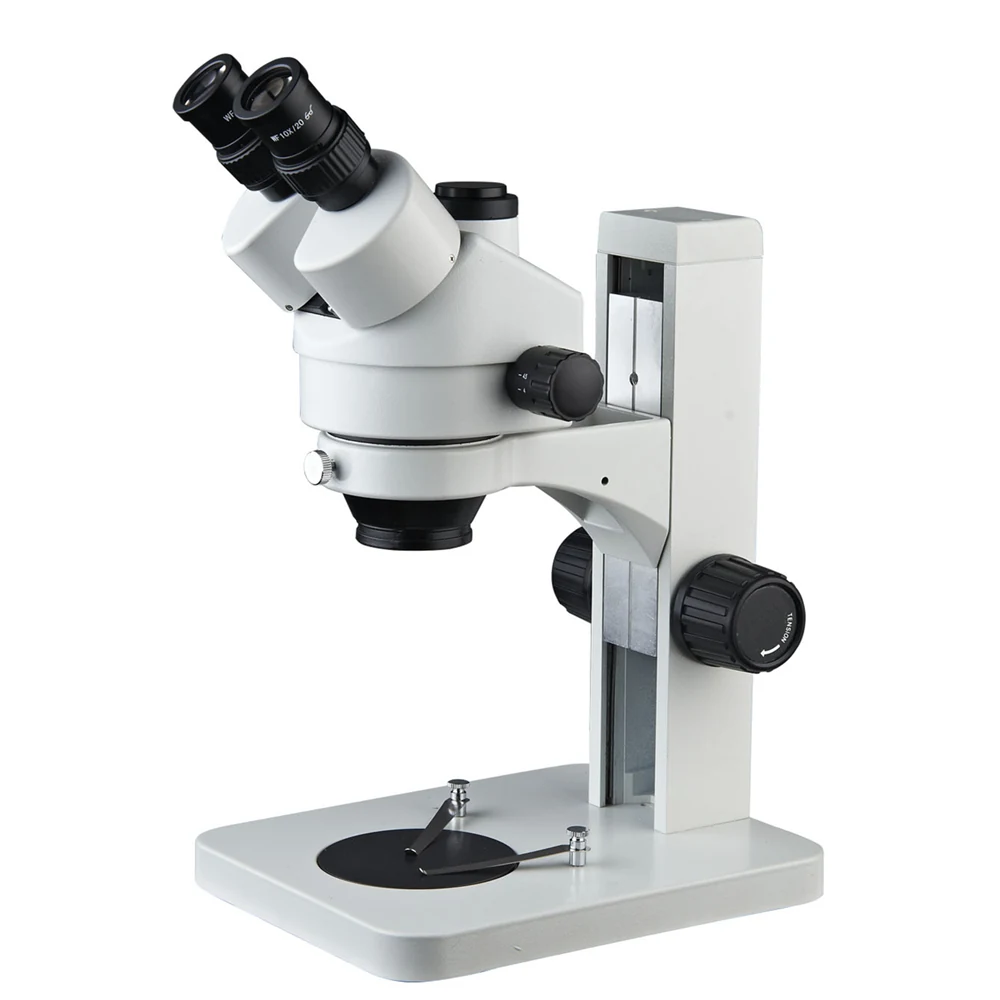

XSZ7045-B4 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B4 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B4 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B4 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B4 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B4 7-45X Zoom Stereo Microscope for Micro-object Observation

XSZ7045-B4 7-45X Zoom Stereo Microscope for Micro-object Observation

XSZ7045-B4 is a zoom stereo microscope from Nanjing AMADA Instrument for micro-object observation in electronics, biology, and precision assembly. The model offers a 1:6.4 zoom ratio with magnification range 0.7X–4.5X on the standard 1X objective path, 100 mm working distance, and binocular or trinocular head options. Optional auxiliary objectives and eyepieces extend the effective magnification to 7X–45X or 3.5X–270X with variable working distances from 30 mm to 165 mm.

  • 1:6.4 zoom ratio with 0.7X–4.5X standard magnification range for consistent field of view across zoom levels
  • 100 mm working distance on the 1X objective path for handling small components and tools
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend magnification to 7X–45X or 3.5X–270X
  • Trinocular head option for camera integration without altering optical path
  • Adjustable interpupillary distance 55–75 mm for ergonomic viewing across users
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X on standard 1X objective path
  • Working distance 100 mm with 1X objective; 30–165 mm with optional auxiliary objectives
  • Interpupillary distance adjustable 55–75 mm
  • Binocular or trinocular head with Greenough optical system
  • Optional auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Optional eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
  • Field of view range: 28.6–4.4 mm (standard), 1.1–57.1 mm (with optional optics)
  • Effective magnification range: 7X–45X or 3.5X–270X when using optional eyepieces and objectives

Who it is for

  • Electronics manufacturers and repair labs needing micro-object inspection
  • Research labs conducting routine biological or material observations
  • Importers specifying zoom stereo microscopes with extended magnification options
  • Distributors building a product line for industrial and educational use

Specifications

ModelXSZ7045-B4
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Adjustment55–75 mm
Eyepiece OptionsWF10X/F.N.20 (standard), WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Effective Magnification Range7X–45X or 3.5X–270X
Working Distance (With Auxiliary Objectives)30–165 mm
Field of View (Standard)28.6–4.4 mm
Field of View (With Optional Optics)1.1–57.1 mm

Use guide

  • Select binocular or trinocular head based on need for camera integration
  • Use 1X objective for standard 100 mm working distance and 0.7X–4.5X magnification
  • Add auxiliary objectives (e.g., 0.5X or 2X) to adjust working distance or magnification as needed
  • Pair with appropriate eyepieces (e.g., WF20X or 30X) to achieve desired effective magnification
  • Verify final magnification and working distance using the provided tables before ordering

FAQ

What is the working distance on the standard 1X objective?
100 mm.
Can I extend the magnification beyond 4.5X?
Yes. By adding optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X), effective magnification can reach 7X–45X or 3.5X–270X.
Is a trinocular head available?
Yes. The XSZ7045-B4 model supports trinocular head configuration for camera integration.
What eyepieces are available?
Standard: WF10X/F.N.20. Optional: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm.
What auxiliary objectives are offered?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
