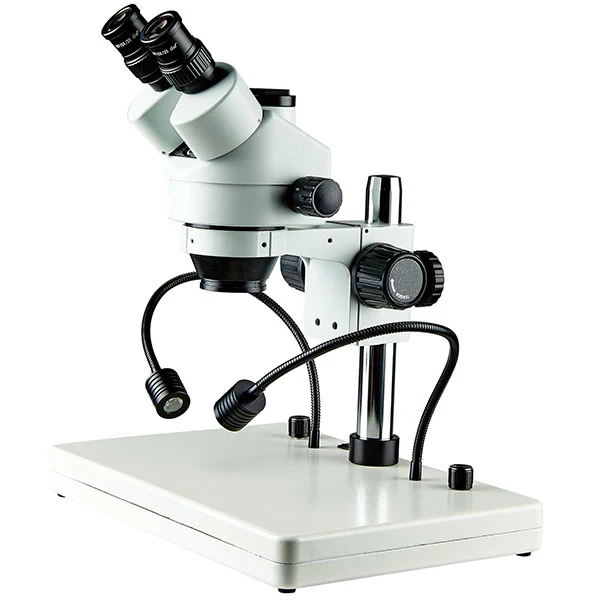

XSZ7045-B3LS 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B3LS 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B3LS 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B3LS 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B3LS 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B3LS 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-B3LS 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-B3LS is a 7-45X zoom stereo microscope from Nanjing AMADA Instrument for electronics inspection, PCB assembly, and precision bench work. The model features a Greenough optical system, binocular or trinocular head, 1X objective, and 100 mm working distance. It supports magnification ranges from 7X to 45X with optional eyepieces and objectives, and offers adjustable interpupillary distance and multiple illumination options.

  • 7X–45X magnification range with optional eyepieces and objectives for fine detail inspection
  • 100 mm working distance on standard 1X objective path for component handling and soldering
  • Adjustable interpupillary distance 55–75 mm for user comfort and consistent alignment
  • Trinocular option enables camera integration for documentation and quality control
  • Multiple auxiliary objectives (0.3X–2X) extend working distance and magnification range
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X on standard 1X objective path
  • Working distance 100 mm with 1X objective; varies with auxiliary objectives (30–165 mm)
  • Interpupillary adjustment 55–75 mm
  • Eyepieces: WF10X/F.N.20 (standard), WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm (optional)
  • Field of view: 28.6–4.4 mm (standard); 1.1–57.1 mm (with optional eyepieces)
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Head: Binocular or trinocular; Greenough optical system
  • Magnification range with optional components: 7X–45X, 3.5X–270X

Who it is for

  • Electronics manufacturers requiring benchtop inspection tools
  • Importers sourcing zoom stereo microscopes for production line integration
  • Distributors building a catalog of industrial inspection instruments

Specifications

ModelXSZ7045-B3LS
Zoom Ratio1:6.4
Standard Magnification Range0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Distance55–75 mm
Eyepiece (Standard)WF10X/F.N.20
Field of View (Standard)28.6–4.4 mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (Auxiliary)30–165 mm
Optional EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Optional)1.1–57.1 mm
Magnification Range (With Options)7X–45X, 3.5X–270X
Head TypeBinocular / Trinocular
Optical SystemGreenough

Use guide

  • Select binocular or trinocular head based on camera needs
  • Use 1X objective for standard 100 mm working distance and 0.7X–4.5X magnification
  • Add auxiliary objectives to extend working distance or increase magnification
  • Choose optional eyepieces to achieve 7X–45X magnification range
  • Use trinocular configuration when documenting inspection results with a camera

FAQ

What is the working distance on the standard 1X objective?
100 mm.
Can I achieve 45X magnification?
Yes, with optional eyepieces and objectives, the magnification range extends to 7X–45X.
Is a trinocular head available?
Yes, the XSZ7045-B3LS model supports a trinocular head for camera integration.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
What is the field of view with standard eyepiece?
28.6–4.4 mm.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd., Nanjing, Jiangsu, China.
