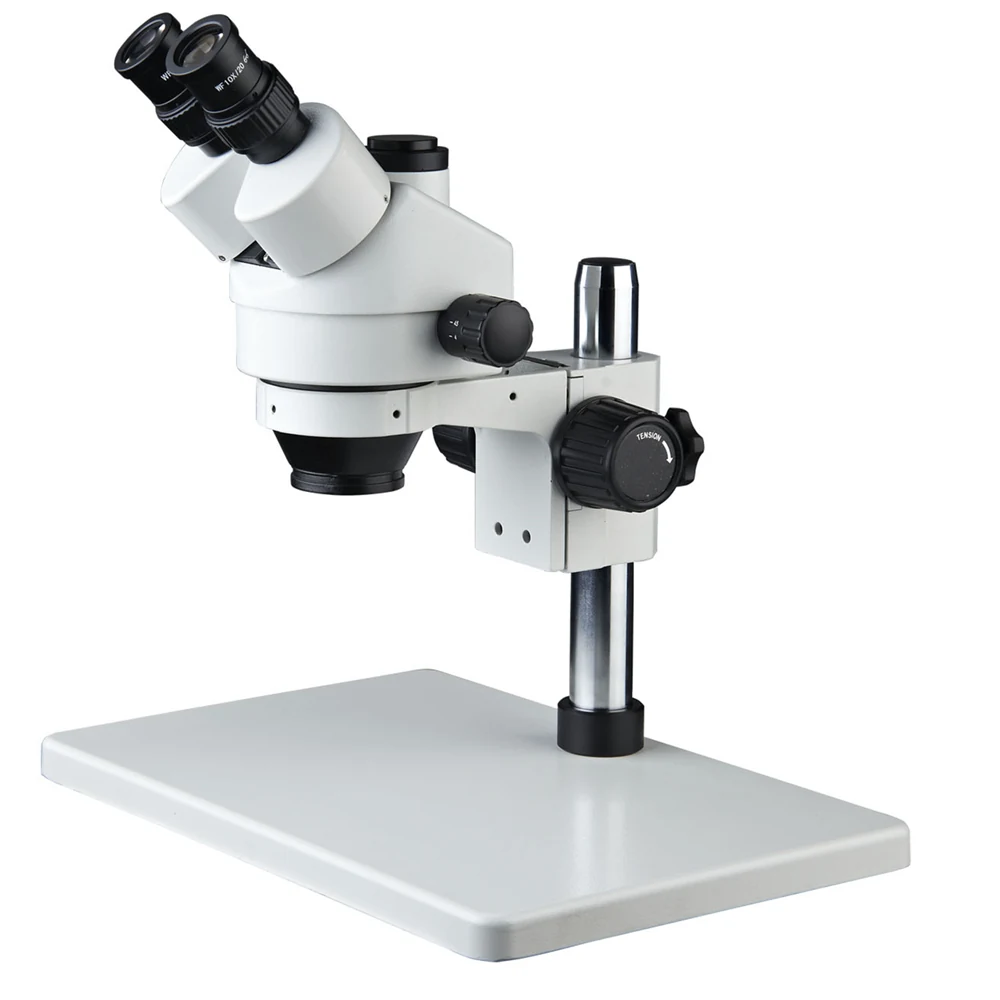

XSZ7045-B3 is a zoom stereo microscope from Nanjing AMADA Instrument designed for electronics assembly, PCB inspection, and precision bench work. The model offers a 1:6.4 zoom ratio with magnification range 0.7X–4.5X on the standard 1X objective path, 100 mm working distance, and binocular or trinocular head options. Optional auxiliary objectives and eyepieces extend the effective magnification to 7X–45X or 3.5X–270X, with working distances from 30 mm to 165 mm.

  • 1:6.4 zoom ratio with 0.7X–4.5X magnification range on standard 1X objective path
  • 100 mm working distance on standard configuration for component handling and soldering
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) to extend magnification to 7X–45X or 3.5X–270X
  • Binocular or trinocular head with interpupillary adjustment 55–75 mm for ergonomic viewing
  • Extended working distance range (30–165 mm) with auxiliary objectives for tall fixtures or deep components
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X on standard 1X objective path
  • Working distance 100 mm on standard 1X objective path
  • Interpupillary adjustment 55–75 mm
  • Binocular or trinocular head with Greenough optical system
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X; working distance 30–165 mm
  • Eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm; field of view 1.1–57.1 mm
  • Effective magnification range: 7X–45X or 3.5X–270X with optional eyepieces and objectives
  • Field of view on standard 1X path: 28.6–4.4 mm

Who it is for

  • Electronics manufacturers and repair labs sourcing inspection tools
  • Importers specifying zoom stereo microscopes for production line integration
  • Distributors building a catalog of modular optical inspection systems

Specifications

ModelXSZ7045-B3
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Adjustment55–75 mm
Head TypeBinocular / Trinocular
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (Auxiliary)30–165 mm
EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Standard)28.6–4.4 mm
Effective Magnification Range7X–45X or 3.5X–270X

Use guide

  • Select binocular or trinocular head based on need for camera documentation
  • Use standard 1X objective for 0.7X–4.5X magnification and 100 mm working distance
  • Add auxiliary objectives (e.g., 0.5X) when longer working distance (up to 165 mm) is needed
  • Choose eyepieces (e.g., 30X) when higher magnification and smaller field of view are required
  • Combine auxiliary objectives and eyepieces to achieve effective magnification of 7X–45X or 3.5X–270X

FAQ

What is the working distance on the standard 1X objective?
100 mm.
Can I extend the magnification beyond 4.5X?
Yes. By adding auxiliary objectives (0.3X–2X) and optional eyepieces, magnification can reach 7X–45X or 3.5X–270X.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
What is the field of view on the standard configuration?
28.6 mm at 0.7X to 4.4 mm at 4.5X.
Is a trinocular option available?
Yes. The trinocular head is available as an optional add-on for camera integration.
