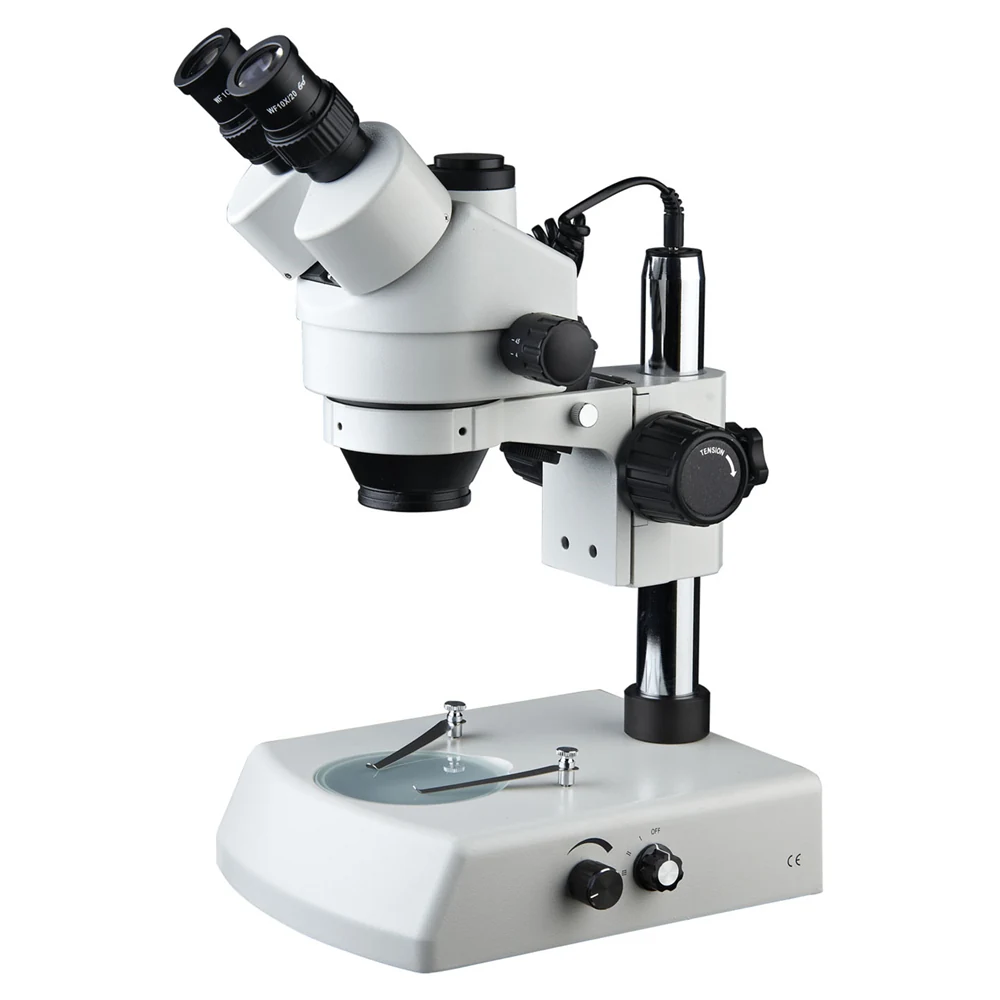

XSZ7045-B2 7-45X Zoom Stereo Microscope for Electronic Inspection

Technical features

• Zoom ratio 1:6.4; magnification range 0.7X–4.5X on standard 1X objective path
• Working distance 100 mm (1X); with auxiliary objectives 30–165 mm depending on configuration
• Interpupillary distance adjustable 55–75 mm
• Binocular or trinocular head options available
• Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
• Eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
• Field of view: 28.6–4.4 mm (standard); 1.1–57.1 mm (with optional eyepieces and objectives)
• Greenough optical system for true stereo depth perception

Who it is for

• Electronics manufacturers and contract assemblers
• Procurement engineers sourcing inspection tools for production lines
• Distributors building a range of stereo microscopes for industrial buyers
• Laboratories requiring variable magnification with adjustable working distance

Specifications

Use guide

• Select binocular or trinocular head based on whether camera integration is required
• Use 1X objective for standard 0.7X–4.5X magnification with 100 mm working distance
• Add auxiliary objectives (e.g., 0.5X) to increase working distance to 165 mm or 2X to increase magnification
• Choose eyepieces (e.g., 30X) to achieve higher magnification in combination with objectives
• Combine objectives and eyepieces to match required magnification and working distance for the task
