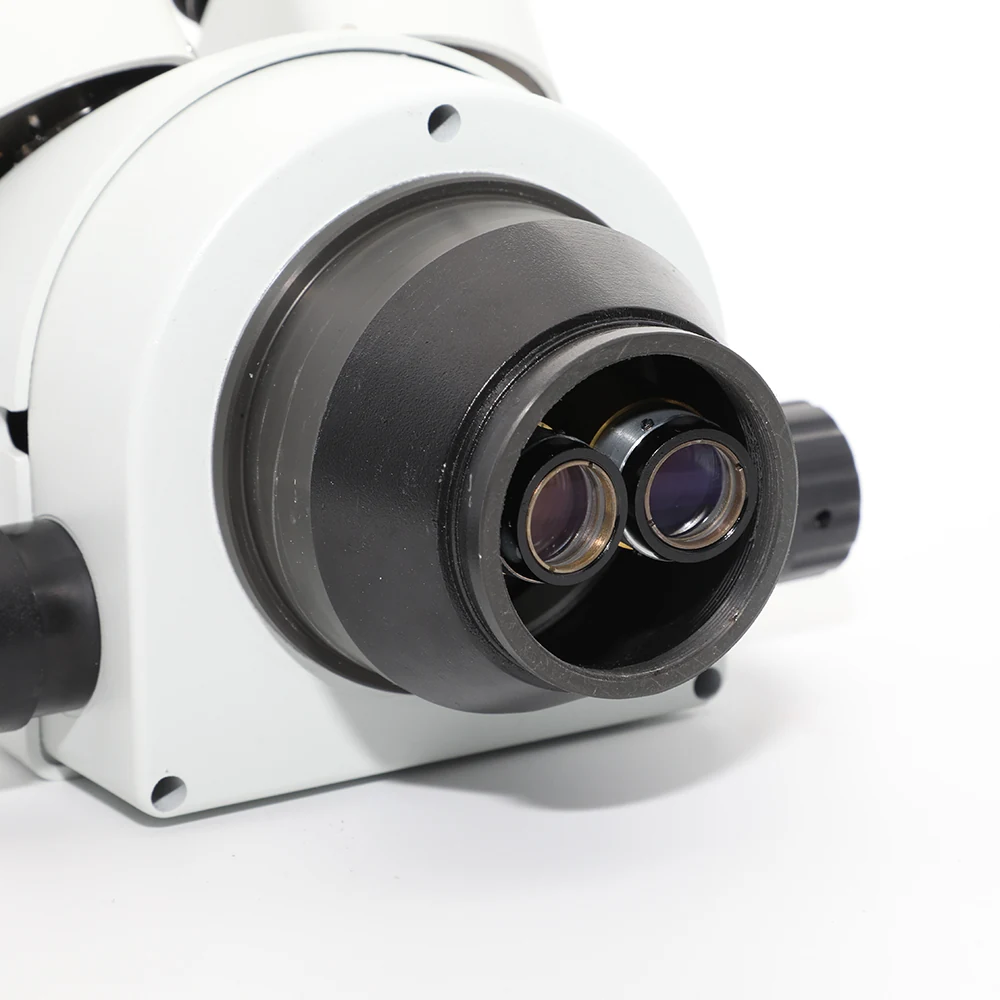

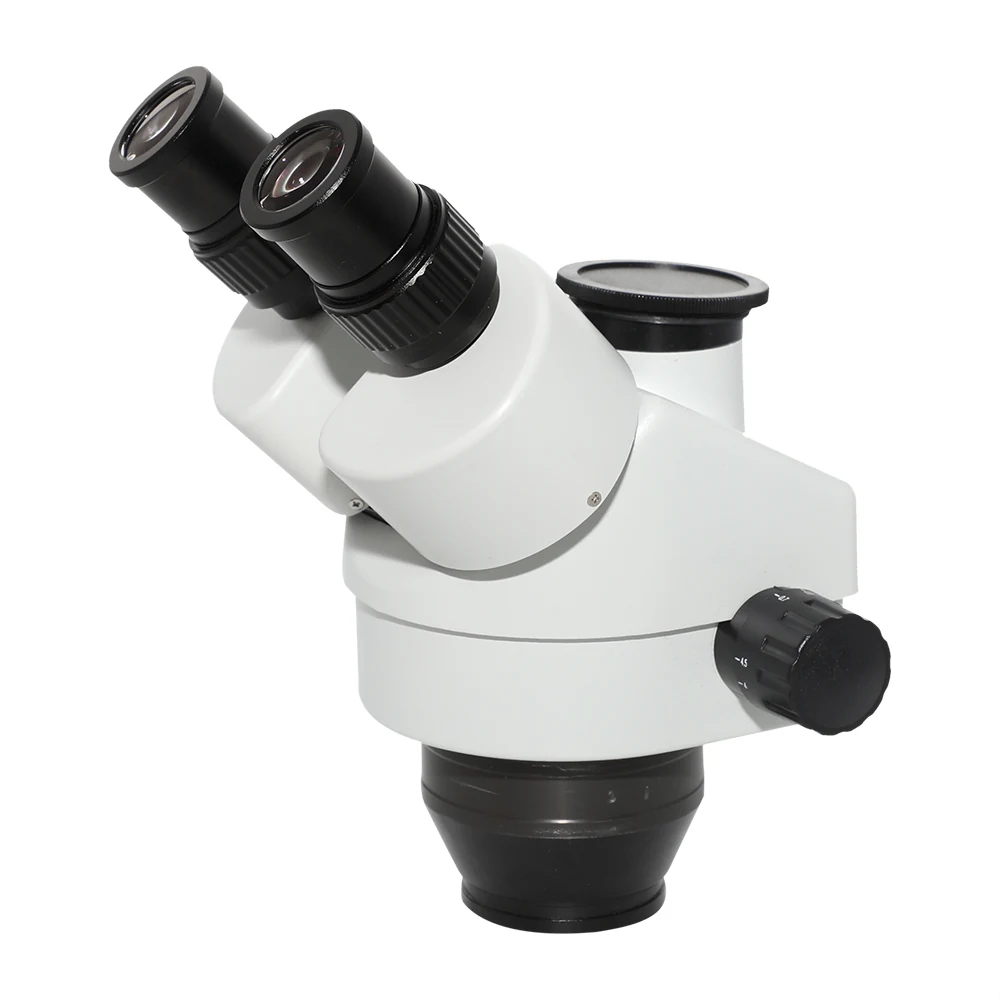

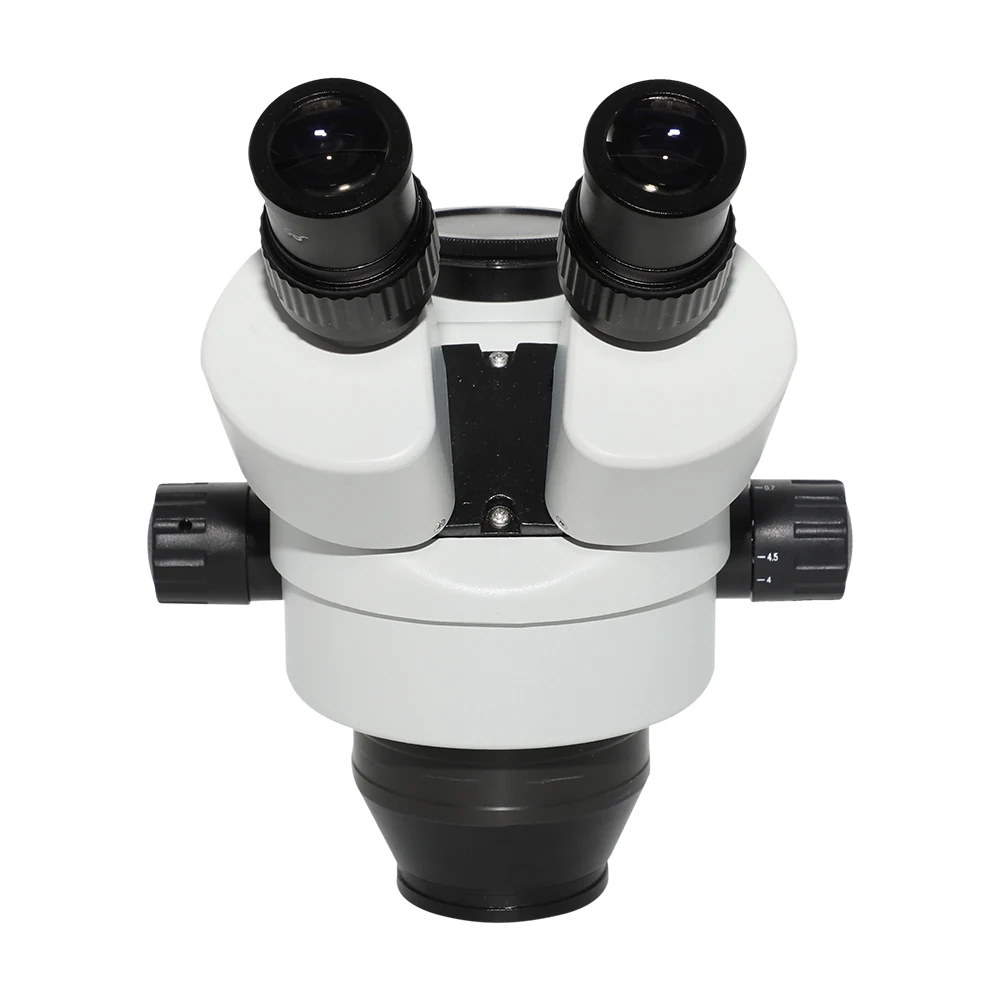

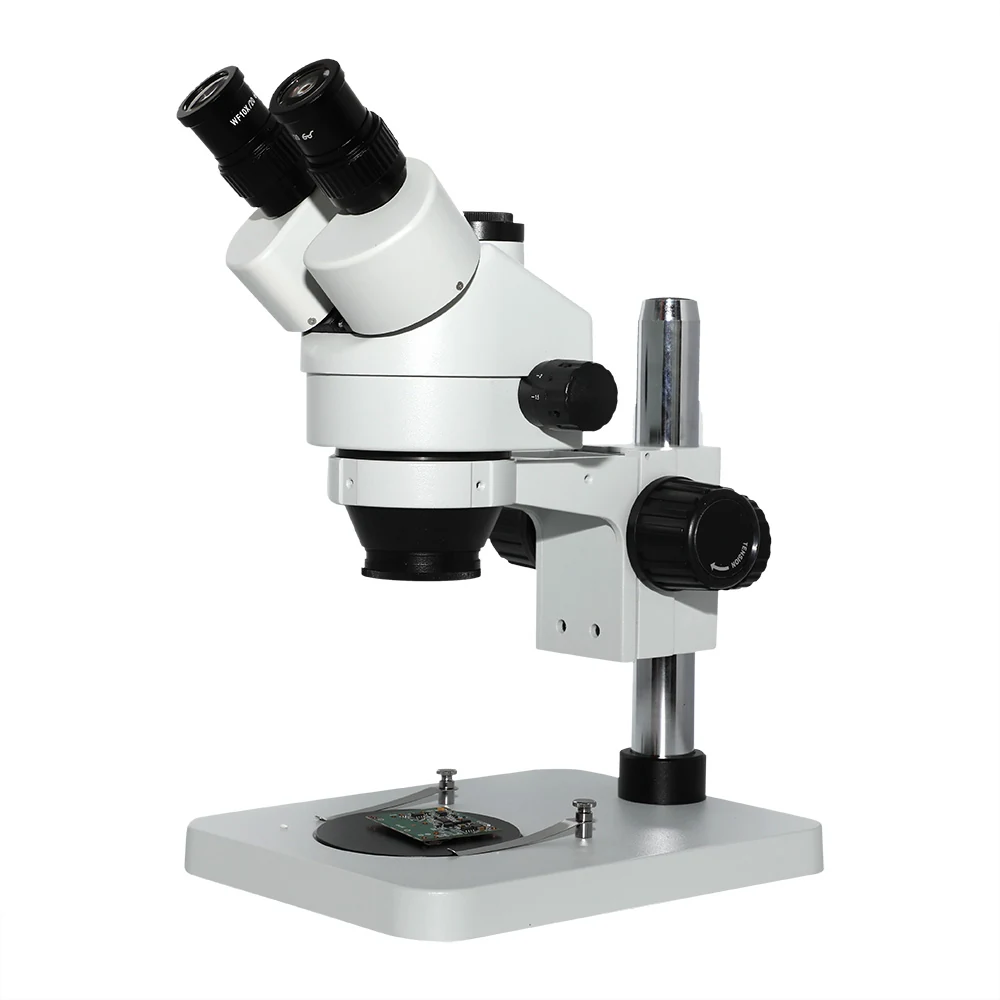

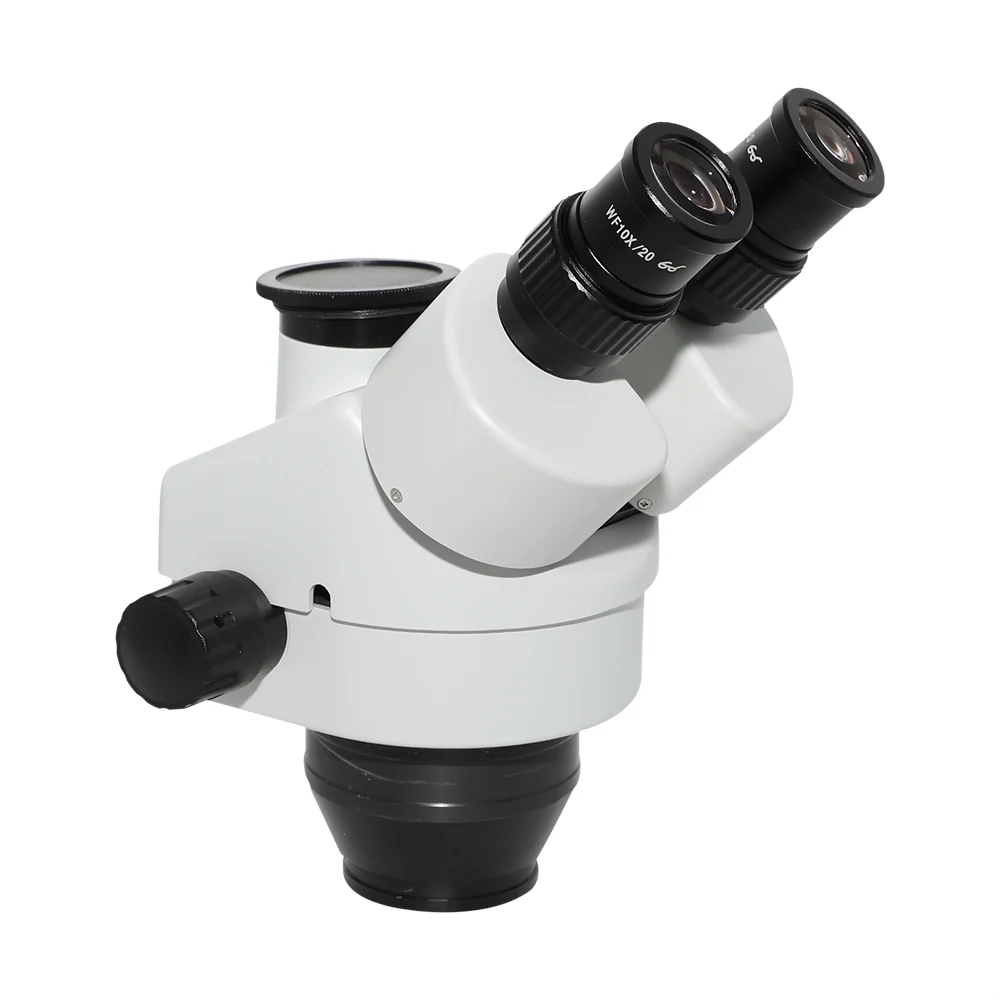

XSZ7045-B1 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B1 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B1 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B1 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B1 7-45X Zoom Stereo Microscope for Micro-object Observation
XSZ7045-B1 7-45X Zoom Stereo Microscope for Micro-object Observation

XSZ7045-B1 7-45X Zoom Stereo Microscope for Micro-object Observation

XSZ7045-B1 is a zoom stereo microscope from Nanjing AMADA Instrument for micro-object observation in electronics, biology, and precision assembly. The standard optical system offers a 1:6.4 zoom ratio, 0.7X–4.5X magnification range, and 100 mm working distance with a 1X objective. Optional eyepieces and objectives extend magnification to 7X–45X or 3.5X–270X. Available in binocular or trinocular configurations with adjustable interpupillary distance and multiple illumination options.

  • 1:6.4 zoom ratio with 0.7X–4.5X magnification range for consistent detail across variable object sizes
  • 100 mm working distance on standard 1X objective path for handling small components and tools
  • Optional eyepieces and objectives extend usable magnification range to 7X–45X or 3.5X–270X
  • Binocular or trinocular head options support direct observation and camera integration
  • Adjustable interpupillary distance (55–75 mm) for user comfort and ergonomic setup
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X with 1X objective
  • Working distance 100 mm with 1X objective; 30–165 mm with auxiliary objectives
  • Interpupillary adjustment 55–75 mm
  • Standard eyepiece WF10X/F.N.20; field of view 28.6–4.4 mm
  • Optional eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm; field of view 1.1–57.1 mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Optional magnification ranges: 7X–45X, 3.5X–270X with selected eyepieces and objectives
  • Binocular or trinocular head configuration available

Who it is for

  • Electronics manufacturers and quality control labs
  • Biological and materials science labs conducting micro-observation
  • Importers sourcing stereo microscopes for industrial or lab use
  • Distributors building a catalog of versatile benchtop microscopes

Specifications

ModelXSZ7045-B1
Zoom Ratio1:6.4
Magnification Range (1X)0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Distance55–75 mm
Eyepiece StandardWF10X/F.N.20
Field of View (Standard)28.6–4.4 mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Extended Magnification Range7X–45X, 3.5X–270X
Head ConfigurationBinocular / Trinocular

Use guide

  • Select binocular or trinocular head based on need for camera integration
  • Use 1X objective for standard 100 mm working distance and 0.7X–4.5X magnification
  • Add auxiliary objectives (e.g., 0.5X) to increase working distance to 165 mm
  • Use higher magnification eyepieces (e.g., 25X, 30X) with 1X or 2X objectives to reach 7X–45X range
  • Combine 2X objective with 30X eyepiece for up to 270X magnification

FAQ

What is the working distance with the standard 1X objective?
100 mm.
Can I extend the magnification beyond 4.5X?
Yes. With optional eyepieces and objectives, magnification can reach 7X–45X or 3.5X–270X.
Is a trinocular head available?
Yes. The XSZ7045-B1 is available in binocular or trinocular configuration.
What auxiliary objectives are offered?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
What eyepieces are available?
WF10X/F.N.20 (standard), WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm.
