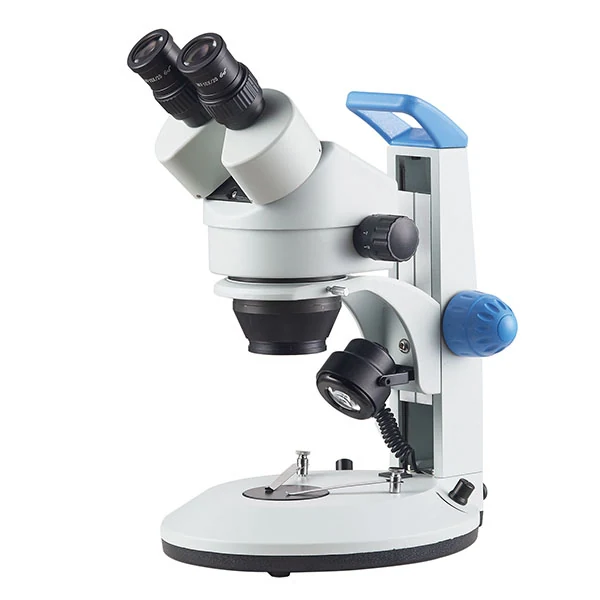

XSZ7045-2L 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-2L 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-2L 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-2L 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-2L 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-2L 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-2L 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-2L is a zoom stereo microscope from Nanjing AMADA Instrument designed for electronics inspection, PCB assembly, and precision bench work. It features a Greenough optical system with binocular or trinocular head, 1:6.4 zoom ratio, and magnification range of 0.7X–4.5X on the standard 1X objective path. Optional auxiliary objectives and eyepieces extend the total magnification to 7X–45X or 3.5X–270X, with working distances from 30 mm to 165 mm.

  • Greenough optical system delivers true stereo depth perception for fine electronics work
  • 1:6.4 zoom ratio with 0.7X–4.5X range on standard 1X path for consistent magnification control
  • Working distance of 100 mm on standard configuration allows space for tools and components
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF15X–30X) extend magnification range to 7X–45X or 3.5X–270X
  • Trinocular head option enables camera integration for documentation and inspection records
Request A Quote +86-15195807515

Technical features

  • Greenough optical system with binocular or trinocular head
  • Zoom ratio 1:6.4, magnification range 0.7X–4.5X on standard 1X objective path
  • Working distance 100 mm with 1X objective; 30–165 mm with auxiliary objectives
  • Interpupillary adjustment 55–75 mm
  • Optional auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Optional eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
  • Field of view: 28.6–4.4 mm (standard), 1.1–57.1 mm (with auxiliary objectives)
  • Total magnification range: 7X–45X or 3.5X–270X depending on combination of eyepiece and objective

Who it is for

  • Electronics manufacturers sourcing microscopes for production and quality control
  • Importers specifying zoom stereo microscopes for industrial inspection systems
  • Distributors building a catalog of optical tools for electronics and precision assembly

Specifications

ModelXSZ7045-2L
Zoom Ratio1:6.4
Magnification Range (Standard)0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Adjustment55–75 mm
Optical SystemGreenough
Head TypeBinocular / Trinocular
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Optional EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View (Standard)28.6–4.4 mm
Field of View (With Auxiliary Objectives)1.1–57.1 mm
Total Magnification Range7X–45X or 3.5X–270X

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Use 1X objective for standard 100 mm working distance and 0.7X–4.5X magnification range
  • Add auxiliary objectives (e.g., 0.5X or 2X) to adjust working distance and magnification as needed
  • Choose eyepieces (e.g., 30X) to reach higher magnification in the 7X–45X range
  • Combine objectives and eyepieces to achieve total magnification of 7X–45X or 3.5X–270X

FAQ

What is the working distance on the standard 1X configuration?
100 mm with the built-in 1X objective path.
Can I achieve higher magnification than 4.5X?
Yes. By adding auxiliary objectives (e.g., 2X) and higher magnification eyepieces (e.g., 30X), total magnification can reach up to 270X.
Is a trinocular head available?
Yes. The XSZ7045-2L is available with a trinocular head for camera integration.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, and 2X are available as optional components.
What eyepieces can be used with this microscope?
WF15X/15mm, WF20X/10mm, 25X/9mm, and 30X/8mm are available as optional eyepieces.
