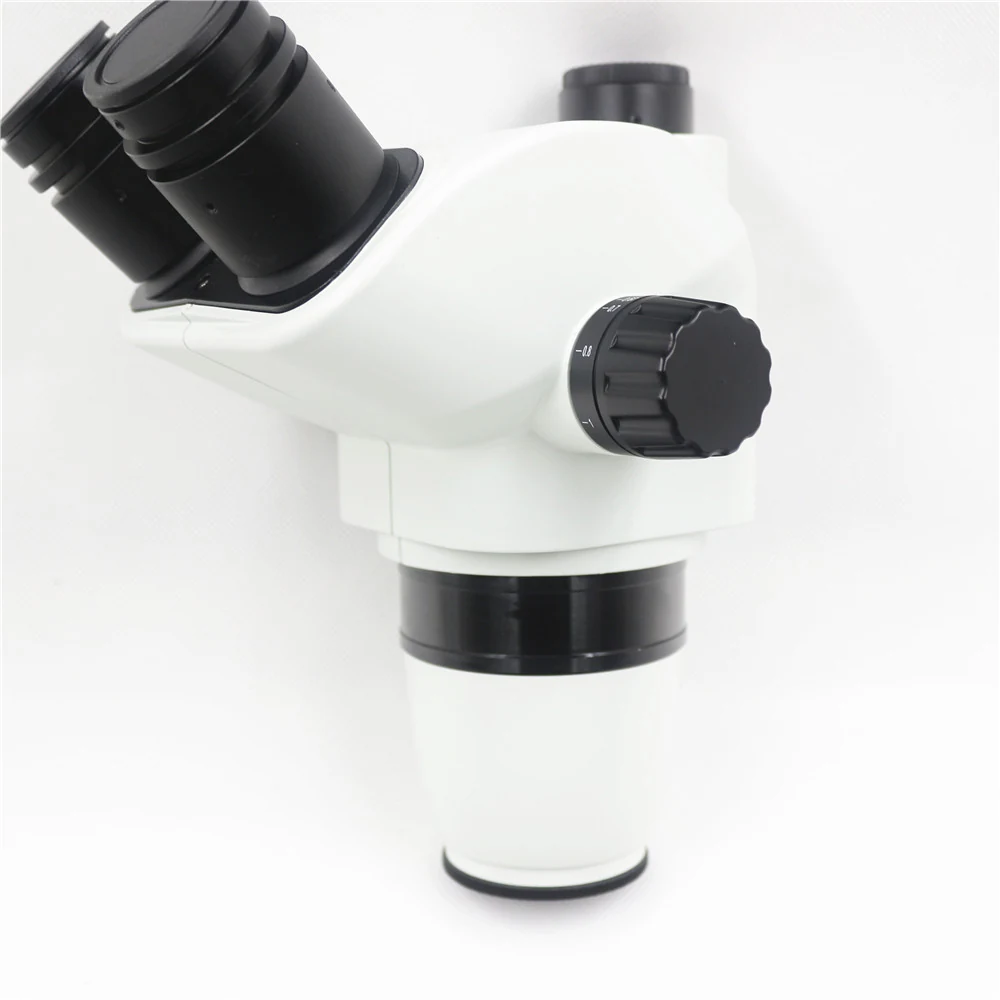

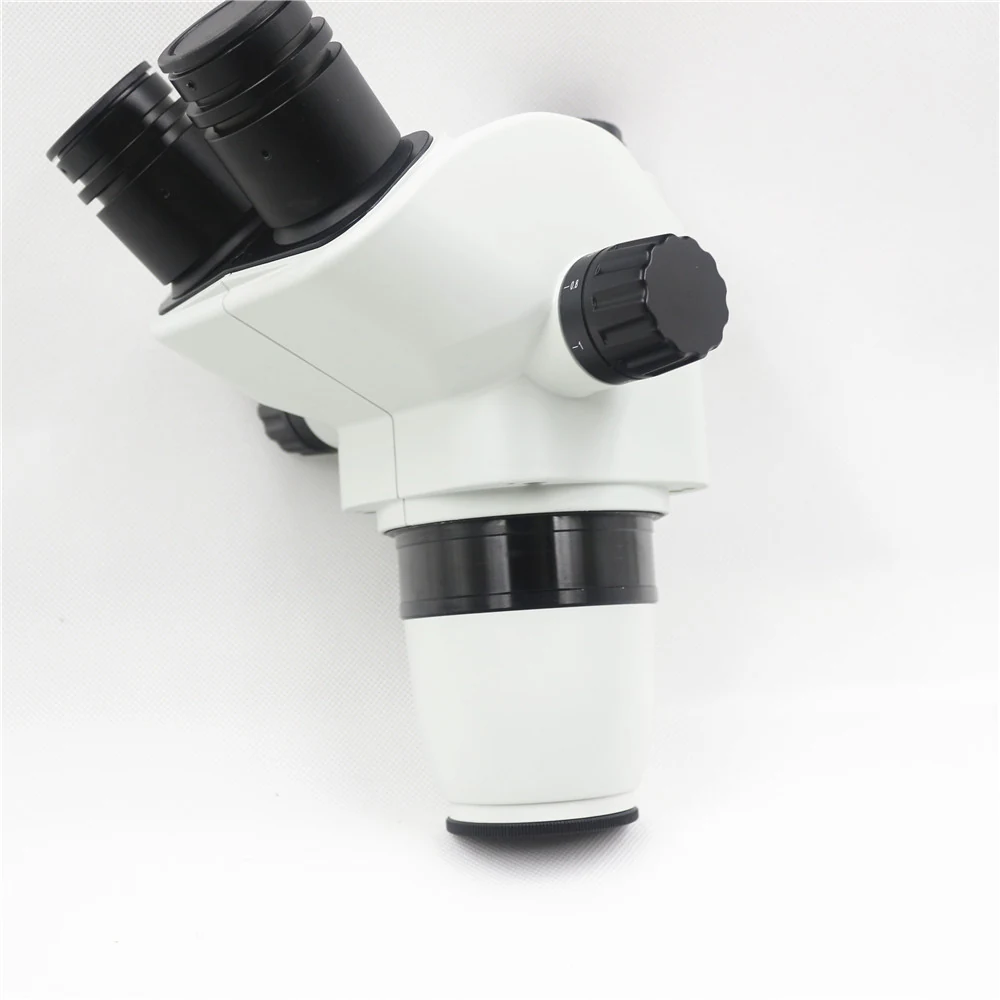

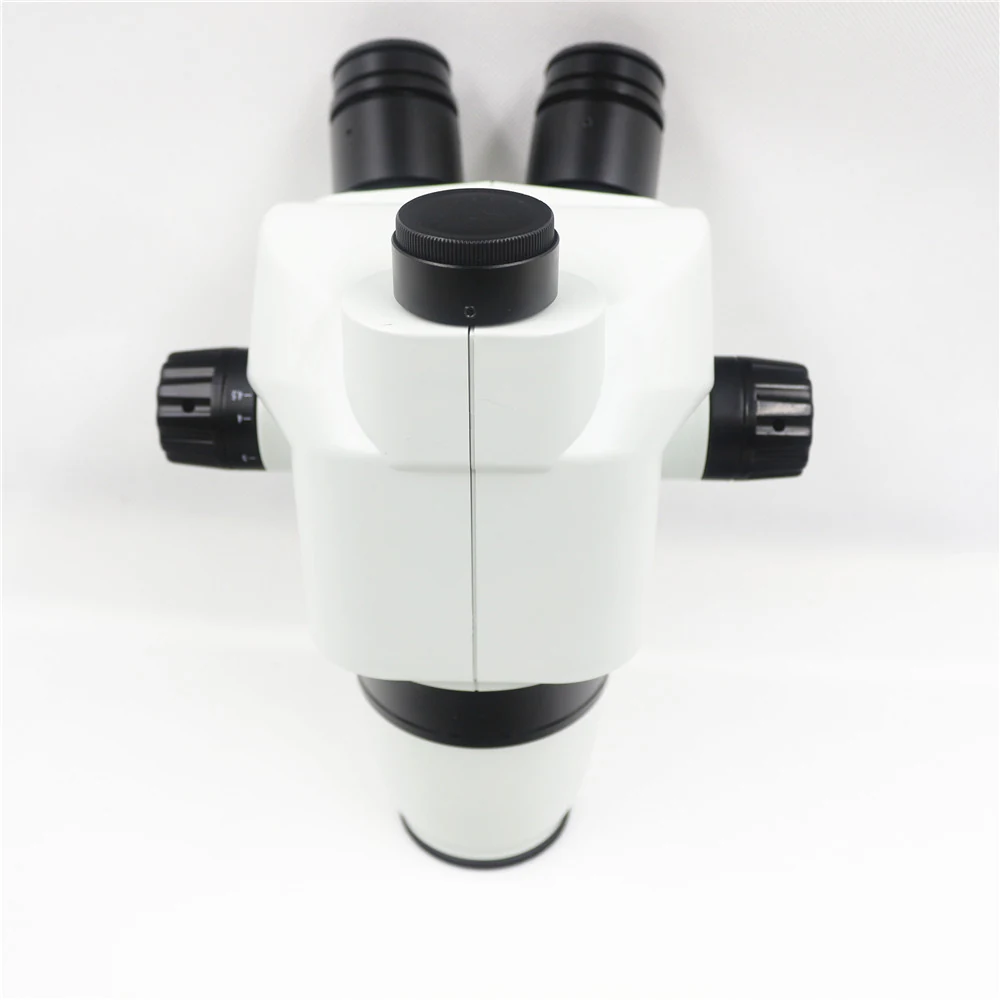

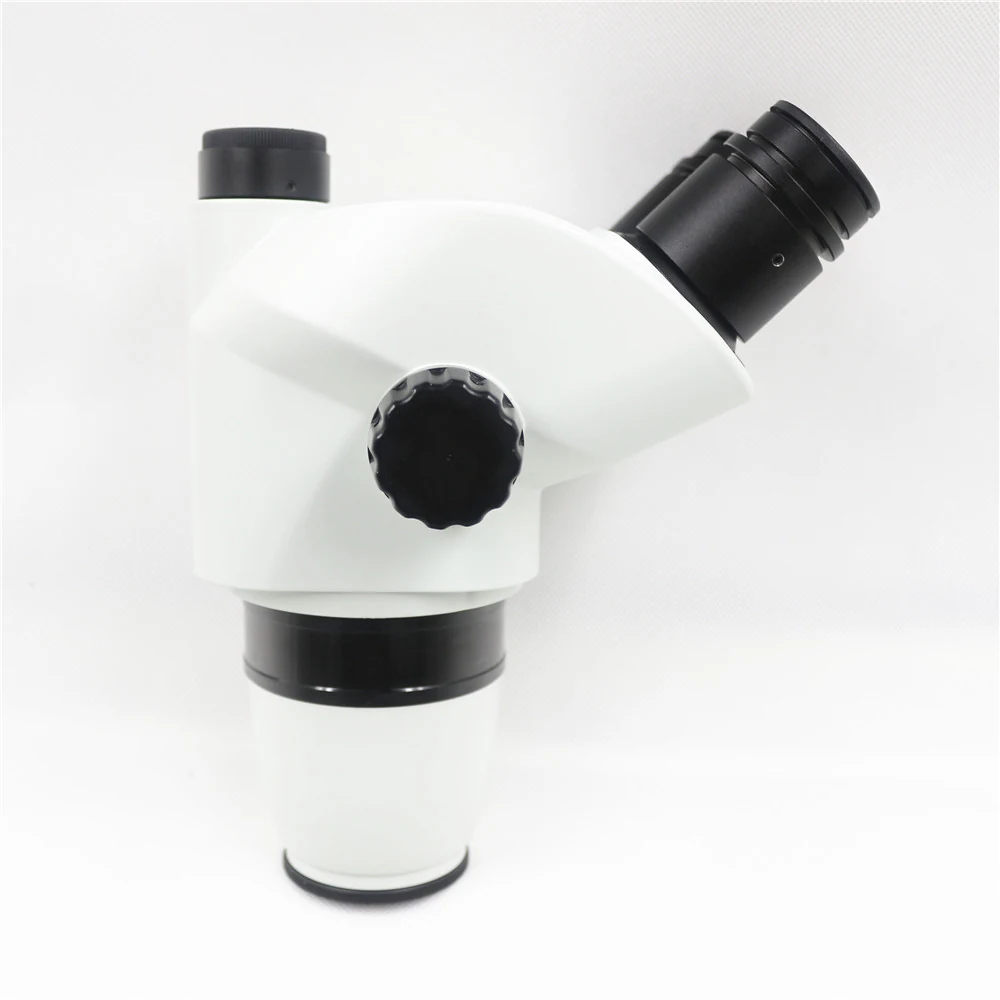

XSZ6745 6.7X~45X Trinocular Stereo Microscope Head
XSZ6745 6.7X~45X Trinocular Stereo Microscope Head
XSZ6745 6.7X~45X Trinocular Stereo Microscope Head
XSZ6745 6.7X~45X Trinocular Stereo Microscope Head
XSZ6745 6.7X~45X Trinocular Stereo Microscope Head
XSZ6745 6.7X~45X Trinocular Stereo Microscope Head

XSZ6745 6.7X~45X Trinocular Stereo Microscope Head

XSZ6745 is a trinocular stereo microscope head from Nanjing AMADA Instrument for electronics, precision assembly, and laboratory inspection. It features a Greenough optical system, 6.7X–45X magnification range, 1X objective, 105 mm working distance, and 45° inclined, 360° rotatable binocular/trinocular body with interpupillary and diopter adjustments. Optional eyepieces and objectives extend the range to 3.4X–270X.

  • Trinocular head with 45° inclination and 360° rotation for ergonomic viewing and flexible positioning
  • Interpupillary adjustment 54–75 mm and diopter ±5 diopters for user-specific fit, including glasses wearers
  • 105 mm working distance on 1X objective for handling components and tools under the lens
  • Wide magnification range 6.7X–45X with optional eyepieces and objectives for flexible inspection tasks
  • Supports multiple auxiliary objectives (0.3X–2X) and eyepieces (WF10X–WF30X) to extend field of view and magnification
Request A Quote +86-15195807515

Technical features

  • Greenough optical system for true stereo depth perception
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment: 54–75 mm
  • Diopter adjustment: ±5 diopters per eyepiece
  • Eyepiece: WF10X/22 mm high-eyepoint, wide-field, suitable for glasses wearers
  • Zoom ratio: 1:6.7
  • Magnification range: 6.7X–45X (standard 1X objective)
  • Working distance: 105 mm (1X objective)

Who it is for

  • Electronics manufacturers and repair labs requiring trinocular microscope heads
  • Importers specifying stereo microscope heads for production or quality control lines
  • Distributors building optical inspection product catalogs with modular components

Specifications

ModelXSZ6745
Head TypeBinocular / Trinocular
Inclination Angle45°
Rotation360°, lockable
Interpupillary Adjustment54–75 mm
Diopter Adjustment±5 diopters
EyepieceWF10X/22 mm high-eyepoint
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Optional EyepiecesWF15X/16 mm, WF20X/12 mm, WF25X/9 mm, WF30X/8 mm
Extended Working Distance30–165 mm
Extended Field of View1.1–57.1 mm

Use guide

  • Select trinocular head if camera integration is required for documentation
  • Use 0.5X or 0.7X auxiliary objectives when extended working distance (up to 165 mm) is needed
  • Choose higher magnification eyepieces (e.g., WF25X/9 mm) for detailed inspection at higher magnification
  • Adjust interpupillary distance and diopter to match individual observer needs

FAQ

What is the working distance on the 1X objective?
105 mm with the standard 1X objective.
Can I use this head with a camera?
Yes. The trinocular version supports camera attachment via the central port.
What eyepieces are compatible?
WF10X/22 mm, WF15X/16 mm, WF20X/12 mm, WF25X/9 mm, and WF30X/8 mm are compatible.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, and 2X are available as optional accessories.
Is the head adjustable for glasses wearers?
Yes. The diopter adjustment is ±5 diopters and the high-eyepoint eyepiece is designed for glasses wearers.
