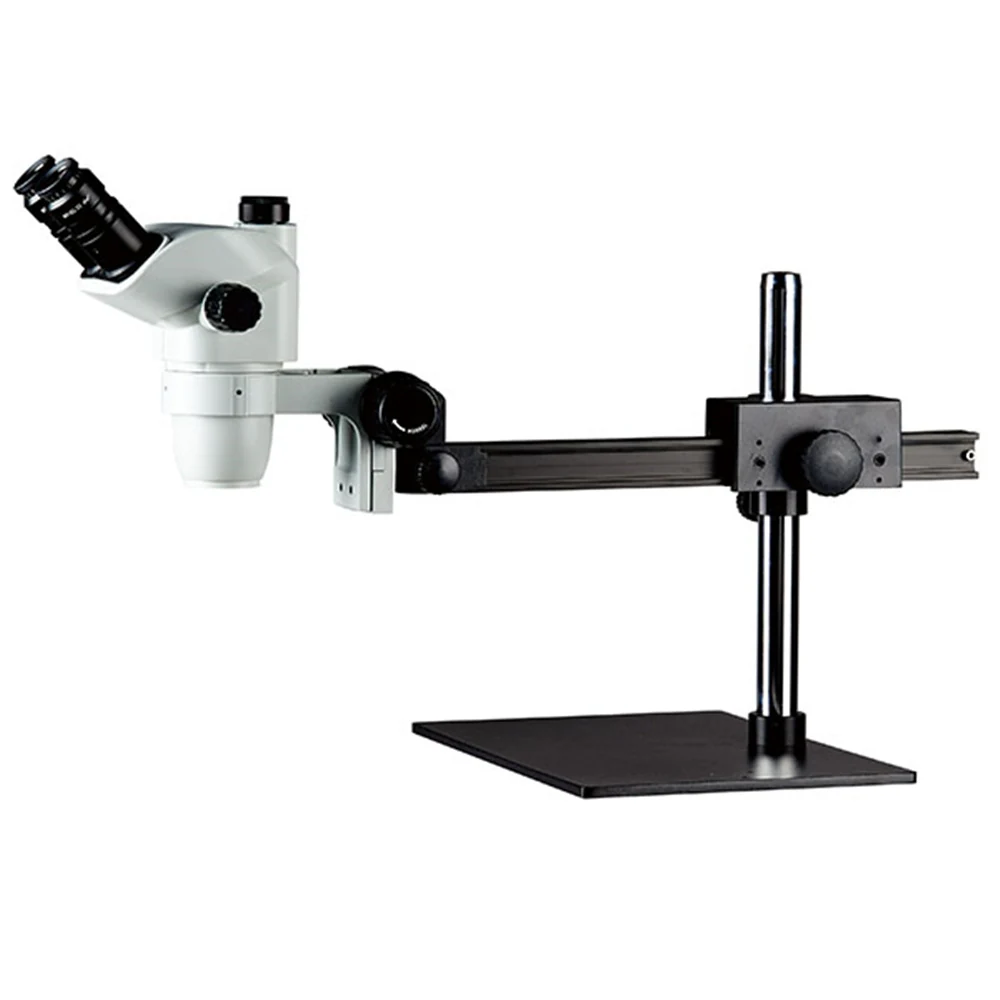

XSZ6745-STL8 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL8 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL8 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL8 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL8 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

XSZ6745-STL8 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

XSZ6745-STL8 is a stereo zoom microscope from Nanjing AMADA Instrument for LED PCB inspection, electronics assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1X objective and 1:6.7 zoom ratio. It features a binocular or trinocular head, 45° inclined and 360° rotatable, with interpupillary adjustment 54–75 mm and diopter compensation ±5 diopters. Working distance is 105 mm on the standard 1X path, expandable with auxiliary objectives. Optional eyepieces and objectives allow extended magnification up to 270X and field of view from 1.1 mm to 57.1 mm.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed inspection of small LED PCB components
  • 105 mm working distance on standard 1X objective path for handling soldering tools and fixtures
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing and camera integration
  • Interpupillary adjustment 54–75 mm and ±5 diopter compensation for users wearing glasses
  • Expandable magnification to 270X using optional eyepieces and auxiliary objectives
  • Wide field of view range from 1.1 mm to 57.1 mm depending on configuration
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X with 1X objective
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepiece: WF10X/22 mm high-eyepoint, wide-field; suitable for users wearing glasses
  • Working distance 105 mm with 1X objective; adjustable with auxiliary objectives (0.3X–2X)
  • Field of view range 23.8–4.9 mm with 1X objective; 1.1–57.1 mm with optional components
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Optional eyepieces: WF15X/16 mm, WF20X/12 mm, WF25X/9 mm, WF30X/8 mm

Who it is for

  • Electronics manufacturers specifying microscopes for PCB and LED inspection
  • Importers sourcing stereo zoom microscopes for production line integration
  • Distributors building a catalog for industrial inspection equipment

Specifications

ModelXSZ6745-STL8
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Interpupillary Distance54–75 mm
Diopter Adjustment±5 diopters
Eyepiece TypeWF10X/22 mm high-eyepoint
Head TypeBinocular / Trinocular, 45° inclined, 360° rotatable
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Optional EyepiecesWF15X/16 mm, WF20X/12 mm, WF25X/9 mm, WF30X/8 mm

Use guide

  • Select binocular or trinocular head based on whether camera output is required
  • Use 1X objective for standard 105 mm working distance and 6.7X–45X magnification
  • Add 0.5X or 0.7X objective when more working distance is needed for tall fixtures
  • Use 2X or 1.5X objective when higher magnification is required for fine solder joints
  • Choose eyepiece based on required magnification and field of view (e.g., WF30X for high mag, WF10X for wide view)

FAQ

What is the working distance on the standard 1X objective?
105 mm. With 0.5X objective it increases to 165 mm; with 2X it reduces to 30 mm.
Can I add a camera?
Yes. The trinocular head supports camera integration via standard C-mount or other video output connectors.
What eyepieces are available?
WF10X/22 mm (standard), WF15X/16 mm, WF20X/12 mm, WF25X/9 mm, WF30X/8 mm.
What auxiliary objectives are offered?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
