XSZ6745-STL4 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL4 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL4 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL4 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL4 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

XSZ6745-STL4 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

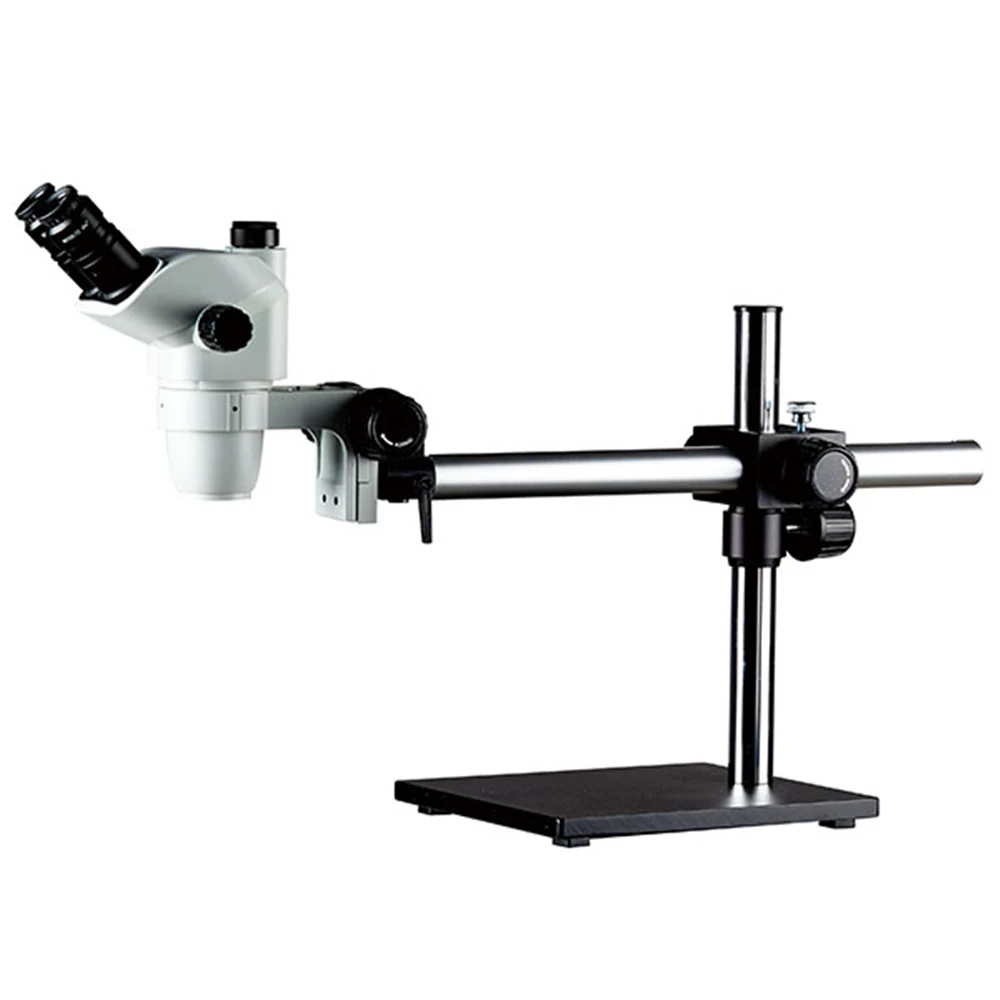

XSZ6745-STL4 is a stereo zoom microscope from Nanjing AMADA Instrument for LED PCB inspection, electronics assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1:6.7 zoom ratio, 105 mm working distance on the standard 1X objective path, binocular or trinocular head, and optional auxiliary objectives and eyepieces for extended magnification and field of view.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for consistent detail across inspection tasks
  • 105 mm working distance on standard 1X path for handling PCBs and small components
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing
  • Adjustable interpupillary distance (54–75 mm) and ±5 diopter correction for users wearing glasses
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF10X–WF30X) to extend magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Standard eyepiece WF10X/22 mm high-eyepoint, wide-field, suitable for glasses wearers
  • Working distance 105 mm with 1X objective; adjustable to 30–165 mm with auxiliary objectives
  • Field of view 23.8–4.9 mm with 1X objective; 1.1–57.1 mm with auxiliary objectives
  • Auxiliary objectives available: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Eyepiece options: WF10X/22 mm, WF15X/16 mm, WF20X/12 mm, WF25X/9 mm, WF30X/8 mm

Who it is for

  • Electronics manufacturers and PCB inspection teams
  • Procurement engineers specifying stereo microscopes for production or quality control
  • Distributors sourcing inspection tools for electronics and semiconductor applications

Specifications

ModelXSZ6745-STL4
Zoom Ratio1:6.7
Magnification Range6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
EyepieceWF10X/22 mm standard
Head TypeBinocular / Trinocular, 45° inclined, 360° rotatable
Interpupillary Adjustment54–75 mm
Diopter Adjustment±5 diopters
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Eyepiece OptionsWF10X/22 mm, WF15X/16 mm, WF20X/12 mm, WF25X/9 mm, WF30X/8 mm

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Use 1X objective for standard 105 mm working distance and 6.7X–45X magnification
  • Add auxiliary objectives (e.g., 0.5X or 0.7X) to increase working distance or reduce magnification
  • Choose eyepieces (e.g., WF20X/12 mm) to increase magnification or widen field of view

FAQ

What is the working distance on the standard 1X objective?
105 mm with the built-in 1X objective path.
Can I use this microscope with a camera?
Yes. The trinocular head supports camera integration via standard C-mount or video output connectors.
What eyepieces are available?
Available eyepieces: WF10X/22 mm, WF15X/16 mm, WF20X/12 mm, WF25X/9 mm, WF30X/8 mm.
What auxiliary objectives are offered?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X for adjusting magnification and working distance.
Is the head adjustable for glasses wearers?
Yes. The eyepieces have ±5 diopter adjustment and high-eyepoint design for comfortable use with glasses.
