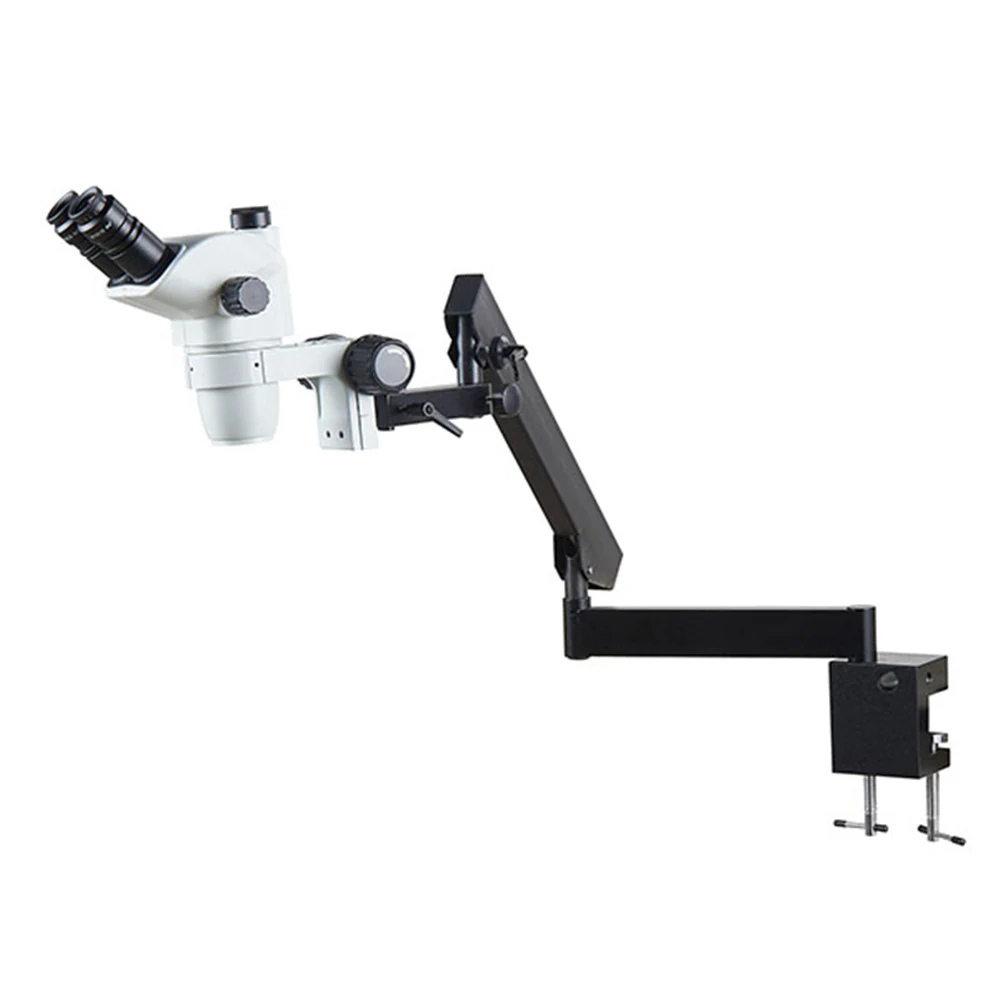

XSZ6745-STL6A 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-STL6A 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-STL6A 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-STL6A 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-STL6A 6.7X-45X Stereo Zoom Microscope for Phone Repairing

XSZ6745-STL6A 6.7X-45X Stereo Zoom Microscope for Phone Repairing

XSZ6745-STL6A is a stereo zoom microscope designed for precision phone repairing, electronics assembly, and small component inspection. It features a 6.7X–45X magnification range with a 1:6.7 zoom ratio, 105 mm working distance on the standard 1X objective path, binocular or trinocular head, and optional auxiliary objectives and eyepieces for extended range and field of view.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed inspection of small electronic components
  • 105 mm working distance on 1X path allows space for tools and soldering during phone repair
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing
  • Adjustable interpupillary distance (54–75 mm) and diopter compensation (±5 diopters) for user comfort
  • Optional eyepieces and objectives extend magnification to 3.4X–270X and field of view to 57.1 mm
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X on standard 1X objective
  • Working distance 105 mm with 1X objective; varies from 30 mm to 165 mm with auxiliary objectives
  • Field of view 23.8 mm to 4.9 mm on standard 1X path; expands to 1.1 mm to 57.1 mm with optional optics
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepiece options: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Greenough optical system for true stereo depth perception

Who it is for

  • Phone repair shops and mobile device service centers
  • Electronics manufacturers specifying inspection tools for small-scale production
  • Distributors sourcing stereo microscopes for repair and testing equipment catalogs

Specifications

ModelXSZ6745-STL6A
Zoom Ratio1:6.7
Magnification Range6.7X–45X (standard 1X objective)
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Interpupillary Distance54–75 mm
Diopter Adjustment±5 diopters
Eyepiece TypeWF10X/22mm (standard)
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Head TypeBinocular or Trinocular, 45° inclined, 360° rotatable

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Use 1X objective for standard 105 mm working distance and 6.7X–45X magnification
  • Add 0.5X or 0.3X auxiliary objective to increase working distance beyond 105 mm
  • Use 2X or 1.5X objective to increase magnification for fine soldering or tiny component inspection
  • Choose eyepiece based on required field of view and magnification (e.g., WF30X/8mm for high magnification)

FAQ

What is the working distance on the standard 1X objective?
105 mm. With 0.5X objective it increases to 165 mm; with 2X it reduces to 30 mm.
Can I use this microscope with a camera?
Yes. The trinocular head supports camera attachment via standard C-mount or video output connectors.
Are eyepieces included?
The WF10X/22mm eyepiece is standard. Other eyepieces are optional and sold separately.
Can I adjust for glasses wearers?
Yes. The eyepieces have ±5 diopter adjustment and high-eyepoint design for comfortable use with glasses.
What magnification range can I achieve?
6.7X–45X with 1X objective. With optional eyepieces and objectives, the range extends to 3.4X–270X.
