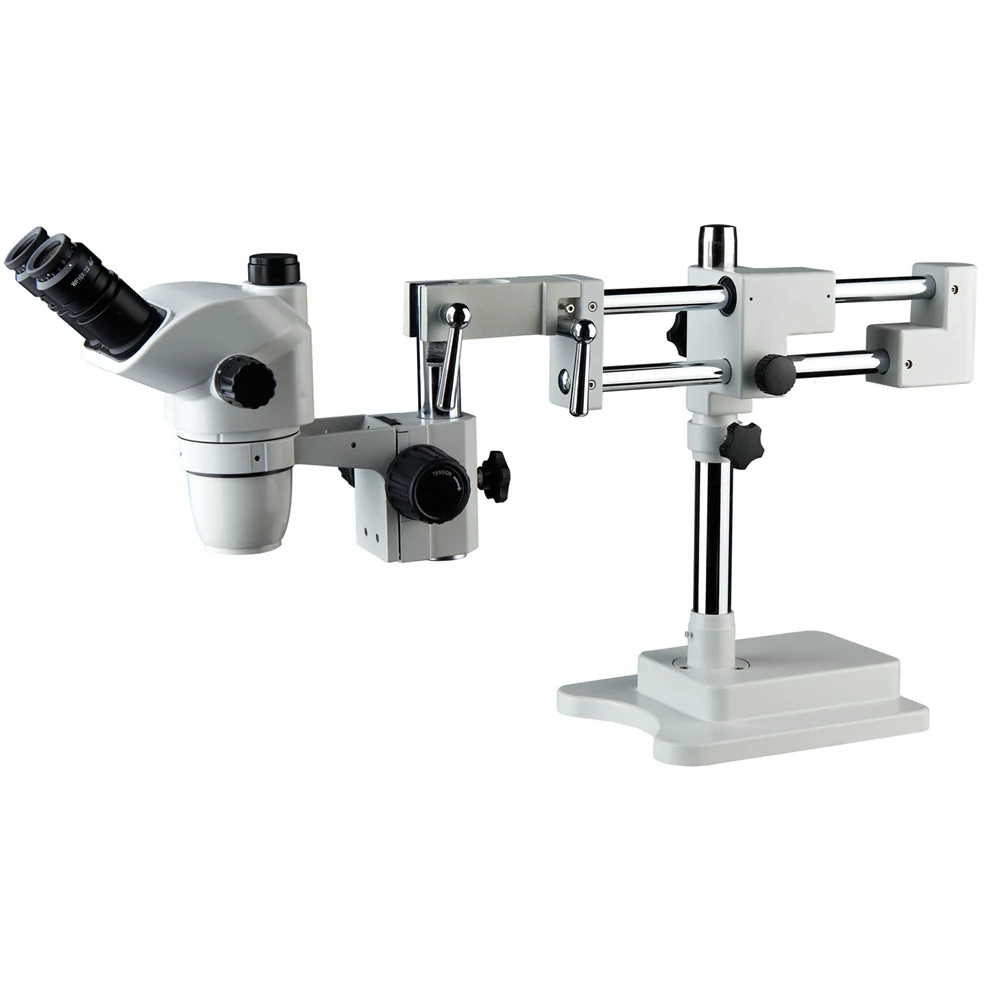

XSZ6745-STL2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-STL2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-STL2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-STL2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-STL2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-STL2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-STL2 is a stereo zoom microscope from Nanjing AMADA Instrument for electronics inspection, PCB assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1X objective, 105 mm working distance, and a 1:6.7 zoom ratio. It features a binocular or trinocular head, 45° inclined and 360° rotatable, with diopter adjustment and interpupillary range of 54–75 mm. Optional objectives and eyepieces extend the range to 3.4X–270X.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed electronics inspection
  • 105 mm working distance on standard 1X objective path for handling components and tools
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing
  • Interpupillary adjustment 54–75 mm and ±5 diopter correction for multiple users
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF10X–WF30X) to extend magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X with 1X objective
  • Working distance 105 mm (1X); with 0.3X objective 165 mm; with 2X objective 30 mm
  • Field of view 23.8–4.9 mm (1X); with 0.3X objective 57.1 mm; with 2X objective 1.1 mm
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Magnification range extended to 3.4X–270X with optional eyepieces and objectives

Who it is for

  • Electronics manufacturers and repair labs sourcing inspection tools
  • Importers specifying stereo microscopes for production line integration
  • Distributors building a catalog for industrial and lab optical equipment

Specifications

ModelXSZ6745-STL2
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Head TypeBinocular / Trinocular
Head Angle45° inclined
Rotation360° rotatable, lockable
Interpupillary Adjustment54–75 mm
Diopter Adjustment±5 diopters
EyepiecesWF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Extended Magnification Range3.4X–270X

Use guide

  • Select binocular or trinocular head based on whether camera output is required
  • Choose eyepiece (WF10X–WF30X) to match desired magnification and field of view
  • Add auxiliary objective (0.3X–2X) to extend working distance or magnification as needed
  • Use 0.3X objective for maximum working distance (165 mm) and wide field of view
  • Use 2X objective for high magnification (up to 45X × 2 = 90X) with reduced working distance (30 mm)

FAQ

What is the working distance on the standard 1X configuration?
105 mm with the built-in 1X objective. With 0.3X objective it is 165 mm; with 2X objective it is 30 mm.
Can I add a camera?
Yes. The trinocular head supports camera integration via standard C-mount or 1.0x adapter.
What eyepieces are available?
WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm — selectable for different magnification and field of view.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X — extend magnification and adjust working distance.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
