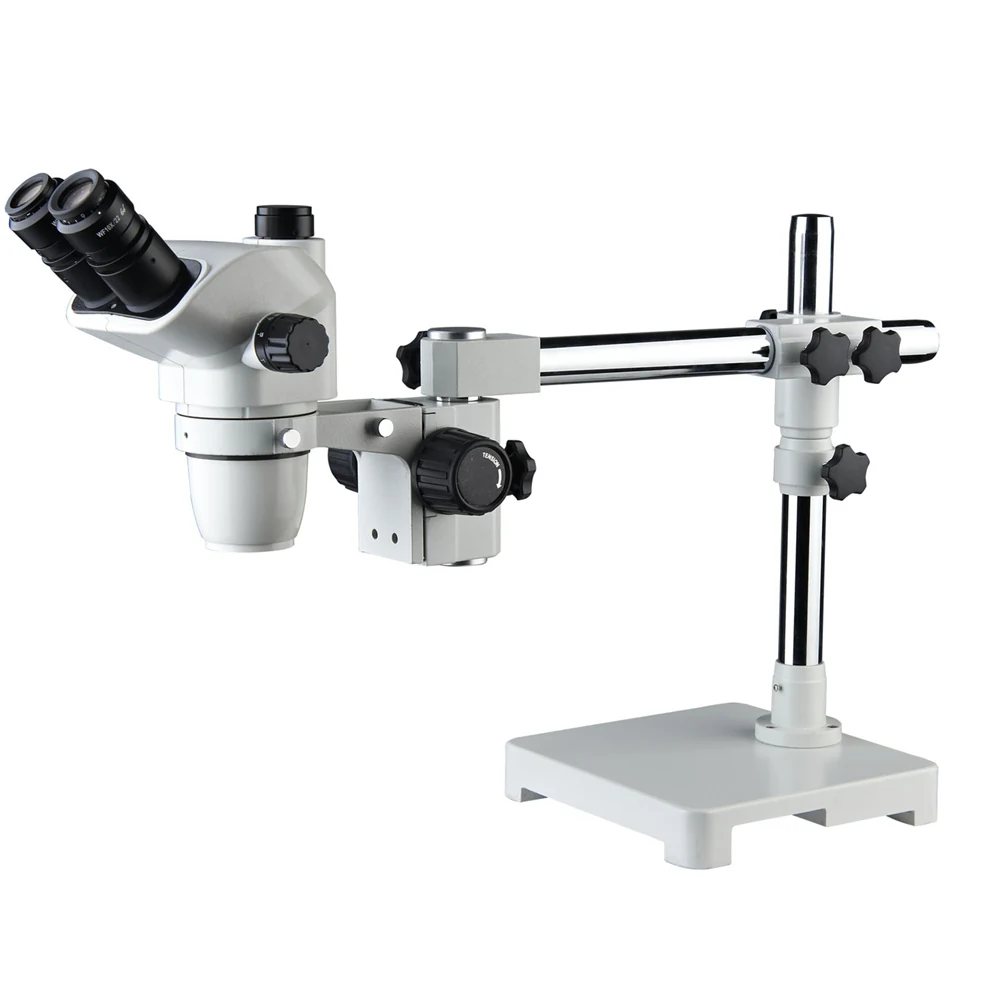

XSZ6745-STL1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-STL1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

XSZ6745-STL1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

XSZ6745-STL1 is a stereo zoom microscope from Nanjing AMADA Instrument for LED PCB inspection, electronics assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1:6.7 zoom ratio, 105 mm working distance on the standard 1X objective path, binocular or trinocular head, and optional auxiliary objectives and eyepieces for extended field of view and magnification.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed inspection of small LED components and PCB features
  • 105 mm working distance on standard 1X path allows space for tools and fixtures during soldering and rework
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing and camera integration
  • Adjustable interpupillary distance (54–75 mm) and ±5 diopter correction for users wearing glasses
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF10X–WF30X) to extend magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X (standard 1X objective)
  • Working distance 105 mm (1X); varies with auxiliary objectives (30–165 mm)
  • Field of view 23.8–4.9 mm (1X); expands to 57.1 mm at 0.3X with auxiliary objective
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Standard objective: 1X

Who it is for

  • Electronics manufacturers specifying microscopes for PCB and LED inspection
  • Procurement engineers sourcing inspection tools for production or quality control lines
  • Distributors building a product catalog focused on precision optical inspection equipment

Specifications

ModelXSZ6745-STL1
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Eyepiece TypeWF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Head TypeBinocular / Trinocular
Head Inclination45°
Interpupillary Adjustment54–75 mm
Diopter Adjustment±5 diopters
Optical SystemGreenough

Use guide

  • Select binocular or trinocular head based on whether camera output is needed
  • Use 0.3X auxiliary objective to increase working distance and field of view for large or tall components
  • Choose eyepiece based on required magnification and field of view (e.g., WF30X for high magnification, WF10X for wide field)
  • Combine objectives and eyepieces to achieve desired total magnification and working distance

FAQ

What is the working distance on the standard 1X configuration?
105 mm with the built-in 1X objective. Working distance varies with auxiliary objectives (30–165 mm).
Can I add a camera?
Yes. The trinocular version supports camera integration via the video output port.
What eyepieces are available?
WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm.
Can I use this microscope with glasses?
Yes. The diopter adjustment (±5 diopters) and high-eyepoint eyepieces accommodate users wearing glasses.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
