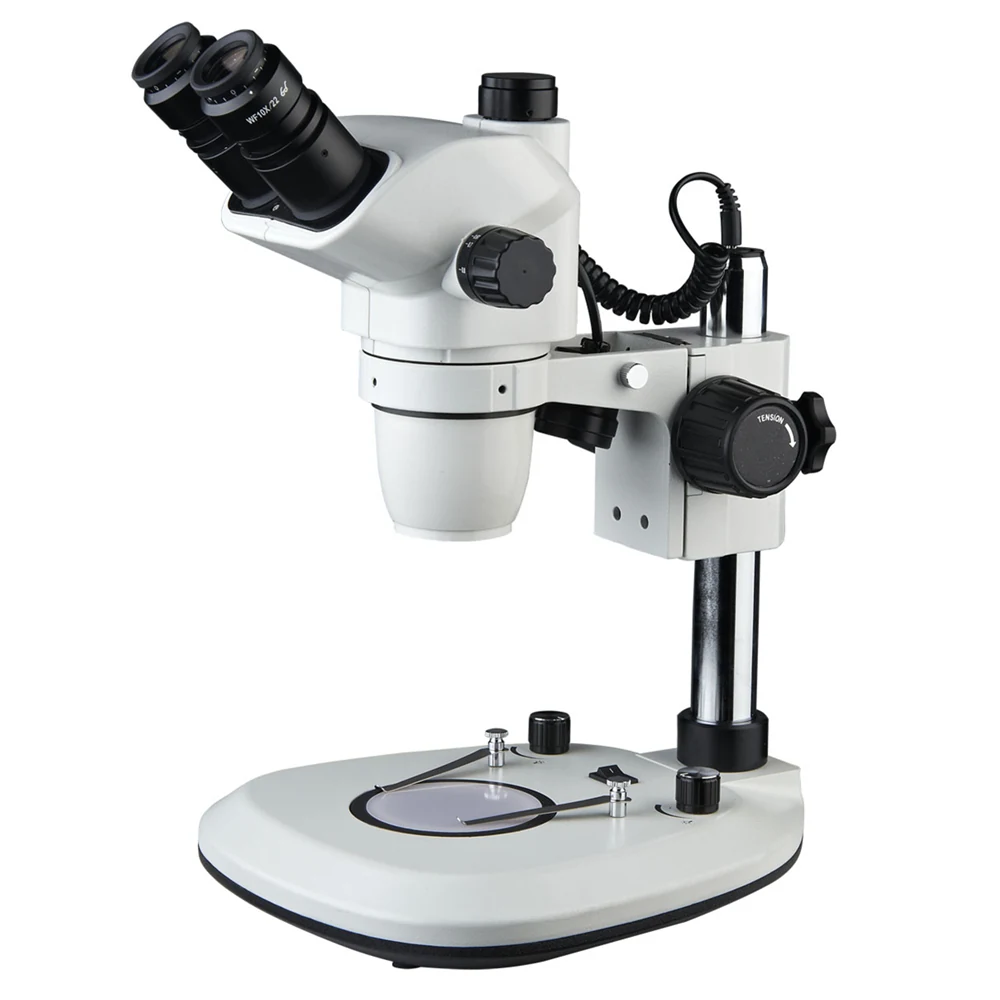

XSZ6745-J4L 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-J4L 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-J4L 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-J4L 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-J4L 6.7X-45X Stereo Zoom Microscope for Phone Repairing

XSZ6745-J4L 6.7X-45X Stereo Zoom Microscope for Phone Repairing

XSZ6745-J4L is a stereo zoom microscope from Nanjing AMADA Instrument designed for precision phone repairing, small component inspection, and electronics bench work. The model offers a magnification range of 6.7X–45X with a 1X objective, 105 mm working distance, and a 45° inclined binocular or trinocular head with 360° rotation and lockable positioning. It supports optional auxiliary objectives and eyepieces for extended magnification and field of view control.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for consistent detail across inspection tasks
  • 105 mm working distance on the standard 1X objective path for handling small electronic components
  • 360° rotatable and lockable binocular/trinocular head with 45° inclination for ergonomic viewing
  • Interpupillary adjustment 54–75 mm and ±5 diopter correction for users wearing glasses
  • Optional auxiliary objectives and eyepieces allow flexible magnification and field of view tuning
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X with 1X objective
  • Working distance 105 mm (1X); adjustable to 30–165 mm with auxiliary objectives
  • Field of view 23.8–4.9 mm (1X); expands to 1.1–57.1 mm with auxiliary objectives and eyepieces
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Standard optical system: Greenough design for true stereo depth perception

Who it is for

  • Phone repair technicians and small electronics repair shops
  • Importers sourcing microscopes for mobile device repair toolkits
  • Distributors building inspection equipment catalogs for electronics repair markets

Specifications

ModelXSZ6745-J4L
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Head TypeBinocular / Trinocular
Head Inclination45°
Rotation360° rotatable, lockable
Interpupillary Adjustment54–75 mm
Diopter Adjustment±5 diopters
Eyepiece StandardWF10X/22mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Optional EyepiecesWF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm

Use guide

  • Select the 1X objective for standard 6.7X–45X operation with 105 mm working distance
  • Use 0.5X or 0.7X auxiliary objectives to increase working distance to 165 mm for tall fixtures
  • Choose 2X or 1.5X objectives to increase magnification beyond 45X for fine detail inspection
  • Add trinocular head and video output when camera documentation is required

FAQ

What is the working distance on the standard 1X objective?
105 mm. With 0.5X objective it increases to 165 mm; with 2X it reduces to 30 mm.
Can I use this microscope with a camera?
Yes. The trinocular version supports video output connectors for microscope cameras.
Are eyepieces included in the base model?
The WF10X/22mm eyepiece is standard. Other eyepieces are optional and sold separately.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X — each changes working distance and magnification range.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
