XSZ6745-J3L 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-J3L 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-J3L 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-J3L 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-J3L 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

XSZ6745-J3L 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

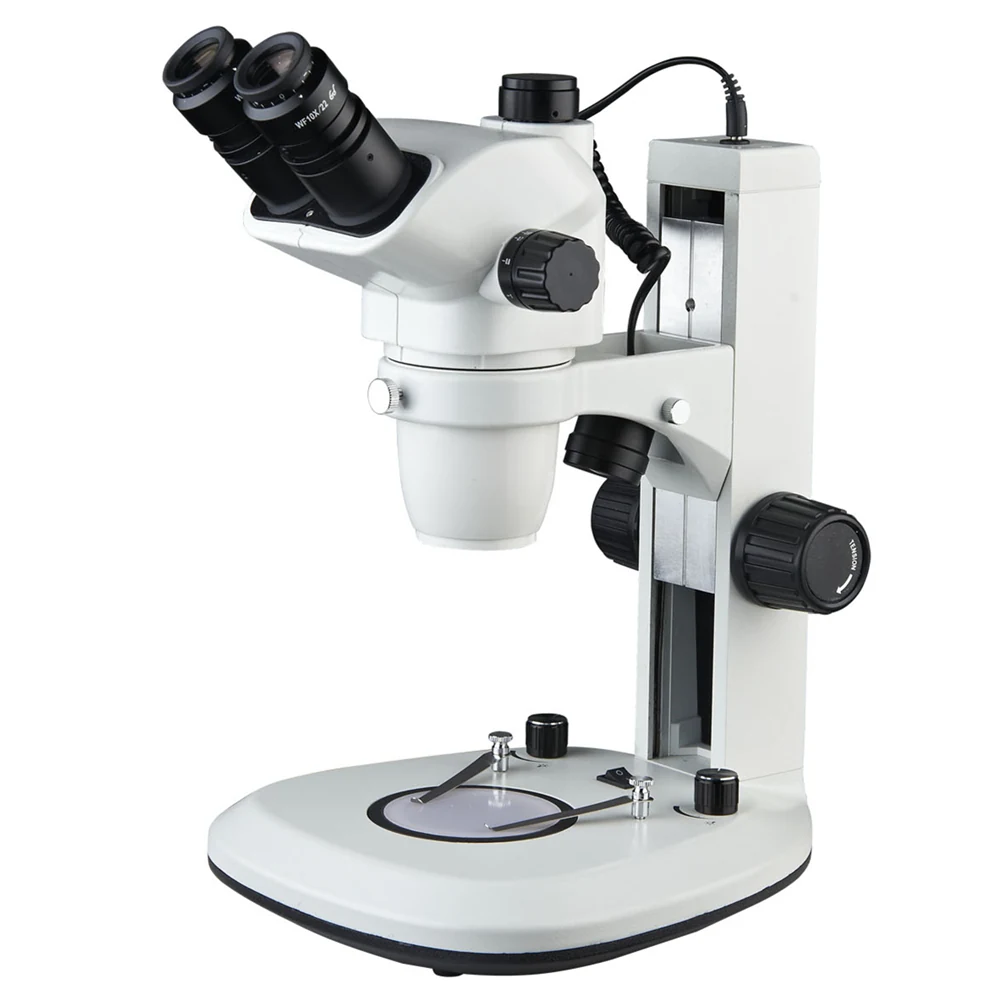

XSZ6745-J3L is a stereo zoom microscope from Nanjing AMADA Instrument designed for LED PCB inspection, electronics assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1:6.7 zoom ratio, a 105 mm working distance on the standard 1X objective path, and a binocular or trinocular head with 45° inclination and 360° rotation. It supports optional auxiliary objectives and eyepieces to extend magnification to 3.4X–270X and field of view to 1.1–57.1 mm.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed inspection of small LED PCB features
  • 105 mm working distance on 1X path allows space for tools and components during soldering and rework
  • Binocular or trinocular head with 45° incline and 360° rotation enables ergonomic viewing and camera integration
  • Interpupillary adjustment 54–75 mm and ±5 diopter compensation for users wearing glasses
  • Optional auxiliary objectives and eyepieces extend magnification and field of view for diverse inspection needs
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X on standard 1X objective path
  • Working distance 105 mm with 1X objective; adjustable to 30–165 mm with auxiliary objectives
  • Field of view 23.8–4.9 mm with standard WF10X/22mm eyepiece
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepiece options: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Extended magnification range: 3.4X–270X with optional eyepieces and objectives

Who it is for

  • Electronics manufacturers producing LED PCBs and SMT assemblies
  • Procurement engineers sourcing inspection microscopes for production lines
  • Distributors building a catalog of stereo microscopes for industrial inspection

Specifications

ModelXSZ6745-J3L
Zoom Ratio1:6.7
Magnification Range (Standard)6.7X–45X
Working Distance (1X)105 mm
Field of View (Standard)23.8–4.9 mm
Eyepiece TypeWF10X/22mm (standard)
Interpupillary Distance54–75 mm
Diopter Adjustment±5 diopters
Head TypeBinocular / Trinocular, 45° inclined, 360° rotatable
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Use 1X objective for standard 105 mm working distance and 6.7X–45X magnification
  • Add auxiliary objectives (e.g., 0.5X or 2X) to extend working distance or magnification
  • Choose eyepieces (e.g., WF30X/8mm) for higher magnification and smaller field of view

FAQ

What is the working distance on the standard 1X objective?
105 mm. With auxiliary objectives, it ranges from 30 mm to 165 mm.
Can I use this microscope with a digital camera?
Yes. The trinocular head supports camera attachment via standard C-mount or video output connectors.
What eyepieces are available?
WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm.
What auxiliary objectives are offered?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
Is the head adjustable for users wearing glasses?
Yes. The interpupillary distance adjusts from 54–75 mm and includes ±5 diopter compensation.
