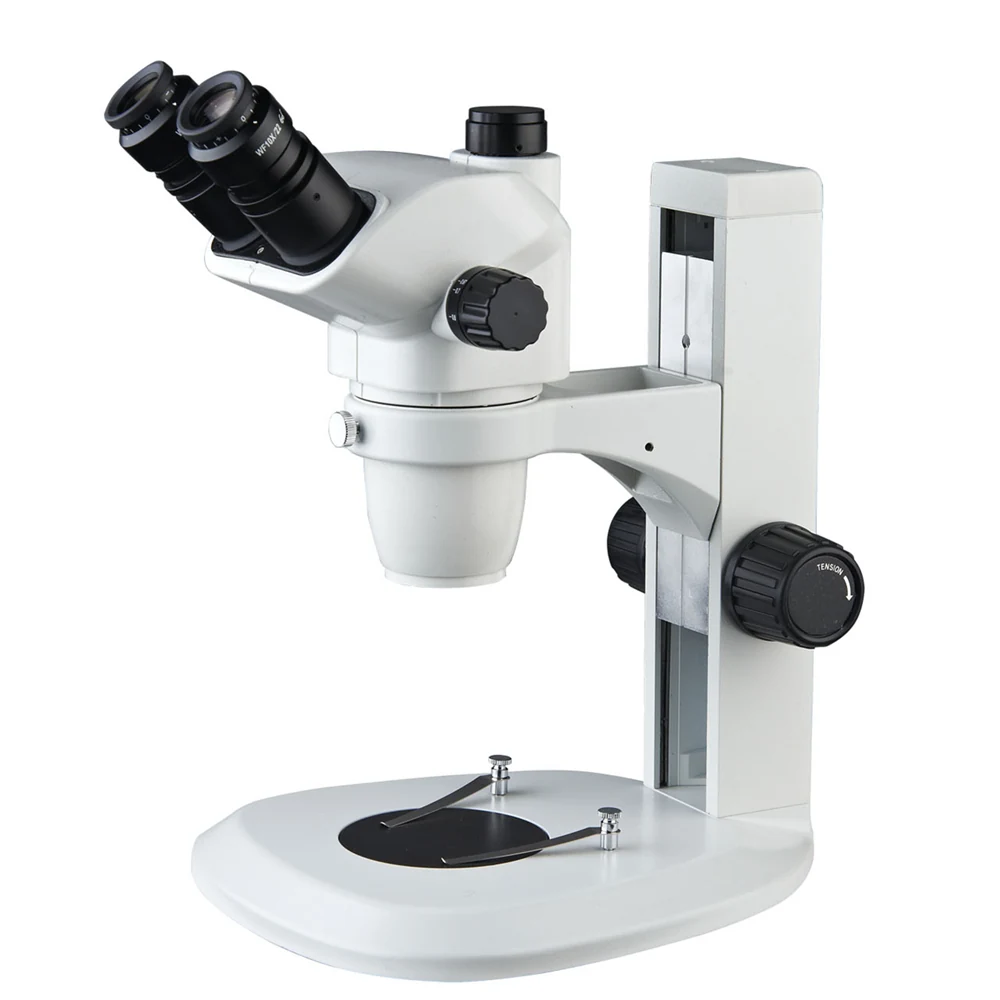

XSZ6745-J2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-J2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-J2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-J2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-J2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-J2 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-J2 is a stereo zoom microscope from Nanjing AMADA Instrument for electronic inspection, PCB assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1:6.7 zoom ratio, 105 mm working distance on the standard 1X objective path, binocular or trinocular head, and optional auxiliary objectives and eyepieces for extended reach and field of view.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed inspection of small electronic components
  • 105 mm working distance on the 1X path allows space for tools and fixtures during soldering and rework
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing and camera integration
  • Adjustable interpupillary distance (54–75 mm) and diopter compensation (±5 diopters) for multiple users and glasses wearers
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF10X–WF30X) extend magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X on standard 1X objective
  • Working distance 105 mm with 1X objective; 30–165 mm with optional auxiliary objectives
  • Field of view 23.8–4.9 mm on 1X; 1.1–57.1 mm with optional objectives and eyepieces
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepiece options: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Microscope body sold separately; can be paired with any configuration from the outfit list

Who it is for

  • Electronics manufacturers sourcing inspection microscopes for production lines
  • Importers specifying stereo zoom microscopes for industrial and lab use
  • Distributors building a catalog of optical inspection tools for electronics and precision industries

Specifications

ModelXSZ6745-J2
Zoom Ratio1:6.7
Magnification Range6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Head TypeBinocular / Trinocular
Head Inclination45°
Rotation360° rotatable, lockable
Interpupillary Adjustment54–75 mm
Diopter Adjustment±5 diopters
Standard EyepieceWF10X/22mm high-eyepoint
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Optional EyepiecesWF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm

Use guide

  • Select binocular or trinocular head based on whether camera integration is needed
  • Choose auxiliary objective (e.g., 0.5X) to increase working distance for tall fixtures
  • Select eyepiece (e.g., WF30X) for higher magnification and smaller field of view on small components
  • Verify compatibility of selected objectives and eyepieces with the microscope body before ordering

FAQ

What is the working distance on the standard 1X configuration?
105 mm with the built-in 1X objective path.
Can I use a camera with this microscope?
Yes. The trinocular version supports camera integration via the 50:50 or 100% light path options.
What eyepieces are available?
WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm — selectable from the outfit list.
What auxiliary objectives are offered?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X — extend magnification and working distance.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
