XSZ6745-J1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-J1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-J1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-J1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-J1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

XSZ6745-J1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

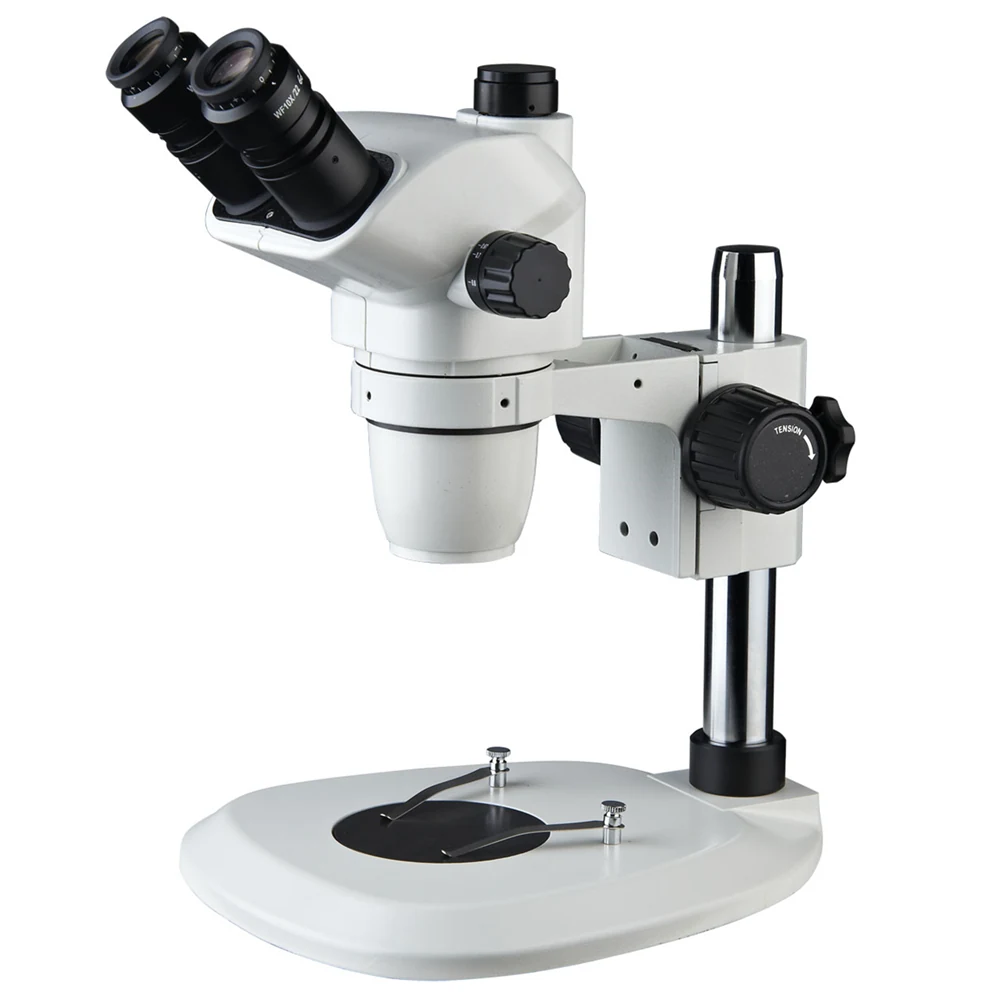

XSZ6745-J1 is a stereo zoom microscope from Nanjing AMADA Instrument for LED PCB inspection, electronics assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1X objective and 105 mm working distance. It features a binocular or trinocular head, 45° inclined and 360° rotatable, with diopter adjustment and interpupillary range of 54–75 mm. Optional objectives and eyepieces extend the magnification to 3.4X–270X and field of view to 1.1–57.1 mm.

  • 6.7X–45X magnification range with 1X objective for detailed LED PCB and small component inspection
  • 105 mm working distance on standard 1X path for handling soldering tools and fixtures
  • Binocular or trinocular head with 360° rotation and lockable position for ergonomic viewing
  • Diopter adjustment (±5 diopters) and interpupillary adjustment (54–75 mm) for multiple users
  • Optional objectives (0.3X–2X) and eyepieces (WF10X–WF30X) to extend magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X with 1X objective
  • Working distance 105 mm (1X); extends to 30–165 mm with auxiliary objectives
  • Field of view 23.8–4.9 mm (1X); expands to 1.1–57.1 mm with optional eyepieces and objectives
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Microscope body sold separately; can be paired with any compatible head and accessories

Who it is for

  • Electronics manufacturers inspecting LED and PCB assemblies
  • Procurement engineers sourcing stereo microscopes for production line integration
  • Distributors building a product line for electronics and precision manufacturing

Specifications

ModelXSZ6745-J1
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
EyepiecesWF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (with objectives)30–165 mm
Field of View (with objectives)1.1–57.1 mm
Head TypeBinocular / Trinocular
Head Inclination45°
Rotation360° rotatable, lockable
Interpupillary Adjustment54–75 mm
Diopter Adjustment±5 diopters

Use guide

  • Select binocular or trinocular head based on whether camera integration is required
  • Use 1X objective for standard 6.7X–45X inspection with 105 mm working distance
  • Add auxiliary objectives (e.g., 0.5X or 2X) when extending working distance or magnification is needed
  • Choose eyepieces based on required field of view and magnification (e.g., WF30X for high magnification, WF10X for wide field)

FAQ

What is the working distance on the standard configuration?
105 mm with the 1X objective. With auxiliary objectives, it ranges from 30 mm to 165 mm.
Can I add a camera?
Yes. The trinocular head supports camera attachment via standard C-mount or video output connectors.
What eyepieces are available?
WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm — selectable based on magnification and field of view needs.
What objectives can I use?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X — available as optional accessories to extend magnification and working distance.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
