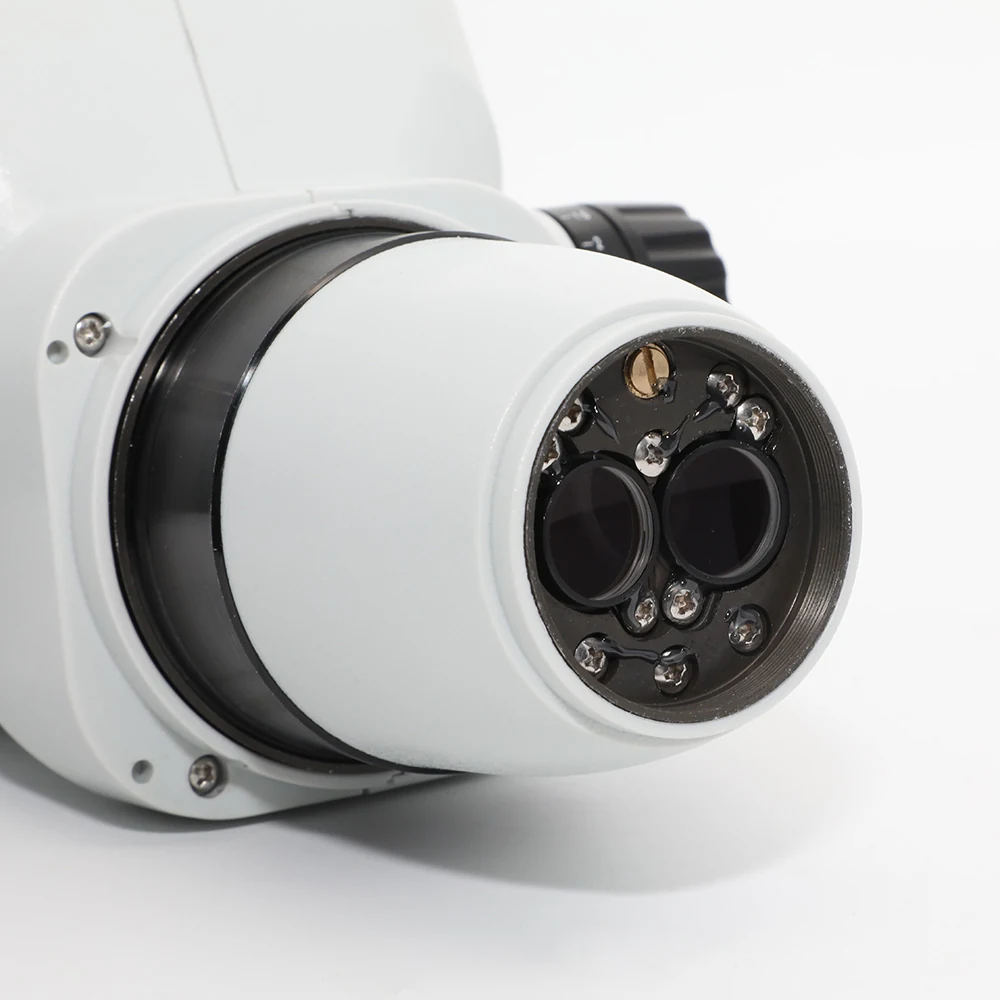

XSZ6745 6.7X~45X Binocular Stereo Microscope Head
XSZ6745 6.7X~45X Binocular Stereo Microscope Head

XSZ6745 6.7X~45X Binocular Stereo Microscope Head

XSZ6745 is a binocular stereo microscope head from Nanjing AMADA Instrument for bench-level inspection in electronics, precision assembly, and laboratory work. It features a 6.7X–45X magnification range, 1X objective, 105 mm working distance, and a 45° inclined, 360° rotatable body with lockable positioning. The head supports optional auxiliary objectives and eyepieces to extend magnification and field of view.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for consistent detail across inspection tasks
  • 105 mm working distance on the standard 1X objective path for handling components and tools
  • 45° inclined, 360° rotatable head with lockable position for ergonomic viewing and flexible setup
  • Interpupillary adjustment 54–75 mm and ±5 diopter correction for users wearing glasses
  • Support for multiple eyepieces and auxiliary objectives to expand magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X with 1X objective
  • Working distance 105 mm (1X objective); 30–165 mm with auxiliary objectives
  • Field of view 23.8–4.9 mm (1X); 1.1–57.1 mm with auxiliary objectives and eyepieces
  • Binocular or trinocular head; 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Standard eyepiece WF10X/22 mm high-eyepoint; compatible with WF15X/16 mm, WF20X/12 mm, WF25X/9 mm, WF30X/8 mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Microscope body sold separately; compatible with standard pillar or guide rail stands

Who it is for

  • Electronics manufacturers and repair labs sourcing microscope heads for inspection benches
  • Importers specifying stereo microscope heads with adjustable viewing angles and working distance
  • Distributors building optical accessory catalogs for industrial and lab use

Specifications

ModelXSZ6745
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Interpupillary Distance54–75 mm
Diopter Adjustment±5 diopters
Eyepiece StandardWF10X/22 mm high-eyepoint
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

Use guide

  • Select binocular or trinocular configuration based on documentation needs
  • Use 1X objective for standard 105 mm working distance and 6.7X–45X magnification
  • Add auxiliary objectives (e.g., 0.5X) to increase working distance to 165 mm or 2X to increase magnification
  • Choose high-power eyepieces (e.g., WF20X/12 mm) to extend magnification beyond 45X

FAQ

What is the working distance with the 1X objective?
105 mm with the standard 1X objective path.
Can I use higher magnification eyepieces?
Yes. Compatible with WF15X/16 mm, WF20X/12 mm, WF25X/9 mm, and WF30X/8 mm for extended magnification.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, and 2X for adjusting working distance and magnification.
Is the head rotatable?
Yes. The 45° inclined head rotates 360° and can be locked in any position.
Can I use this with a camera?
Yes. The trinocular option supports camera attachment via standard C-mount or video output connectors.
