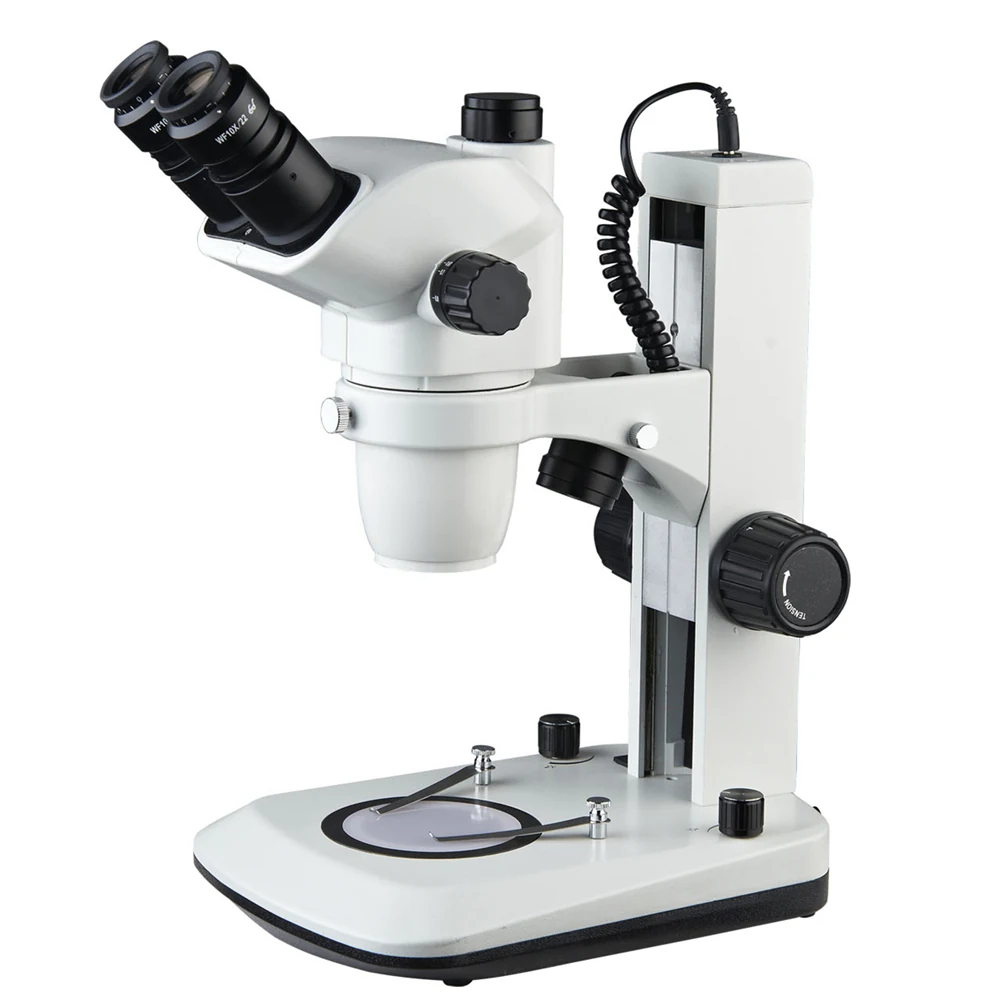

XSZ6745-B9L 6.7X-45X Stereo Zoom Microscope for Phone Repairing

Technical features

• Zoom ratio 1:6.7; magnification range 6.7X–45X with 1X objective
• Working distance 105 mm (1X); adjustable to 30–165 mm with auxiliary objectives
• Field of view 23.8–4.9 mm (1X); extends to 1.1–57.1 mm with auxiliary objectives and eyepieces
• Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
• Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
• Eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
• Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
• Magnification range extends to 3.4X–270X with optional components

Who it is for

• Phone repair shops and mobile device service centers
• Electronics manufacturers specifying micro-inspection tools for production lines
• Distributors sourcing stereo microscopes for repair and electronics markets
• Laboratories conducting small-scale component analysis

Specifications

Use guide

• Select binocular or trinocular head based on whether camera documentation is required
• Use 1X objective for standard 6.7X–45X range with 105 mm working distance
• Add auxiliary objectives (e.g., 0.5X or 2X) to adjust working distance or magnification as needed
• Choose eyepieces (e.g., WF10X or WF30X) to match desired field of view and magnification
